OCTP Series Scanner
Installation of the OCT Scan Lens Kit
The OCT scan lens kits from Thorlabs are accessories specially designed to support telecentric scanning over
a wide range and to compensate the dispersion mismatch of the scanner.
If you ordered a scan lens kit with the OCTP, these items are pre-installed.
OCT-LK2(-BB), OCT-LK3(-BB), and OCT-LK4(-BB) Installation Procedure
The OCT-LK2(-BB), OCT-LK3(-BB), and OCT-LK4(-BB) lens kits are fully compatible with the OCTP Series.
If they are not already installed, the installation procedure follows these three steps:
•
Insert the included OCT scan lens by screwing it in,
•
Insert the illumination module,
•
Secure the illumination module using the four included M2.5 x 6 cap screws
OCT-LK5(-BB) Installation Procedure
The OCT-LK5 and OCT-LK5-BB lens kits are appropriate for use with the OCTG-1300NR and OCTG11NR
systems, respectively.
For compatibility with other scanners please contact oct@thorlabs.com.
Page 10

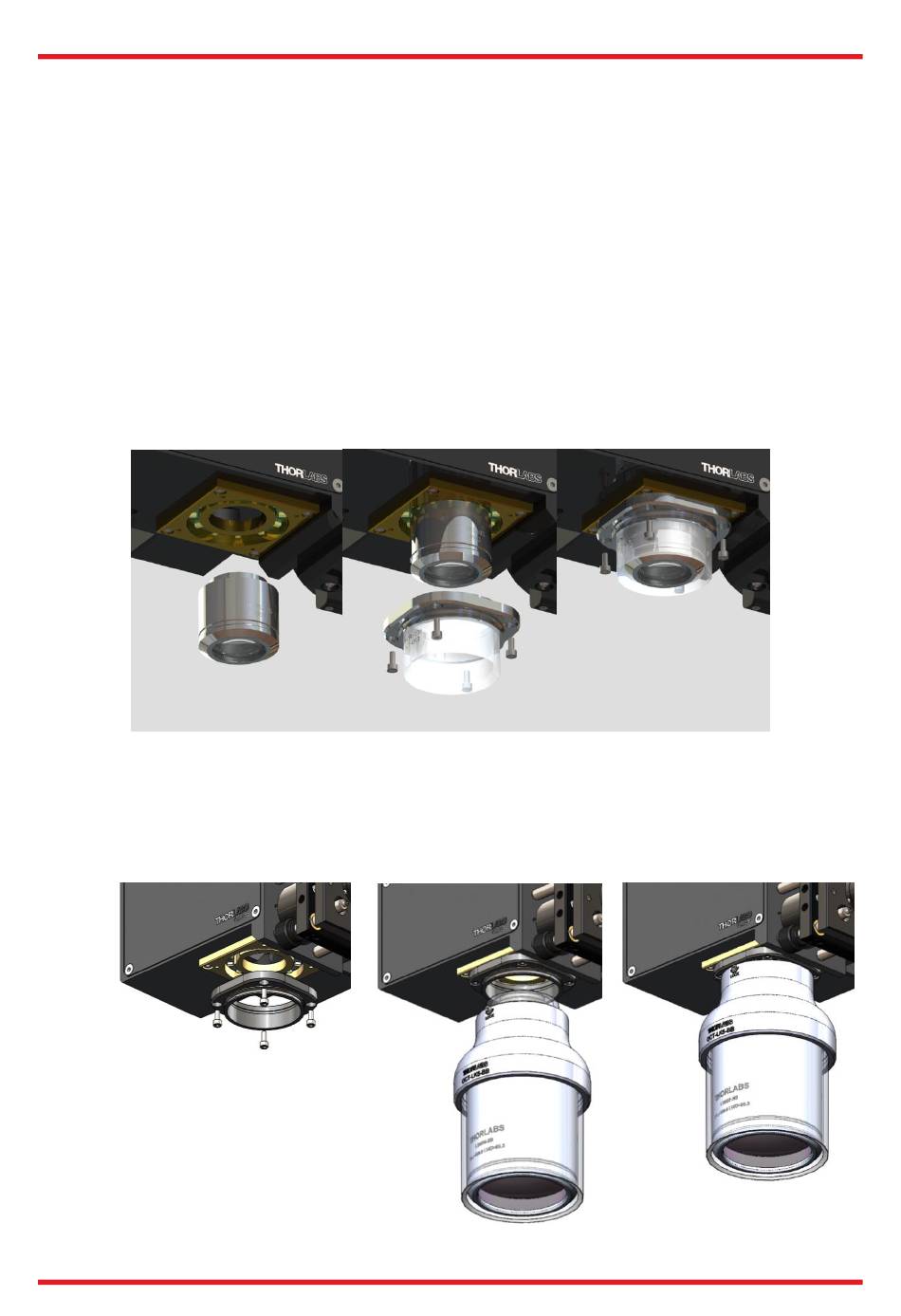

Figure 9 Installation of Scan Objective and Illumination
Chapter 3: Components and Compatibility
MTN003971-D02
