OCTP Series Scanner
3.1.5. Objective Holders
There are two different brass plates included that are used to hold the objective to the OCTP:
•
The pre-installed objective holder for the use of our OCT-LKx scan lens kits.
For an OCTP scanner ordered with a scan lens kit, it is pre-installed. These kits include a telecentric
scan lens (Item # LSM02, LSM02-BB, LSM03, LSM03-BB, LSM04, LSM04-BB, LSM05, or LSM05-
BB) and a matched sample illumination light conductor.

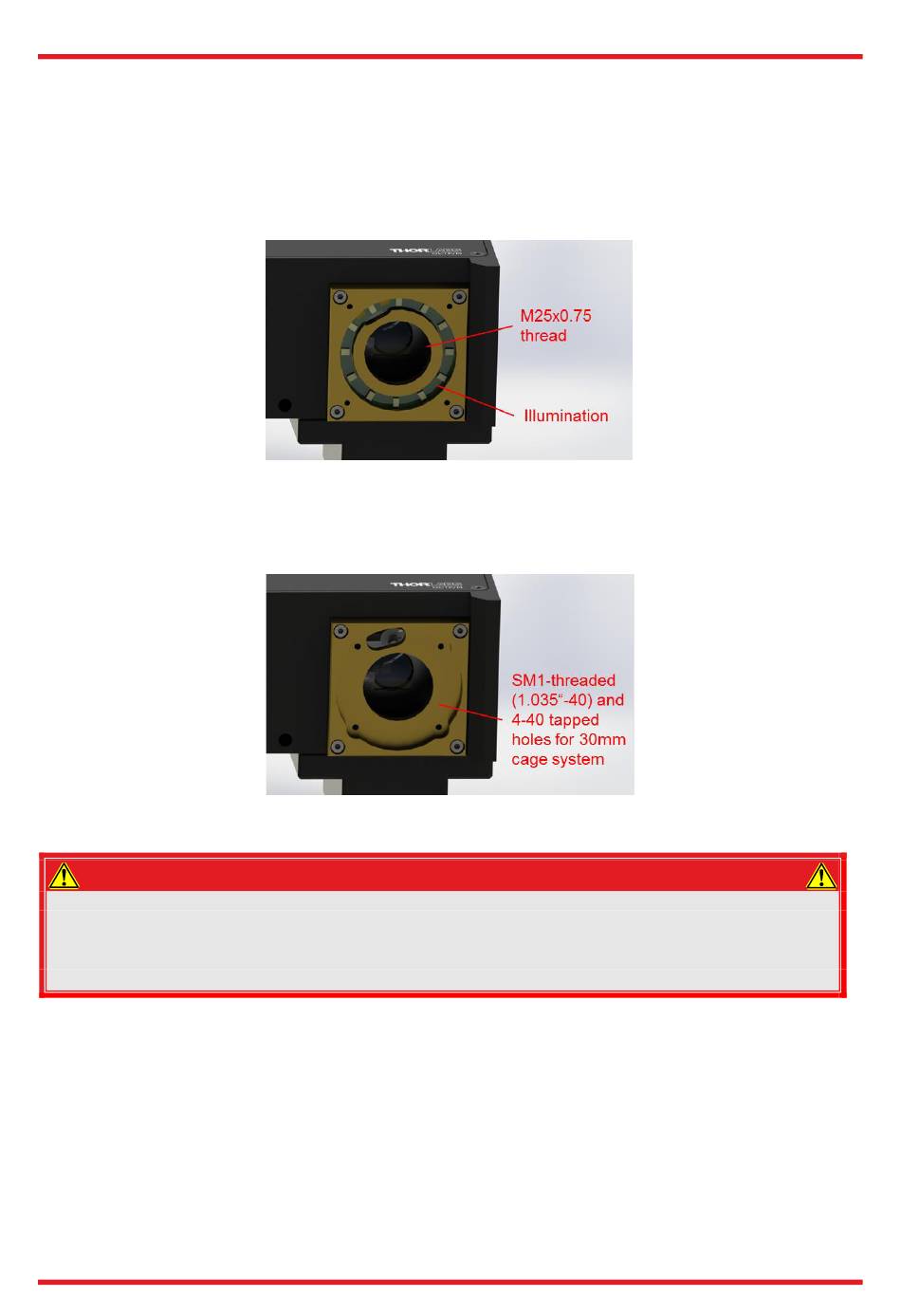

Figure 6 Objective Holder for OCT-LKx Scan Lens Kits or M25-Threaded Objectives
•
Alternatively, another brass plate with internal SM1 (1.035"-40) threads and four 4-40 tapped holes for
our 30 mm cage systems is included.
Figure 7 Objective Holder for SM1-Threaded Optomechanics and 30 mm Cage System
The illumination of the pre-installed objective holder for OCT-LKx Scan Lens Kits is connected
When changing the brass plates this connection must be disconnected using the internal
Page 8
ATTENTION
to a power supply.
electric plug.
Chapter 3: Components and Compatibility
