Summary of Contents for THORLABS LSK-GG

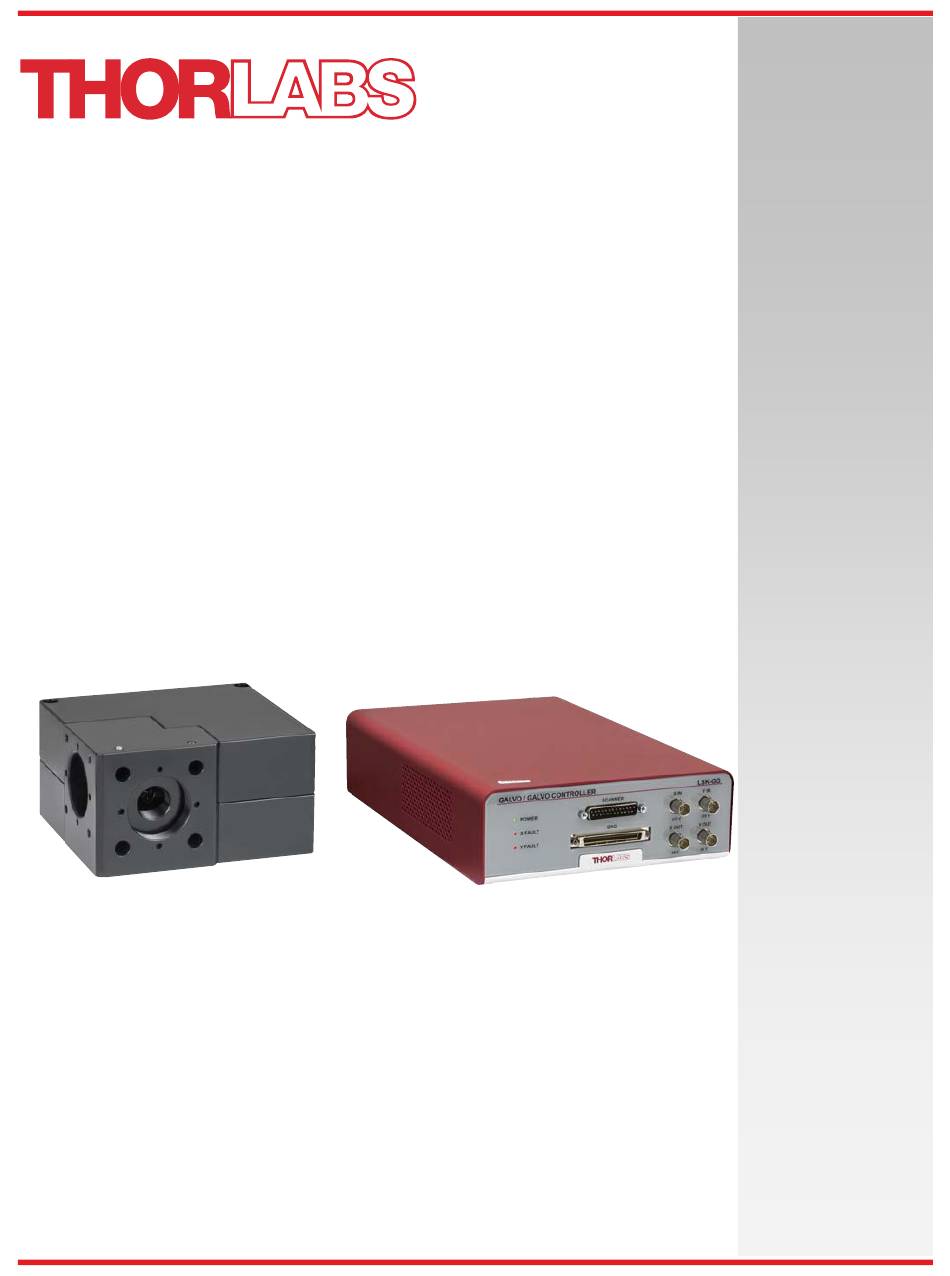

- Page 1 LSK-GG Laser Scanning Kit – Galvo-Galvo Scan Head User Guide...
- Page 2 Thorlabs, Inc.
-
Page 3: Table Of Contents
Chapter 3 Description ........................... 3 3.1. Overview .......................... 3 Chapter 4 Getting Started ........................ 5 4.1. Unpacking and Inspection ....................5 4.2. Setting Up the LSK-GG ....................5 Preparation ..........................5 Chapter 5 Maintaining the LSK-GG ..................... 7 5.1. Cleaning ........................... 7 ... -
Page 4: Chapter 1 Warning Symbol Definitions
LSK-GG Chapter 1: Warning Symbol Definitions Chapter 1 Warning Symbol Definitions Below is a list of warning symbols you may encounter in this manual or on your device. Symbol Description Direct Current Alternating Current Both Direct and Alternating Current Earth Ground Terminal... -
Page 5: Chapter 2 Safety
WARNING DO NOT use the device for anything other than its intended use. If the device is used in a manner not specified by Thorlabs, the protection provided by the equipment may be impaired. CAUTION DO NOT operate in a wet, damp, or explosive environment. -
Page 6: Chapter 3 Description
Chapter 3 Description Thorlabs’ Laser Scanning Kit (LSK-GG) helps you to build a customized laser scanning microscopy system. LSK- GG consists of a scan head and a controller. The scan head has two precision aligned galvo mirrors and mounting features compatible with Thorlabs’ optomechanical product lines. The controller has a high performance driver package that consists of a power supply and driver for each mirror. - Page 7 LSK-GG Chapter 3: Description Power Input Fuse Holder Power Switch Ground Connector Figure 2 Galvo/Galvo Controller Back Panel Page 4 TTN118193-D02...
-
Page 8: Chapter 4 Getting Started
AC Power Cord ER05 Rod Inspect the device and its accessories for any missing parts or damage. If there is any problem, please contact our nearest office (see Chapter 12 Thorlabs Worldwide Contacts for details). 4.2. Setting Up the LSK-GG... - Page 9 5. Remove the tape on the Input/Output port of the Scan Head. 6. Connect one end of the AC power cord to the LSK-GG and the other end to a standard power outlet. 7. Turn on the power switch located on the back panel of the Controller. The mirrors are now centered.
-
Page 10: Chapter 5 Maintaining The Lsk-Gg
Chapter 5 Maintaining the LSK-GG There are no serviceable parts in LSK-GG. If you suspect a problem with the LSK-GG, please contact our nearest office for assistance from an applications engineer (see Chapter 12 Thorlabs Worldwide Contacts for details). 5.1. Cleaning WARNING Disconnect the power supply before cleaning the unit to prevent any injuries. -
Page 11: Replacing The Fuse
If you see a black or brown smudges on the fuse glass or a clearly broken wire or no wire at all, the fuse is blown. If the fuse is good, please contact Thorlabs Technical Support. 4. Use the screwdriver to push the spare fuse holder slot from the fuse holder, and remove the spare fuse. -
Page 12: Chapter 6 Specifications
LSK-GG Chapter 6: Specifications Chapter 6 Specifications 6.1. General Specifications Specification Value Scan Head Dimensions 97.5 mm x 79.8 mm x 50.8 mm (3.84" x 3.14" x 2") Galvo/Galvo Controller Dimensions 316.69 mm x 199.80 mm x 79.21 mm (12.468" x 7.866" x 3.119") -
Page 13: Fuse Specifications
LSK-GG Chapter 6: Specifications c. Step Response for a 0.1 movement from 1% to 99% of its final position. d. This is the maximum incremental movement at which the mirrors are still able to settle properly. The typical settling time for this maximum incremental movement is 130 µs. For a movement greater than this, you must add a slope (v/t, where v is the difference between the voltages and t is the time difference) to your Voltage profile. -
Page 14: Chapter 7 Ni Pcie 6363 Card Schematic
LSK-GG Chapter 7: NI PCIe 6363 Card Schematic Chapter 7 NI PCIe 6363 Card Schematic Signal Name Description Characteristics 200 kΩ input Y Position IN Position In signal impedance, ± 10 V input 200 kΩ input X Position IN Position In signal impedance, ±... -
Page 15: Chapter 8 Mechanical Drawing
2.00" (1.035"-40) 1.22" (50.8 mm) Threads, 0.65" (30.9 mm) Deep 2.00" 3.65" (50.8 mm) (92.7 mm) 8-32 Locking Setscrew 5/64" (2 mm) Hex (2 Places) Figure 5 Mechanical Drawing of LSK-GG Scan Head (Front and Side View) Page 12 TTN118193-D02... - Page 16 (4 Places) Typical 1.00" (25.4 mm) Internal SM05 (0.535"-40) Threads, 0.33" Deep Ø0.10" Hole for 1.06" Alignment Pins (26.8 mm) (4 Places) Figure 6 Mechanical Drawing of LSK-GG Scan Head (Top and Back View) Page 13 Rev A, November 11, 2016...
- Page 17 LSK-GG Chapter 8: Mechanical Drawing 12.47" (316.7 mm) 7.87" (199.8 mm) 11.81" (299.9 mm) 2.80" 3.12" (71.1 mm) (79.2 mm) Back View Front View Figure 7 Mechanical Drawing of LSK-GG Controller Page 14 TTN118193-D02...
-
Page 18: Chapter 9 Certifications And Compliance
LSK-GG Chapter 9: Certifications and Compliance Chapter 9 Certifications and Compliance Page 15 Rev A, November 11, 2016... -
Page 19: Chapter 10 Warranty
Chapter 10: Warranty Chapter 10 Warranty Thorlabs warrants that all products sold will be free from defects in material and workmanship, and will conform to the published specifications under normal use, when correctly installed and maintained. Thorlabs provides the warranty for a period of one year. -
Page 20: Chapter 11 Regulatory
Waste Treatment is Your Own Responsibility If you do not return an “end of life” unit to Thorlabs, you must hand it to a company specialized in waste recovery. Do not dispose of the unit in a litter bin or at a public waste disposal site. -
Page 21: Chapter 12 Thorlabs Worldwide Contacts
LSK-GG Chapter 12: Thorlabs Worldwide Contacts Chapter 12 Thorlabs Worldwide Contacts For technical support or sales inquiries, please visit us at www.thorlabs.com/contact for our most up-to- date contact information. USA, Canada, and South America UK and Ireland Thorlabs, Inc. Thorlabs Ltd. - Page 22 www.thorlabs.com...
