Sumake ST-IW4030 User Manual

1/2" sq. dr. super duty mini impact wrench jumbo hammer
Hide thumbs
1
2
3
4
5
6
7
8

Advertisement

Table of Contents

SUMAKE

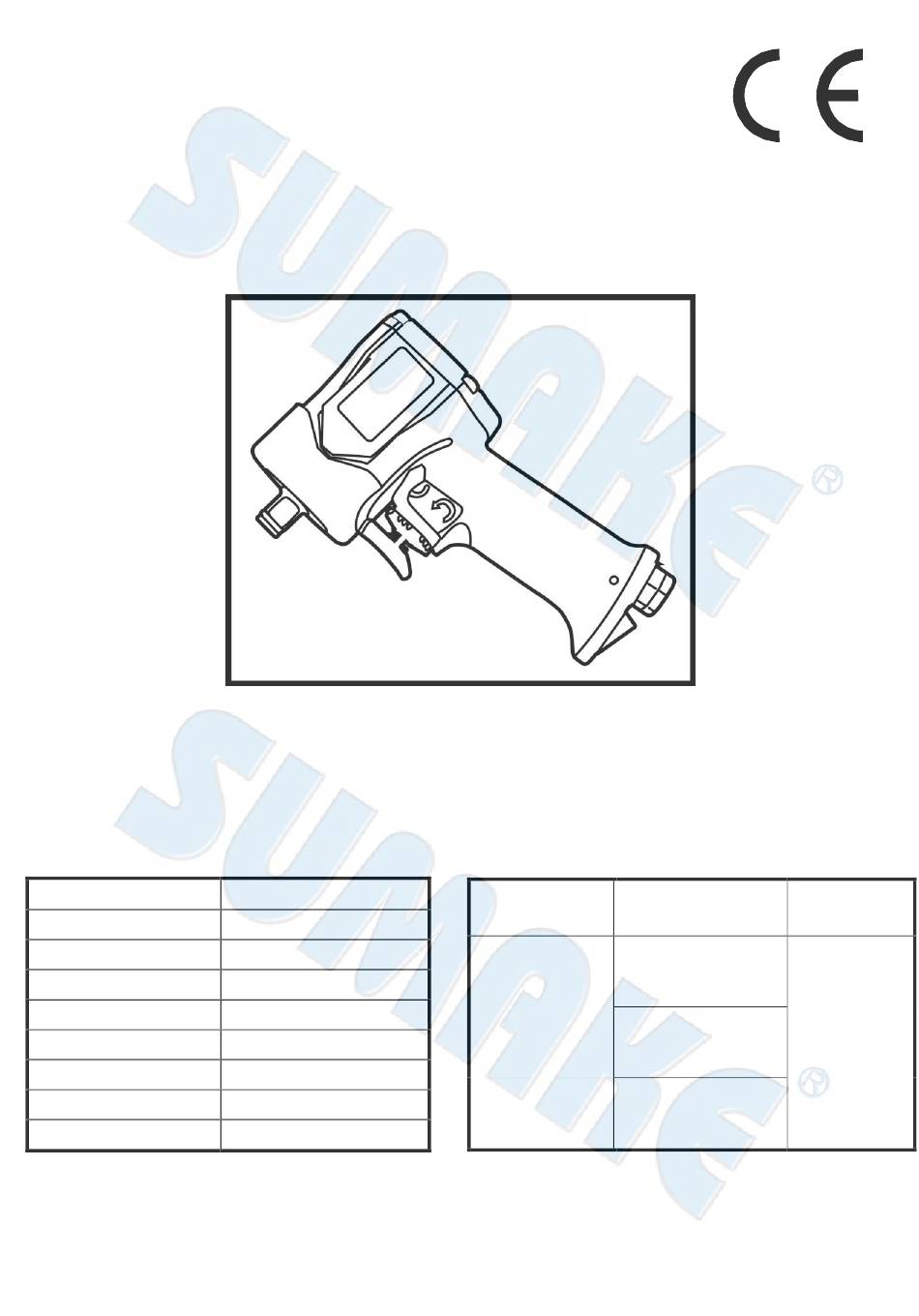

1/2" Sq. Dr. Super Duty Mini Impact Wrench
Specification:
Free Speed
Capacity Bolt Size
Max. Torque
Air Consumption
Overall Length
Air Inlet (PT)
Air Hose (I.D.)
Air Pressure
Net Weight
SUMAKE INDUSTRIAL CO., LTD
4F,NO.351,Yangguang St.,Neihu District TAIPEI, TAIWAN, ZIP:114-91
PNEUMATIC TOOLS
(Jumbo Hammer)
ST-IW4040
9,500 r/min
5/8" (M16)
500 ft-lb (678 Nm)
15 CFM (430 L/min)
4-1/3" (110 mm)
1/4" (6.35 mm)
3/8" (10 mm)
90 psi (6.3 bar)
2.92 lbs (1.32 kg)
Noise and Vibration:
Vibration
EN ISO 28927-2
under load:
7.37 m/s²
Uncertainty
²
K= 1.5 m/s
Noise
EN ISO 15744
Sound Pressure Level
Please always
under load: 99 dB(A)
Sound power level
under load: 110 dB(A)
noise level > 80
dB(A) due to
risk of impaired
Uncertainty
K= 3dB
ST-IW4040-S-2002C-01F
Remark
wear ear
protector at
environment
hearing!
