Sumake ST-4469B Manual

3/8" heavy duty impact wrench (square head)
Hide thumbs
1
2
3
4
5
6
7
8

Advertisement

Table of Contents

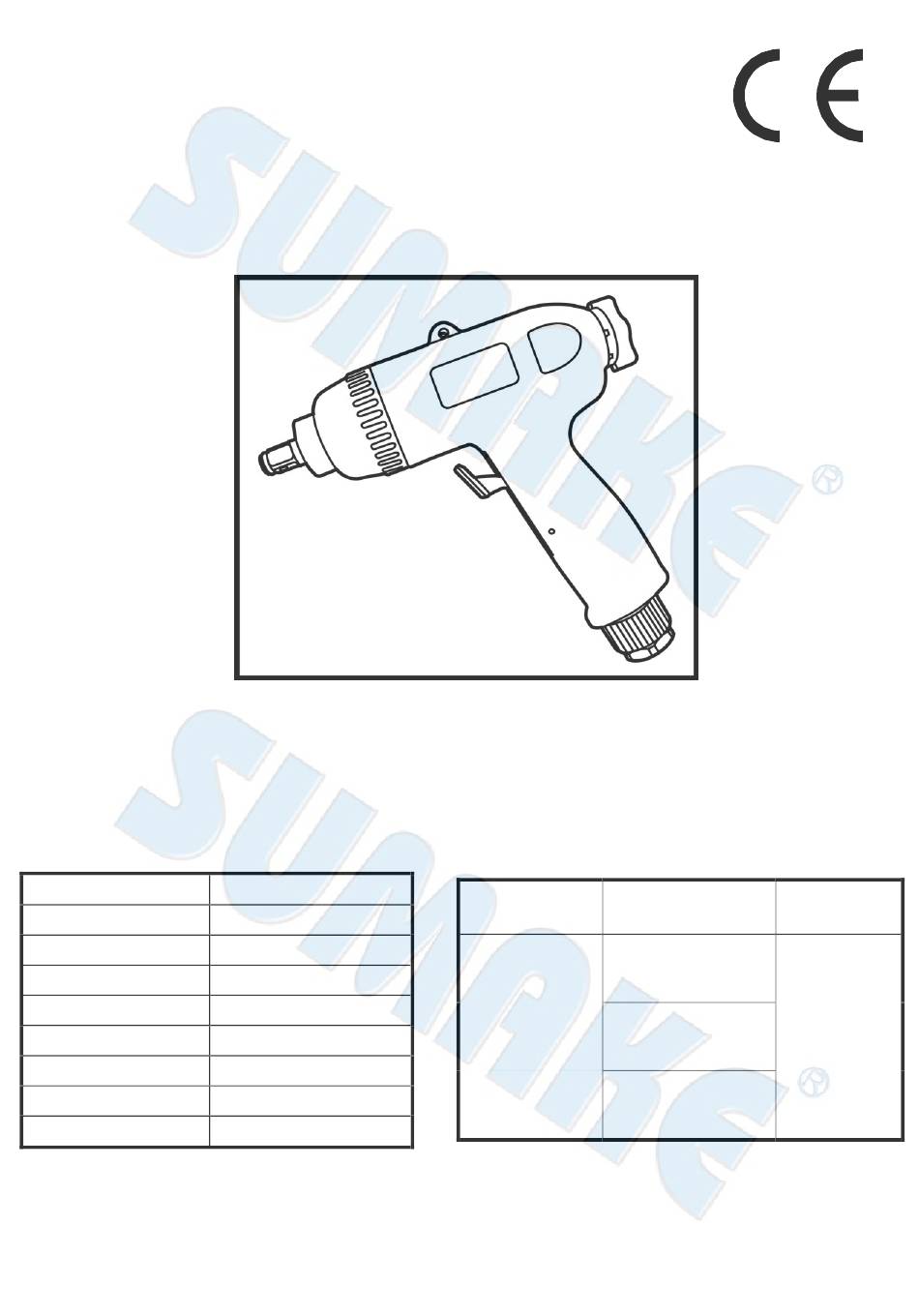

SUMAKE
3/8" Heavy Duty Impact Wrench
Specification:
Free Speed
Capaicyt Bolt Size
Max. Torque
Air Consumption
Overall Length
Air Inlet (PT)
Air Hose (I.D.)
Air Pressure
Net Weight
SUMAKE INDUSTRIAL CO., LTD
4F,NO.351,Yangguang St.,Neihu District TAIPEI, TAIWAN, ZIP:114-91
PNEUMATIC TOOLS
(Square Head)
ST-4469B
8,000 r/min
3/8" (M10)
148 ft-lb (200 N-m)
8 CFM (226 L/min)
7.2" (183 mm)
1/4" (6.35 mm)
3/8" (10 mm)
90 psi (6.3 bar)
2.64 lbs (1.2 kg)
Noise and Vibration:
Vibration
EN ISO 28927-2
Sound Pressure Level
No load: 94 dB(A)
No Load:
2.7 m/s²
Sound power level
No load: 105 dB(A)
Uncertainty
K= 1.5 m/s
²
Noise
Remark
ISO 15744
Please always
wear ear
protector at
environment
noise level > 80
dB(A) due to
risk of impaired
Uncertainty
hearing!
K= 3dB
ST-4469B-S-2407E-OPF

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ST-4469B and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Sumake ST-4469B

Summary of Contents for Sumake ST-4469B

  • Page 1 Air Hose (I.D.) 3/8” (10 mm) risk of impaired Uncertainty Uncertainty Air Pressure 90 psi (6.3 bar) hearing! K= 1.5 m/s K= 3dB ² Net Weight 2.64 lbs (1.2 kg) SUMAKE INDUSTRIAL CO., LTD 4F,NO.351,Yangguang St.,Neihu District TAIPEI, TAIWAN, ZIP:114-91 ST-4469B-S-2407E-OPF...

  • Page 2: Ec Declaration Of Conformity

    DECLARATION OF CONFORMITY SUMAKE INDUSTRIAL CO., LTD. 4F, No. 351, Yangguang St., Neihu District, Taipei City, Taiwan declare in sole responsibility that the equipment Equipment： 3/8" HEAVY DUTY IMPACT WRENCH (SQUARE HEAD) Model/ Serial No.：ST-4469B to which this declaration applies, complies with these normative documents: Machinery Directive: 2006/42/EC ...
  • Page 3 Sumake is a manufacturer and exporter of air Sumake is a manufacturer and exporter of air Sumake is a manufacturer and exporter of air Sumake is a manufacturer and exporter of air...

  • Page 4: Parts List

    Iron Ball (Φ3.175mm) 4469-10 Washer 4469-35 Pin (Φ3x8) 4469-11 Collar 4469-36 Reverse Valve 4469-12 Anvil [ST-4469] 4469-37A Screw 12-1 4469-12-1 Anvil (SQ) [ST-4469B] 4469-38A Handle 4469-13 Pin (Φ4.5x29) 4469-39A Switch Lever 4469-14 Hammer 4469-40 Pin (Φ2x16) 4469-15 Hammer Case 4469-42 Valve Rod...

  • Page 5: Impact Wrench

    IMPACT WRENCH Original instructions SUMAKE Industrial Co. Ltd.
  • Page 6 The tool has been manufactured in conformity with the instruction of EU machine directive. The EU mark will be considered void in the event of inexpert repairs, the use of non-original parts and in case of non-observance of the safety instructions in the user’s manual. Possible direct or indirect consequential damages are not the responsibility of SUMAKE Industrial co., Ltd. General safety rules: Watch the tool at all times when in use.
  • Page 7 3. If the operator experiences symptoms such as persistent or recurring discomfort, pain, throbbing, aching, tingling, numbness, burning sensations or stiffness, these warning signs should not be ignored. The operator should tell the employer and consult a qualified health professional. Safety precautions for accessory hazards 1.

  • Page 8: Risk Of Injury

    General preparation and connection: When using brand-new air hose or air pipe. Blow and clean the inside of air hose or pipe before installation. Keep inside of air hose or air pipe clean to prevent airdrop problem caused by the lots of drain and dust accumulated and possibly make the inside diameter smaller in the long use.
