Sumake ST-IW1040 Quick Start Manual

Sumake ST-IW1040 Quick Start Manual

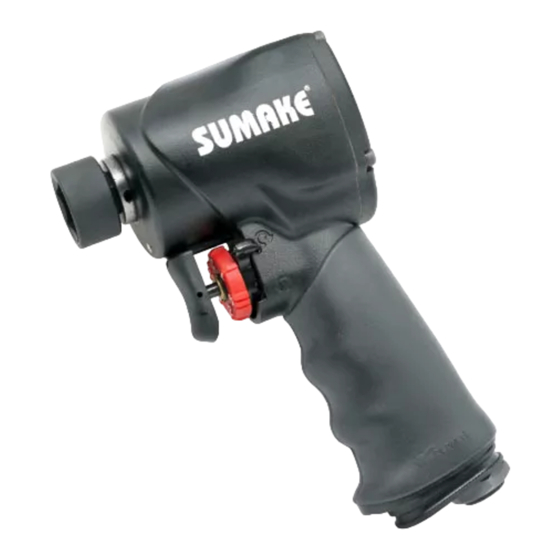

1/2" super stubby air impact wrench (jumbo hammer)

Advertisement

Quick Links

SUMAKE

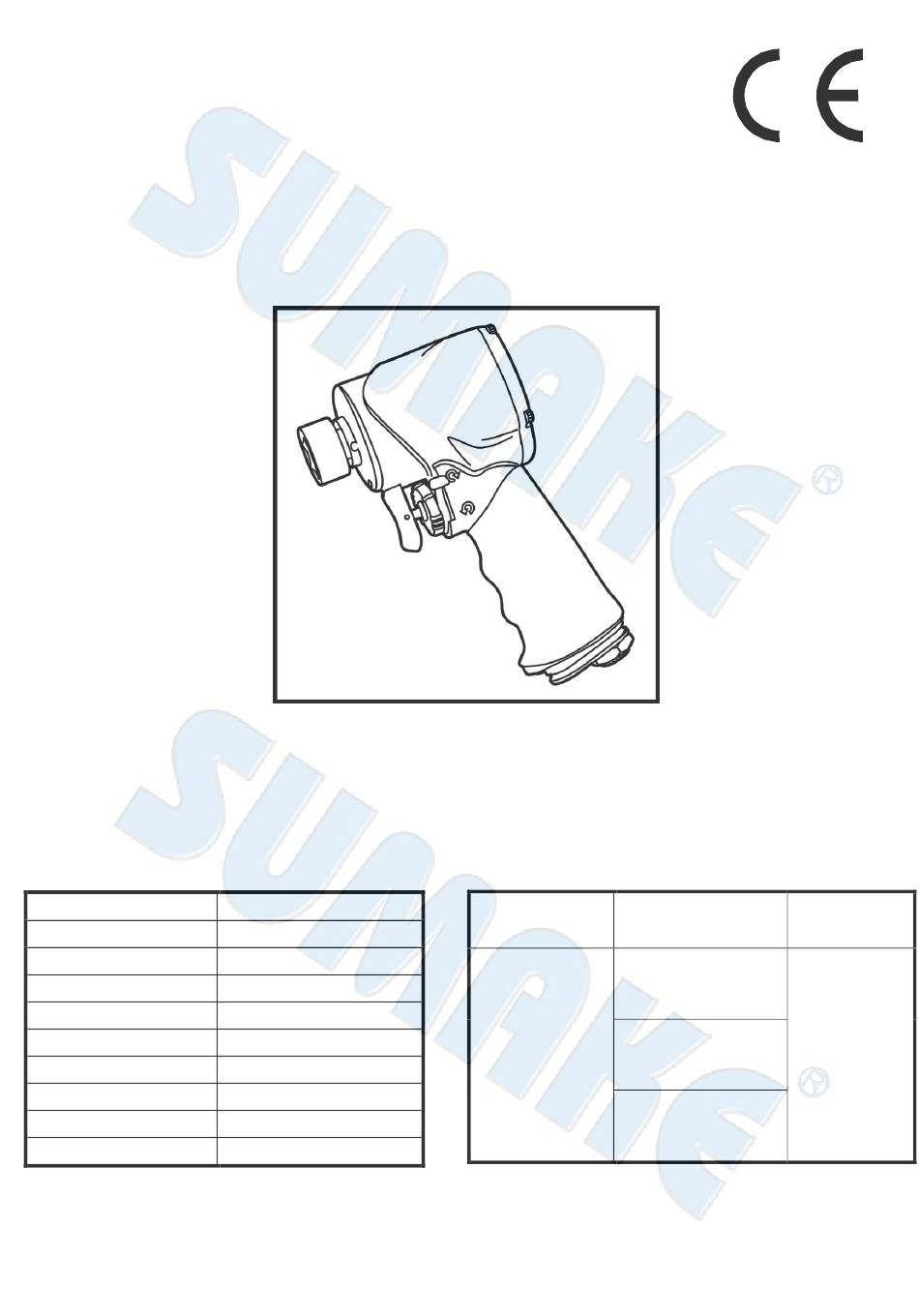

1/2" Super Stubby Air Impact Wrench

Specification:

Free Speed
Capacity Bolt Size
Max. Torque
Working Torque
Overall Length
Air Consumption
Air Inlet (PT)
Air Hose (I.D.)
Air Pressure
Net Weight
SUMAKE INDUSTRIAL CO., LTD
4F,NO.351,Yangguang St.,Neihu District TAIPEI, TAIWAN, ZIP:114-91
PNEUMATIC TOOLS
(Jumbo Hammer)
ST-IW1040
8,000 r/min
5/8" (M16)
600 ft-lb (813 Nm)
400 ft-lb (542 Nm)
3-2/5" (86 mm)
15 CFM (430 L/min)
1/4" (6.35 mm)
3/8" (10 mm)
90 psi (6.3 bar)
2.98 lbs (1.35 kg)
Noise and Vibration:
Vibration
EN ISO 28927-2
Sound Pressure Level
under load: 96.5 dB(A)
under load:
11.6 m/s²
under load: 107.5 dB(A)
Uncertainty
K= 1.5 m/s
²
Noise
EN ISO 15744
Please always
Sound power level
environment
noise level > 80
dB(A) due to
risk of impaired
Uncertainty
K= 3dB
ST-IW1040-S-2208A-YKF
Remark
wear ear
protector at
hearing!
