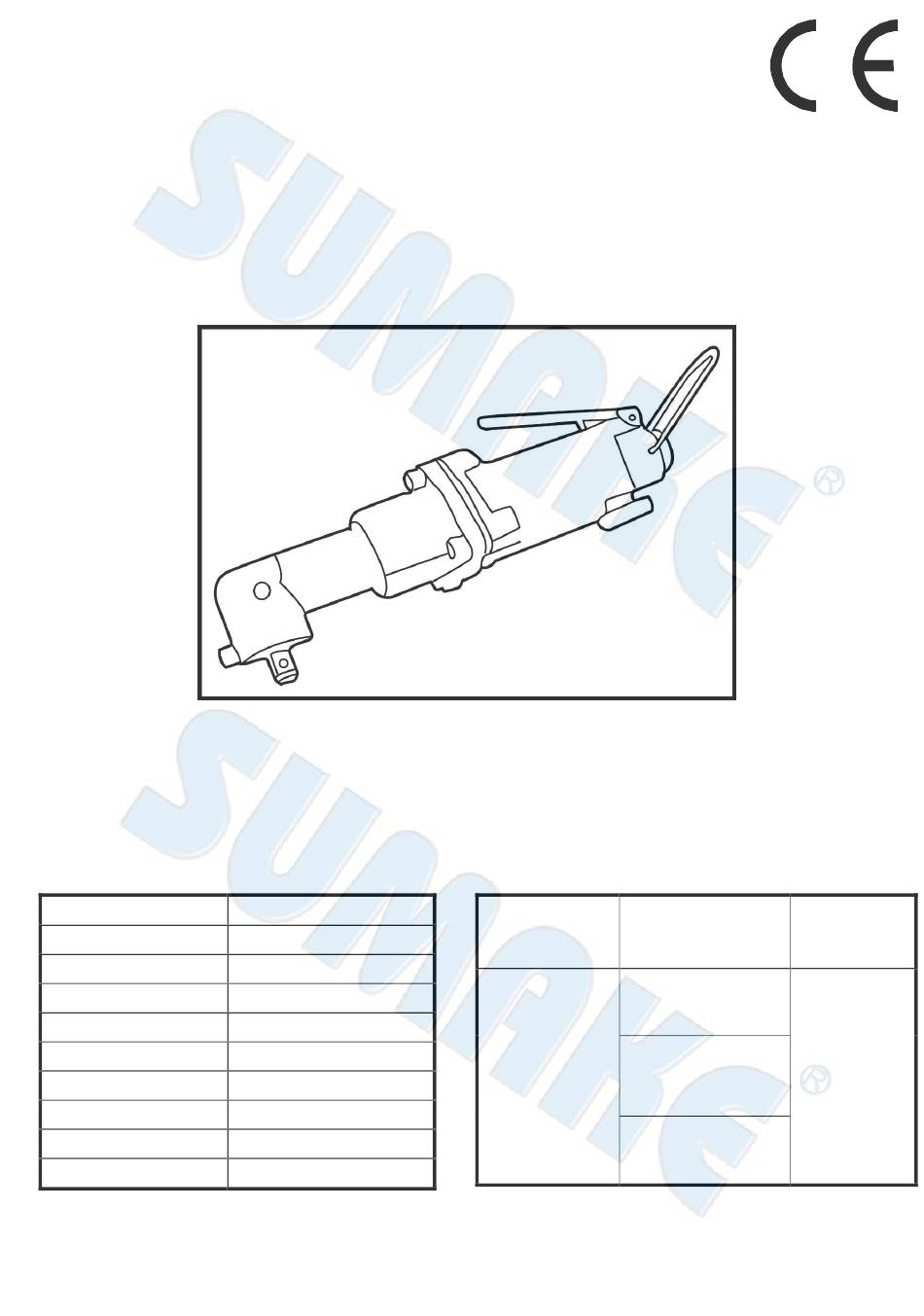

3/8" Air Angle Impact Wrench
(Two Hammer, Side Exhaust)
Specification:
Free Speed
Std. Bolt Size
Work Torque
Max Torque
Air Consumption
Overall Length
Air Inlet (PT)
Air Hose (I.D.)
Air Pressure
Net Weight
SUMAKE INDUSTRIAL CO., LTD.
4F, No. 351, Yangguang St., Neihu District, Taipei City, Taiwan
PNEUMATIC TOOLS
ST-IW0130
7,000 r/min
M10
60 ft-lb (44 Nm)
130 ft-lb (96 Nm)
7 CFM (198 L/min)
9.45" (240 mm)
1/4" (6.35 mm)
3/8" (10 mm)
90 psi (6.3 bar)
3.57 lbs (1.62 kg)
Noise and Vibration:
Vibration
EN ISO 28927-2
Sound Pressure Level
No-Load:
2.6 m/s²
Uncertainty
K= 1.5 m/s²
Noise
EN ISO 15744
Please always
no load: 92 dB(A)
protector at
Sound power level
environment
no load: 103 dB(A)
noise level > 80
dB(A) due to
risk of impaired
Uncertainty
K= 3dB
ST-IW0130-S-2207A-OPF
Remark
wear ear
hearing!
Advertisement
Table of Contents
Related Manuals for Sumake ST-IW0130
Summary of Contents for Sumake ST-IW0130
- Page 1 3/8” (10 mm) risk of impaired Uncertainty Uncertainty Air Pressure 90 psi (6.3 bar) hearing! K= 1.5 m/s² K= 3dB Net Weight 3.57 lbs (1.62 kg) SUMAKE INDUSTRIAL CO., LTD. 4F, No. 351, Yangguang St., Neihu District, Taipei City, Taiwan ST-IW0130-S-2207A-OPF...
-
Page 2: Ec Declaration Of Conformity
DECLARATION OF CONFORMITY SUMAKE INDUSTRIAL CO., LTD. 4F, No. 351, Yangguang St., Neihu District, Taipei City, Taiwan declare in sole responsibility that the equipment Equipment： 3/8" AIR ANGLE IMPACT WRENCH (TWO HAMMER, SIDE EXHAUST) Model/ Serial No.： ST-IW0130 to which this declaration applies, complies with these normative documents: ... - Page 3 Use a 3 HP or larger 3.2 Torque Adjuster 3.2 Torque Adjuster compressor for each sander. compressor for each sander. You can adjust the torque by rotating the knob You can adjust the torque by rotating the knob ST-IW0130-I-1805A-OP ST-IW0130-I-1805A-OP...
-
Page 4: Parts List
ST-IW0130 3/8" AIR ANGLE IMPACT WRENCH (TWO HAMMER, SIDE EXHAUST) PARTS LIST Parts No. Description Q'ty Parts No. Description Q'ty IW0130-01 Bolt IW0130-29 Washer IW0130-02 Steel Ball (Ф2.5mm) IW0130-30 Packing IW0130-03 Retaining Ring IW0130-31 Washer IW0130-04 O-Ring (P4) IW0130-32 Packing... -
Page 5: Impact Wrench
IMPACT WRENCH Original instructions SUMAKE Industrial Co. Ltd. - Page 6 The tool has been manufactured in conformity with the instruction of EU machine directive. The EU mark will be considered void in the event of inexpert repairs, the use of non-original parts and in case of non-observance of the safety instructions in the user’s manual. Possible direct or indirect consequential damages are not the responsibility of SUMAKE Industrial co., Ltd. General safety rules: Watch the tool at all times when in use.
- Page 7 3. If the operator experiences symptoms such as persistent or recurring discomfort, pain, throbbing, aching, tingling, numbness, burning sensations or stiffness, these warning signs should not be ignored. The operator should tell the employer and consult a qualified health professional. Safety precautions for accessory hazards 1.
-
Page 8: Risk Of Injury
General preparation and connection: When using brand-new air hose or air pipe. Blow and clean the inside of air hose or pipe before installation. Keep inside of air hose or air pipe clean to prevent airdrop problem caused by the lots of drain and dust accumulated and possibly make the inside diameter smaller in the long use.
