1/2" Sq Heavy Duty Air Impact Wrench

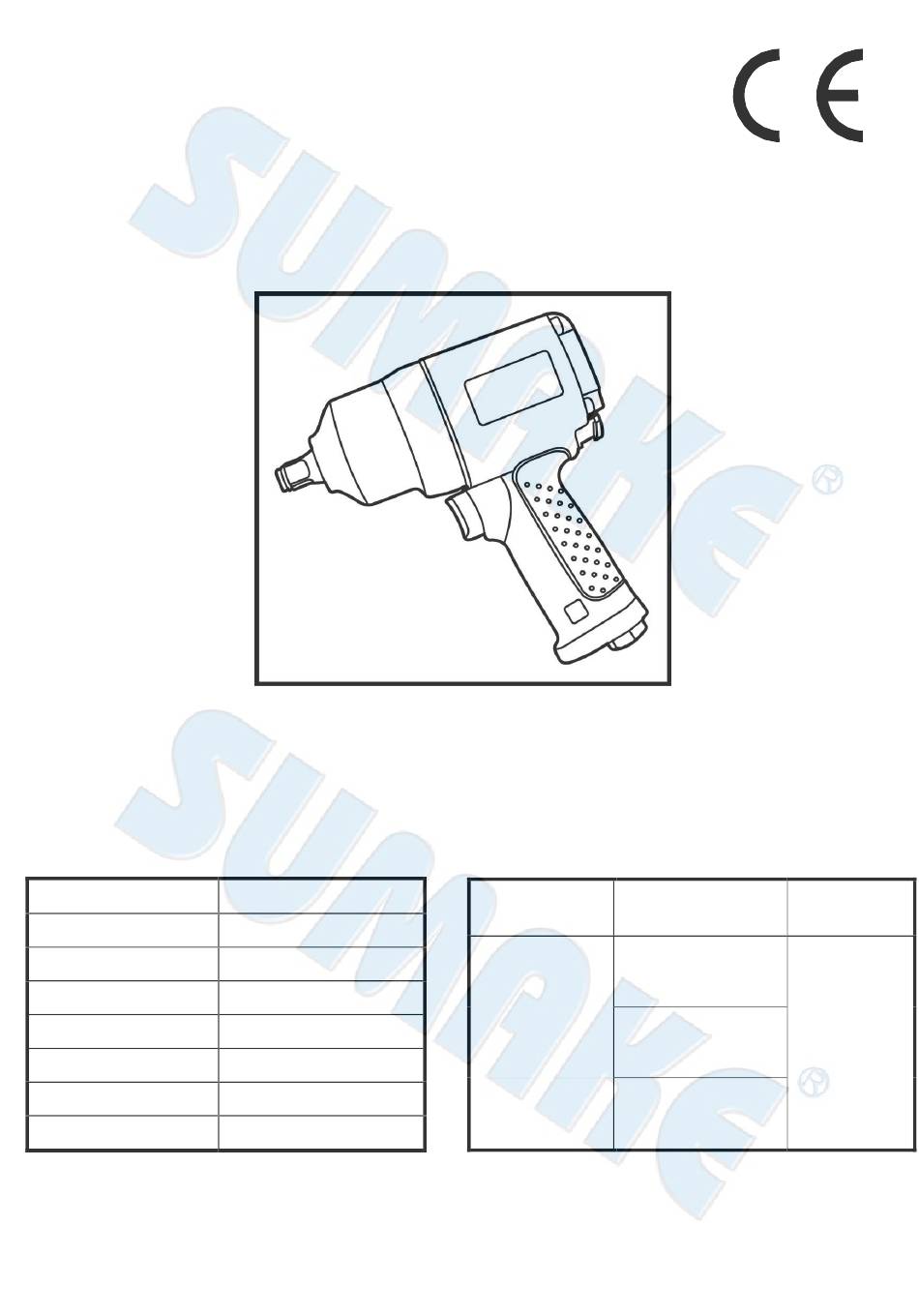

Specification:
Free Speed
Max. Torque
Air Consumption
Overall Length
Air Inlet (PT)
Air Hose (I.D.)
Air Pressure
Net Weight
SUMAKE INDUSTRIAL CO., LTD
4F,NO.351,Yangguang St.,Neihu District TAIPEI, TAIWAN, ZIP:114-91
PNEUMATIC TOOLS
(Twim Hammer)
ST-IW4540
9,000 r/min
800 ft-lb (1085 Nm)
17 CFM (480 L/min)
7" (179 mm)
1/4" (6.35 mm)
3/8" (10 mm)
90 psi (6.3 bar)
4.19 lbs (1.9 kg)
Noise and Vibration:
Vibration
EN ISO 28927-2
under load:
12.32 m/s²
Uncertainty
K= 1.5 m/s
²
Noise
EN ISO 15744
Sound Pressure Level
Please always
under load: 97 dB(A)
Sound power level
under load: 108 dB(A)
noise level > 80
dB(A) due to
risk of impaired
Uncertainty
K= 3dB
ST-IW4540-S-2110A-01F
Remark
wear ear
protector at
environment
hearing!
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Sumake ST-IW4540
Summary of Contents for Sumake ST-IW4540
- Page 1 Air Hose (I.D.) dB(A) due to risk of impaired Air Pressure 90 psi (6.3 bar) Uncertainty Uncertainty hearing! K= 1.5 m/s ² K= 3dB Net Weight 4.19 lbs (1.9 kg) SUMAKE INDUSTRIAL CO., LTD 4F,NO.351,Yangguang St.,Neihu District TAIPEI, TAIWAN, ZIP:114-91 ST-IW4540-S-2110A-01F...
-
Page 2: Ec Declaration Of Conformity
DECLARATION OF CONFORMITY SUMAKE INDUSTRIAL CO., LTD. 4F, No. 351, Yangguang St., Neihu District, Taipei City, Taiwan declare in sole responsibility that the equipment Equipment： 1/2" SQ HEAVY DUTY AIR IMPACT WRENCH (TWIM HAMMER) Model/ Serial No.： ST-IW4540 to which this declaration applies, complies with these normative documents: ... - Page 3 So, install an air filter and on oiler between the 3.2 Torque Adjuster compressor and the tool. Use a 3 HP or larger You can adjust the torque by rotating the knob compressor for each sander. ST-IW4540-I-2110A-01...
-
Page 4: Parts List
ST-IW4540 1/2" SQ HEAVY DUTY AIR IMPACT WRENCH (TWIM HAMMER) -COMPOSITE HOUSING- PARTS LIST Parts No. Description Q'ty Parts No. Description Q'ty Motor Housing Assembly IW4540-26 Cylinder Assembly [Incl. 48(2)] IW4540-01 IW4540-27 Rotor Blade [Incl.18, 44] IW4540-02 O-Ring IW4540-28 Rotor... -
Page 5: Impact Wrench
IMPACT WRENCH Original instructions SUMAKE Industrial Co. Ltd. - Page 6 The tool has been manufactured in conformity with the instruction of EU machine directive. The EU mark will be considered void in the event of inexpert repairs, the use of non-original parts and in case of non-observance of the safety instructions in the user’s manual. Possible direct or indirect consequential damages are not the responsibility of SUMAKE Industrial co., Ltd. General safety rules: Watch the tool at all times when in use.
- Page 7 3. If the operator experiences symptoms such as persistent or recurring discomfort, pain, throbbing, aching, tingling, numbness, burning sensations or stiffness, these warning signs should not be ignored. The operator should tell the employer and consult a qualified health professional. Safety precautions for accessory hazards 1.
-
Page 8: Risk Of Injury
General preparation and connection: When using brand-new air hose or air pipe. Blow and clean the inside of air hose or pipe before installation. Keep inside of air hose or air pipe clean to prevent airdrop problem caused by the lots of drain and dust accumulated and possibly make the inside diameter smaller in the long use.
