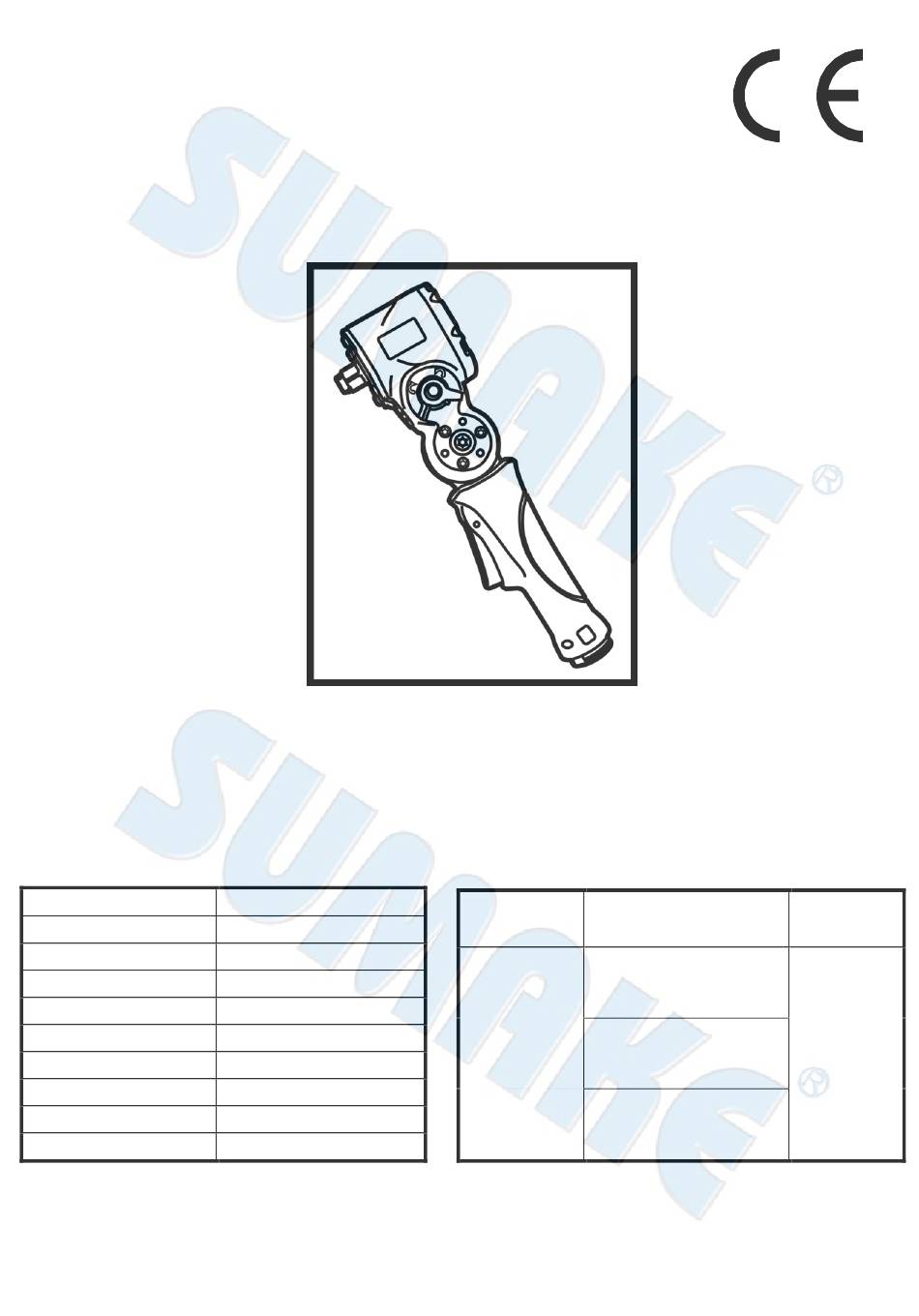

Specification:

Free Speed
Capacity Bolt Size
Max. Torque
Working Torque
Air Consumption
Overall Length
Air Inlet (PT)
Air Hose (I.D.)
Air Pressure
Net Weight
SUMAKE INDUSTRIAL CO., LTD
4F,NO.351,Yangguang St.,Neihu District TAIPEI, TAIWAN, ZIP:114-91

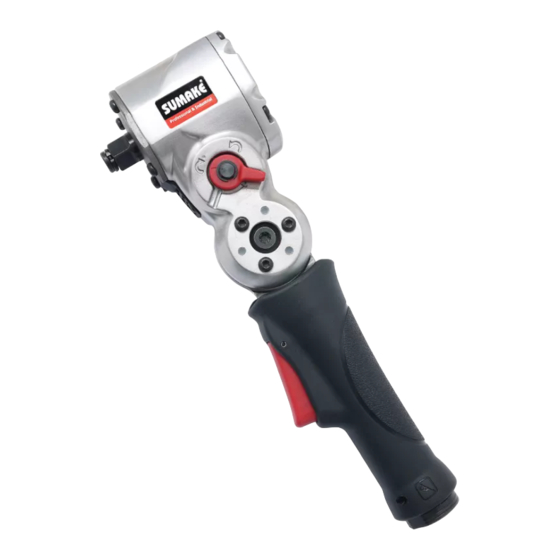

PNEUMATIC TOOLS
Adjustable Angel 1/2"
Impact Wrench (Gearless)
ST-IW4840
9,000 r/min
5/8" (M16)
700 ft-lb (949 N-m)
450 ft-lb (610 N-m)
14 CFM (400 L/min)
11-1/6" (284mm)
1/4" (6.35 mm)
3/8" (10 mm)
90 psi (6.3 bar)
1.85kg (4.08lb)
Noise and Vibration:
Vibration
EN ISO 28927-2
Sound Pressure Level
No load: 100 dB(A)
No Load:
11.0 m/s²
Sound power level
No load: 111 dB(A)
Uncertainty
K= 1.5 m/s
²
Noise
EN ISO 15744
Please always
protector at
environment
noise level >
80 dB(A) due
Uncertainty
K= 3dB
ST-IW4840-S-2402A-KIF
Remark
wear ear
to risk of
impaired
hearing!
