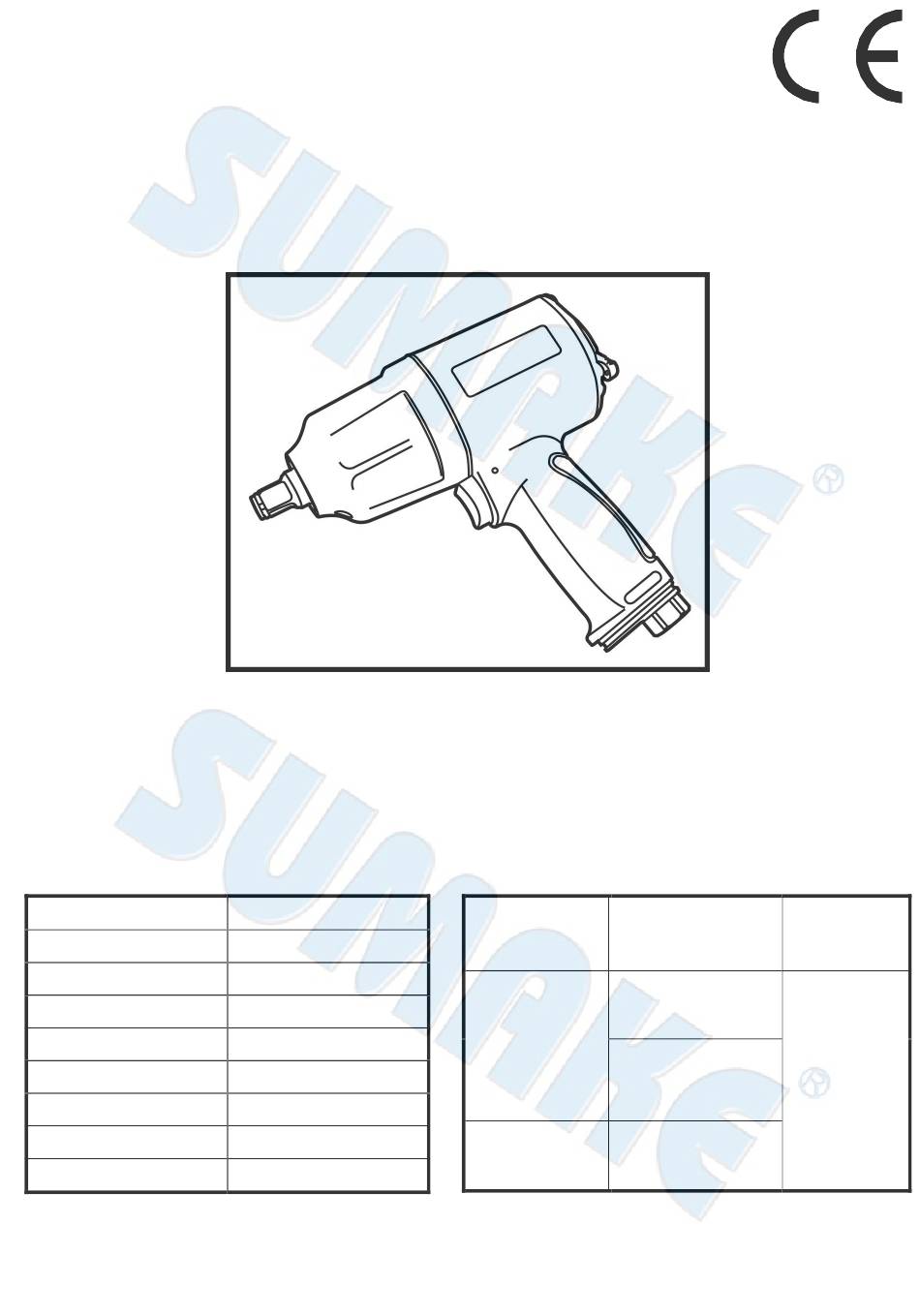

Sumake ST-C540 Operation Instructions Manual

1/2" heavy duty impact wrench
Hide thumbs
1
2
3
4
5
6
7
8

Advertisement

Table of Contents

SUMAKE
1/2" Heavy Duty Impact Wrench
(Twin Hammer) Composite Housing
Specification:
Free Speed
Std. Bolt Size
Max. Torque
Air Consumption
Overall Length
Air Inlet (PT)
Air Hose (I.D.)
Air Pressure
Net Weight
SUMAKE INDUSTRIAL CO., LTD.
4F, No. 351, Yangguang St., Neihu District, Taipei City, Taiwan
PNEUMATIC TOOLS
ST-C540
7,500 r/min
3/4" (M19)
950 ft-lb (1287 Nm)
17 CFM (480 L/min)
7-11/16" (195 mm)
1/4" (6.35 mm)
3/8" (10 mm)
90 psi (6.3 bar)
4.4 lbs (2.0 kg)
Noise and Vibration:
Vibration
EN ISO 28927-2
Sound Pressure Level
no load: 92.36 dB(A)
load: 95.74 dB(A)
2
8.92 m/s
Sound power level
no load: 103.36 dB(A)
load: 106.74 dB(A)
Uncertainty
2
K= 1.5 m/s
Noise
Remark
EN ISO 15744
Please always
wear ear
protector at
environment
noise level > 80
dB(A) due to
risk of impaired
Uncertainty
hearing!
K= 3dB
ST-C540-S-2004J-HY
