Specification:
Free Speed
Capacity Bolt Size
Max. Torque
Working Torque
Air Consumption
Overall Length
Air Inlet (PT)
Air Hose (I.D.)
Air Pressure
Net Weight
SUMAKE INDUSTRIAL CO., LTD
4F,NO.351,Yangguang St.,Neihu District TAIPEI, TAIWAN, ZIP:114-91

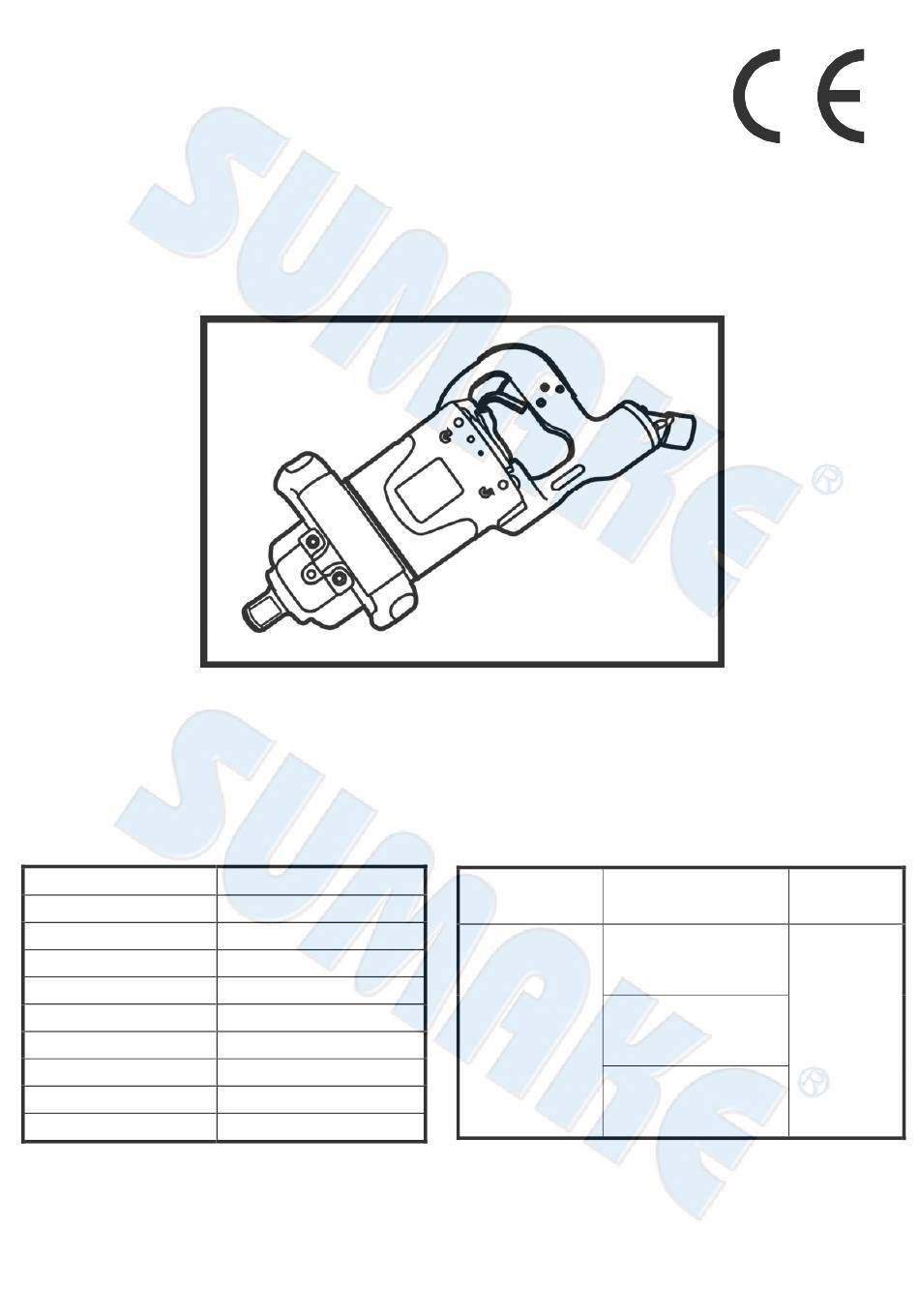

1" Composite Impact Wrench
(Twin-Hammer)
ST-IW1580
5,500 r/min
1-27/64" (M36)
2200 ft-lb (2983 Nm)
2000 ft-lb (2712 Nm)
25 CFM (708 L/min)
16-3/4" (425 mm)
1/2" (13 mm)
1/2" (13 mm)
90 psi (6.3 bar)
13.67 lbs (6.2 kg)
PNEUMATIC TOOLS
Noise and Vibration:
Vibration
EN ISO 28927-2
under load :
13.4 m/s²
Uncertainty
K= 1.5 m/s
Noise
EN ISO 15744
Sound Pressure Level
under no load : 99.5 dB(A)
Sound power level
under no load : 110.5 dB(A)
Uncertainty
²
K= 3dB
ST-IW1580-S-1906C-JUF
Remark
Please always
wear ear
protector at
environment
noise level >
80 dB(A) due
to risk of
impaired
hearing!
Advertisement
Table of Contents
Related Manuals for Sumake ST-IW1580
Summary of Contents for Sumake ST-IW1580
- Page 1 Air Hose (I.D.) 1/2” (13 mm) impaired Uncertainty Uncertainty Air Pressure 90 psi (6.3 bar) hearing! ² K= 1.5 m/s K= 3dB Net Weight 13.67 lbs (6.2 kg) SUMAKE INDUSTRIAL CO., LTD 4F,NO.351,Yangguang St.,Neihu District TAIPEI, TAIWAN, ZIP:114-91 ST-IW1580-S-1906C-JUF...
- Page 2 DECLARATION OF CONFORMITY SUMAKE INDUSTRIAL CO., LTD. 4F, No. 351, Yangguang St., Neihu District, Taipei City, Taiwan declare in sole responsibility that the equipment Equipment： 1" COMPOSITE IMPACT WRENCH (TWIN-HAMMER) Model/ Serial No.：ST-IW1580 to which this declaration applies, complies with these normative documents: ...
- Page 3 Sumake is a manufacturer and exporter of air Sumake is a manufacturer and exporter of air Sumake is a manufacturer and exporter of air 1. The power toll shall not be used in potentially 1.
- Page 4 ST-IW1580, ST-IW1580-6, ST-IW1580-8 1" COMPOSITE IMPACT WRENCH (W/6"(8") EXT. ANVIL) (TWIN-HAMMER) PARTS LIST Parts No. Description Q'ty Parts No. Description Q'ty IW1580-01 Housing IW1580-25 Spring Pin IW1580-02 Pin Valve Rod IW1580-26 Cylinder IW1580-03 O-Ring IW1580-27 Rotor IW1580-04 Trigger IW1580-28 Spring...
- Page 5 IMPACT WRENCH Original instructions SUMAKE Industrial Co. Ltd.
- Page 6 The tool has been manufactured in conformity with the instruction of EU machine directive. The EU mark will be considered void in the event of inexpert repairs, the use of non-original parts and in case of non-observance of the safety instructions in the user’s manual. Possible direct or indirect consequential damages are not the responsibility of SUMAKE Industrial co., Ltd. General safety rules: Watch the tool at all times when in use.
- Page 7 3. If the operator experiences symptoms such as persistent or recurring discomfort, pain, throbbing, aching, tingling, numbness, burning sensations or stiffness, these warning signs should not be ignored. The operator should tell the employer and consult a qualified health professional. Safety precautions for accessory hazards 1.
- Page 8 General preparation and connection: When using brand-new air hose or air pipe. Blow and clean the inside of air hose or pipe before installation. Keep inside of air hose or air pipe clean to prevent airdrop problem caused by the lots of drain and dust accumulated and possibly make the inside diameter smaller in the long use.
