Sumake ST-IW1481 User Manual

1" composite impact wrench w/8" ext. anvil pinless clutch
Hide thumbs
1
2
3
4
5
6
7
8

Advertisement

Table of Contents

SUMAKE

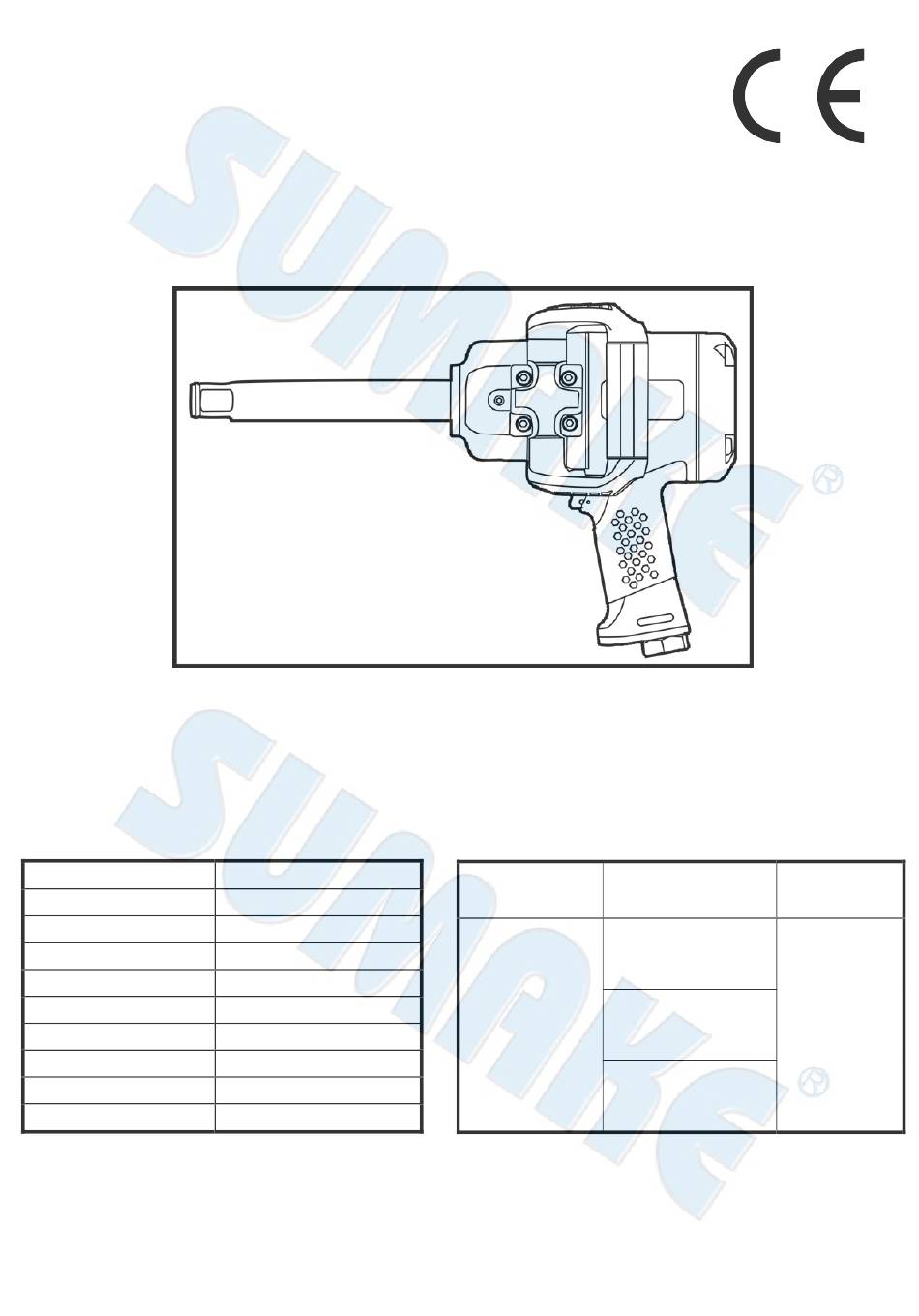

W/8" Ext. Anvil (Pinless Clutch)
Specification:
Free Speed
Capacity Bolt Size
Max. Torque
Working Torque
Air Consumption
Overall Length
Air Inlet (PT)
Air Hose (I.D.)
Air Pressure
Net Weight
SUMAKE INDUSTRIAL CO., LTD
4F,NO.351,Yangguang St.,Neihu District TAIPEI, TAIWAN, ZIP:114-91
1" Composite Impact Wrench
ST-IW1481-8
5,500 r/min
1-27/64 (M36)
2300 ft-lb (3118 Nm)
2100 ft-lb (2847 Nm)
25 CFM (708 L/min)
18-2/5" (467 mm)
1/2" (13 mm)
1/2" (13 mm)
90 psi (6.3 bar)
16.75 lbs (7.6 kg)
PNEUMATIC TOOLS
Noise and Vibration:
Vibration
EN ISO 28927-2
under load:
8.6 m/s²
Uncertainty
K= 1.5 m/s
Noise
EN ISO 15744
Sound Pressure Level
under load: 96.5 dB(A)
Sound power level
under load: 107.5 dB(A)
Uncertainty
²
K= 3dB
ST-IW1481-8-S-1907A-JUF
Remark
Please always
wear ear
protector at
environment
noise level > 80
dB(A) due to
risk of impaired
hearing!
