Model No.: S13
Rev 1
Note: The specifications and/or components of this appliance are subject to change without prior notice.
If any Accessories should fail during use, please call 1300 105 888 (Australia) or 09 8870 447 (New Zealand)
for an immediate replacement. This will save you from returning the product to the store.
If we can assist you in any other way, please feel free to contact us.

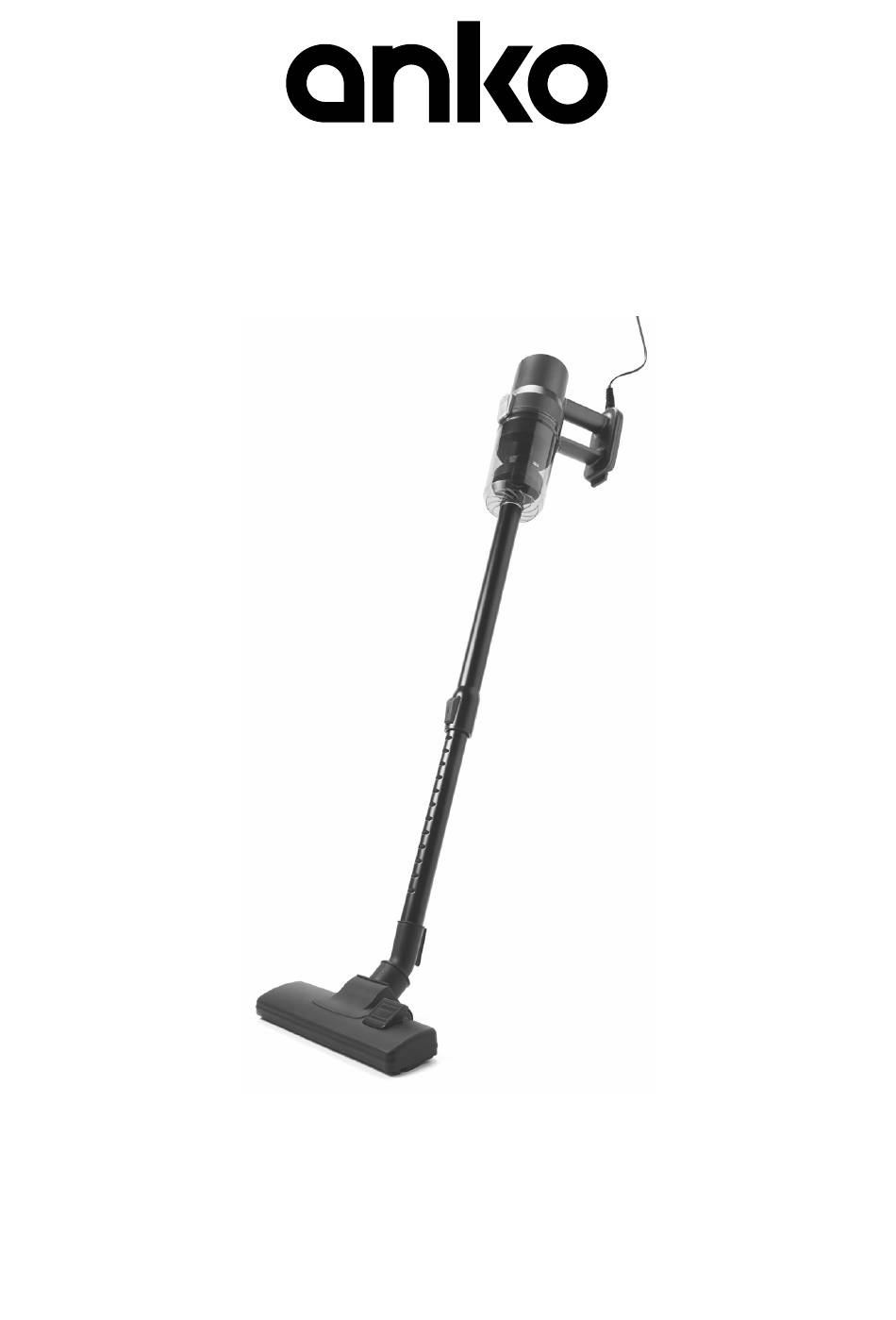

Corded Stick Vac
For Household Use Only
Advertisement
Table of Contents
Related Manuals for anko S13
Summary of Contents for anko S13
- Page 1 Corded Stick Vac For Household Use Only Model No.: S13 Rev 1 Note: The specifications and/or components of this appliance are subject to change without prior notice. If any Accessories should fail during use, please call 1300 105 888 (Australia) or 09 8870 447 (New Zealand) for an immediate replacement.
-
Page 2: Table Of Contents
IMPORTANT ................3 Warnings .................. 3 Safety Directions ..............3 Transporting your Vacuum ............ 5 Components ................6 Assembly as a Stick Vac ............7 Attaching the Extension Tube ............ 7 Removing the Extension Tube ............ 7 Attaching the Floor Head ............7 Removing the Floor Head ............ -
Page 3: Important
IMPORTANT Please note: the filters, dust canister and components must be kept clean and free from blockages, etc. Failure to keep them clean and well-maintained will reduce the performance of your vacuum cleaner and may cause the motor to overheat. Please refer to the “User Maintenance”... - Page 4 DO NOT use the vacuum cleaner if it is blocked. Turn off and clear all blockages before continuing. DO NOT use the vacuum cleaner with a blocked filter. Clean the filter before continuing. (refer to User Maintenance section). DO NOT use the vacuum cleaner if the appliance malfunctions, abnormal noise, smells, or smoke, is dropped or damaged in any manner or if any breakage is found during the operation.
-
Page 5: Transporting Your Vacuum
DO Keep the Cord away from heated surfaces. DO Keep all openings free of dust, lint, hair, and anything that may reduce airflow. DO use extra care when vacuuming on stairs. DO keep your work area well-lit. DO store your appliance indoors in a cool dry area. DO ensure children and babies cannot play with plastic bags or any packaging materials. -
Page 6: Components
Components Dust Canister Wall Mount / Tool Holder Bracket Motor Housing Wall Mount Plugs and Screws On / Off Button Extension Tube Power Cord Crevice Tool Floor Head Brush Tool Note: The specifications and/or components of this appliance are subject to change without prior notice Page 6 of 16... -
Page 7: Assembly As A Stick Vac
Assembly as a Stick Vac Attaching the Extension Tube Insert the bigger top end of the Extension Tube onto the mating spigot at the end of the dust canister, then push on hard until it seats in place. Removing the Extension Tube To remove the Extension Tube, grasp tightly then pull the tube straight out. -
Page 8: Removing The Floor Head
Removing the Floor Head To remove the Floor Head, grasp the tube and floor head and then pull the tube straight out. Assembly as a Hand Vac The vacuum cleaner can be used without the extension tube by attaching the Accessories and Floor Head directly to the vacuum cleaner. -
Page 9: Tools
Tools The Crevice tool is for cleaning into corners etc. and the brush tool is for cleaning furniture etc. To fit the tools, line up with the spigot on the end of the hand vac and push on hard. Note: The tools can also be used on the end of the Extension Tube. To remove, grasp the tool and then pull the tool straight off. -
Page 10: Emptying The Dust Canister
11 Emptying the Dust Canister To Empty the dust canister, take the vacuum cleaner to a dustbin. Press the release button on top of the dust canister and the dust canister will release from the vacuum cleaner body. Unhook the dust canister then pull the filter out. Whilst holding the dust canister over a bin, grasp and swing up the wire handle of the filter holder and pull it out of the dust canister. -
Page 11: User Maintenance
Tip out the debris from the dust canister and clean away any hairs etc. from the filter holder then reassemble in the reverse order. Tap the filter on the inside of the bin to dislodge the dust and debris, then refit to the dust canister. -
Page 12: Cleaning The Filter
12.1 Cleaning the Filter Important Note – The Filter must be cleaned regularly for the best suction performance and to prevent overheating and damage to your vacuum cleaner. Cleaning is best done at the same time when emptying the dust Canister after you have finished vacuuming for the day. -
Page 13: Storage
12.3 Cleaning the Vacuum Cleaner Body and Tools Do not clean the vacuum cleaner, floor head, components or accessories using petrol or any other flammable liquid or solvents, etc. Clean only the outside of the vacuum cleaner. Use only a moist cloth and mild detergent for cleaning the vacuum cleaner, components, and accessories. -
Page 14: Vacuum Cleaner / Tool
Hang the vacuum cleaner as shown: 13.2 Vacuum Cleaner / Tool When finished using the vacuum cleaner, empty the dust canister and clean the filter. Store the Tools on the wall mount bracket as shown. Page 14 of 16... -
Page 15: Troubleshooting
14 Troubleshooting Check that the appliance is plugged in and switched on. Press and release the On/Off button located on the back of the vacuum cleaner head to turn the vacuum cleaner on. The Motor has overheated. Will Not Switch On Clean the filter and dust canister then allow appliance to cool for at least 1 hour. -
Page 16: Warranty Against Defect
16 Warranty Against Defect 12 Month Warranty Thank you for your purchase. Your new product is warrantied to be free from defects in materials and workmanship for the period stated above, from the date of purchase, provided that the product is used in accordance with accompanying recommendations or instructions where provided.
