13. Technical data

Mains voltage:
Memory for codes:
Lock:
Material cabinet:
Surface finish:
External dimensions: 350x280x85 mm (BxHxD)
Weight (kg):
9000 S series
230 V / 50 Hz
Codes remain in the event
of a power failure.
Electron magnet 12V, 1A
Steel plate 1.5 mm
Galvanized sheet metal,
powder coated.
(Model 9001, 9002, 9006)
746x730x140 (model 9500)
745x460x270 mm (model 7000)
5,3 kg (model 9001, 9002)
6,0 kg (model 9006)
28 kg (model 9500)
20 kg (model 7000)

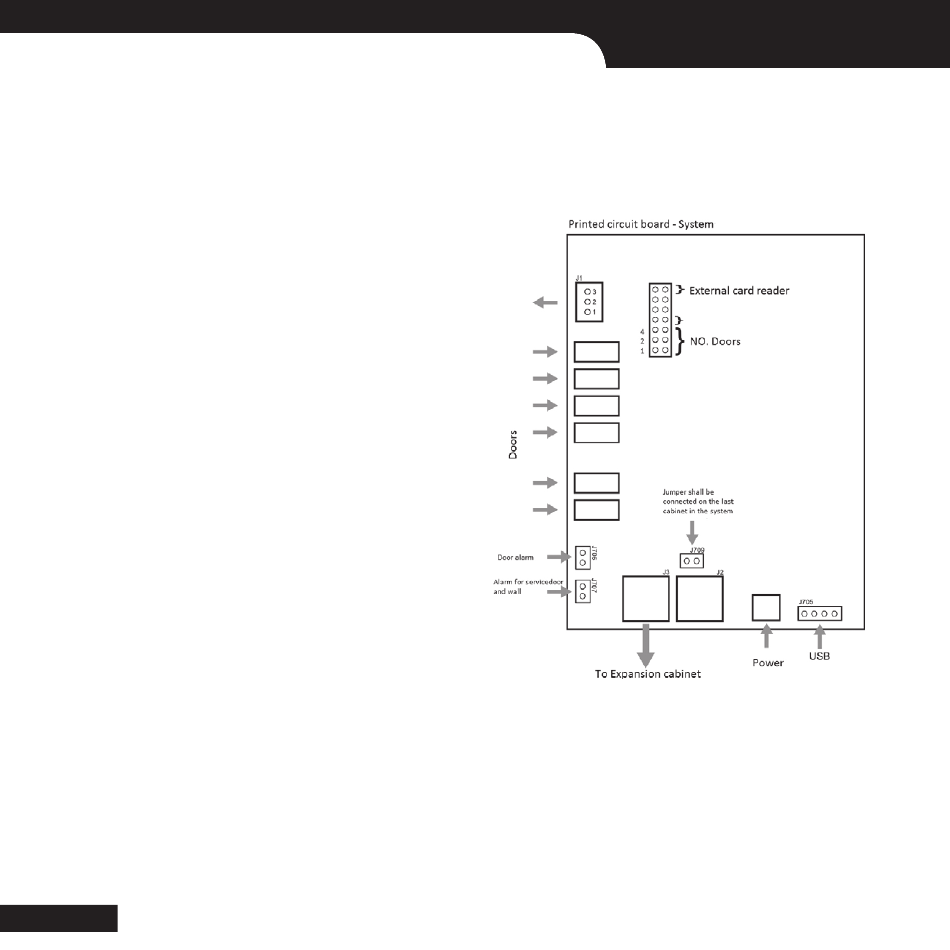

14. Printed circuit diagram

COM
External
NC
alarm
NO
1
2
3
4
5
6
Circuit board drawing Keybox S
28
Jumper shall be connected
for system series
