Summary of Contents for Griven PS567

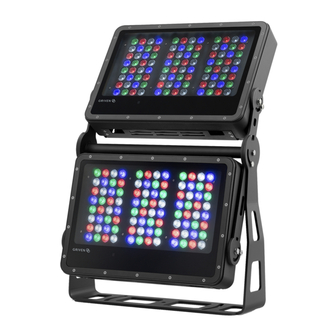

- Page 1 POWERSHINE MK2 D Manuale di istruzioni Instructions manual...
-
Page 2: Table Of Contents
INDEX 1.0 Introduction ......................................21 1.1 Safety information....................................21 1.1.1 Protecting against electric shock ..............................21 1.1.2 Installation ......................................21 1.1.3 Protection against burns and fire ..............................21 1.1.4 Weather protection ..................................21 1.2 Warranty conditions...................................21 1.3 Compliance......................................21 2.0 Size ........................................22 3.0 Packaging and transport ..................................22 3.1 Packaging......................................22 3.2 Transport......................................22 4.0 Installation ......................................23... -
Page 3: Introduction
• The guarantee excludes all consumables. • The customer will take care of the return of the faulty parts to GRIVEN srl of Italy, at his own charge and risk. • The parts which have been repaired or replaced are sent by GRIVEN srl of Italy ex-factory. -
Page 4: Size
• Griven S.r.l. will accept claims for broken or missing goods only within seven days of receipt of the goods. • Returns of equipment will not be accepted without prior authorization granted by Griven S.r.l. and if not duly ac- companied by relevant shipping documents. -
Page 5: Installation
4.0 Installation 4.1 Fixing The unit can be used both rested on floor and fixed onto a structure. The unit can operate in any position. Use the holes Ø12.5 (1/2”) or Ø6.5 (1/4”) in the bracket to fix the unit. 150mm 5,91in 4.2 Adjusting light beam direction... -
Page 6: Connection To Mains Power
4.3 Connection to mains power The unit can operate with voltage from 100-277Vac and with frequency of 50 and 60Hz. Warning! • Before connecting the unit, verify that power supplies features are compatible with the unit features. • The unit must never be installed if not grounded electrically. •... -
Page 7: Use Of The Unit
5.0 Use of the unit 5.1 Setting operating mode By the control panel it is possible to select one of the following operating modes: • using DMX512 signal control mode Each fixture is controlled from DMX512 signal control. (see chapter 8.0 DMX function) •... -
Page 8: Dmx Function Mode
is shown on the display. 6.0 DMX function mode 6.1 Setting DMX channels The number of DMX channels used by the unit to operate will depend from the selected operating mode. Each RGBW unit will use 4, 5, 6, 8, 10, 12 DMX channels. Each DW unit will use 2, 3, 4, 6 DMX channels. -
Page 9: Dmx Functions With Dmx Mode = 6 Channels
6.3.3 DMX functions with DMX MODE = 6 channels Channel Function Value Description 0-255 Proportional control 0-100% of the Red color Green 0-255 Proportional control 0-100% of the Green color Blue 0-255 Proportional control 0-100% of the Blue color White 0-255 Proportional control 0-100% of the White color Luminous output intensity 0%... -
Page 10: Dmx Functions With Dmx Mode = 12 Channels
Channel Function Value Description 0-255 Proportional control 0-100% of the Red color of the lower cluster Green 0-255 Proportional control 0-100% of the Green color of the lower cluster Blue 0-255 Proportional control 0-100% of the Blue color of the lower cluster White 0-255 Proportional control 0-100% of the White color of the lower cluster... -
Page 11: Dmx Functions Dynamic White
6.4 DMX functions dynamic white Warning! In absence of DMX signal the led will remain ON. 6.4.1 DMX functions with DMX MODE = 2 channels Channel Function Value Description Warm white 100% - Cold white 0% 4-122 Warm white 100% - Cold white from 0% to 100% Dynamic 123-132 Warm white 100% - Cold white 100%... -
Page 12: Dmx Functions With Dmx Mode = 4 Channels
6.4.3 DMX functions with DMX MODE = 4 channels Channel Function Value Description Warm white 100% - Cold white 0% (upper cluster) 4-122 Warm white 100% - Cold white from 0% to 100% (upper cluster) Dynamic 123-132 Warm white 100% - Cold white 100% (upper cluster) white 133-251 Warm white 100% to 0% - Cold white 00% (upper cluster) -
Page 13: Dmx Functions With Dmx Mode = 6 Channels
6.4.4 DMX functions with DMX MODE = 6 channels Channel Function Value Description Warm 0-255 Proportional control 0¬-100% of the warm white (upper cluster) white Cold 0-255 Proportional control 0¬-100% of the cold white (upper cluster) white 0-15 Luminous output intensity 100% (upper cluster) Proportional control of the luminous output intensity 100-0% 16-150 (upper cluster) -
Page 14: Master-Slave And Automatic Function (Only Rgbw And Dw)
7.0 Master-Slave and Automatic function (only RGBW and DW) Powershine MK2 D can operate without DMX signal (in AUTOMATIC mode) and can be set so that a single MAS- TER unit will command a series of SLAVE units. This function is particularly useful when more units are desired to ex- ecute the same programme in synchrony. -
Page 15: Master Configuration
The following table shows the light output colour effect according to the programme (only RGBW). Program N° Effect Red - Magenta - Yellow Red - Magenta - Yellow - White Green - Cyan - Yellow Green - Cyan - Yellow - White Blue - Cyan - Magenta Blue - Cyan - Magenta - White Green - Cyan - Blue - Magenta - Red - Yellow... -
Page 16: Dimmer ( Monochromatic )
9.0 Dimmer ( Monochromatic ) This function controls the LED brightness. Press the “MENU” button up to visualize “ADR”. Through the “UP” and “DOWN” keys select “DIM”. Press “ENTER” to confirm. The DMX value of the dimmer function will be thus displayed. Press the buttons “UP” or “DOWN” until the required value appears, then press “ENTER”. -
Page 17: Rdm Functions
This command is used to identify the projector you want to get access to (the identification happens by swit- ching on at full intensity all the LEDs). • Manufacturer The name of the manufacturer (Griven) is displayed. • Model description The projector model is displayed. -
Page 18: Cleaning The Unit
4 Nm tightening torque, while the screws of the rear boxes by a 2.5Nm tightening torque. 19.0 Spare parts All components of the unit are available as spare parts at Griven dealers. Exploded views, wiring diagrams, electronic layouts and advertising brochures are available on request. -
Page 19: Troubleshooting
21.0 Troubleshooting Inconvenience Possibile Cause Action Incorrect DMX cable Check connections and wires. Rectify inefficient connec- connection. tions. Repair or replace damaged wires. Insert a terminal plug in the output jack of the last Unfinished data connection. unit of the connection. Incorrect address Check the addresses of the units and the protocol settings. - Page 20 Via Bulgaria, 16 - 46042 CASTEL GOFFREDO (MN) - Italy Telefono 0376/779483 - Fax 0376/779682 - 0376/779552 http://www.griven.com/ e-mail griven@griven.com http://www.griven.it/ e-mail griven@griven.it User’s manual rel. 2.20...
