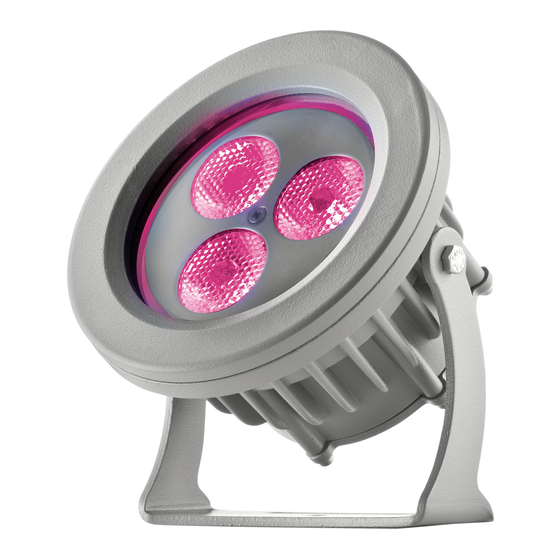

Micro-Clip MC
AL5240
Weight / Peso
Housing / Corpo proiettore
IK rating / classe IK
IP rating / grado IP
Ambient temp./ Temperatura ambientale
Power supply / Alimentazione
Power / Potenza massima
Thermal protection / Protezione termica
Electrical class / Classe elettrica
Cable / Cavo
Control / Sistema di controllo
Channels / Canali
Color range / Colori
Optics/ Ottiche
Size
Griven S.r.l. - Via Bulgaria, 16
46042 Castel Goffredo
Mantova - Italy
User Manual
Rev. 1.1
Date: 15/09/2020
110 mm
4.33"
Tel. +39.0376.779483
© Copyright Griven 2018 - Griven reserves the right to make
changes to this product and related instructions at any time
Fax +39.0376.779682
without prior notice and such changes shall be effective
E-mail: sales@griven.com
immediatly
Web: www.griven.com
AL5240 MICRO-CLIP MC
0.65 Kg (1.43 lb)
Alluminum, scratch resistant paint
-40°C to 50°C ( -40°F to 122°F)
48VDC from external Power Supply Unit
13 W
Integrated electonic thermal protection management
1.7 m
USITT DMX-512-RDM
4-5-6 (RGBW), 2-3 (DW)
12 High output LEDs: RGB+ W 4000K - DW ranging from 2700K to 6500K
narrow, medium, wide
1500
59"
.
551098
IK07
IP65
III
79 mm
3.1"
page 1 of 8
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Griven Micro-Clip MC
Summary of Contents for Griven Micro-Clip MC
- Page 1 4.33" page 1 of 8 Griven S.r.l. - Via Bulgaria, 16 Tel. +39.0376.779483 © Copyright Griven 2018 - Griven reserves the right to make changes to this product and related instructions at any time 46042 Castel Goffredo Fax +39.0376.779682 without prior notice and such changes shall be effective Mantova - Italy E-mail: sales@griven.com...
- Page 2 - Fix the projector by using screws, hooks or other adequate supports that can bear its weight. Fissare il proiettore con viti, ganci o altri supporti in grado di sostenerne il peso. page 2 of 8 AL5240 Micro-Clip MC RGBW - Rev. 1.1...
- Page 3 3 1/8" 59" Beam aiming M5 (ISO) HEX key 110mm 4 3/8" CAUTION: prolonged staring at the LED source should be avoided by placing the fixture in a proper position. page 3 of 8 AL5240 Micro-Clip MC RGBW - Rev. 1.1...
-
Page 4: Dmx Input
-The settings of the fixture can only be carried out by using AL2660 Weezerd 1 ( not included ) or an RDM compatible DMX controller. -Le impostazioni del proiettore possono essere effettuate esclusivamente tramite AL2660 Weezerd 1( opzionale ) oppure tramite un controller DMX compatibile RDM. page 4 of 8 AL5240 Micro-Clip MC RGBW - Rev. 1.1... - Page 5 300 m ( 1000 ft.). Installare un terminatore di linea ( 120 Ω ) tra i poli Data+ e Data- sul cavo dell’ulti- mo proiettore. For further details consult the configuration schemes available on our website. page 5 of 8 AL5240 Micro-Clip MC RGBW - Rev. 1.1...
- Page 6 · On/Off identifi cation: questo comando è usato per rintracciare l’unità sulla quale si vuole operare ( il proiettore si metterà in evidenza accendendo tutti i LED a massima intensità). · Manufacturer: viene mostrato in nome del produttore ( Griven ). · Model description: viene mostrato il modello del proiettore.
