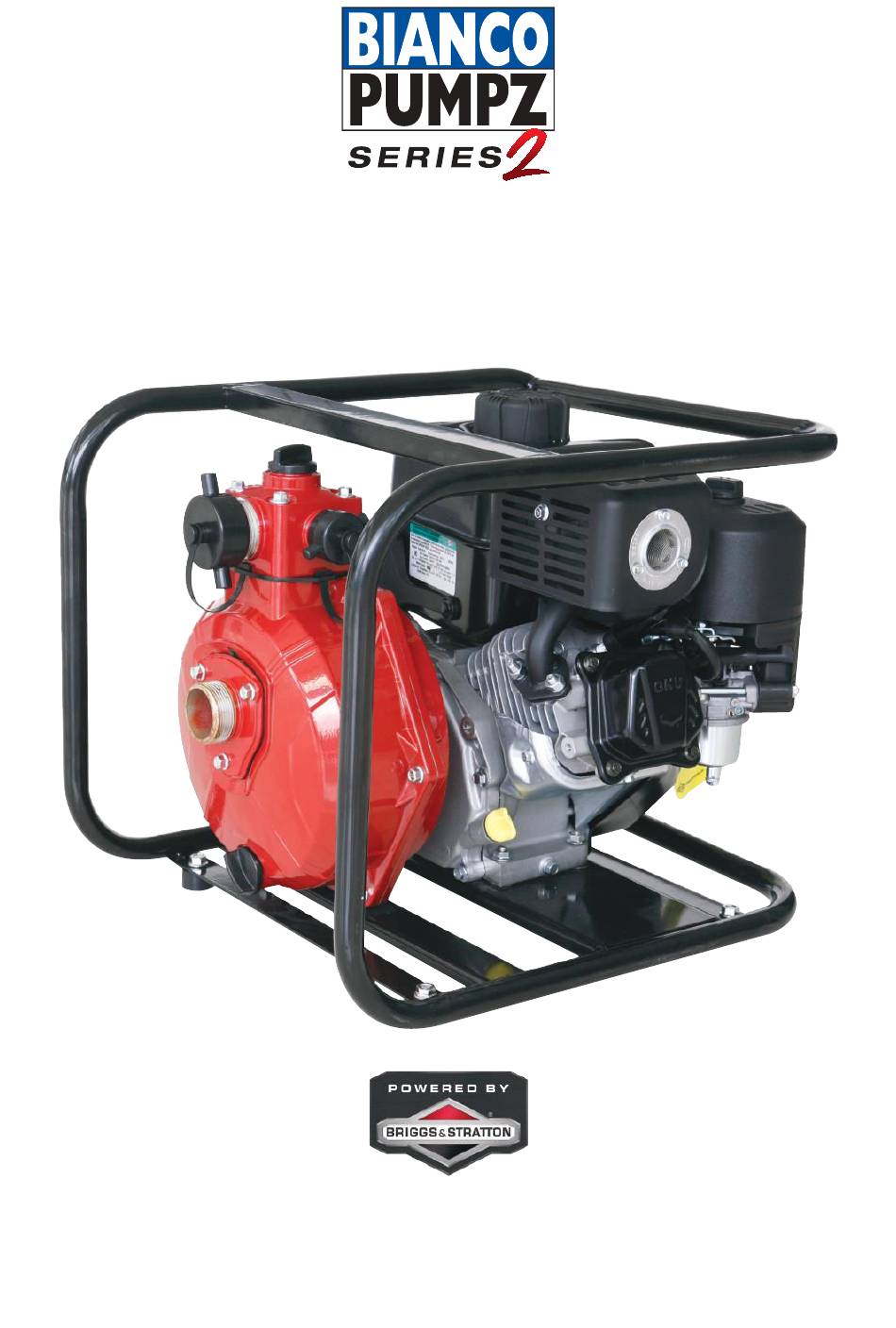

- Page 1 Petrol Engine Powered Pump Instruction Manual BIA-HP15ABS - 804452 BIA-2HP15ABS - 804453...
-
Page 2: Table Of Contents
CONTENTS 1. Safety information 2. Location of warning labels 3. Components 4. Pre-starting operation 5. Starting the engine 6. Stopping the engine 7. Maintenance 8. Troubleshooting 9. Storage 10. Speci cations 11. Spare Parts 18-21... - Page 3 Thank you for purchasing this Bianco petrol engine pump. This instruction manual describes the installation, usage and maintenance of our water pump and provides important safety information. Keep your manual in a convenient place for quick reference. This manual should be considered as a permanent part of this water pump and should remain with the pump if it is sold.
-
Page 4: Safety Information
WARNING! Safety information User’s responsibility • Before using this product, carefully read and fully understand this instruction manual for proper operation and safety procedures. Failure to follow all instructions may result in personal injury or product damage. • Be sure that you are familiar with quick stop procedures and control operation of the water pump. -
Page 5: Location Of Warning Labels
1. Check engine oil. Must be 4-stroke engine oil. 2. Check Petrol. The petrol octane rating must be a 90 or higher. 3. Open the fuel valve lever. BIA-HP15ABS 4. Close the choke lever. 5. Check the throttle lever. (804452) 6. -
Page 6: Components
3. Components... -
Page 7: Pre-Starting Operation
Pre-starting operation IMPORTANT: Install the strainer on the end of the suction hose before operation. The strainer prevents foreign materials and protects the pump from block and component damages. CAUTION! To start this water pump, please check the following before each use: •... - Page 8 NOTE: Please use oil pot to add engine oil of 540ml-590mlto the crankcase when the crankcase is empty. Checking oil level (The pump must not in operation) • Remove the oil dipstick from and wipe it dry. • Insert the dipstick into the oil ller (but don’t screw it in) to check the oil level. •...
- Page 9 Checking fuel level Uncap the fuel tank and check the fuel level while the machine is not in operation. Pouring gasoline if the fuel level is found too low. CAUTION! Do not allow the fuel to over ow the fuel tank. The maximum fuel level is shown as below.
-
Page 10: Starting The Engine
Starting the engine CAUTION! Con rm that fresh engine oil has been properly added. CAUTION! Con rm that petrol has been properly added in the fuel tank. CAUTION! Con rm that water has been properly added in the pump. 1). Turn the fuel valve ON. 2). - Page 11 Turn the engine switch to the ON position. Pull the starter handle lightly until resistance is felt, and then pull it briskly. CAUTION! Return the starter handle gently to the starter. Do not allow to snap back against the engine. Move the choke lever gradually to the ON position after the engine warms up.
-
Page 12: Stopping The Engine
7). Move the throttle lever fully to the left (high speed). Stopping the engine Please follow the steps below to stop the engine: Move the throttle lever to the right end (low speed). Turn the engine switch to the OFF position. NOTE: Turn the engine switch to the OFF position immediately to shut down the engine in an emergency. -
Page 13: Maintenance
3). Turn the fuel valve OFF. Maintenance Maintenance Schedule *:Change paper lter element only. (1): Service more frequently when used in dusty areas. (2): These items should be serviced by an authorized dealer, unless the owner has the proper tools and is mechanically pro cient. - Page 14 Changing engine oil Warm up the engine and drain the oil to assure rapid and complete draining. 1). Remove the oil dipstick and the drain screw, then drain the oil. 2). Reinstall the drain screw and tighten it. NOTE: Be sure to keep the environment clean when disposing used engine oil. We suggest you collect the waste oil in a container to be sent to a waste disposal site or a recycling service centre instead of spilling it in t he garbage or on the ground.
- Page 15 Cleaning lter element : Slightly tap the lter element a few times, then blow it with compressed air (pressure :,; 207 K Pa) from inside. Do not clean the lter element with brush, which will block the air passages of the element. Cleaning foam lter element: Wash the element in hot water with detergent or in a non ammable or high ash point solvent.
-
Page 16: Troubleshooting
Troubleshooting The engine will not start: Is there enough fuel? Is the fuel valve ON? Has the fuel reached the carburettor? To check, remove the oil drain screw and turn the fuel valve on. DANGER! Should there be a spill of fuel, be sure to clean it before checking the spark plug or start the engine. -
Page 17: Storage
Storage Let the pump cool down. Wait at least 30 minutes after it stops. Clean the pump and coat rust-proof grease if necessary. CAUTION! The cleaning water under pressure may go into air lter and mu er, or even go into cylinder which will result in corrosion damage. -
Page 18: Speci Cations
Speci cations BIA-2HP15ABS BIA-HP15ABS 545 mm 545 mm 435 mm 435 mm 480 mm 480 mm 26.2kg 27.2kg 130G320156F1 330 l/min 300 l/min NOTE: Speci cations are subject to change due to technical improvements without prior notice. - Page 19 NOTES...
- Page 24 ™ 3 YEAR WARRANTY White International Pty Ltd Limited Product Warranties TERMS & CONDITIONS This warranty is given in addition to the consumer guarantees found within the Australian Competition and Consumer Act 2010 (Cth) for goods purchased in Australia and the Consumer Guarantees Act 1993 NZ for goods purchased in New Zealand: 1) White International Pty Ltd / White International NZ Ltd (White International) warrant that all products distributed are free from defects in workmanship and materials, for their provided warranty period as indicated on the top or opposite side of this document.
