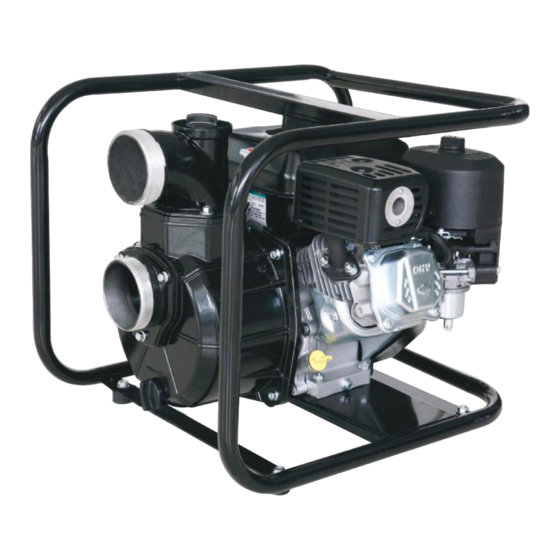

- Page 1 Petrol Engine Powered Pump Instruction Manual BIA-WP20ABS - 804450 BIA-WP30ABS - 804451...
-
Page 3: Table Of Contents
CONTENTS 1. Safety information 2. Location of warning labels 3. Components 4. Pre-starting operation 5. Starting the engine 6. Stopping the engine 7. Maintenance 8. Troubleshooting 9. Storage 10. Specifications 11. Spare Parts 18-21... - Page 4 Thank you for purchasing this Bianco petrol engine pump. This instruction manual describes the installation, usage and maintenance of our water pump and provides important safety information. Keep your manual in a convenient place for quick reference. This manual should be considered as a permanent part of this water pump and should remain with the pump if it is sold.
-
Page 5: Safety Information
WARNING ! 1. Safety information User’s responsibility • Before using this product, carefully read and fully understand this instruction manual for proper operation and safety procedures. Failure to follow all instructions may result in personal injury or product damage. • Be sure that y you are familiar with quick stop procedures and control operation of the water pump. -
Page 6: Location Of Warning Labels
Location of warning labels These warning labels indicate potentially hazardous situations which could result in serious injury. Please carefully read and understand the symbols, safety information and precautions. -
Page 7: Components
Components... -
Page 8: Pre-Starting Operation
Pre-starting operation IMPORTANT: Install the strainer on the end of the suction hose before operation. The strainer prevents foreign materials and protects the pump from block and component damages. To start this water pump, please check the following before each use: •... - Page 9 IMPORTANT: The Oil Shortage Alarm System is designed to avoid damage of the engine due to shortage of oil in the crankcase. The system will automatically shut down the engine just before the crankcase oil level drops down to the minimum line of safety. Recommended oil type SAE 10W-30 •...
-
Page 10: Starting The Engine
Fuel Tank Capacity : It is recommended to use fresh, unleaded petrol with an octane rating of 90 or 93. Use of ethanol petrol (more than 10% blended) is not allowed. Checking and filling the pump with cooling water The pump must be fully filled with priming water before it is put to operation Starting the engine CAUTION! Confirm that fresh engine oil has been properly added. - Page 11 NOTE: In case the engine is warm or ambient temperature is high, it’s not necessary to close the choke lever. Move the throttle lever from right (low speed) to left (high speed) to keep about 1/3 distance from the left (high speed). 4).
- Page 12 Pull the starter handle lightly until resistance is felt, and then pull it briskly. CAUTION! Return the starter handle gently to the starter. Do not allow to snap back against the engine. Move the choke lever gradually to the ON position after the engine warms up.
-
Page 13: Stopping The Engine
Stopping the engine Please follow the steps below to stop the engine: 1). Move the throttle lever to the right end (low speed). 2).Turn the engine switch to the OFF position. NOTE: Turn the engine switch to the OFF position immediately to shut down the engine in an emergency. -
Page 14: Maintenance
Maintenance Maintenance Schedule *:Change paper filter element only. (1): Service more frequently when used in dusty areas. (2): These items should be serviced by an authorized dealer, unless the owner has the proper tools and is mechanically proficient. Changing engine oil Warm up the engine and drain the oil to assure rapid and complete draining. - Page 15 Place the engine in a level position and refill with recommended oil with capacity of 540ml-590ml. (See page 7) Reinstall the oil dipstick and tighten it. Maintaining the air cleaner A dirty air cleaner will restrict air flow to the carburettor and result in less pump power. Service the air cleaner periodically to prevent carburettor malfunctions.
-
Page 16: Troubleshooting
CAUTION! Take care not to touch the muffler due to high temperature on it’s surface when the engine is running or just stops. Remove the plug cap. Remove the spark plug by the wrench . Visually check the spark plug. Discard it if the electrode or insulation ring is damaged or the insulator is broken or cracked. -
Page 17: Storage
The pump does not pump water: Is it filled with enough amount of water? Is the strainer clogged? Is the hose clamp tightened? Is the suction hose damaged? Is the suction head too high? If the pump still fails to work, contact an authorized dealer. Storage Let the pump cool down. -
Page 18: Specifications
10. Specifications BIA-WP20ABS BIA-WP30ABS 545 mm 545 mm 435 mm 435 mm 450 mm 450 mm 24.2kg 26.2kg 1062320077F1 500 l/min 1000 l/min NOTE: Specifications are subject to change due to technical improvements without prior notice. - Page 19 NOTES...
- Page 24 ™ 3 YEAR WARRANTY White International Pty Ltd Limited Product Warranties TERMS & CONDITIONS This warranty is given in addition to the consumer guarantees found within the Australian Competition and Consumer Act 2010 (Cth) for goods purchased in Australia and the Consumer Guarantees Act 1993 NZ for goods purchased in New Zealand: 1) White International Pty Ltd / White International NZ Ltd (White International) warrant that all products distributed are free from defects in workmanship and materials, for their provided warranty period as indicated on the top or opposite side of this document.
