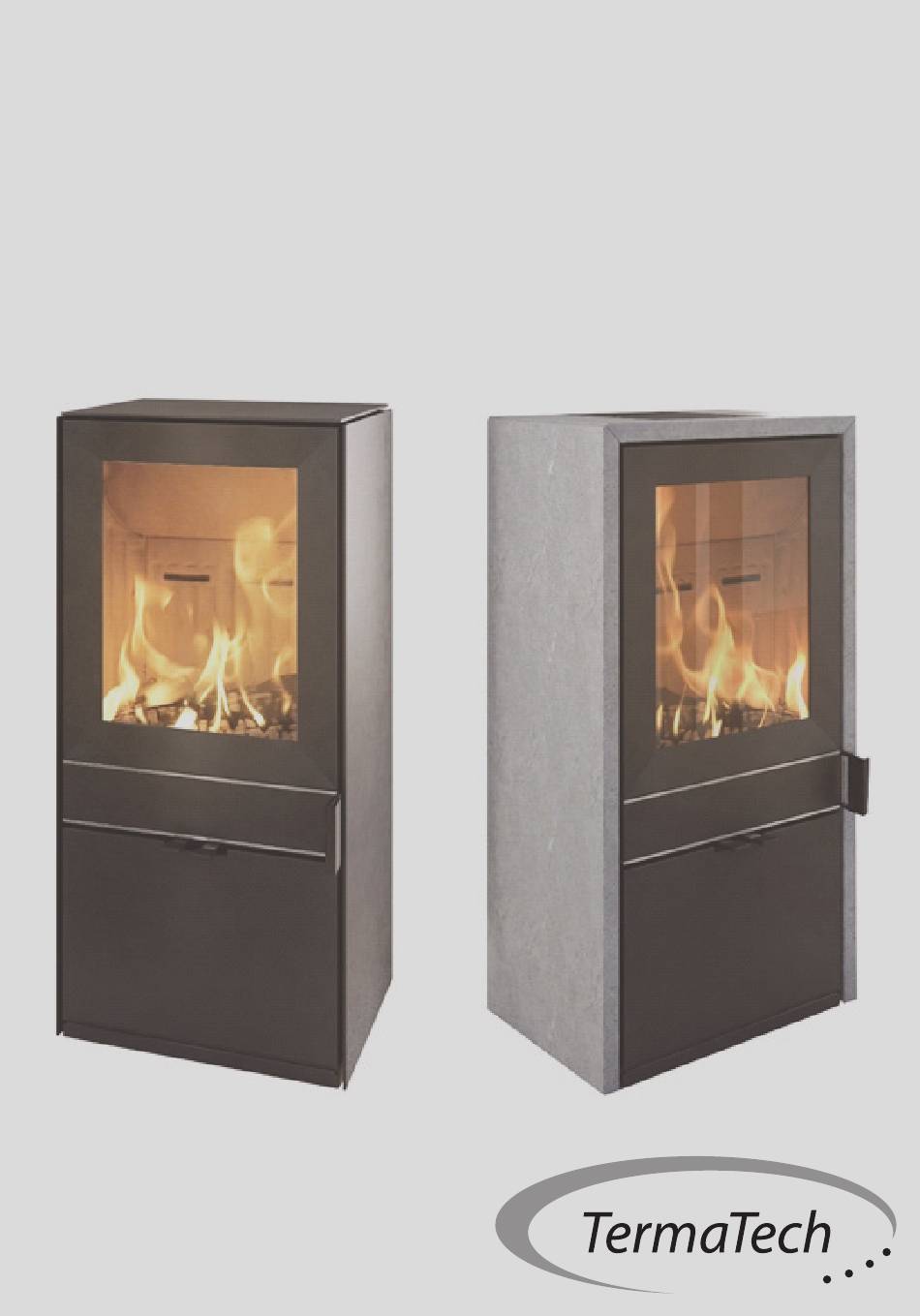

- Page 1 TT60 + TT60S + TT60W...
- Page 2 User and mounting manual Table of contents 1.0 New TermaTech wood-burning stove 2.0 Installation instruction 2.1 Placement of the stove 2.2 Floor requirements 2.3 If the stove is to be mounted with a rear outlet, then do the following 2.4 Requirements for the chimney 2.5 Chimney sweep...
-
Page 3: Table Of Contents
1.0. New TermaTech wood-burning stove Congratulations on your wood-burning stove. We thank you for choosing a TermaTech wood-burning stove and hope that you will have many cosy and warm moments in the future. Before using the stove you should read the user and mounting manual so that you are familiar with the legal requirements as well as the instructions regarding maintenance. - Page 4 It is possible to connect the wood-burning stove to chimneys that are also used for other purpo- ses. However, the specified conditions must be assessed by the fitter and/or chimney sweep. 2.5. Chimney sweep When your new wood-burning stove has been installed please notify your local chimney sweep. The chimney sweep must check the installation before use as well as regular future cleaning. 2.6.
- Page 5 We warn against closing off the air flow completely. The wood-burning stove can only burn sensi- bly and environmentally friendly if there is sufficient airflow for combustion. 3.6. Use of the stove Below is the procedure used for testing/approval of the stove. It is this procedure that will lead to the best combustion for the given chimney. The amount of firewood and the damper setting can be adjusted to the individual need for heating and the draught in the particular chimney. Your new TT60 has been fitted with 2 small knobs (damper) which is located on the stove right beneath the door. The first knob on the left (facing the stove) is for regulating the Start-up air, this is also called primary combustion air. This function can be used during starting the fire for up...
- Page 6 This can be measured on a non isolated chim- ney about 1 m above the stove with a TermaTech chimney thermometer. A good temperature for the chimney is between 100 and 300 degrees c°.
- Page 7 (in the stove). This is done to ensure that the wood will contain the right amount of moisture of approx. 15-20%. The moisture content of the wood can be easily measured with a Termatech moisture meter, which is available at your dealer (item number 92-150).
-
Page 8: Maintenance
6.0. Malfunctions and help Below is a list of the most common malfunctions using a wood-burning stove. 6.1. The stove is difficult to control Incident • It burns too fast Solution • Close the start-up air (left knob) possibly turn down the secondary air (right knob) •... - Page 9 7.7. Glass The glass does normally not need maintenance apart form cleaning. This is done by using Ter- maTech’s glass cleaner. Termatech glass cleaner must only be used when the stove is cold. Item number 43-102. 7.8 Disposal of the glass...
-
Page 10: Year Warranty
TermaTech A/S agree to send a suitable replacement part free of charge to rectify the fault. Any additional obligation of TermaTech A/S to remedy the fault, for example in the form of installation of the replacement part does not exist. -
Page 11: Technical Specifications
10.1 TT60 Series has been tested and approved by the following standards: CE - EN13240 (EU) DIN+ (Germany) 15A (Austria) NS3058, 3059 (Norway) AEA (UK) 11.0 Technical specifications: Type TT60 TT60S TT60W Nominal output Height: 974mm 999mm 666mm Width: 460mm... -
Page 12: Safety Distance To Inflammable Tt60W
12.3 Safety distance to inflammable TT60W: Distance to non-combustible wall behind the stove: 20mm Photo 1: Distance to flammable sidewall: 350mm Photo 1: Distance from floor to bottom edge of the stove, min:320mm Photo 2: 13.0. Drawings with explanation Photo 1 Photo 2 13.1. Replacement of insulation plates. Firstly, remove the smoke deflector plates. Plate no. 1. Next remove the side plates 2 left and 3 right. -
Page 13: Adjusting The Force Of The Door
13.5. Adjusting the force of the door 13.5. Adjusting the force of the door 13.6. Adjusting the top plate 13.6. Adjusting the top plate Changing the force of the door. ”stronger force” unmount the Changing the force of the door. Adjusting the top plate is done via the Adjusting the top screws in the 2 magnets. -
Page 14: Declaration Of Performance (Dop)
Declaration of Performance TT60-CPR-2017-Version1 Product: Product type/application: Room heater burning solid fuel without hot water supply Type: TT60: S01-670 TT60S: S01-672 TT60W: S01-674 Fuel: Wood Productions no. Please see nameplate on the back of the oven Manufacturer: TermaTech A/S E-mail: info@termatech.com... -
Page 15: Supplementary Inst. Instructions Uk
Clean Air Act requirements” “The TT60, TT60S, TT6WS, TT30GS has been recommended as suitable for use in smoke control areas when burning wood.” HEALTH AND SAFETY PRECAUTIONS Special care must be taken when installing the stove such that the requirements of the Health and Safety at Work Act are met. - Page 16 STOVE PERFORMANCE Please refer to the table in the main instruction manual for details of the stoves’ performances PREPARATORY WORK AND SAFETY CHECKS IMPORTANT WARNING This stove must not be installed into a chimney that serves any other heating appliance. There must not be an extractor fan fitted in the same room as the stove as this can cause the stove to emit fumes into the room.
- Page 17 material given in Building Regulations Approved Document J and also in these stove instructions. If the stove is to be installed on a combustible floor surface, it must be covered with a non-com- bustible material at least 12mm thick, in accordance with Building Regulations Approved Docu- ment J, to a distance of 30 cm in front of the stove and 15 cm to each side measuring from the door of the combustion chamber.
-
Page 18: Fuel Overloading
If the stove is fitted in place of an open fire then the chimney will require sweeping after a month of continuous operation. This is a precaution to ensure that any “softer” deposits left from the open fire usage have not been loosened by the higher flue temperatures generated by the closed stove. In situations where it is not possible to sweep through the stove the installer will have provided alternative means, such as a soot door. After sweeping the chimney the stove flue outlet and the flue pipe connecting the stove to the chimney must be cleaned with a flue brush. Periods of Prolonged Non-Use If the stove is to be left unused for a prolonged period of time then it should be given a thorough clean to remove ash and unburned fuel residues. To enable a good flow of air through the appli- ance to reduce condensation and subsequent damage, leave the air controls fully open. -
Page 19: Drawing Concerning Smoke Control Kit (Smoke Control Areas)
16.0 Drawing concerning smoke control kit (smoke control areas) - Page 20 TermaTech AS • DK-8260 Viby J. • Tlf: +45 8742 0035 99-280 version 11/2017...
