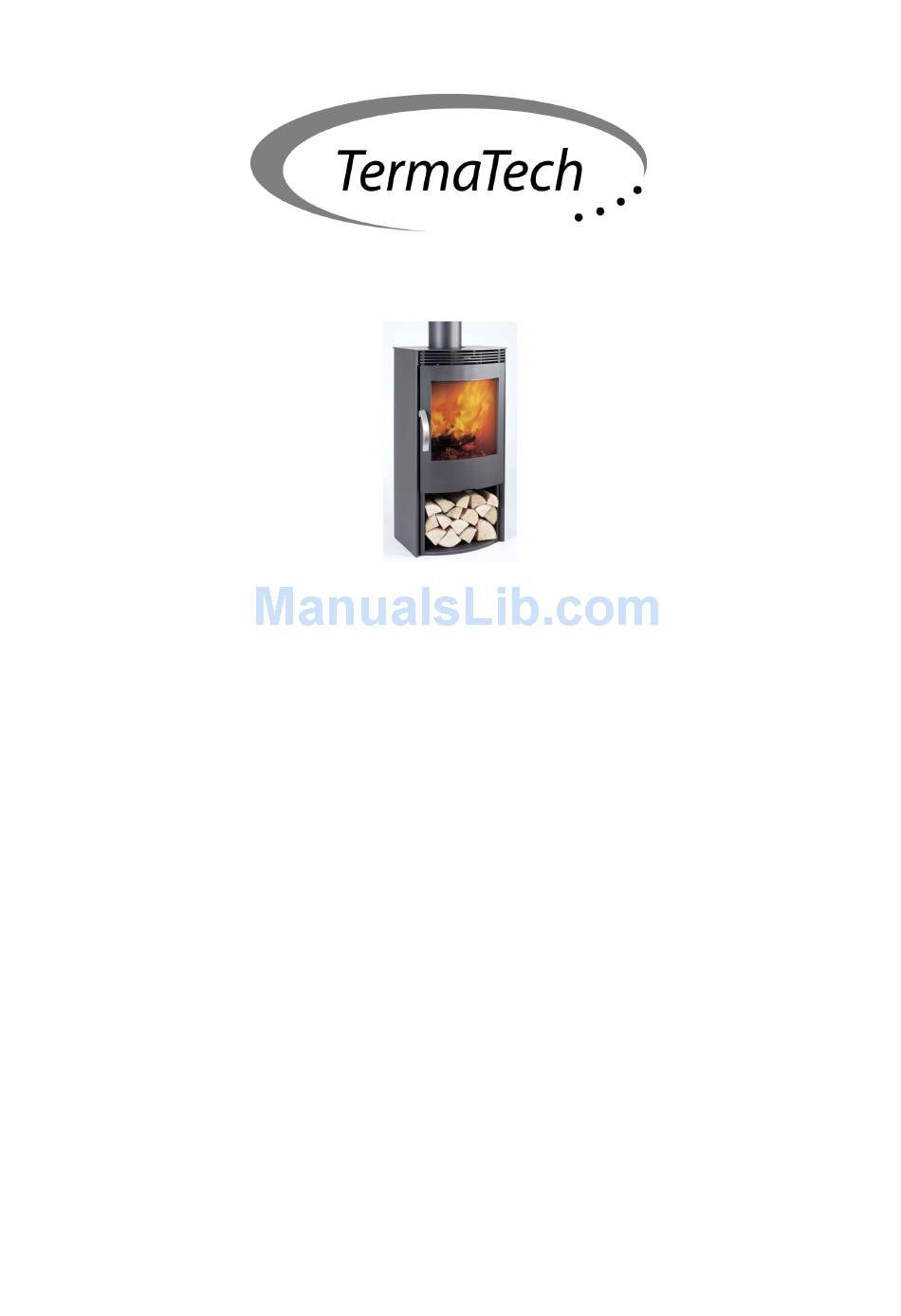

Installation and user's manual: TT40
(EN 13240/CE marked / Sintef)
Congratulations on your new TermaTech wood-burning stove.
In order to enjoy your new wood-burning stove as much as possible it is important that you read
this user's manual thoroughly, even if you have previously owned a wood-burning stove.
Before you can really enjoy your wood-burning you have to become familiar with it. Already after
firing the first few times you will begin to be familiar with your new wood-burning stove. In the
following sections we will go through the use.
TermaTech wood-burning stoves are tested and approved according to the EN 13240 (CE) norm
as well as Sintef approval in Norway, i.e. according to some of Europe's strictest demands for
wood-burning stoves.
Naturally the stoves are also in accordance with the requirements in the Danish 'Order concerning
wood-burning stoves' which came into effect on 1.6.2008. The approvals give you a guarantee that
your wood-burning stove is approved according to the most important Scandinavian and European
standards which means that the stove complies with a number of requirements for among other
things safety, environment and efficiency which leads to good firing economy.
User's manual
Wood-burning stove TT40 models
1
Version 18.11..2009
Advertisement
Related Manuals for TermaTech TT40
Summary of Contents for TermaTech TT40
- Page 1 firing the first few times you will begin to be familiar with your new wood-burning stove. In the following sections we will go through the use. TermaTech wood-burning stoves are tested and approved according to the EN 13240 (CE) norm as well as Sintef approval in Norway, i.e. according to some of Europe’s strictest demands for wood-burning stoves.
-
Page 2: The Chimney
You must use a chimney with a diameter of at least Ø150 mm which is the equivalent of an internal diameter of 175 cm² for your TermaTech stove. It is important to follow the directions in the Building regulations for small houses and to make sure that the existing or new chimney is high enough to ensure optimum draught in the wood-burning stove. - Page 3 (app. 1.2 – 1.5 kg), in the bottom of the stove, laid in a criss-cross pattern as a log house. Put 2 firelighters in the middle and light them (never use alcohol, petrol, other flammable liquids or magazines for lighting). User’s manual Wood-burning stove TT40 models Version 18.11..2009...
- Page 4 NOTE! Never light with the lighting damper open. (only for start-up)! 8. Firing Your TermaTech wood-burning stove is made for firing with wood/firewood, we recommend the use of split hardwood that has been stored for at least one year outdoors under a roof. Preferably put the firewood on a wooden pallet, bearers or the like so it is off the ground.
- Page 5 Original parts which need to be changed due to wear can be found at your dealer. Because of fit etc. only original parts from termaTech should be used. Right to claim compensation for defective product is under current law. When stating deviations the use of the product must be suspended immediately and the dealer must be contacted.
- Page 6 The glass soots up: The wood is too moist, Lack of draught in the chimney or wrong firing. 11. Questions and answers If you have further questions concerning your TermaTech wood-burning stove – see www.termatech.com 12. Good advice for the wood-burning stove If the stove has not been used for a long time the chimney should be checked for possible blockage before lighting.
- Page 7 Ø 150 mm Weight:" " 120 kg Average values for testing Exhaust gas temperature:"" 324º C Exhaust gas mass flow:" " 4.4 g/s Effect degree:" " 79.6% Nominal effect:" " 5 kW User’s manual Wood-burning stove TT40 models Version 18.11..2009...
- Page 8 Uptake:" " " 0.12 mbar/12 Pa User’s manual Wood-burning stove TT40 models Version 18.11..2009...
