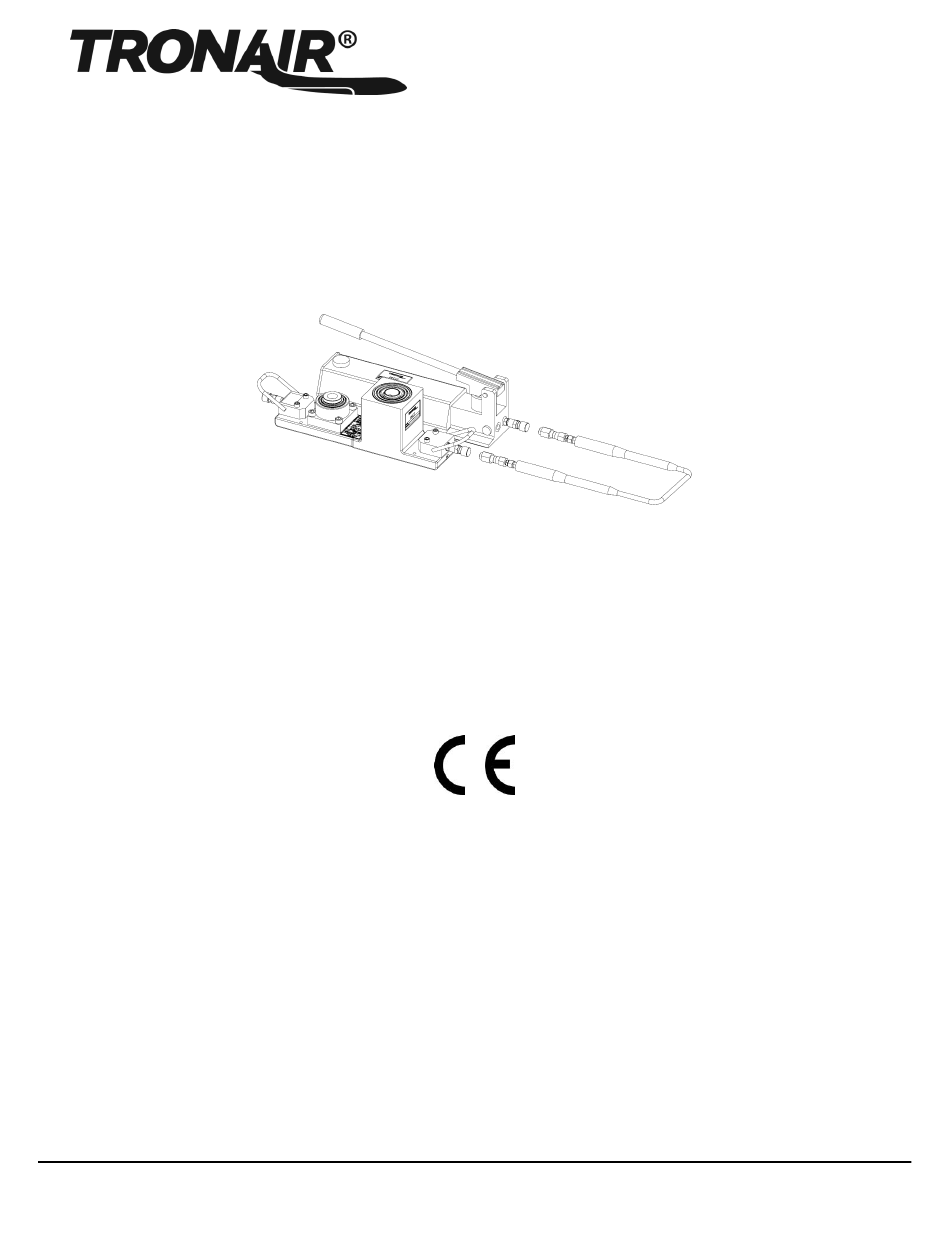

- Page 1 OPERATION & SERVICE MANUAL Model: 02-7926C0100 12 Ton (10.87 Metric Ton) and 26 Ton (23.59 Metric Ton) Axle Jack 09/2021 - Rev. 02 Tronair, Inc. Phone: (419) 866-6301 | 800-426-6301 1 Air Cargo Pkwy East Web: www.tronair.com Swanton, OH 43558...
- Page 2 REVISION DATE TEXT AFFECTED 09/2015 Original Release 09/2021 Major revision...
-
Page 3: Table Of Contents
Model: 02-7926C0100 12 & 26 Ton (10.87 & 23.59 Metric Ton) Axle Jack TABLE OF CONTENTS PAGE PRODUCT INFORMATION .............................. 1 DESCRIPTION..............................1 MODEL & SERIAL NUMBER ..........................1 MANUFACTURER .............................. 1 USAGE ................................1 SPECIFICATIONS .............................. 1 SAFETY INFORMATION ..............................1 USAGE AND SAFETY INFORMATION ...................... -
Page 4: Product Information
12 & 26 Ton (10.87 & 23.59 Metric Ton) Axle Jack This product can not be modified without the written approval of Tronair, Inc. Any modifications done without written approval voids all warranties and releases Tronair, Inc., it suppliers, distributors, employees, or financial institutions from any liability from consequences that may occur. -
Page 5: Training
Model: 02-7926C0100 12 & 26 Ton (10.87 & 23.59 Metric Ton) Axle Jack TRAINING TRAINING REQUIREMENTS The employer of the operator is responsible for providing a training program sufficient for the safe operation of the unit. TRAINING PROGRAM The employer provided operator training program should cover safety procedures concerning use of the unit in and around the intended aircraft at the intended aircraft servicing location. -
Page 6: Operating Instructions
Model: 02-7926C0100 12 & 26 Ton (10.87 & 23.59 Metric Ton) Axle Jack OPERATING INSTRUCTIONS The user should be familiar with the following statements prior to using the jack(s). CAUTION! Jacking adapters must be fully seated on mechanical extension. Never put hands between aircraft and jack pad. -
Page 7: Maintenance
Model: 02-7926C0100 12 & 26 Ton (10.87 & 23.59 Metric Ton) Axle Jack MAINTENANCE GENERAL All maintenance and/or repair work should be done using good workmanship practices and proper tools. The work area should be clean and free of dirt. -
Page 8: Provision Of Spares
GUARANTEES/LIMITATION OF LIABILITY Tronair products are warranted to be free of manufacturing or material defects for a period of one year after shipment to the original customer. This is solely limited to the repair or replacement of defective components. This warranty does not cover the... - Page 9 Model: 02-7926C0100 12 & 26 Ton (10.87 & 23.59 Metric Ton) Axle Jack Parts List When ordering replacement parts/kits, please specify model, serial number and color of your unit. Item Part Number Description HC-2008-236 O-ring, Series 2 G-1300-13040 Pin, 1/8 diameter x ½" long...
- Page 10 Model: 02-7926C0100 12 & 26 Ton (10.87 & 23.59 Metric Ton) Axle Jack Parts List When ordering replacement parts/kits, please specify model, serial number and color of your unit. Item Part Number Description G-1398-200 Ring, Internal G-1398-250 Ring, Internal R-1716...
- Page 11 Model: 02-7926C0100 12 & 26 Ton (10.87 & 23.59 Metric Ton) Axle Jack Parts List When ordering replacement parts/kits, please specify model, serial number and color of your unit. Item Part Number Description G-1151-109716 Screw, Socket Head Cap, ½-20 x 1 ¾" long...
- Page 12 Model: 02-7926C0100 12 & 26 Ton (10.87 & 23.59 Metric Ton) Axle Jack Parts List When ordering replacement parts/kits, please specify model, serial number and color of your unit. Item Part Number Description K-5072 Kit, Replacement Axle Jack Base; consists of:...
- Page 13 APPENDIX I Enerpac Instruction & Repair Parts...
- Page 27 APPENDIX II Safety Data Sheet MIL-PRF-5606 Hydraulic Fluid...
- Page 41 APPENDIX III Declaration of Conformity...
-
Page 43: Declaration Of Conformity
DECLARATION of CONFORMITY The design, development and manufacture is in accordance with European Community guidelines Axle Jack 02-7926C0100 Relevant provisions complied with by the machinery: 2006/42/EC Relevant standards complied with by the machinery: EN ISO 12100-1 Identification of person empowered to sign on behalf of the manufacturer: Quality Assurance Representative Tronair, Inc. - Page 45 APPENDIX IV Maintenance Schedule...
