Tronair 02-7847C0100 Operation & Service Manual

25 ton axle jack
Hide thumbs

Advertisement

Quick Links

Download this manual
For 02-7835C0100 sales, parts and service, click here to view this item on PilotJohn.com
The Tronair Group of Companies:
Tronair, Inc.
1 Air Cargo Pkwy East
Swanton, OH 43558

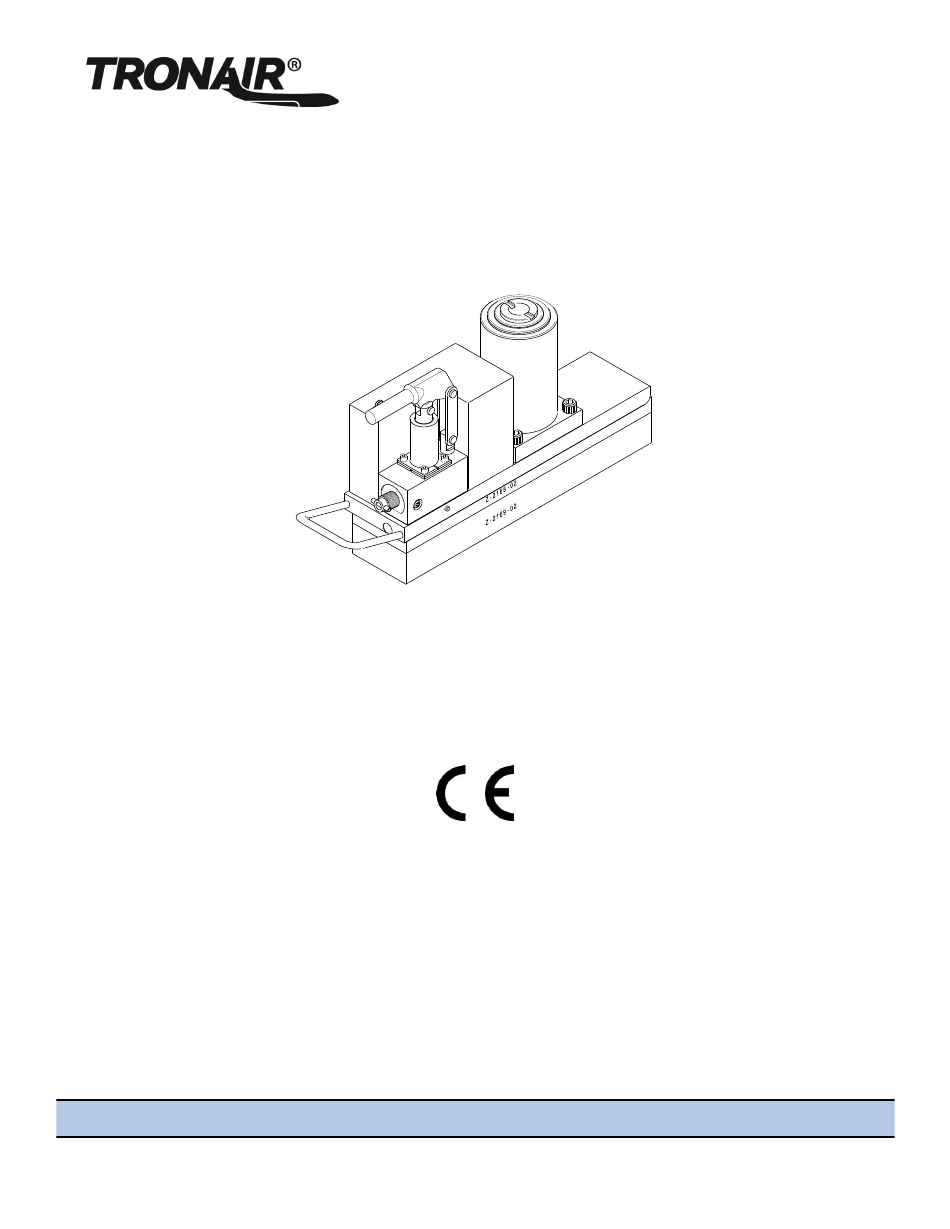

OPERATION & SERVICE MANUAL
Models: 02-7835C0100
02-7847C0100
02-7960C0100
25 Ton Axle Jack
08/2024 - Rev. 03
Tronair | EBIS | Columbus Jack | Eagle | DAE | Malabar International
Phone: (419) 866-6301 | 800-426-6301
Web: www.tronair.com
Email: sales@tronair.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the 02-7847C0100 and is the answer not in the manual?

Questions and answers

Related Manuals for Tronair 02-7847C0100

Summary of Contents for Tronair 02-7847C0100

  • Page 1 02-7960C0100 25 Ton Axle Jack 08/2024 - Rev. 03 The Tronair Group of Companies: Tronair | EBIS | Columbus Jack | Eagle | DAE | Malabar International Tronair, Inc. Phone: (419) 866-6301 | 800-426-6301 1 Air Cargo Pkwy East Web: www.tronair.com Swanton, OH 43558 Email: sales@tronair.com...
  • Page 2 For 02-7835C0100 sales, parts and service, click here to view this item on PilotJohn.com REVISION DATE TEXT AFFECTED 08/2010 Original release 01/2021 Major revision 08/2024 Added new section Provision of Spares...
  • Page 3 For 02-7835C0100 sales, parts and service, click here to view this item on PilotJohn.com Models: 02-7835C0100, 02-7847C0100, 02-7960C0100 25 Ton Axle Jack TABLE OF CONTENTS PAGE PRODUCT INFORMATION .............................. 1 DESCRIPTION..............................1 MODEL & SERIAL NUMBER ..........................1 MANUFACTURER .............................. 1 FUNCTION................................

  • Page 4: Specifications

    25 Ton Axle Jack This product can not be modified without the written approval of Tronair, Inc. Any modifications done without written approval voids all warranties and releases Tronair, Inc., its suppliers, distributors, employees, or financial institutions from any liability from consequences that may occur.

  • Page 5: Troubleshooting

    For 02-7835C0100 sales, parts and service, click here to view this item on PilotJohn.com Models: 02-7835C0100, 02-7847C0100, 02-7960C0100 25 Ton Axle Jack ASSEMBLY INSTRUCTIONS GENERAL INFORMATION This product should be assembled and/or repaired using good workmanship practices and proper tools.
  • Page 6 For 02-7835C0100 sales, parts and service, click here to view this item on PilotJohn.com Models: 02-7835C0100, 02-7847C0100, 02-7960C0100 25 Ton Axle Jack MAINTENANCE GENERAL • All maintenance and/or repair work should be done using good workmanship practices and proper tools.
  • Page 7 If warranty coverage is approved, either replacement parts will be sent or the product will have to be returned to Tronair for repairs. If the product is to be returned, a Return Material Authorization (RMA) number will be issued for reference purposes on any shipping documents.
  • Page 8 For 02-7835C0100 sales, parts and service, click here to view this item on PilotJohn.com Models: 02-7835C0100, 02-7847C0100, 02-7960C0100 25 Ton Axle Jack Parts List Illustrations 08/2024 | Rev. 03 Page | 5...
  • Page 9 For 02-7835C0100 sales, parts and service, click here to view this item on PilotJohn.com Models: 02-7835C0100, 02-7847C0100, 02-7960C0100 25 Ton Axle Jack 02-7835C0100 - Parts List When ordering replacement parts/kits, please specify Model, Serial Number & color (if applicable) of your product.
  • Page 10 For 02-7835C0100 sales, parts and service, click here to view this item on PilotJohn.com Models: 02-7835C0100, 02-7847C0100, 02-7960C0100 25 Ton Axle Jack 02-7847C0100 - Parts List When ordering replacement parts/kits, please specify Model, Serial Number & color (if applicable) of your product.
  • Page 11 For 02-7835C0100 sales, parts and service, click here to view this item on PilotJohn.com Models: 02-7835C0100, 02-7847C0100, 02-7960C0100 25 Ton Axle Jack 02-7960C0100 - Parts List When ordering replacement parts/kits, please specify Model, Serial Number & color (if applicable) of your product.
  • Page 12 For 02-7835C0100 sales, parts and service, click here to view this item on PilotJohn.com...
  • Page 13 For 02-7835C0100 sales, parts and service, click here to view this item on PilotJohn.com APPENDIX I HC-2515 Hand Pump Parts List...
  • Page 14 For 02-7835C0100 sales, parts and service, click here to view this item on PilotJohn.com...
  • Page 15 For 02-7835C0100 sales, parts and service, click here to view this item on PilotJohn.com Model: HC-2515 8800 psi Hand Pump Parts List With Illustrations 08/2010 – Rev. 01 Tronair, Inc. Phone: (419) 866-6301 | 800-426-6301 1 Air Cargo Pkwy East Web: www.tronair.com Swanton, OH 43558 Email: sales@tronair.com...
  • Page 16 For 02-7835C0100 sales, parts and service, click here to view this item on PilotJohn.com...

  • Page 17: Parts List

    8800 Hand Pump This product can not be modified without the written approval of Tronair, Inc. Any modifications done without written approval voids all warranties and releases Tronair, Inc., its suppliers, distributors, employees, or financial institutions from any liability from consequences that may occur. Only Tronair OEM replacement parts shall be used.

  • Page 18: Parts List Illustration

    For 02-7835C0100 sales, parts and service, click here to view this item on PilotJohn.com Model: HC-2515 8800 Hand Pump Parts List Illustration This pump is compatible with MIL-PRF-5606/MIL-PRF-83282 Hydraulic Fluids only. WARNING Item 31 (H-3355) is a preset relief valve. Do Not disassemble this valve. Replacement parts are available as a preset relief valve assembly.
  • Page 19 For 02-7835C0100 sales, parts and service, click here to view this item on PilotJohn.com APPENDIX II Safety Data Sheet MIL-PRF-5606 Hydraulic Fluid...
  • Page 20 For 02-7835C0100 sales, parts and service, click here to view this item on PilotJohn.com...
  • Page 21 For 02-7835C0100 sales, parts and service, click here to view this item on PilotJohn.com...
  • Page 22 For 02-7835C0100 sales, parts and service, click here to view this item on PilotJohn.com...
  • Page 23 For 02-7835C0100 sales, parts and service, click here to view this item on PilotJohn.com...
  • Page 24 For 02-7835C0100 sales, parts and service, click here to view this item on PilotJohn.com...
  • Page 25 For 02-7835C0100 sales, parts and service, click here to view this item on PilotJohn.com...
  • Page 26 For 02-7835C0100 sales, parts and service, click here to view this item on PilotJohn.com...
  • Page 27 For 02-7835C0100 sales, parts and service, click here to view this item on PilotJohn.com...
  • Page 28 For 02-7835C0100 sales, parts and service, click here to view this item on PilotJohn.com...
  • Page 29 For 02-7835C0100 sales, parts and service, click here to view this item on PilotJohn.com...
  • Page 30 For 02-7835C0100 sales, parts and service, click here to view this item on PilotJohn.com...
  • Page 31 For 02-7835C0100 sales, parts and service, click here to view this item on PilotJohn.com...
  • Page 32 For 02-7835C0100 sales, parts and service, click here to view this item on PilotJohn.com...
  • Page 33 For 02-7835C0100 sales, parts and service, click here to view this item on PilotJohn.com APPENDIX III Declaration of Conformity...
  • Page 34 For 02-7835C0100 sales, parts and service, click here to view this item on PilotJohn.com...

  • Page 35: Declaration Of Conformity

    Relevant standards complied with by the machinery: EN ISO 12100-1 Identification of person empowered to sign on behalf of the Manufacturer: Quality Assurance Representative Tronair, Inc. Phone: (419) 866-6301 | 800-426-6301 1 Air Cargo Pkwy East Web: www.tronair.com Swanton, OH 43558...
  • Page 36 For 02-7835C0100 sales, parts and service, click here to view this item on PilotJohn.com...
  • Page 37 For 02-7835C0100 sales, parts and service, click here to view this item on PilotJohn.com APPENDIX IV Maintenance Schedule...
  • Page 38 For 02-7835C0100 sales, parts and service, click here to view this item on PilotJohn.com...
  • Page 39 For 02-7835C0100 sales, parts and service, click here to view this item on PilotJohn.com...
