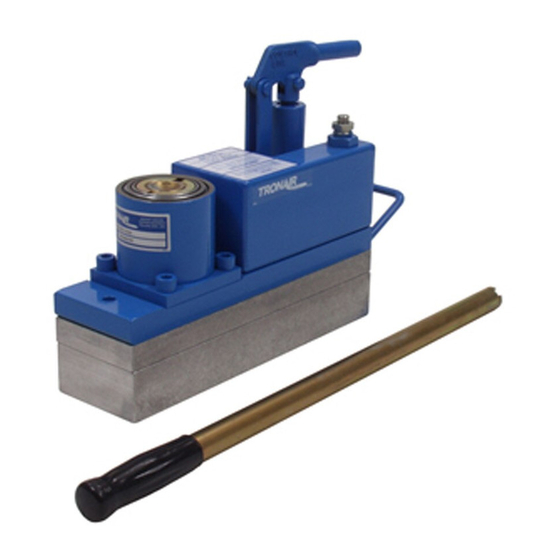

Tronair 02-7813C0100 Operation & Service Manual

Tronair 02-7813C0100 Operation & Service Manual

Hide thumbs Also See for 02-7813C0100:

Advertisement

Quick Links

Tronair, Inc.
1 Air Cargo Pkwy East
Swanton, OH 43558
OPERATION & SERVICE MANUAL
Models: 02-7813C0100
02-7813C0100-A5
02-7884C0100
12 Ton (10.8 Metric Ton) Two Stage
Hydraulic Axle Jack
02/2021 − Rev. 06
Phone: (419) 866-6301 | 800-426-6301
Web: www.tronair.com
Email: sales@tronair.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the 02-7813C0100 and is the answer not in the manual?

Questions and answers

Summary of Contents for Tronair 02-7813C0100

  • Page 1 OPERATION & SERVICE MANUAL Models: 02-7813C0100 02-7813C0100-A5 02-7884C0100 12 Ton (10.8 Metric Ton) Two Stage Hydraulic Axle Jack 02/2021 − Rev. 06 Tronair, Inc. Phone: (419) 866-6301 | 800-426-6301 1 Air Cargo Pkwy East Web: www.tronair.com Swanton, OH 43558 Email: sales@tronair.com...
  • Page 2 REVISION DATE TEXT AFFECTED 06/2006 Original Release 05/2011 Modified Parts Lists and Illustrations 07/2016 Major revision 01/2017 Modified Parts List 12/2020 Added model numbers and modified parts lists 02/2021 Modified Pats List...
  • Page 3 Models: 02-7813C0100, 02-7813C0100-A5, 02-7884C0400 12 Ton Two Stage Hydraulic Axle Jack TABLE OF CONTENTS PAGE PRODUCT INFORMATION .............................. 1 DESCRIPTION ..............................1 MODEL & SERIAL NUMBER ..........................1 MANUFACTURER .............................. 1 USAGE ................................1 SPECIFICATIONS .............................. 1 SAFETY INFORMATION ..............................1 USAGE AND SAFETY INFORMATION ......................
  • Page 4 12 Ton Two Stage Hydraulic Axle Jack This product can not be modified without the written approval of Tronair, Inc. Any modifications done without written approval voids all warranties and releases Tronair, Inc., its suppliers, distributors, employees, or financial institutions from any liability from consequences that may occur.
  • Page 5: Troubleshooting

    Models: 02-7813C0100, 02-7813C0100-A5, 02-7884C0400 12 Ton Two Stage Hydraulic Axle Jack TRAINING TRAINING REQUIREMENTS The employer of the operator is responsible for providing a training program sufficient for the safe operation of the unit. TRAINING PROGRAM The employer provided operator training program should cover safety procedures concerning use of the unit in and around the intended aircraft at the intended aircraft servicing location.
  • Page 6 Models: 02-7813C0100, 02-7813C0100-A5, 02-7884C0400 12 Ton Two Stage Hydraulic Axle Jack MAINTENANCE GENERAL • All maintenance and/or repair work should be done using good workmanship practices and proper tools. • The work area should be clean and free of dirt.
  • Page 7 GUARANTEES/LIMITATION OF LIABILITY Tronair products are warranted to be free of manufacturing or material defects for a period of one year after shipment to the original customer. This is solely limited to the repair or replacement of defective components. This warranty does not cover the...
  • Page 8: Parts List

    Models: 02-7813C0100, 02-7813C0100-A5, 02-7884C0400 12 Ton Two Stage Hydraulic Axle Jack Parts List When ordering replacement parts/kits, please specify model, serial number and color of your unit. This Axle Jack uses MIL-PRF-5606/MIL-PRF-83282 Fluid Only. Item Part Number Description H-1720 Screw, Vent...
  • Page 9 Models: 02-7813C0100, 02-7813C0100-A5, 02-7884C0400 12 Ton Two Stage Hydraulic Axle Jack This page left blank intentionally. 02/2021 | Rev. 06 Page | 6...
  • Page 10 Models: 02-7813C0100, 02-7813C0100-A5, 02-7884C0400 12 Ton Two Stage Hydraulic Axle Jack Parts List When ordering replacement parts/kits, please specify model, serial number and color of your unit. 02/2021 | Rev. 06 Page | 7...
  • Page 11 Models: 02-7813C0100, 02-7813C0100-A5, 02-7884C0400 12 Ton Two Stage Hydraulic Axle Jack Parts List This Axle Jack uses MIL-PRF-5606/MIL-PRF-83282 Fluid Only. Item Part Number Description G-1151-105006 Socket Head Cap Screw, ¼-20 x ¾" long G-1475 Retaining Washer G-1399-256 Retaining Ring G-1163-16 Set Screw, Hex 10-32 x "...
  • Page 12 Models: 02-7813C0100, 02-7813C0100-A5, 02-7884C0400 12 Ton Two Stage Hydraulic Axle Jack Parts List When ordering replacement parts/kits, please specify model, serial number and color of your unit. This Axle Jack uses MIL-PRF-5606/MIL-PRF-83282 Fluid Only. 02-7813C0100 & 02-7884C0400 Only Item Part Number...
  • Page 13 APPENDIX I Hydraulic Schematic...
  • Page 15: Hydraulic Schematic

    Hydraulic Schematic...
  • Page 17 APPENDIX II HC-2332-01 5,250 psi Hand Pump Parts List...
  • Page 19 Hand Pump Parts List With Illustrations 05/2011 – Rev. 01 When ordering Replacement Parts/Kits, please specify Model, Color and Serial Number of your Unit. Tronair, Inc. Phone: (419) 866-6301 | 800-426-6301 1 Air Cargo Pkwy East Web: www.tronair.com Swanton, OH 43558...
  • Page 20 5250 Hand Pump This product can not be modified without the written approval of Tronair, Inc. Any modifications done without written approval voids all warranties and releases Tronair, Inc., its suppliers, distributors, employees, or financial institutions from any liability from consequences that may occur. Only Tronair OEM replacement parts shall be used.
  • Page 21: Parts List Illustration

    Model: HC-2332-01 5250 Hand Pump Parts List Illustration WARNING! Item 26 (H-2934) is a preset relief valve. Do Not disassemble this valve. Replacement parts are available as a preset relief valve assembly 05/2011 | Rev. 01 Page | 2...
  • Page 23 APPENDIX III Safety Data Sheet MIL-PRF-5606 Hydraulic Fluid...
  • Page 37 APPENDIX IV Declaration of Conformity...
  • Page 39: Declaration Of Conformity

    DECLARATION of CONFORMITY The design, development and manufacture is in accordance with European Community guidelines Axle Jack 02-7813C0100 02-7813C0100-A5 02-7884C0100 Relevant provisions complied with by the machinery: 2006/42/EC Relevant standards complied with by the machinery: EN ISO 12100-1 Identification of person empowered to sign on behalf of the Manufacturer: Quality Assurance Representative Tronair, Inc.
  • Page 41 APPENDIX V Maintenance Schedule...
