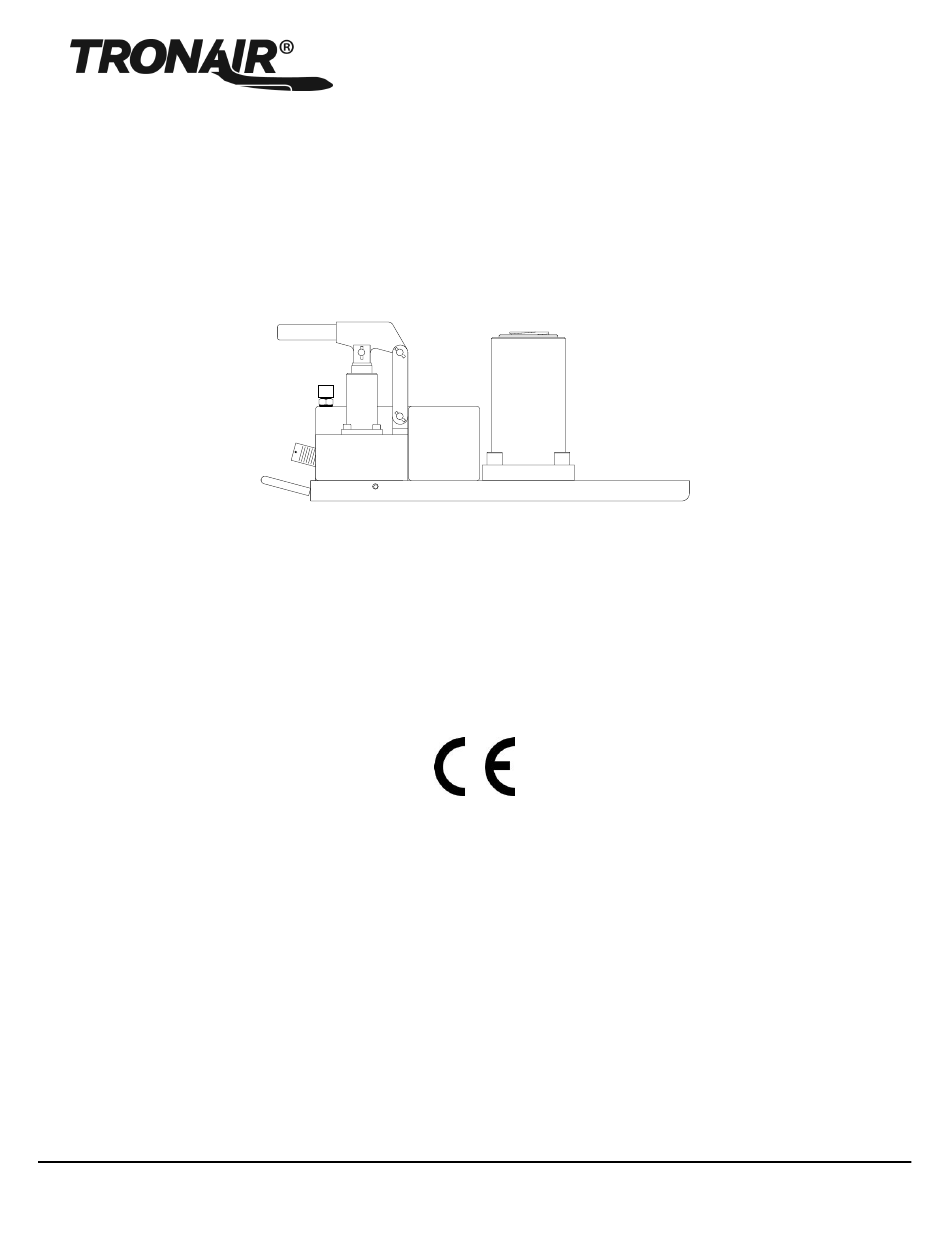

- Page 1 OPERATION & SERVICE MANUAL Model: 02-7901C0100 25 Ton (22.7 Metric Ton) Axle Jack 12/2016 Rev. 03 Tronair, Inc. Phone: (419) 866-6301 | 800-426-6301 1 Air Cargo Pkwy East Web: www.tronair.com Swanton, OH 43558 Email: sales@tronair.com...
- Page 2 REVISION DATE TEXT AFFECTED 01/2011 Original Release 03/2013 Modified Parts List 12/2016 Modified Parts List...
- Page 3 Model: 02-7901C0100 25 Ton Axle Jack TABLE OF CONTENTS PAGE DESCRIPTION .................................. 1 USAGE....................................1 SPECIFICATIONS ................................1 ASSEMBLY INSTRUCTIONS ............................1 GENERAL INFORMATION ..........................1 PRE-USE CHECKS ............................1 OPERATING INSTRUCTIONS ............................1 JACK INSTRUCTIONS ............................1 MAINTENANCE ................................2 SERVICING JACK ..............................
- Page 4 25 Ton Axle Jack This product can not be modified without the written approval of Tronair, Inc. Any modifications done without written approval voids all warranties and releases Tronair, Inc., its suppliers, distributors, employees, or financial institutions from any liability from consequences that may occur.
- Page 5 Model: 02-7901C0100 25 Ton Axle Jack MAINTENANCE GENERAL COMMENTS All maintenance and/or repair work should be done using good workmanship practices and proper tools. The work area should be clean and free of dirt. When O-rings and backup rings are removed, every effort should be made to avoid the contact of tools with the critical surfaces of parts.
- Page 6 Model: 02-7901C0100 25 Ton Axle Jack TROUBLE SHOOTING TROUBLE PROBABLE CAUSE ACTION Remove piston and pump body. Inspect for Fluid leakage at pump Damaged backup ring, o-ring, piston or pump damage. Replace defective part(s). Replace piston or pump body body...
- Page 7 GUARANTEES/LIMITATION OF LIABILITY Tronair products are warranted to be free of manufacturing or material defects for a period of one year after shipment to the original customer. This is solely limited to the repair or replacement of defective components. This warranty does not cover the...
- Page 8 Model: 02-7901C0100 25 Ton Axle Jack Parts List When ordering replacement parts/kits, please specify model, serial number and color of your unit. Item Part Number Description N-2066-02-S-B Plug, Hex Head with O-ring TR-1457 Tube, Piston R-3028 Extension, Mechanical G-1300-25050 Pin, Roll...
- Page 9 Model: 02-7901C0100 25 Ton Axle Jack Parts List When ordering replacement parts/kits, please specify model, serial number and color of your unit. Item Part Number Description K-4064 Kit, Pump Replacement; consists of: HC-2008-109 O-ring, Series 2 HC-2744 Assembly, Hydraulic Hand Pump...
- Page 11 APPENDIX I Hydraulic Schematic...
- Page 13 Hydraulic Schematic...
- Page 15 APPENDIX II HC-2744 Hand Pump Parts List...
- Page 17 Model: HC-2744 7400 psi Hand Pump Parts List With Illustrations 01/2008 – Rev. 01 Tronair, Inc. Phone: (419) 866-6301 | 800-426-6301 1 Air Cargo Pkwy East Web: www.tronair.com Swanton, OH 43558 Email: sales@tronair.com...
- Page 19 ODEL 7400 psi H This product can not be modified without the written approval of Tronair, Inc. Any modifications done without written approval voids all warranties and releases Tronair, Inc., its suppliers, distributors, employees, or financial institutions from any liability from consequences that may occur.
- Page 20 : HC-2744 ODEL 7400 psi H Parts List Illustration This pump is compatible with MIL-PRF-5606/MIL-H-83282 Hydraulic Fluids only. WARNING Item 31 (H-3095) is a preset relief valve. Do Not disassemble this valve. Replacement parts are available as a preset relief valve assembly. 12/2016 | Rev.
- Page 21 APPENDIX III Safety Data Sheet MIL-PRF-5606 Hydraulic Fluid...
- Page 35 APPENDIX IV Declaration of Conformity...
- Page 37 DECLARATION of CONFORMITY The design, development and manufacture is in accordance with European Community guidelines Axle Jack 02-7901C0100 Relevant provisions complied with by the machinery: 2006/42/EC Relevant standards complied with by the machinery: EN ISO 12100-1 Identification of person empowered to sign on behalf of the Manufacturer: Quality Assurance Representative Tronair, Inc.
- Page 39 APPENDIX V Maintenance Schedule...
