- Page 1 Operation & Service Manual Model: 02-7839-0111 18 Ton Single Stage Jack 09/2001 – Rev. 01 Includes Illustrated Parts Lists Tronair, Inc. 1740 Eber Road Holland, Ohio 43528-9794 • Telephone: (419) 866-6301 800-426-6301 Fax: (419) 867-0634 Web Site: www.tronair.com E-mail: mail@tronair.com...
-
Page 2: Table Of Contents
Model: 02-7839-0111 18 Ton Single Stage Jack TABLE OF CONTENTS PAGE Description ..............................1 Usage ................................1 Specifications ..............................1 Assembly Instructions ...........................1 General Information .........................1 Erecting Jack ............................1 Pre-Use Checks ..........................2 Operating Instructions ...........................2 Jack Instructions ..........................2 Maintenance ..............................3 General ................................3 Servicing Jack ..........................3 Removing And Servicing Pump.......................3... -
Page 3: Description

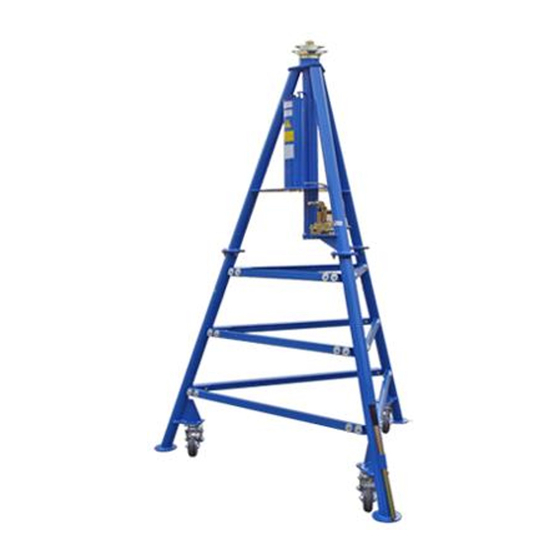

Model: 02-7839-0111 18 Ton Single Stage Jack 1.0 DESCRIPTION The Tronair Single Stage Jack incorporates the following quality features: • Steel Construction • Mechanical ram lock nut that prevents lowering of jack under load • Quick action mechanical extension •... -
Page 4: Pre-Use Checks
Model: 02-7839-0111 18 Ton Single Stage Jack 4.0 ASSEMBLY INSTRUCTIONS PRE-USE CHECKS 1. Refer to the Illustrated Parts List to identify and ensure that all parts are present. 2. Generally check over unit to assure the tightness of all nuts, bolts and fittings. -
Page 5: Maintenance
Model: 02-7839-0111 18 Ton Single Stage Jack 6.0 MAINTENANCE GENERAL • All maintenance and/or repair work should be done using good workmanship practices and proper tools. • The work area should be clean and free of dirt. • When O-rings and backup rings are removed, every effort should be made to avoid the contact of tools with the critical surfaces of parts. -
Page 6: Jack Function Load Test
Model: 02-7839-0111 18 Ton Single Stage Jack 6.0 MAINTENANCE REMOVING AND SERVICING PUMP 5. Remove clevis pin assembly. (Item 18). 6. Remove four (4) socket head cap screws. 7. Remove flanges. 8. Remove tube assembly. (Item 16). 9. Replace O-rings and backup ring. (See Appendix I: HC-1752 for kits available). - Page 7 Model: 02-7839-0111 18 Ton Single Stage Jack Parts List Reference Illustrations on Pages 7 & 8. REPLACEMENT PARTS ITEM PART NUMBER DESCRIPTION HJ-557 Pad, Jack H-2329 Nut, Extension G-1300-31200 Pin, Roll, 5/16" diameter x 2" long R-1150 Extension, Mechanical H-2326...
- Page 8 Model: 02-7839-0111 18 Ton Single Stage Jack Parts List Reference Illustrations on Pages 7 & 8. REPLACEMENT KITS PART NUMBER DESCRIPTION K-1051 Kit, Seal Replacement; consists of: - Item HJ-706 Ring, Guide - Item HC-2000-346 O-Ring - Item HC-2020-346 Ring, Backup K-2433 Kit, Caster Replacement;...
- Page 9 Model: 02-7839-0111 18 Ton Single Stage Jack Parts List Illustrations 09/2001 – Rev. 01 - 7 -...
- Page 10 Model: 02-7839-0111 18 Ton Single Stage Jack Parts List Illustrations 09/2001 – Rev. 01 - 8 -...
