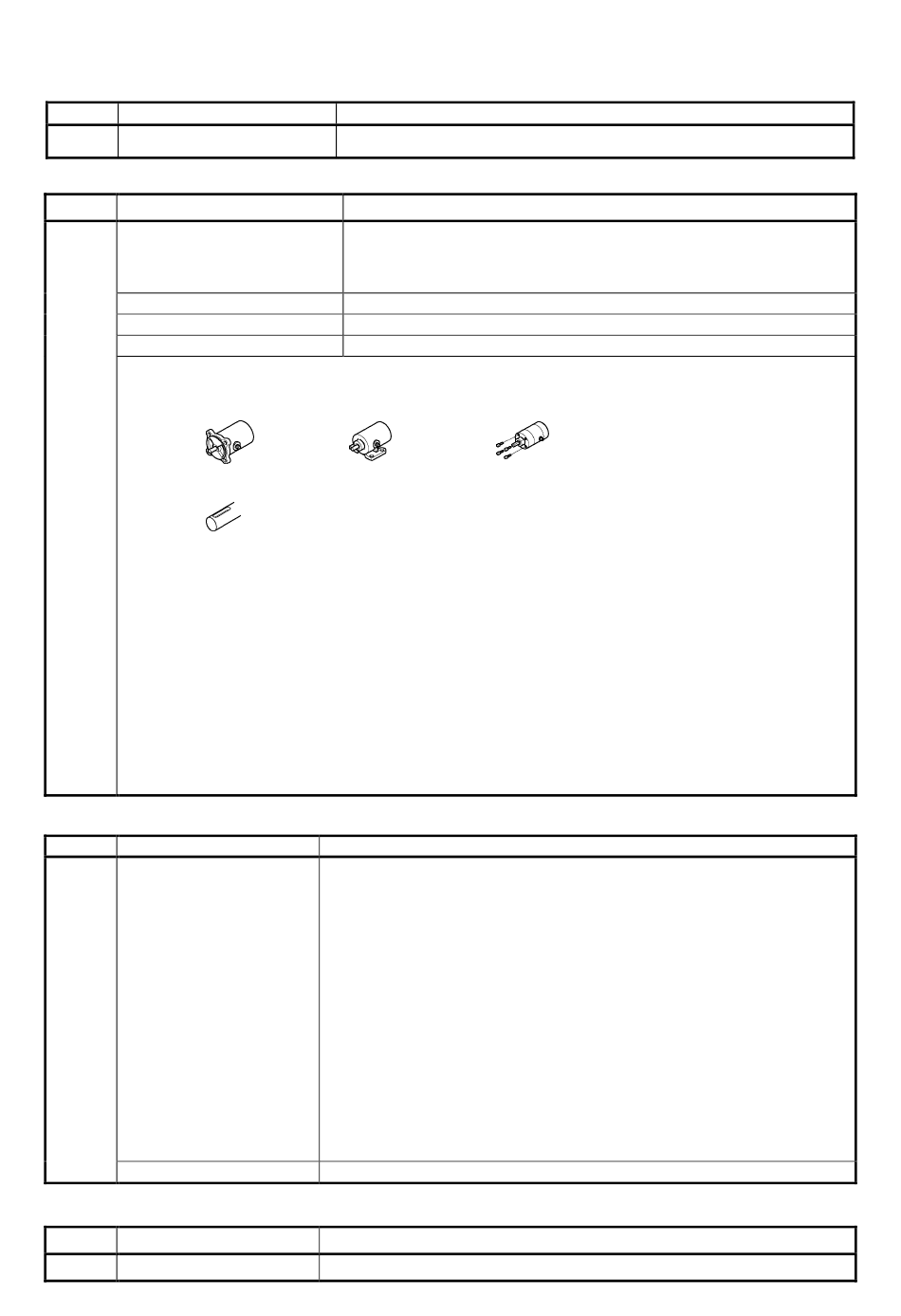

● Model List
◆ Converter
No.
Model
(1)
NCV-220HSSIV1R
◆ ABSOCODER sensor
No.
Model
VRE-P061FK[2]
VRE-P074[1]K[2][L][-G]
VRE-P097[1]K[2][L][-G]
VRE-P101[1]K[2][L][-G]
[1]: Mounting format
F: Flange-mount type
K: Input shaft (sunk key)
(2)
[2]: Connector type
B: Standard connector for the NSD special cable
(NJW-2012PM8, manufacturer: Nanaboshi Electric Mfg.Co,Ltd.)
P: Large connector for JKPEV-S cable
(NWPC-4012-Ad12, manufacturer: Nanaboshi Electric Mfg.Co,Ltd.)
R: Crimping terminals for JKPEV-S cable and the NSD special cable (R1.25-4)
[L]: Interconnecting sensor cable length (m)
2: 2m, 5: 5m, 10: 10m, 20: 20m
[-G]: Silicon oil
-G :Silicon oil injected
no code: no oil injected
◆ Extension sensor cable
No.
Model
4P-[1]-[2] [3]-[L]
(3)
JKPEV-S(1.25mm
◆ Option
No.
Model
(4)
RB-01
For single-turn type ABSOCODER sensor
General environment type
Mounting format: Flange-mount type
With Interconnecting cable 2m
Compact size heavy duty type, SUS
Heavy duty type, spheroidal graphite iron castings
Heavy duty type, SUS
L: Base-mount type
[1]...Cable type
S: Standard cable
RBT: Robotic cable
URT: Semi-heat-resistant robotic cable
HRT: Heat-resistant robotic cable
[2]...Connector (Converter side)
01: Connector for connecting to a converter (R04-PB9M8.0A)
43: Standard connector (NJW-2012-PM8)
90: Crimping terminals (R-1.25-4)
[3]...Connector (Sensor side)
44: Standard connector (NJW-2012-AdF8)
55: Large connector (NWPC-4012-P12)
90: Crimping terminals (R-1.25-4)
[L]...Cable length (m)
Contact your NSD representative for the cable length.
×5P)
Commercially available cable
2
L-type flange for VRE-P061
Description
Description
M: Face-mount type
(Only available for MRE-SP074)
Description
Description
3
