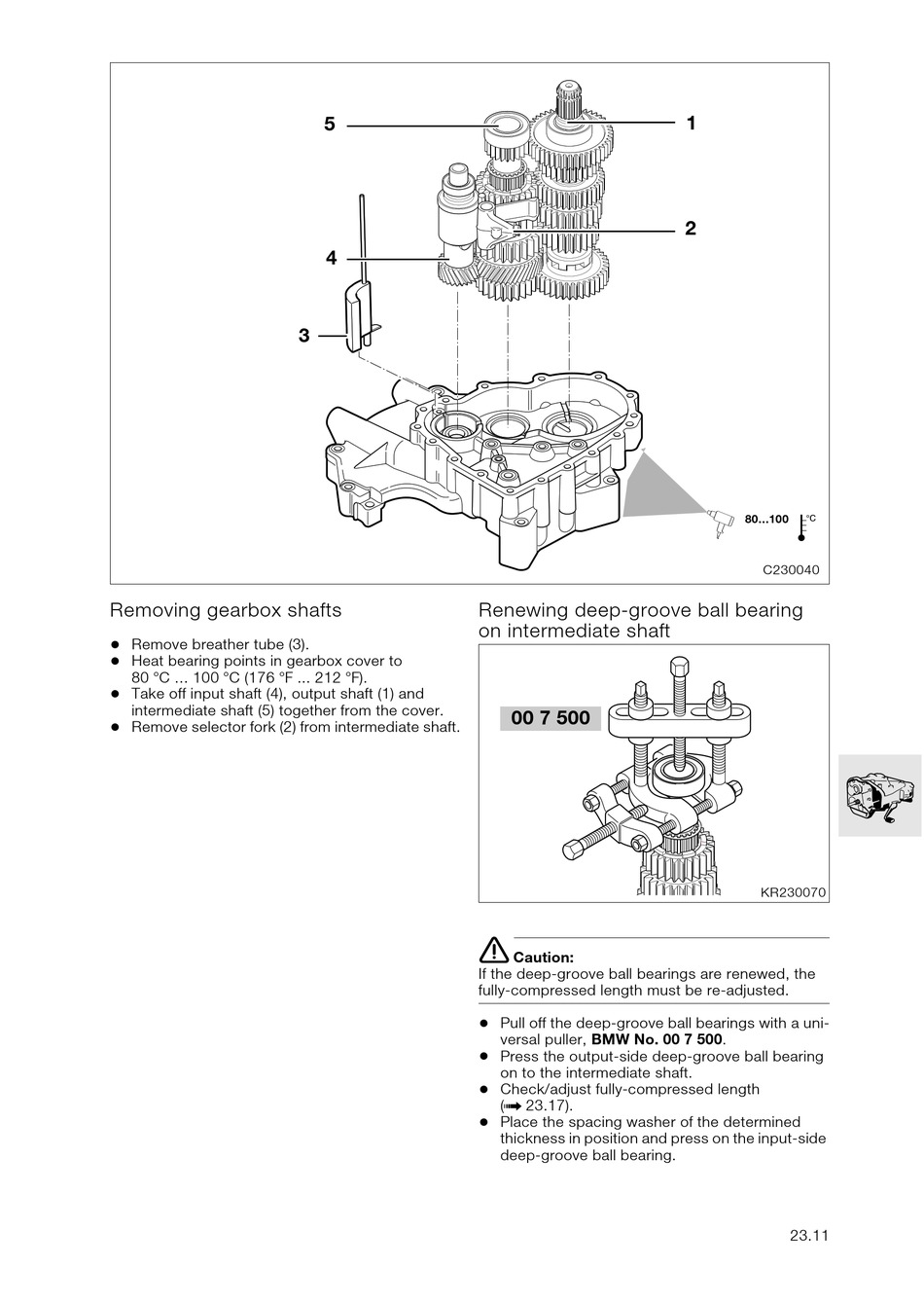

Removing gearbox shafts

•
Remove breather tube (3).
•
Heat bearing points in gearbox cover to
80 °C ... 100 °C (176 °F ... 212 °F).
•
Take off input shaft (4), output shaft (1) and
intermediate shaft (5) together from the cover.
•
Remove selector fork (2) from intermediate shaft.
5
4
3
Renewing deep-groove ball bearing
on intermediate shaft
00 7 500
e
Caution:
If the deep-groove ball bearings are renewed, the
fully-compressed length must be re-adjusted.
•
Pull off the deep-groove ball bearings with a uni-
versal puller, BMW No. 00 7 500.
•
Press the output-side deep-groove ball bearing
on to the intermediate shaft.
•
Check/adjust fully-compressed length
( 23.17).
a
•
Place the spacing washer of the determined
thickness in position and press on the input-side
deep-groove ball bearing.
1
2
80...100 h
C230040
KR230070
23.11
