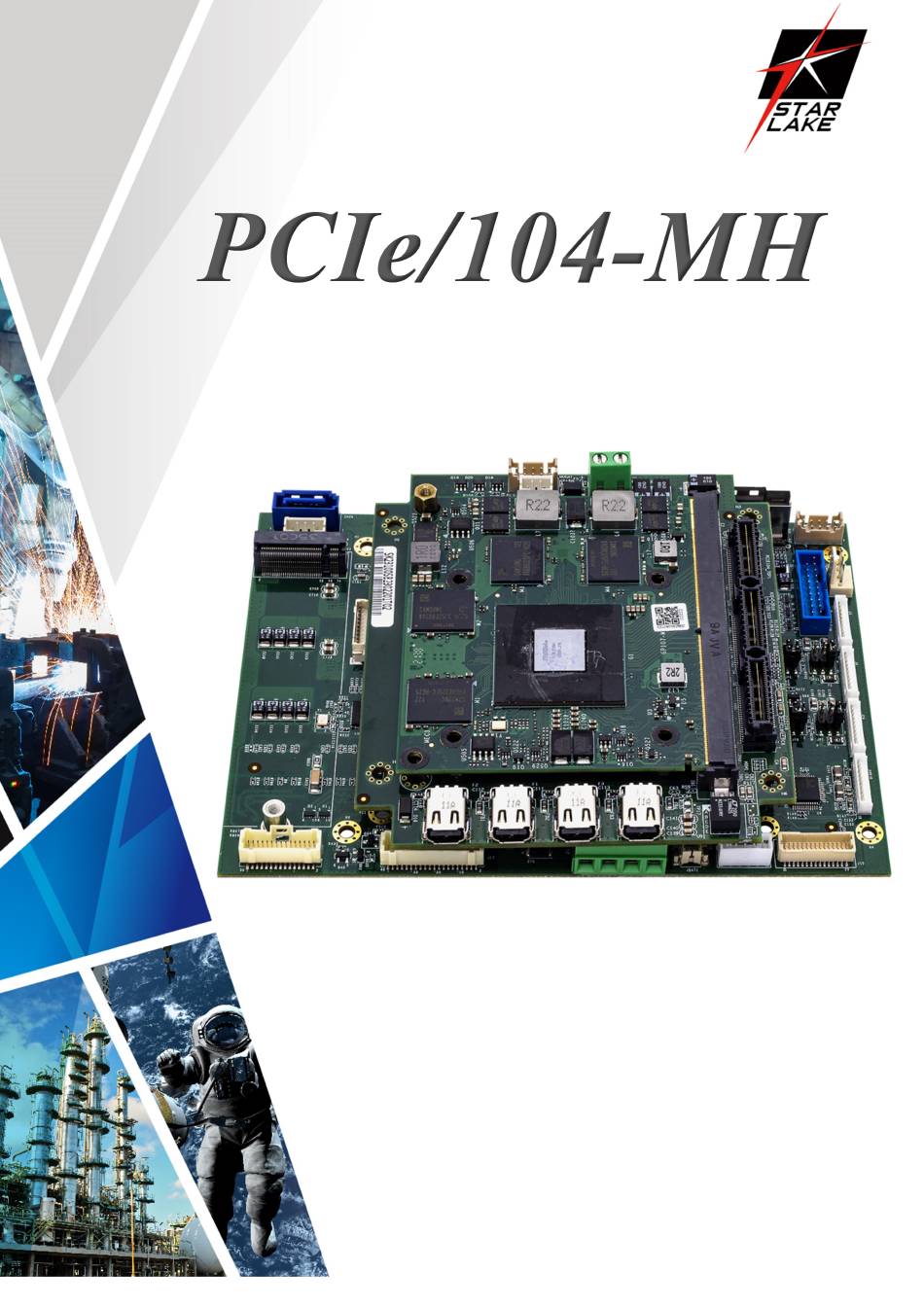

- Page 1 PCIe/104-MH PCIe/104 Processing Unit Intel 14th Meteor Lake (H) User’s Manual Revision Date: Jan. 14. 2025...
-
Page 2: Safety Information
PCIe/104-MH User’s Manual Revision Date: Jan. 14. 2024 Safety Information Electrical safety • To prevent electrical shock hazard, disconnect the power cable from the electrical outlet before relocating the system. • When adding or removing devices to or from the system, ensure that the power cables for the devices are unplugged before the signal cables are connected. -
Page 3: Revision History
PCIe/104-MH User’s Manual Revision Date: Jan. 14. 2024 Revision History Revision Date (yyyy/mm/dd) Changes V1.0 2025.01.14 Initial Release... -
Page 4: Table Of Contents
PCIe/104-MH User’s Manual Revision Date: Jan. 14. 2024 Table of Contents Safety Information ......................... 1 Electrical safety ..........................1 Operation safety ..........................1 Statement ............................1 Revision History ........................2 Chapter 1 : Product Introduction ....................4 1.1 Specifications ..........................4 1.2 Board Diagram........................... -
Page 5: Chapter 1 : Product Introduction
PCIe/104-MH User’s Manual Revision Date: Jan. 14. 2024 Chapter 1 : Product Introduction 1.1 Specifications System Intel® Core™Ultra 165H 28W(Turbo power limit 115W) Meteor Lake-H 14th Gen, 16C(6P+10E) , COM Express Freq. 2.5 /5.0 GHz, 24MB cache CPU Options Intel® Core™Ultra 155H 28W(Turbo power limit 115W) Meteor Lake-H 14th Gen, 16C(6P+10E) , (Type 6) Freq. - Page 6 PCIe/104-MH User’s Manual Revision Date: Jan. 14. 2024 1x 10Pin 1x DI/DO (4 in / 4 out) CPU FAN 1x CPU FAN Front Panel 2x 5Pin (Power Button, Reset, SSD LED) Battery 1x Battery Header Power System Input Power_SYS 9V~36V DC-IN (4P Terminal Block) Power Management ACPI3.0...
-
Page 7: Board Diagram
PCIe/104-MH User’s Manual Revision Date: Jan. 14. 2024 1.2 Board Diagram... -
Page 8: Connector & Pin Header
PCIe/104-MH User’s Manual Revision Date: Jan. 14. 2024 1.3 Connector & Pin Header... -
Page 9: Dimension
PCIe/104-MH User’s Manual Revision Date: Jan. 14. 2024 1.4 Dimension... -
Page 10: Chapter 2 : Jumpers And Connectors
PCIe/104-MH User’s Manual Revision Date: Jan. 14. 2024 Chapter 2 : Jumpers and Connectors 2.1 Connector & Pin Definitions J26/J5: COM1/COM2 JP8: COM1 Mode select MODE [1,0] Function Loopback RS-232 RS-485 Half Duplex RS-485/422 Full Duplex JP9: COM2 Mode select... - Page 11 PCIe/104-MH User’s Manual Revision Date: Jan. 14. 2024 AUDIO Function MIC_JD MIC_R MIC_L FRONT_JD FRONT_R FRONT_L 10 N/C JUSB3_1: USB 3.0 Port Function Function +5V_USB0 11 USB2_DP1 USB3_RXN0 12 USB2_DN1 USB3_RXP0 13 GND 14 USB3_TXP1 USB3_TXN0 15 USB3_TXN1 USB3_TXP0 16 GND...
- Page 12 PCIe/104-MH User’s Manual Revision Date: Jan. 14. 2024 Support COM Express Basic Size Type 6 Module JP28: Clear CMOS Function (1-2) Closed Normal(default) (2-3) Closed Clear CMOS DC-IN: System DC-IN Definition 9V~36V 9V~36V CN15: M_PCIe 2 (Mini PCIe Slot) JP31: Mini PCIe 1 function select...
- Page 13 PCIe/104-MH User’s Manual Revision Date: Jan. 14. 2024 LAN1 : LAN1/LAN2 Function Function Function MDI2_0PX MDI1_2NX 23 3V3SB MDI1_0PX MDI2_3PX 24 3V3SB MDI2_0NX MDI1_3PX 25 LAN2_LED_100# MDI1_0NX MDI2_3NX 26 GBE_LED_100- MDI2_1PX MDI1_3NX 27 LAN2_LED_1000# MDI1_1PX 28 GBE_LED_1000- MDI2_1NX 29 GND...
- Page 14 PCIe/104-MH User’s Manual Revision Date: Jan. 14. 2024 JP4: LVDS Backlight Power select Function (1-3) Closed (3-5) Closed 12V(Default) JP4: LVDS Signal Power select Function (2-4) Closed 5V (4-6) Closed 3.3V(Default) J9: DIO Function GPI0 GPO0 GPI1 GPO1 GPI2 GPO2...
- Page 15 PCIe/104-MH User’s Manual Revision Date: Jan. 14. 2024 CN26: SATA3 Function SATA_TX0P SATA_TX0N SATA_RX0N SATA_RX0P J2: SATA Power Definition SAS1: SlimSAS 8i STACKPC1:...
-
Page 16: Chapter 3 : Cable Kit
PCIe/104-MH User’s Manual Revision Date: Jan. 14. 2024 Chapter 3 : Cable Kit Option Cable:...
