Star Lake INS8266A User Manual

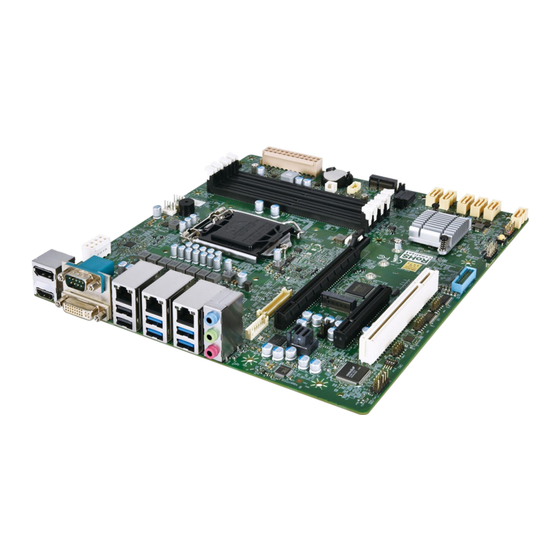

Intel comet lake-s 10th processor with q470e/h420e chipset micro-atx
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
INS8266A
th
Intel®Comet Lake-S 10
Processor with
Q470E/H420E Chipset Micro-ATX
User's Manual
Revision Date: Jun. 10 2022

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the INS8266A and is the answer not in the manual?

Questions and answers

Related Manuals for Star Lake INS8266A

Summary of Contents for Star Lake INS8266A

  • Page 1 INS8266A Intel®Comet Lake-S 10 Processor with Q470E/H420E Chipset Micro-ATX User’s Manual Revision Date: Jun. 10 2022...

  • Page 2: Safety Information

    INS8266A User’s Manual Revision Date: Jun. 10. 2022 Safety Information Electrical safety  To prevent electrical shock hazard, disconnect the power cable from the electrical outlet before relocating the system.  When adding or removing devices to or from the system, ensure that the power cables for the devices are unplugged before the signal cables are connected.

  • Page 3: Rohs Compliance

    INS8266A User’s Manual Revision Date: Jun. 10. 2022 RoHS Compliance Perfectron RoHS Environmental Policy and Status Update Perfectron is a global citizen for building the digital infrastructure. We are committed to providing green products and services, which are compliant with European Union RoHS (Restriction on Use of Hazardous Substance in Electronic Equipment) directive 2011/65/EU, to be your trusted green partner and to protect our environment.

  • Page 4: Revision History

    INS8266A User’s Manual Revision Date: Jun. 10. 2022 Revision History Revision Date (yyyy/mm/dd) Changes V1.0 2022/06/10 First release Packing List Item Description Q’ty INS8266A CD(Drivier + User’s manual) SATA Cable If any of the above items is damaged or missing, please contact your local...

  • Page 5: Table Of Contents

    INS8266A User’s Manual Revision Date: Jun. 10. 2022 Table of Contents Safety Information ..........................1 Electrical safety ..........................1 Operation safety ..........................1 Statement ............................1 RoHS Compliance ........................... 2 Revision History ............................. 3 Packing List ............................3 Table of Contents ........................... 4 Chapter 1 : Product Introduction ......................
  • Page 6 INS8266A User’s Manual Revision Date: Jun. 10. 2022 3.5.2 View Smbios Event Log ....................46 3.6 Security Page ......................... 47 3.6.1 HDD Security ....................... 48 3.6.2 Secure Boot ........................ 49 3.6.3 Key Management(Secure Boot Mode see to Custom) ..........50 3.6.4 BIOS Update .......................

  • Page 7: Chapter 1 : Product Introduction

    INS8266A User’s Manual Revision Date: Jun. 10. 2022 Chapter 1 : Product Introduction 1.1 Specifications System 10th Gen Intel® Comet Lake LGA1200 Socket Processor, Core i9/i7/i5/i3 up to 10-core TDP Max. 125W Memory type DDR4 U-DIMM 2933MHz / Max. 64 GB / 4 x 288-pin Chipset Intel®...
  • Page 8 INS8266A User’s Manual Revision Date: Jun. 10. 2022 Codec Realtek® ALC662/ALC888 Rear I/O USB3.1 4(Q470E) USB3.0 4(H420E) Display port 1 x HDMI 1.4 ; 1 x DisplayPort 1.2 ; 1 x DVI-I(DVI-D Optional) 3(1 x Optional) Audio Mic-in, Line-in, and Line-out...

  • Page 9: Block Diagram

    INS8266A User’s Manual Revision Date: Jun. 10. 2022 1.2 Block Diagram...

  • Page 10: Board Placement

    INS8266A User’s Manual Revision Date: Jun. 10. 2022 1.3 Board Placement...

  • Page 11: Chapter 2 : Jumpers And Connectors Loacation

    INS8266A User’s Manual Revision Date: Jun. 10. 2022 Chapter 2 : Jumpers and Connectors Loacation 2.1 Jumpers And Connectors List Label Function Front Audio Header COM3Termination Resistor Switch RS232/422/485 Header RS232 RS232 Dual USB3.0 Header Dual USB2.0 Header Front I/O Header...

  • Page 12: Jumper Setting

    INS8266A User’s Manual Revision Date: Jun. 10. 2022 NPIO Header(PCIex4) PCI Slot PCIe x8 Slot(PCIe x 4 Signal) Panel Power Option M.2 2242/2280 M-Key PCIe x16 Slot LVDS Backlight Header LVDS/eDP Connecotr CPU Socket 4 x DDR4 U-DIMM CMOS Reset Header...
  • Page 13 INS8266A User’s Manual Revision Date: Jun. 10. 2022 ON : Pull High, OFF : NC Termination Mode, 1.RS422 Pull H/L in RX/DCD 2.RS485 Pull H/L in RX/DCD and TX/DTR RS232/RS422/RS485 Header DEFINITION DEFINITION RXD# TXD# Key(no pin) RS232 Header DEFINITION...
  • Page 14 INS8266A User’s Manual Revision Date: Jun. 10. 2022 USB2.0 Header DEFINITION DEFINITION 5V_USB 5V_USB Data (negative) Data (negative) Data (positive) Data (positive) Key (no pin) No Connect Front I/O Header DEFINITION DEFINITION 1 HDD_POWER_LED 2 POWER_LED_MAIN HDD_LED# POWER_LED_ALT 6 POWER_SWITCH#...
  • Page 15 INS8266A User’s Manual Revision Date: Jun. 10. 2022 MiAPI Header DEFINITION DEFINITION MAPI_GPIO1 MAPI_GPIO2 MAPI_GPIO6 MAPI_GPIO3 MAPI_GPIO7 MAPI_GPIO4 MAPI_GPIO8 MAPI_GPIO5 MAPI_GPIO9 WD_Time MAPI_GPIO10 Power Button SMBUS_DATA UART_TX SMBUS_CLK UART_RX 5VSB TPM Header DEFINITION DEFINITION VCC3_TPM TPM_CS2 TPM_MISO Key(no pin) TPM_MOSI...
  • Page 16 INS8266A User’s Manual Revision Date: Jun. 10. 2022 PCIe Bifurcation Switch PIN Net Name CFG5 CFG6 ON : Pull Low, OFF : NC CFG[ 6 : 5 ] : PCIe Bifurcation 00 = 1 x 8 , 2 x 4 PCIe...
  • Page 17 INS8266A User’s Manual Revision Date: Jun. 10. 2022 3.3V 5V(Default) LVDS Backlight Header DEFINITION BKLT_EN BKLT_CTRL BKLT_PWR BKLT_PWR BRIGHT_UP- BRIGHT_DOWN-...
  • Page 18 INS8266A User’s Manual Revision Date: Jun. 10. 2022 LVDS Connector DEFINITION DEFINITION VCC3 Panel Power VCC3 Panel Power LVDS_DDC_SCL LVDS_DDC_SDA GND (CABLE_ID1) TB0P TA0P (LVDS ChA diff data output – positive) (LVDS ChA diff data output – positive) TB0N TA0N (LVDS ChA diff data output –...
  • Page 19 INS8266A User’s Manual Revision Date: Jun. 10. 2022 eDP Connector(Optional) DEFINITION DEFINITION VCC3 Panel Power VCC3 Panel Power EDP_CPU_AUXN EDP_CPU_AUXP GND (CABLE_ID1) EDP_CPU_1+ EDP_CPU_0+ EDP_CPU_1- EDP_CPU_0- BKLT_EN 22 PCH_BACKLIGHT_PWM BKLT_PWR BKLT_PWR CMOS Reset Header DEFINITION Clear CMOS Normal(Default)
  • Page 20 INS8266A User’s Manual Revision Date: Jun. 10. 2022 Intrusion Switch Header PIN DEFINITION INTRUDER_N SPI Programing Header DEFINITION ESPI_RST_N ESPI_CLK ESPI_CS0_N LAD_ESPI_IO_3 LAD_ESPI_IO_2 LAD_ESPI_IO_1 LAD_ESPI_IO_0 VCC3 3VSB...

  • Page 21: Chapter 3 : Ami Bios Utility

    INS8266A User’s Manual Revision Date: Jun. 10. 2022 Chapter 3 : AMI BIOS UTILITY This chapter provides users with detailed descriptions on how to set up a basic system configuration through the AMI BIOS setup utility. 3.1 Staring To enter the setup screens, perform the following steps: ...

  • Page 22: Main Page

    INS8266A User’s Manual Revision Date: Jun. 10. 2022 3.3 Main Page Field Name BIOS Vendr Default Value American Megatrends Comment This field is not selectable. There is no help text associated with it. Field Name Core Version Default Value 5.17 Comment This field is not selectable.
  • Page 23 INS8266A User’s Manual Revision Date: Jun. 10. 2022 Field Name Build Date and Time Default Value Display build date of the BIOS Comment This field is not selectable. There is no help text associated with it. Field Name ME FW Version Default Value ME Firmware Version.
  • Page 24 INS8266A User’s Manual Revision Date: Jun. 10. 2022 Field Name Memory Frequency Default Value Display the installed memory Frequency Comment This field is not selectable. There is no help text associated with it. Field Name Serial ATA Port 1 Default Value...

  • Page 25: Advance Page

    INS8266A User’s Manual Revision Date: Jun. 10. 2022 Months : 1-12 Days : Dependent on month Range of Years may vary Field Name System Time Default Value [hh :mm :ss] Possible Value hh : 0-23 mm : 0-59 ss : 0-59 Help Set the Time.
  • Page 26 INS8266A User’s Manual Revision Date: Jun. 10. 2022 Help CPU Configuration Parameters Comment Press Enter when selected to go into the associated Sub-Menu. Field Name Trusted Computing Help Trusted Computing Settings Comment Press Enter when selected to go into the associated Sub-Menu.

  • Page 27: Onoard Device

    INS8266A User’s Manual Revision Date: Jun. 10. 2022 3.4.1 Onoard Device Field Name Turbo Mode Default Value [Enabled] Possible Value Enabled Disabled Help Enable/Disable processor Turbo Mode (requires Intel Speed Step or Intel Speed Shift to be available and enabled).
  • Page 28 INS8266A User’s Manual Revision Date: Jun. 10. 2022 Help Select DVMT 5.0 Pre-Allocated (Fixed) Graphics Memory size used by the Internal Graphics Device. Field Name DVMT Total Gfx Mem Default Value [256M] Possible Value 128M 256M Help Select DVMT5.0 Total Graphic Memory size used by the Internal Graphics Device.
  • Page 29 INS8266A User’s Manual Revision Date: Jun. 10. 2022 Help Control Detection of the HD-Audio device. Disabled = HDA will be unconditionally disabled. Enabled = HDA will be unconditionally enabled. Field Name ME Update Default Value [Disabled] Possible Value Enabled Disabled Help Temporary disable Intel CSME for ME FW Update.

  • Page 30: Cpu Configuration

    INS8266A User’s Manual Revision Date: Jun. 10. 2022 3.4.2 CPU Configuration Field Name Type Default Value [Intel CPU Brand String] Comment This field is not selectable. There is no help text associated with it. Field Name Default Value Displays CPU Signature Comment This field is not selectable.
  • Page 31 INS8266A User’s Manual Revision Date: Jun. 10. 2022 Field Name L1 Instruction Cache Default Value L1 Instruction Cache Size Comment This field is not selectable. There is no help text associated with it. Field Name L2 Cache Default Value L2 Cache Size Comment This field is not selectable.

  • Page 32: Trusted Computing

    INS8266A User’s Manual Revision Date: Jun. 10. 2022 3.4.3 Trusted Computing Field Name Firmware Version Default Value TPM module version. Comment This field is not selectable. There is no help text associated with it. Field Name Vendor Default Value TPM module vendor name.

  • Page 33: Super Io Configuration

    INS8266A User’s Manual Revision Date: Jun. 10. 2022 Default Value [None] Possible Value None TPM Clear Help Schedule an Operation for the Security Device. NOTE: Your Computer will reboot during restart in order to change State of Security Device. 3.4.4 Super IO Configuration...

  • Page 34: Serial Port 1 Configuration

    INS8266A User’s Manual Revision Date: Jun. 10. 2022 Comment Press Enter when selected to go into the associated Sub-Menu. Field Name Serial Port 4 Configuration Help Set Parameters of Serial Port 3 (COMB) Comment Press Enter when selected to go into the associated Sub-Menu.

  • Page 35: Serial Port 2 Configuration

    INS8266A User’s Manual Revision Date: Jun. 10. 2022 Default Value [AUTO] Possible Value Auto IO=3F8h; IRQ=4; IO=3F8h; IRQ=3,4,5,6,7,9,10,11,12; IO=2F8h; IRQ=3,4,5,6,7,9,10,11,12; IO=3E8h; IRQ=3,4,5,6,7,9,10,11,12; IO=2E8h; IRQ=3,4,5,6,7,9,10,11,12; Help Select an optimal settings for Super IO Device 3.4.6 Serial Port 2 Configuration Field Name...

  • Page 36: Serial Port 3 Configuration

    INS8266A User’s Manual Revision Date: Jun. 10. 2022 Default Value Device Super IO COM2 Address and IRQ. Comment This field is not selectable. There is no help text associated with it. Field Name Change Settings Default Value [AUTO] Possible Value Auto IO=2F8h;...
  • Page 37 INS8266A User’s Manual Revision Date: Jun. 10. 2022 Help Enable or Disable Serial Port(COM) Field Name Device Settings Default Value Device Super IO COM3 Address and IRQ. Comment This field is not selectable. There is no help text associated with it.

  • Page 38: Serial Port 4 Configuration

    INS8266A User’s Manual Revision Date: Jun. 10. 2022 3.4.8 Serial Port 4 Configuration Field Name Serial Port Default Value [Enabled] Possible Value Disabled Enabled Help Enable or Disable Serial Port(COM) Field Name Device Settings Default Value Device Super IO COM3 Address and IRQ.

  • Page 39: Hardware Monitor

    INS8266A User’s Manual Revision Date: Jun. 10. 2022 IO=228h; IRQ=3,4,5,6,7,9,10,11,12; Help Select an optimal settings for Super IO Device 3.4.9 Hardware Monitor Type Range CPU Temperature -20 ~ (By Processor Tjmax) °C CPU VR Temperature -20 ~ 120 °C DIMM Temperature -20 ~ 120 °C...

  • Page 40: Rtc Wake Setting

    INS8266A User’s Manual Revision Date: Jun. 10. 2022 Field Name Hardware Monitor Alert Enable Default Value [Disabled] Possible Value Enabled Disabled Help If Enabled, POST monitors voltage, temperature, and fan status. If these values are out of range, BIOS display warning message and tur on beep sound.
  • Page 41 INS8266A User’s Manual Revision Date: Jun. 10. 2022 Field Name Wake system from S5 Default Value [Disabled] Possible Value Disabled Fixed Time Help Enable or disable System wake on alarm event, Select FixedTime, system will wake on the hr::min::sec specified.

  • Page 42: Network Stack Configuration

    INS8266A User’s Manual Revision Date: Jun. 10. 2022 3.4.11 Network Stack Configuration Field Name Network stack Default Value [Disabled] Possible Value Disabled Enabled Help Enable/Disable UEFI Network stack. Field Name Ipv4 PXE Support (Available when Network stack Enabled) Default Value...

  • Page 43: Nvme Configuration

    INS8266A User’s Manual Revision Date: Jun. 10. 2022 Help Enable/Disable Ipv6 PXE Boot Support. If disabled IPV6 PXE boot support will not be available. 3.4.12 NVMe Configuration Field Name Ipv4 PXE Support (Available when Network stack Enabled) Comment Press Enter when selected to go into the associated Sub-Menu.

  • Page 44: Intel® Rapid Storage Technology

    INS8266A User’s Manual Revision Date: Jun. 10. 2022 3.4.13 Intel® Rapid Storage Technology Field Name Create RAID Volume Help This page allows you to create a RAID volume Field Name Raid Volume Help Select to see more information about the RAID Volume.

  • Page 45: Event Logs

    INS8266A User’s Manual Revision Date: Jun. 10. 2022 3.5 Event Logs Field Name Change Smbios Event Log Settings Help Press to change the Smbios Event Log configuration. Comment Press Enter when selected to go into the associated Sub-Menu. Field Name...

  • Page 46: Change Smbios Event Log Settings

    INS8266A User’s Manual Revision Date: Jun. 10. 2022 3.5.1 Change Smbios Event Log Settings Field Name Smbios Event Log Default Value [Enabled] Possible Value Enabled Disabled Help Change this to enable or disable all features of Smbios Event Logging during boot.

  • Page 47: View Smbios Event Log

    INS8266A User’s Manual Revision Date: Jun. 10. 2022 Possible Value Do Nothing Erase Immediately Help Choose options for reactions to a full Smbios Event Log 3.5.2 View Smbios Event Log Field Name DATE / TIME / ERROR CODE / SEVERITY / COUNT...

  • Page 48: Security Page

    INS8266A User’s Manual Revision Date: Jun. 10. 2022 3.6 Security Page Field Name Administrator Password Help Set Administrator Password Field Name User Password Help Set User Password. Field Name Secure Boot Help Set User Password. Comment Press Enter when selected to go into the associated Sub-Menu.

  • Page 49: Hdd Security

    INS8266A User’s Manual Revision Date: Jun. 10. 2022 Help HDD Security Configuration for selected drive Comment Press Enter when selected to go into the associated Sub-Menu. 3.6.1 HDD Security Field Name Set User Password Help Set HDD User Password. *** Advisable to Power Cycle System after Setting Hard Disk Passwords ***.Discard or Save changes option in setup does not have any impact on...

  • Page 50: Secure Boot

    INS8266A User’s Manual Revision Date: Jun. 10. 2022 3.6.2 Secure Boot Field Name Secure Boot Default Value [Enabled] Possible Value Enabled Disabled Help Secure Boot feature is Active if Secure Boot is Enabled,Platform Key(PK) is enrolled and the System is in User mode.The mode change requires platform reset...

  • Page 51: Key Management(Secure Boot Mode See To Custom)

    INS8266A User’s Manual Revision Date: Jun. 10. 2022 Field Name Reset to Setup Mode Help Delete all Secure Boot key databases from NVRAM Field Name Key Management Help Enables expert users to modify Secure Boot Policy variables without full authentication...
  • Page 52 INS8266A User’s Manual Revision Date: Jun. 10. 2022 Field Name Reset to Setup Mode Help Delete all Secure Boot key databases from NVRAM Field Name Export Secure Boot variables Help Copy NVRAM content of Secure Boot variables to files in a root folder on a file system...
  • Page 53 INS8266A User’s Manual Revision Date: Jun. 10. 2022 a)EFI_SIGNATURE_LIST b)EFI_CERT_X509 (DER) c)EFI_CERT_RSA2048 (bin) d)EFI_CERT_SHAXXX 2.Authenticated UEFI Variable 3.EFI PE/COFF Image(SHA256) Key Source: Factory,External,Mixed Comment Press Enter when selected to go into the associated Sub-Menu. Field Name Authorized Signatures Default Value...
  • Page 54 INS8266A User’s Manual Revision Date: Jun. 10. 2022 Comment Press Enter when selected to go into the associated Sub-Menu. Field Name Authorized TimeStamps Default Value Size:0, Keys:0, Key source: No Keys Help Enroll Factory Defaults or load certificates from a file: 1.Public Key Certificate:...

  • Page 55: Bios Update

    INS8266A User’s Manual Revision Date: Jun. 10. 2022 3.6.4 BIOS Update Path for ROM Image Help Enter the path to the Secure flash option...

  • Page 56: Boot Page

    INS8266A User’s Manual Revision Date: Jun. 10. 2022 3.7 Boot Page Field Name Setup Prompt Timeout Default Value Possible Value 1~65535 Comment Number of seconds to wait for setup activation key. 65535(0xFFFF) means indefinite waiting. Field Name Bootup NumLock State...
  • Page 57 INS8266A User’s Manual Revision Date: Jun. 10. 2022 Network, Disabled Comment Sets the system boot order Field Name Boot Option #2 Default Value [USB CD/DVD] Possible Value USB Floppy, CD/DVD, USB CD/DVD, Hard Disk , USB Key, USB Hard Disk , NVME,...
  • Page 58 INS8266A User’s Manual Revision Date: Jun. 10. 2022 Network, Disabled Comment Sets the system boot order Field Name Boot Option #8 Default Value [Network] Possible Value USB Floppy, CD/DVD, USB CD/DVD, Hard Disk , USB Key, USB Hard Disk , NVME,...

  • Page 59: List Boot Device Type) Drive Bbs Priorities

    INS8266A User’s Manual Revision Date: Jun. 10. 2022 3.7.1 (List Boot Device Type) Drive BBS Priorities Field Name Boot Option #1 Default Value Possible Value Boot Device Name 1 of this type, Disable Help Sets the system boot order...

  • Page 60: Save & Exit Page

    INS8266A User’s Manual Revision Date: Jun. 10. 2022 3.8 Save & Exit Page Field Name Save Changes and Reset Help Reset the system after saving the changes. Field Name Discard Changes and Rest Help Reset system setup without saving any changes.
