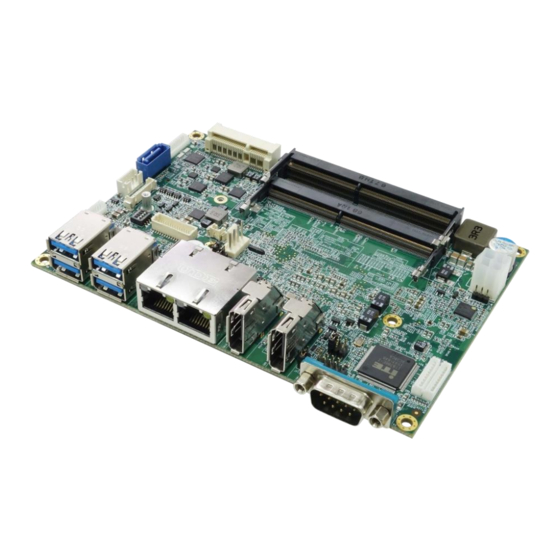

- Page 1 OXY5362A 3.5” SBC with Intel® Kabylake-U SoC User’s Manual Revision Date: February 10 , 2022...
- Page 2 OXY5362A User’s Manual Revision Date: February 10, 2022 Safety Information Electrical safety To prevent electrical shock hazard, disconnect the power cable from the electrical outlet before relocating the system. When adding or removing devices to or from the system, ensure that the power cables for the devices are unplugged before the signal cables are connected.
-
Page 3: Revision History
Modify Half size mPCIe slot only support mSATA V1.6 22.11.2021 Add COM1 pin define V 1.7 10.02.2022 Add AMP1 pin define Packing list □ OXY5362A 3.5” SBC □ CD (Driver + user's manual) □ Optional Accessories Cable kit: • SATA cable •... -
Page 4: Table Of Contents
OXY5362A User’s Manual Revision Date: February 10, 2022 Table of Contents Revision History ............................2 Packing list ..............................2 Chapter 1: Product Information ......................5 1.1 Block Diagram ...........................5 1.2 Key Features ............................6 1.3 Board Placement ..........................8 Chapter 2: Jumpers and Connectors ....................9 2.1 Onboard connector and jumper list... - Page 5 OXY5362A User’s Manual Revision Date: February 10, 2022 J14: USB2.0 x 2 ............................15 Chapter 3: Quick Installation Guide ....................16 Chapter 4: AMI BIOS UTILITY ......................17 4.1 Starting ............................. 17 4.2 Navigation Keys ..........................17 4.3 Main Menu ............................
-
Page 6: Chapter 1: Product Information
OXY5362A User’s Manual Revision Date: February 10, 2022 Chapter 1: Product Information 1.1 Block Diagram... -
Page 7: Key Features
OXY5362A User’s Manual Revision Date: February 10, 2022 1.2 Key Features System ® Intel Kabylake-U series, BGA type ® ™ Intel Core i7-7600U Processor (4M Cache, 3.9GHz) (15W) CPU Type ® ™ Intel Core i5-7300U Processor (3M Cache, 3.5GHz) (15W) ®... - Page 8 OXY5362A User’s Manual Revision Date: February 10, 2022 Mechanical and Environment Form Factor 3.5" SBC Power Type 9~36V DC-in, 4-pin ATX power connector, AT/ATX mode support Dimension 146mm x 101mm (5.7" x 4") Operating Temp. -40 to 85°C Storage Temp -40 to 85°C...
-
Page 9: Board Placement
OXY5362A User’s Manual Revision Date: February 10, 2022 1.3 Board Placement... -
Page 10: Chapter 2: Jumpers And Connectors
OXY5362A User’s Manual Revision Date: February 10, 2022 Chapter 2: Jumpers and Connectors 2.1 Onboard connector and jumper list Label Function COM1 (Rear) RS232, DB9 connector DP1 (Rear) DisplayPort DP2 (Rear) DisplayPort LAN1 (Rear) RJ45 connector LAN2 (Rear) RJ45 connector USB1/2 (Rear) 2 x USB3.0... -
Page 11: Connector And Jumper Pin Definition
OXY5362A User’s Manual Revision Date: February 10, 2022 JP24 LVDS Signal Power 2.2 Connector and jumper pin definition 2.2.1 Jumper JP1: Clear CMOS Jumper Function description Setting Normal Clear CMOS Default setting: 1-2 JP2: COM1 RI/+5V/+12V Jumper Function description Setting... -
Page 12: Jp14: Mpcie1 Signal Select
OXY5362A User’s Manual Revision Date: February 10, 2022 JP14: mPCIe1 signal select Jumper Function description Setting SATA PCIe Default setting: 2-3 JP15: mPCIe2 signal select Jumper Function description Setting SATA PCIe Default setting: 2-3 JP24 LVDS Signal Power SW1: LVDS Resolution... -
Page 13: Connector
OXY5362A User’s Manual Revision Date: February 10, 2022 2.2.2 Connector AMP1 Pin Definition SP_OUTL- SP_OUTL+ SP_OUTR+ SP_OUTR- LVDS Pin Definition Pin Definition LVDS_CLK+ LVDS_CLK- LVDSA3+ LVDSA3- LVDSB3+ LVDSB3- LVDSA_CLK+ LVDSB2+ LVDSA_CLK- LVDSB2- LVDSB1+ LVDSA2+ LVDSB1- LVDSA2- LVDSB0+ LVDSA1+ LVDSB0- LVDSA1-... -
Page 14: Cn18: Lvds Control Connector
OXY5362A User’s Manual Revision Date: February 10, 2022 CN18: LVDS Control connector PIN DEFINITION +12V +12V +12V Backlight Enable Backlight control 10 GND J1: DIO PIN DEFINITION DIO0 DIO1 DIO2 DIO3 DIO4 DIO5 DIO6 DIO7 3.3V 10 GND J6: SATA Power... -
Page 15: J9: Front Panel
OXY5362A User’s Manual Revision Date: February 10, 2022 J9: Front Panel PIN DEFINITION PIN DEFINITION FP_HDLED+ 2 FP_PLED+ SATALED# 4 GND 6 EC_PWR_BTN RESET- 8 GND J10: LPC PIN DEFINITION +3.3VSB LPC_AD0 LPC_AD1 LPC_AD2 LPC_AD3 LPC_FRAME# PLTRST#_BUF1 10 LPC_CLK_1 J11: Audio... -
Page 16: Com1: Rs232 With 5V/12V Selectable
OXY5362A User’s Manual Revision Date: February 10, 2022 COM1: RS232 with 5V/12V selectable J12: COM2 RS232/422/485 Note: RS232/422/485 can be set by BIOS. Pin RS232 mode (Default) RS422 mode RS485 mode DATA- DATA+ J14: USB2.0 x 2 PIN DEFINITION USB5-... -
Page 17: Chapter 3: Quick Installation Guide
OXY5362A User’s Manual Revision Date: February 10, 2022 Chapter 3: Quick Installation Guide A default screw for usage of Half size mSATA... -
Page 18: Chapter 4: Ami Bios Utility
OXY5362A User’s Manual Revision Date: February 10, 2022 Chapter 4: AMI BIOS UTILITY This chapter provides users with detailed descriptions on how to set up a basic system configuration through the AMI BIOS setup utility. 4.1 Starting To enter the setup screens, perform the following steps: ... -
Page 19: Main Menu
OXY5362A User’s Manual Revision Date: February 10, 2022 4.3 Main Menu The Main menu is the first screen that you will see when you enter the BIOS Setup Utility. -
Page 20: Advanced Menu
OXY5362A User’s Manual Revision Date: February 10, 2022 4.4 Advanced Menu The Advanced Menu allows you to configure your system for basic operation. Some entries are defaults required by the system board, while others, if enabled, will improve the performance of your system or let you set some features according to your preference. -
Page 21: Trust Computing
OXY5362A User’s Manual Revision Date: February 10, 2022 4.4.1 Trust Computing... -
Page 22: It8786 Super Io Configuration
OXY5362A User’s Manual Revision Date: February 10, 2022 4.4.2 IT8786 Super IO Configuration... -
Page 23: Serial Port 1 Configuration
OXY5362A User’s Manual Revision Date: February 10, 2022 4.4.2.1 Serial Port 1 Configuration 4.4.2.2 Serial Port 2 Configuration... -
Page 24: Hardware Monitor
OXY5362A User’s Manual Revision Date: February 10, 2022 4.4.3 Hardware Monitor... -
Page 25: Cpu Configuration
OXY5362A User’s Manual Revision Date: February 10, 2022 4.4.4 CPU Configuration... -
Page 26: Sata Configuration
OXY5362A User’s Manual Revision Date: February 10, 2022 4.4.5 SATA Configuration... -
Page 27: Cms Configuration
OXY5362A User’s Manual Revision Date: February 10, 2022 4.4.6 CMS Configuration... -
Page 28: Usb Configuration
OXY5362A User’s Manual Revision Date: February 10, 2022 4.4.7 USB Configuration... -
Page 29: Chipset
OXY5362A User’s Manual Revision Date: February 10, 2022 4.5 Chipset... -
Page 30: System Agent (Sa) Configuration
OXY5362A User’s Manual Revision Date: February 10, 2022 4.5.1 System Agent (SA) Configuration 4.5.1.1 Graphic Configuration... -
Page 31: Lcd Control
OXY5362A User’s Manual Revision Date: February 10, 2022 4.5.1.1.1 LCD Control 4.5.1.2 Memory Configuration... -
Page 32: Pch-Io Configuration
OXY5362A User’s Manual Revision Date: February 10, 2022 4.5.2 PCH-IO Configuration... -
Page 33: Security
OXY5362A User’s Manual Revision Date: February 10, 2022 4.6 Security Administrator Password Set administrator password. User Password Set user Password. -
Page 34: Boot Menu
OXY5362A User’s Manual Revision Date: February 10, 2022 4.7 Boot Menu This section is used to configure the boot features. 4.8 Save & Exit...
