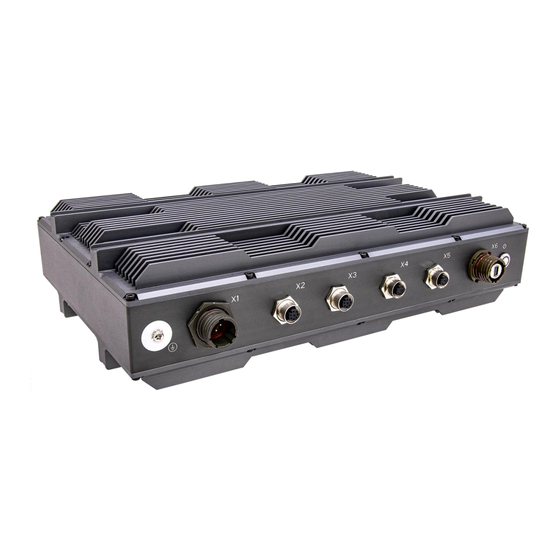

- Page 1 SR700-X4 IP65 MIL-STD-810G Rugged Computer with Intel® 9 Gen Coffee Lake Xeon® E-2276ML Processor 9V to 36V DC-in, Extended Temp -40 to 60°C User’s Manual Revision Date: May.11.2023...
-
Page 2: Safety Information
SR700-X4 User’s Manual Revision Date: May.11.2023 Safety Information Electrical safety To prevent electrical shock hazard, disconnect the power cable from the electrical outlet before relocating the system. When adding or removing devices to or from the system, ensure that the power cables for the devices are unplugged before the signal cables are connected. -
Page 3: Packing List
Changes Verision 1.0 2019/10/16 Initial release at SR700-X3 Verision 1.1 2023/5/11 Update to SR700-X4 Packing list ■ SR700-X4 Rugged Fanless System ■ CD (Driver) □ Testing Cable Ordering information Model Number Description SR700-X4 IP65 MIL-STD-810G Rugged Computer with Intel® 9th Gen Coffee Lake Xeon®... -
Page 4: Table Of Contents
SR700-X4 User’s Manual Revision Date: May.11.2023 Table Contents Safety Information ..........................1 Packing list ............................2 Ordering information ..........................2 Table Contents ............................3 Chapter 1: Product Introduction ......................5 Key Features ........................5 Dimensions ......................... 6 System Diagram block ......................7 Chapter 2: Connector pin definition ...................... - Page 5 SR700-X4 User’s Manual Revision Date: May.11.2023 3.4.11 CSM Configuration ......................34 3.4.12 NVMe Configuration ..................... 34 3.4.13 Network Stack Configuration ..................35 3.5 Chipset ........................... 36 3.5.1 System Agent (SA) Configuration ..................36 3.5.2 PCH-IO Configuration ...................... 38 3.5.2.1 PCI Express Configuration ..................39 3.5.2.2 SATA And RST Configuration..................
-
Page 6: Chapter 1: Product Introduction
SR700-X4 User’s Manual Revision Date: May.11.2023 Chapter 1: Product Introduction Key Features System Intel® 9th Gen Coffee Lake Xeon® E-2276ML Processor OXY5741A-04P1 BIOS AMI UEFI BIOS Memory Type 1x DDR4 SO-DIMM DDR4 16GB SO-DIMM 2666MHz (Up to 128GB) Storage Device 1x 2.5"... -
Page 7: Dimensions
SR700-X4 User’s Manual Revision Date: May.11.2023 Dimensions... -
Page 8: System Diagram Block
SR700-X4 User’s Manual Revision Date: May.11.2023 System Diagram block... -
Page 9: Chapter 2: Connector Pin Definition
SR700-X4 User’s Manual Revision Date: May.11.2023 Chapter 2: Connector pin definition 1. INT POWER CABLE Pin define D38999 ㄚ端 POWER DC IN... - Page 10 SR700-X4 User’s Manual Revision Date: May.11.2023 2. INT USB2.0 CABLE CON1 Pin define CON2 VBUS VBUS Shell...
- Page 11 SR700-X4 User’s Manual Revision Date: May.11.2023 3. INT LAN CABLE CON1 Pin define CON2 X3,X4 WHITE / ORANGE ORANG WHITE / GREEN BLUE WHITE / BLUE GREEN WHITE / BROWN BROWN Shell Shell...
- Page 12 SR700-X4 User’s Manual Revision Date: May.11.2023 4. INT RS232 CABLE D38999 Pin define CON2 Shell...
-
Page 13: Chapter 3: Ami Bios Utility
SR700-X4 User’s Manual Revision Date: May.11.2023 5. INT Mini DP Chapter 3: AMI BIOS UTILITY This chapter provides users with detailed descriptions on how to set up a basic system configuration through the AMI BIOS setup utility. 3.1 Starting To enter the setup screens, perform the following steps: •... -
Page 14: Main Menu
SR700-X4 User’s Manual Revision Date: May.11.2023 Some of the hot keys are <F1>, <F10>, <Enter>, <ESC>, and <Arrow> keys. Left/Right The Left and Right <Arrow> keys moves the cursor to select a menu. Up/Down The Up and Down <Arrow> keys moves the cursor to select a setup screen or sub-screen. -
Page 15: Advanced Menu
SR700-X4 User’s Manual Revision Date: May.11.2023 The Main BIOS setup screen has two main frames. The left frame displays all the options that can be configured. Grayed-out options cannot be configured; options in blue can. The right frame displays the key legend. Above the key legend is an area reserved for a text message. -
Page 16: Cpu Configuration
SR700-X4 User’s Manual Revision Date: May.11.2023 Setting incorrect field values may cause the system to malfunction. 3.4.1 CPU Configuration This section is used to view CPU status and configure CPU parameters. Field Name Intel(VMX) Virtualization Technology Default Value [Enabled] Possible Value... -
Page 17: Power & Performance
SR700-X4 User’s Manual Revision Date: May.11.2023 Field Name Active Processor Cores Default Value [A11] Possible Value Field Name Hyper-Threading Default Value [Enabled] Possible Value Disabled Enabled 3.4.2 Power & Performance Field Name Intel® SpeedStep™ Default Value [Enabled] Possible Value Disabled... -
Page 18: Pch-Fw Configuration
SR700-X4 User’s Manual Revision Date: May.11.2023 Field Name C States Default Value [Disabled] Possible Value Disabled Enabled 3.4.3 PCH-FW Configuration Field Name ME State Default Value [Enabled] Possible Value Disabled Enabled Field Name Manageability Feature State Default Value [Enabled] Possible Value... -
Page 19: Amt Configuration
SR700-X4 User’s Manual Revision Date: May.11.2023 3.4.4 AMT Configuration Field Name ASF support Default Value [Enabled] Possible Value Disabled Enabled Field Name USB Provisioning of AMT Default Value [Disabled] Possible Value Disabled Enabled... -
Page 20: Cira Configuration
SR700-X4 User’s Manual Revision Date: May.11.2023 3.4.4.1 CIRA Configuration Field Name ASF support Default Value [Enabled] Possible Value Disabled Enabled... -
Page 21: Asf Configuration
SR700-X4 User’s Manual Revision Date: May.11.2023 3.4.4.2 ASF Configuration Field Name PET Progress Default Value [Enabled] Possible Value Disabled Enabled Field Name WatchDog Default Value [Disabled] Possible Value Disabled Enabled Field Name ASF Sensors Table Default Value [DIsabled] Possible Value... -
Page 22: Secure Erase Configuration
SR700-X4 User’s Manual Revision Date: May.11.2023 3.4.4.3 Secure Erase Configuration Field Name Secure Erase mode Default Value [Simulated] Possible Value Simulated Real Field Name Force Secure Erase Default Value [Disabled] Possible Value Disabled Enabled... -
Page 23: Oem Flags Settings
SR700-X4 User’s Manual Revision Date: May.11.2023 3.4.4.4 OEM Flags Settings Field Name MEBx hotkey Pressed Default Value [Disabled] Possible Value Disabled Enabled Field Name MEBx Selection Screen Default Value [Disabled] Possible Value Disabled Enabled Field Name Hide Unconfigure ME Confirmation Prompt... -
Page 24: Mebx Resolution Settings
SR700-X4 User’s Manual Revision Date: May.11.2023 Field Name Unconfigure ME Default Value [Disabled] Possible Value Disabled Enabled 3.4.4.5 MEBx Resolution Settings Field Name Non-UI Mode Resolution Default Value [Auto] Possible Value Auto 80x25 100x31 Field Name UI Mode Resolution Default Value... - Page 25 SR700-X4 User’s Manual Revision Date: May.11.2023 800x600 1024x768 Field Name Pending operation Default Value [None] Possible Value None TPM Clear...
-
Page 26: Trusted Computing
SR700-X4 User’s Manual Revision Date: May.11.2023 3.4.5 Trusted Computing Field Name Security Device Support Default Value [Enabled] Possible Value Disabled Enabled Field Name SHA-1 PCR Bank Default Value [Enabled] Possible Value Disabled Enabled Field Name SHA256 PCR Bank Default Value... - Page 27 SR700-X4 User’s Manual Revision Date: May.11.2023 Field Name Platform Hierarchy Default Value [Enabled] Possible Value Disabled Enabled Field Name Storage Hierarchy Default Value [Enabled] Possible Value Disabled Enabled Field Name Endorsement Hierarchy Default Value [Enabled] Possible Value Disabled Enabled Field Name TPM2.0 UEFI Spec Version...
-
Page 28: Acpi Setting
SR700-X4 User’s Manual Revision Date: May.11.2023 3.4.6 ACPI Setting Field Name Enable ACPI Auto Configuration Default Value [Disabled] Possible Value Disabled Enabled Field Name Enable Hibernation Default Value [Enabled] Possible Value Disabled Enabled Field Name ACPI Sleep State Default Value... -
Page 29: It8786 Super Io Configuration
SR700-X4 User’s Manual Revision Date: May.11.2023 3.4.7 IT8786 Super IO Configuration 3.4.7.1 Secial Port 1 Configuration Field Name Serial Port Default Value [Enabled] Possible Value Disabled Enabled... -
Page 30: Secial Port 2 Configuration
SR700-X4 User’s Manual Revision Date: May.11.2023 Field Name COM1 Control Default Value [RS232] Possible Value Loopback RS-232 RS-485 Half Duplex RS-485/422 Full Duplex 3.4.7.2 Secial Port 2 Configuration Field Name Serial Port Default Value [Enabled] Possible Value Disabled Enabled Field Name... -
Page 31: Hardware Monitor
SR700-X4 User’s Manual Revision Date: May.11.2023 3.4.8 Hardware Monitor 3.4.8.1 Smart Fan Function Field Name FAN_CTL Polarity Default Value [Active high] Possible Value Active low Active high... -
Page 32: System Fan Setting
SR700-X4 User’s Manual Revision Date: May.11.2023 Field Name Smoothing control Default Value [4Hz] Possible Value 16Hz 3.4.8.2 System Fan Setting Field Name Smart Fan Mode Default Value [Automatic Mode] Possible Value Software Mode Automatic Mode Field Name System Fan Type... -
Page 33: Pci Subsystem Settings
SR700-X4 User’s Manual Revision Date: May.11.2023 3.4.9 PCI Subsystem Settings Field Name Above 4G Decoding Default Value [Disabled] Possible Value Disabled Enabled 3.4.10 USB Configuration... - Page 34 SR700-X4 User’s Manual Revision Date: May.11.2023 Field Name Legacy USB Support Default Value [Enabled] Possible Value Enabled Disabled Auto Field Name XHCI Hand-Off Default Value [Enabled] Possible Value Enabled Disabled Field Name USB Mass Storage Driver Support Default Value [Enabled]...
-
Page 35: Csm Configuration
SR700-X4 User’s Manual Revision Date: May.11.2023 3.4.11 CSM Configuration Field Name CSM Support Default Value [Disabled] Possible Value Disabled Enabled 3.4.12 NVMe Configuration... -
Page 36: Network Stack Configuration
SR700-X4 User’s Manual Revision Date: May.11.2023 3.4.13 Network Stack Configuration Field Name Network Stack Default Value [Disabled] Possible Value Disabled Enabled... -
Page 37: Chipset
SR700-X4 User’s Manual Revision Date: May.11.2023 3.5 Chipset 3.5.1 System Agent (SA) Configuration Field Name Primary Display Default Value [Auto] Possible Value Auto IGFX... - Page 38 SR700-X4 User’s Manual Revision Date: May.11.2023 Field Name Internal Graphics Default Value [Auto] Possible Value Auto Disabled Enabled Field Name GTT Size Default Value [8MB] Possible Value Field Name Aperture Size Default Value [256MB] Possible Value 128MB 256MB 512MB 1024MB...
-
Page 39: Pch-Io Configuration
SR700-X4 User’s Manual Revision Date: May.11.2023 Field Name DVMT Total Gfx Mem Default Value [128M] Possible Value 128M 256M Field Name Above 4GB MMIO BIOS assignment Default Value [Enabled] Possible Value Enabled Disabled 3.5.2 PCH-IO Configuration... -
Page 40: Pci Express Configuration
SR700-X4 User’s Manual Revision Date: May.11.2023 3.5.2.1 PCI Express Configuration Field Name PCIe function swap Default Value [Disabled] Possible Value Disabled Enabled... - Page 41 SR700-X4 User’s Manual Revision Date: May.11.2023 Field Name PCI Express Root Port 1 Default Value [Enabled] Field Name PCI Express Root Port 5 Default Value [Enabled] Field Name PCI Express Root Port 10 Default Value [Enabled] Field Name PCI Express Root Port 11...
-
Page 42: Sata And Rst Configuration
SR700-X4 User’s Manual Revision Date: May.11.2023 3.5.2.2 SATA And RST Configuration Field Name SATA Controller(s) Default Value [Enabled] Possible Value Enabled Disabled Field Name SATA Mode Selection Default Value [AHCI] Possible Value AHCI Intel RST Premium With Intel Optane System Acceleration Field Name M.2 Port... -
Page 43: Security Configuration
SR700-X4 User’s Manual Revision Date: May.11.2023 Field Name Port 2 Default Value [Enabled] Possible Value Disabled Enabled Field Name Port 3 Default Value [Enabled] Possible Value Disabled Enabled Field Name Port 4 Default Value [Enabled] Possible Value Disabled Enabled 3.5.2.3 Security Configuration... - Page 44 SR700-X4 User’s Manual Revision Date: May.11.2023 Field Name BIOS Lock Default Value [Enabled] Possible Value Disabled Enabled Field Name Force unlock on all GPIO pads Default Value [Disabled] Possible Value Disabled Enabled Field Name PCH LAN Controller Default Value [Enabled]...
-
Page 45: Security
SR700-X4 User’s Manual Revision Date: May.11.2023 3.6 Security 3.6.1 Administrator Password... -
Page 46: User Password
SR700-X4 User’s Manual Revision Date: May.11.2023 3.6.2 User Password 3.6.3 Secure Boot Field Name Secure Boot Default Value [Enabled] Possible Value Disabled Enabled... -
Page 47: Restore Factory Keys
SR700-X4 User’s Manual Revision Date: May.11.2023 Field Name Secure Boot Mode Default Value [Custom] Possible Value Standard Custom 3.6.3.1 Restore Factory Keys 3.6.3.2 Key Management... -
Page 48: Install Factory Defaults
SR700-X4 User’s Manual Revision Date: May.11.2023 Field Name Factory Key Provision Default Value [Disabled] Possible Value Disabled Enabled 3.6.3.3 Install factory defaults 3.6.3.4 File System... -
Page 49: File System
SR700-X4 User’s Manual Revision Date: May.11.2023 3.6.3.5 File System 3.6.3.6 Restore DB defaults... -
Page 50: Platform Key(Pk)
SR700-X4 User’s Manual Revision Date: May.11.2023 3.6.3.7 Platform Key(PK) 3.6.3.8 Key Exchange keys... -
Page 51: Authorized Signatures
SR700-X4 User’s Manual Revision Date: May.11.2023 3.6.3.9 Authorized Signatures 3.6.3.10 Forbidden Signatures... -
Page 52: Authorized Time Stamps
SR700-X4 User’s Manual Revision Date: May.11.2023 3.6.3.11 Authorized Time Stamps 3.6.3.12 OS Recovery Signatures... -
Page 53: Boot
SR700-X4 User’s Manual Revision Date: May.11.2023 3.7 Boot Field Name Bootup NumLock State Default Value [Off] Possible Value Field Name Quiet Boot Default Value [Enabled] Possible Value Disabled Enabled Field Name Fast Boot Default Value [Disable Link] Possible Value Disable Link... -
Page 54: Save & Exit
SR700-X4 User’s Manual Revision Date: May.11.2023 3.8 Save & Exit 3.8.1 Save Changes and Exit 3.8.1.1 Save & Exit Setup... -
Page 55: Exit Without Saving
SR700-X4 User’s Manual Revision Date: May.11.2023 3.8.2 Exit without Saving 3.8.3 Save & reset... -
Page 56: Reset Without Saving
SR700-X4 User’s Manual Revision Date: May.11.2023 3.8.4 Reset Without Saving 3.8.5 Save Setup Values... -
Page 57: Load Previous Values
SR700-X4 User’s Manual Revision Date: May.11.2023 3.8.6 Load Previous Values 3.8.7 Load Optimized Defaults... -
Page 58: Save Values As User Defaults
SR700-X4 User’s Manual Revision Date: May.11.2023 3.8.8 Save Values as User Defaults 3.8.9 Restore User Defaults...
