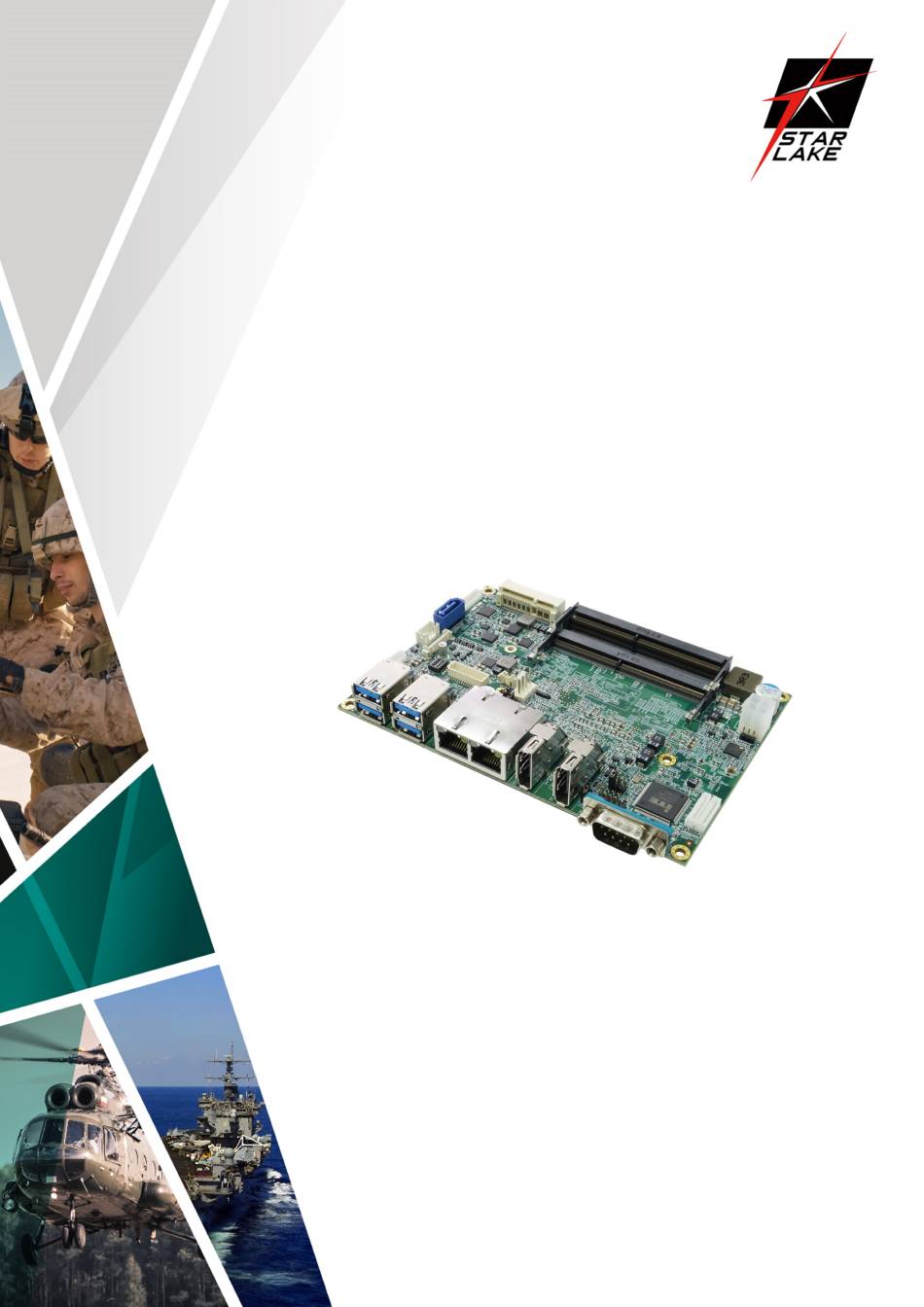

- Page 1 OXY5361A 3.5” SBC with Intel®Skylake-U SoC User’s Manual Revision Date: November 22,2021...
- Page 2 OXY5361A User’s Manual Revision Date: November 22, 2021 Safety Information Electrical safety To prevent electrical shock hazard, disconnect the power cable from the electrical outlet before relocating the system. When adding or removing devices to or from the system, ensure that the power cables for the devices are unplugged before the signal cables are connected.
-
Page 3: Revision History
Add SATA Power J6 & ATX Power CN11 pin define V1.5 26.10.2021 Modify Half size mPCIe slot only support mSATA V1.6 22.11.2021 Add COM1 pin define Packing list □ OXY5361A 3.5” SBC □ CD (Driver + user's manual) □ Optional Accessories Cable kit: • SATA cable •... -
Page 4: Table Of Contents
OXY5361A User’s Manual Revision Date: November 22, 2021 Table of Contents Revision History ............................2 Packing list ..............................2 Chapter 1: Product Information ......................5 1.1 Block Diagram ............................5 1.2 Key Features ............................6 1.3 Board Placement ............................8 Chapter 2: Jumpers and Connectors ....................9 2.1 Onboard connector and jumper list... - Page 5 OXY5361A User’s Manual Revision Date: November 22, 2021 J14: USB2.0 x2 ............................16 Chapter 3: Quick Installation Guide ....................17 Chapter 4: AMI BIOS UTILITY ......................18 4.1 Starting .............................. 18 4.2 Navigation Keys ..........................18 4.3 Main Menu ............................19 4.4 Advanced Menu...
-
Page 6: Chapter 1: Product Information
OXY5361A User’s Manual Revision Date: November 22, 2021 Chapter 1: Product Information 1.1 Block Diagram... -
Page 7: Key Features
OXY5361A User’s Manual Revision Date: November 22, 2021 1.2 Key Features System CPU Type Intel® Skylake-U series, BGA type Core™ i3-6100U (3M Cache, 2.3GHz) Intel® (15W) Core™ i5-6300U (3M Cache, 2.4GHz) Intel® (15W) Core™ i7-6600U (4M Cache, 2.6GHz) Intel® (15W) - Page 8 OXY5361A User’s Manual Revision Date: November 22, 2021 8-bit Mechanical and Environment Form Factor 3.5" SBC Power Type 9~36V DC-in, 4-pin ATX power connector, AT/ATX mode support Dimension 146mm x 101mm (5.7" x 4") ET : -20 to 70°C / UT : -20 to 85°C Operating Temp.
-
Page 9: Board Placement
OXY5361A User’s Manual Revision Date: November 22, 2021 1.3 Board Placement... -
Page 10: Chapter 2: Jumpers And Connectors
OXY5361A User’s Manual Revision Date: November 22, 2021 Chapter 2: Jumpers and Connectors 2.1 Onboard connector and jumper list Label Function COM1 (Rear) RS232, DB9 connector DP1 (Rear) DisplayPort DP2 (Rear) DisplayPort LAN1 (Rear) RJ45 connector LAN2 (Rear) RJ45 connector USB1/2 (Rear) 2 x USB3.0... -
Page 11: Connector And Jumper Pin Definition
OXY5361A User’s Manual Revision Date: November 22, 2021 JP24 LVDS Signal Power 2.2 Connector and jumper pin definition 2.2.1 Jumper JP1: Clear CMOS Jumper Function description Setting Normal Clear CMOS Default setting: 1-2 JP2: COM1 RI/+5V/+12V Jumper Function description Setting... -
Page 12: Jp14: Mpcie1 Signal Select
OXY5361A User’s Manual Revision Date: November 22, 2021 JP14: mPCIe1 signal select Jumper Function description Setting SATA PCIe Default setting: 2-3 JP15: mPCIe2 signal select Jumper Function description Setting SATA PCIe Default setting: 2-3 JP24 LVDS Signal Power SW1: LVDS Resolution... -
Page 13: Connector
OXY5361A User’s Manual Revision Date: November 22, 2021 2.2.2 Connector LVDS Pin Definition Pin Definition LVDS_CLK+ LVDS_CLK- LVDSA3+ LVDSA3- LVDSB3+ LVDSB3- LVDSA_CLK+ LVDSB2+ LVDSA_CLK- LVDSB2- LVDSB1+ LVDSA2+ LVDSB1- LVDSA2- LVDSB0+ LVDSA1+ LVDSB0- LVDSA1- LVDSA0+ LVDS_SCLK LVDSA0- LVDS_SDATA 28 CN11: ATX Power... -
Page 14: Cn18: Lvds Control Connector
OXY5361A User’s Manual Revision Date: November 22, 2021 CN18: LVDS Control connector PIN DEFINITION +12V +12V +12V Backlight Enable Backlight control 10 GND J1: DIO PIN DEFINITION DIO0 DIO1 DIO2 DIO3 DIO4 DIO5 DIO6 DIO7 3.3V 10 GND J6: SATA Power... -
Page 15: J9: Front Panel
OXY5361A User’s Manual Revision Date: November 22, 2021 J9: Front Panel PIN DEFINITION PIN DEFINITION FP_HDLED+ 2 FP_PLED+ SATALED# 4 GND 6 EC_PWR_BTN RESET- 8 GND J10: LPC PIN DEFINITION +3.3VSB LPC_AD0 LPC_AD1 LPC_AD2 LPC_AD3 LPC_FRAME# PLTRST#_BUF1 10 LPC_CLK_1 J11: Audio... -
Page 16: Com1: Rs232 With 5V/12V Selectable
OXY5361A User’s Manual Revision Date: November 22, 2021 COM1: RS232 with 5V/12V selectable J12: COM2 RS232/422/485 Note: RS232/422/485 can be set by BIOS. Pin RS232 mode (Default) RS422 mode RS485 mode DATA- DATA+... -
Page 17: J14: Usb2.0 X2
OXY5361A User’s Manual Revision Date: November 22, 2021 J14: USB2.0 x2 PIN DEFINITION USB5- USB5+ USB6- USB6+ 10 GND... -
Page 18: Chapter 3: Quick Installation Guide
OXY5361A User’s Manual Revision Date: November 22, 2021 Chapter 3: Quick Installation Guide A default screw for usage of Half size mSATA... -
Page 19: Chapter 4: Ami Bios Utility
OXY5361A User’s Manual Revision Date: November 22, 2021 Chapter 4: AMI BIOS UTILITY This chapter provides users with detailed descriptions on how to set up a basic system configuration through the AMI BIOS setup utility. 4.1 Starting To enter the setup screens, perform the following steps: ... -
Page 20: Main Menu
OXY5361A User’s Manual Revision Date: November 22, 2021 4.3 Main Menu The Main menu is the first screen that you will see when you enter the BIOS Setup Utility. -
Page 21: Advanced Menu
OXY5361A User’s Manual Revision Date: November 22, 2021 4.4 Advanced Menu The Advanced Menu allows you to configure your system for basic operation. Some entries are defaults required by the system board, while others, if enabled, will improve the performance of your system or let you set some features according to your preference. -
Page 22: Trust Computing
OXY5361A User’s Manual Revision Date: November 22, 2021 4.4.1 Trust Computing... -
Page 23: It8786 Super Io Configuration
OXY5361A User’s Manual Revision Date: November 22, 2021 4.4.2 IT8786 Super IO Configuration... -
Page 24: Serial Port 1 Configuration
OXY5361A User’s Manual Revision Date: November 22, 2021 4.4.2.1 Serial Port 1 Configuration 4.4.2.2 Serial Port 2 Configuration... -
Page 25: Hardware Monitor
OXY5361A User’s Manual Revision Date: November 22, 2021 4.4.3 Hardware Monitor... -
Page 26: Cpu Configuration
OXY5361A User’s Manual Revision Date: November 22, 2021 4.4.4 CPU Configuration... -
Page 27: Sata Configuration
OXY5361A User’s Manual Revision Date: November 22, 2021 4.4.5 SATA Configuration... -
Page 28: Cms Configuration
OXY5361A User’s Manual Revision Date: November 22, 2021 4.4.6 CMS Configuration... -
Page 29: Usb Configuration
OXY5361A User’s Manual Revision Date: November 22, 2021 4.4.7 USB Configuration... -
Page 30: Chipset
OXY5361A User’s Manual Revision Date: November 22, 2021 4.5 Chipset... -
Page 31: System Agent (Sa) Configuration
OXY5361A User’s Manual Revision Date: November 22, 2021 4.5.1 System Agent (SA) Configuration 4.5.1.1 Graphic Configuration... -
Page 32: Lcd Control
OXY5361A User’s Manual Revision Date: November 22, 2021 4.5.1.1.1 LCD Control 4.5.1.2 Memory Configuration... -
Page 33: Pch-Io Configuration
OXY5361A User’s Manual Revision Date: November 22, 2021 4.5.2 PCH-IO Configuration... -
Page 34: Security
OXY5361A User’s Manual Revision Date: November 22, 2021 4.6 Security Administrator Password Set administrator password. User Password Set user Password. -
Page 35: Boot Menu
OXY5361A User’s Manual Revision Date: November 22, 2021 4.7 Boot Menu This section is used to configure the boot features. -
Page 36: Save & Exit
OXY5361A User’s Manual Revision Date: November 22, 2021 4.8 Save & Exit...
