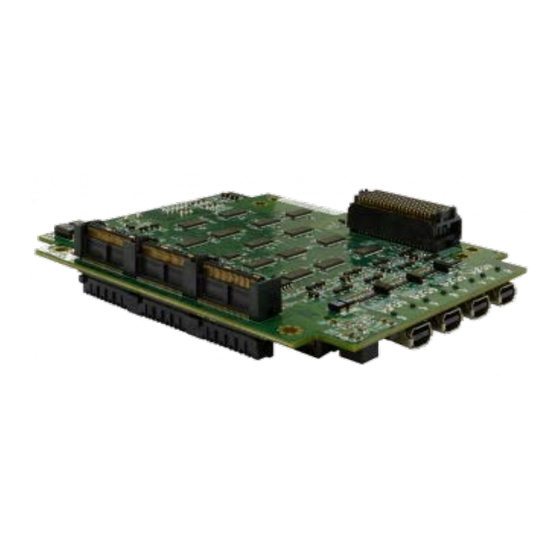

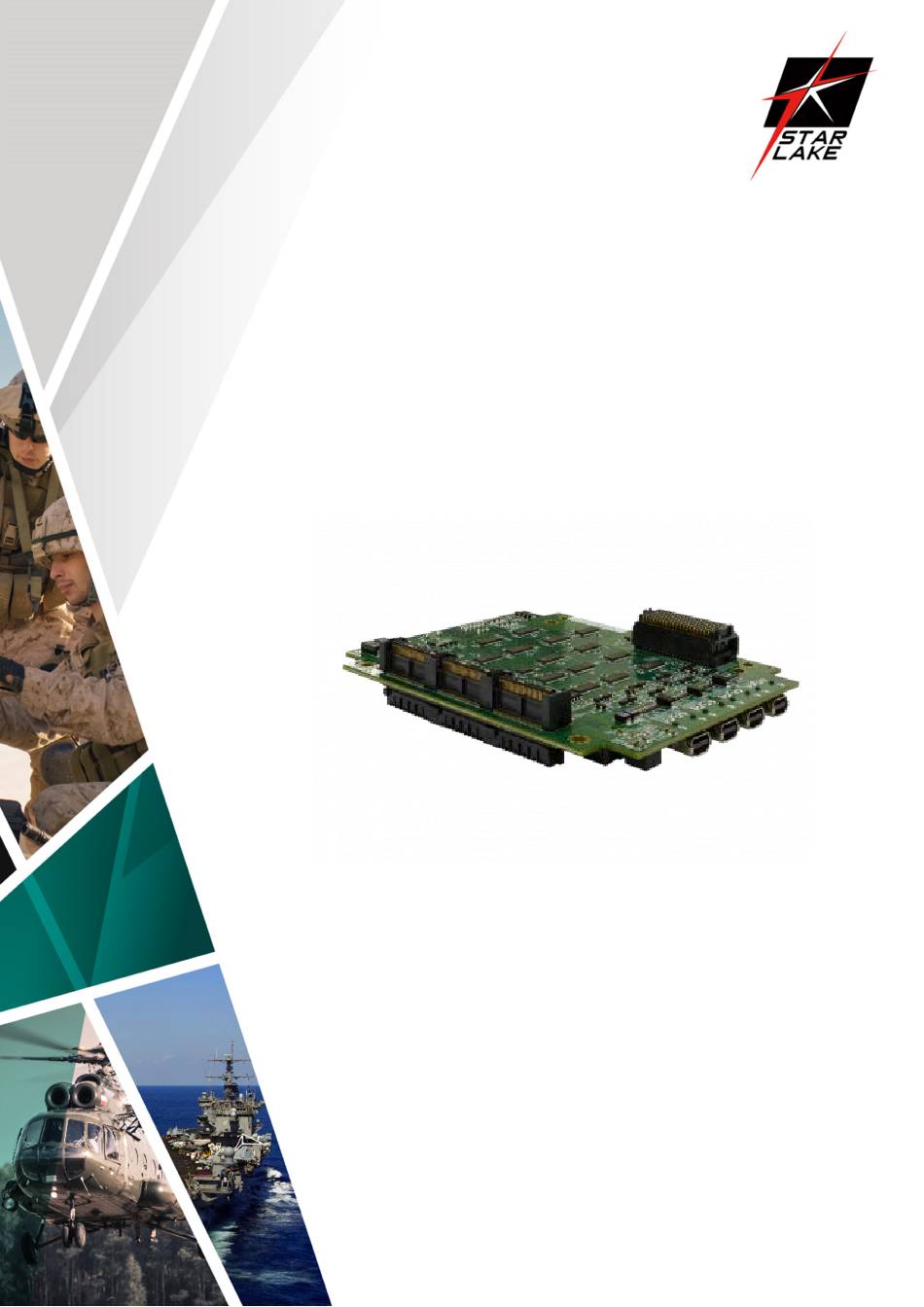

- Page 1 SK221 PCIe/104(StackPC) MXM Carrier Module User’s Manual Revision Date: AUG. 26. 2021...
-
Page 2: Safety Information
Safety information Electrical safety To prevent electrical shock hazard, disconnect the power cable from the electrical outlet before relocating the system. When adding or removing devices to or from the system, ensure that the power cables for the devices are unplugged before the signal cables are connected. -
Page 3: Revision History
Revision Date (dd.mm.yyyy) Changes Version 0.9 23.03.2017 Draft Version 1.0 14.06.2017 Initial Release Packing list □ SK221 □ SK220-1 □ Manual CD □ Screw Package If any of the above items is damaged or missing, please contact your local distributor. -
Page 4: Table Of Contents
Table of content SAFETY INFORMATION ................................1 ....................................1 LECTRICAL SAFETY ....................................1 PERATION SAFETY STATEMENT ....................................1 REVISION HISTORY ..................................2 PACKING LIST ....................................2 TABLE OF CONTENT ..................................3 CHAPTER 1: PRODUCT INFORMATION ............................4 1.1 B ................................... 4 LOCK IAGRAM 1.2 K... -
Page 5: Chapter 1: Product Information
Chapter 1: Product Information 1.1 Block Diagram... -
Page 6: Key Features
1.2 Key Features Specification Function PCIe104-FPE MXM Graphic Card Carrier Signal Interface PCIe Gen.3 x16/ x8/ x4/ x1 MXM version Support MXM 3.0/3.1 PCIe104 Connector (Top) MXM Slot Top Side I/O 1 x VGA (Pin Header) 4 x miniDP Port PCIe104 (Bottom/Top) Bottom Side I/O FPE (Bottom) -
Page 7: Board Placement
1.3 Board Placement 1.3.1 SK221 Top Side 1.3.2 SK221 Bottom Side... -
Page 8: Chapter 2: Onboard Connector And Switch
Chapter 2: Onboard Connector and Switch 2.1 Connector 2.1.1 MVGA Connector 2*5P 180D P:2.0mm [E.I.C. 0110-02-163-100] Definition Definition GREEN BLUE HSYNC VSYNC DDC_CLK DDC_DAT 2.1.2 Power Connector 1*2P 180D P:5.0mm... -
Page 9: Fan1
2.1.3 FAN1 Pin Definition +12V 2.1.4 MXM_SEL MXM_SEL[1:3] MXM PCIe Bus CONN. PCIE104_TOP OFF-OFF-OFF ON-OFF-OFF x1 and x4 OFF-OFF-ON x1 and x4 ON-OFF-ON OFF-ON-ON PCIe/104 x1 and x4 ON-ON-ON PCIe/104 MXM_SEL[4] MXM Version v3.0 v3.1... -
Page 10: Stackpc
2.1.5 StackPC Bottom: Samtec [ASP-129646-03] Top: Samtec [ASP-129637-03] DEFINITION DEFINITION DEFINITION DEFINITION USB_OC#_4_5 RST_HEADER# STK0_WAKE- STK1_SATA_ACT- +V3.3S +V3.3S -TYPE_DETECT USBD1+ USBD0+ LAN0_MDI0P PCIEX4_TXP0 USBD1- USBD0- LAN0_MDI0P PCIEX4_TXN0 PCIE_TXP1_1 PCIE_TXP0 LAN1_MDIP0 PCIEX4_TXP1 PCIE_TXN1_1 PCIE_TXN0 LAN1_MDIN0 PCIEX4_TXN1 PCIE_TXP1_2 PCIE_TXP1_3 LAN0_MDI1P PCIEX4_TXP2 PCIE_TXN1_2 PCIE_TXN1_3 LAN0_MDI1N PCIEX4_TXN2... - Page 11 DEFINITION DEFINITION 0RTSSTK2_SPISCK LPC_CLK SPI_SS2 LAN0_MDI2P PCIEX4_RXP0 LAN0_MDI2N PCIEX4_RXN0 LAN1_MDI2P PCIEX4_RXP1 LAN1_MDI2N PCIEX4_RXN1 LAN0_MDI3P PCIEX4_RXP2 LAN0_MDI3N PCIEX4_RXN2 LAN1_MDI3P PCIEX4_RXP3 LAN1_MDI3N PCIEX4_RXN3 PE_PRSNT1_A- PE_PRSNT0_A SATARXP1 SATARXP0 SATARXN1 SATARXN0 FBUS_1P FBUS_P0 FBUS_1N FBUS_N0 LPC_AD0 LPC_DRQ# LPC_AD1 LPC_SERIRQ# LPC_AD2 LPC_FRAME# LPC_AD3 RTC_Battery FBUS_1RTS- FBUS_0RTS...
-
Page 12: Fpe
2.1.6 FPE Bottom: Samtec [SEAM-20-09.0-L-10-2-A-K-TR] DEFINITION DEFINITION DEFINITION DEFINITION DEFINITION DEFINITION DPC_HPD DPC_AUX_P DPC_AUX_N DPC_LANE1_P +VDP_PWR USB3_TX0P USB3_TX1P DPC_LANE1_N DPC_LANE3_P USB3_TX0N USB3_RX0P USB3_TX1N USB3_RX1P DPC_LANE3_N USB3_RX0N USB3_RX1N DPC_LANE0_P USB3_TX5P USB3_TX4P DPC_LANE0_N DPC_LANE2_P USB3_TX5N USB3_RX5P USB3_TX4N USB3_RX4P DPC_LANE2_N USB3_RX5N USB3_RX4N PEG_TXP0 PEG_TXP2 PEG_TXP4 PEG_TXN0... - Page 13 DEFINITION DEFINITION DEFINITION DEFINITION USB3_TX2P USB3_TX2N USB3_RX2P USB3_RX2N USB3_TX3P USB3_TX3N USB3_RX3P USB3_RX3N PEG_TXP6 PEG_TXN6 PEG_TXP7 PEG_TXN7 PE_RST_FPE# PEG_RXP_6 PEx16_x8_x4_0Clkp PEG_RXN_6 PEG_RXP_7 PEx16_x8_x4_0Clkn FPE_Bus_Err PEG_RXN_7 Config_Type0 PEG_TXP14 PEx16_x8_x4_1Clkp Config_Type1 PEG_TXN14 PEG_TXP15 PEx16_x8_x4_1Clkn Config_Type2 PEG_TXN15 PEG_RXP_14 +V12S PEG_RXN_14 PEG_RXP_15 +V12S PEG_RXN_15 +V12S...
