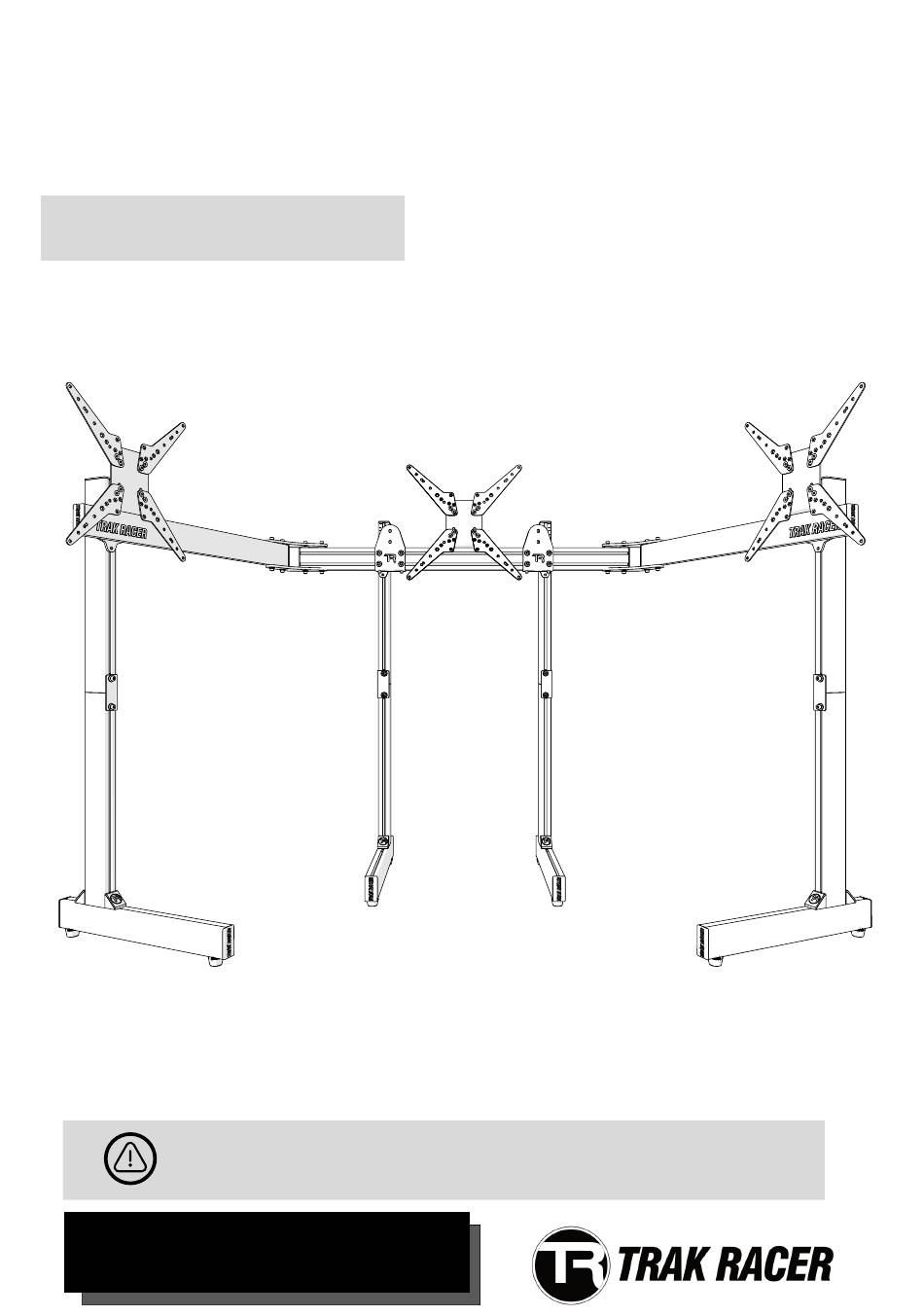

- Page 1 Triple Monitor Stands Assembly Guide ooltip IMPORTANT: Different regions may have different models. Please ensure the part number below matches that on your product's box. MS-FM-SIN-TR2-FM Published 2024-12-26...
- Page 2 TABLE OF CONTENTS Symbol Legend Assembly Notes MS-FS-SIN6 TR80-TMARM6 TR80-FMMS6 MS-FM-SIN-TR2-FM...
- Page 3 IMPORTANT: Since there are different versions of each product based on your region, please make sure you are using the correct set of instructions. The part number below should match the one on your box. IMPORTANT: Due to the nature of cut aluminum profiles, some metal shavings may remain despite our thorough QA cleaning process.
- Page 4 NOTE tooltip TOP SIDE OUTSIDE INSIDE FRONT SIDE INSTALLATION ORDER FOR SCREWS & WASHERS HOW TO MEASURE SCREWS ① SCREW ② LOCK WASHER ③ WASHER (IF APPLICABLE) FLAT SCREW HEX SCREW BUTTON SCREW If you have any issues, please contact us at support@trakracer.com...
- Page 5 NOTE NS-M8 & NS-M6 Slide T-Nuts into the ends of the profiles. Some must be added early, so follow the steps in this manual carefully. If you miss one, tilt it in from the outer edge. Use the Allen key to push it into place, ensuring the hole lines up.
- Page 6 tooltip Floor Single Monitor Stand with VESA mount (120mm Crossbar) PART LISTS tooltip tooltip tooltip 600mm 540mm 380mm Aluminum Profile Aluminum Profile Aluminum Profile Aluminum Profile TR-8080-600 TR-8080-540 TR-8080-380 TR-80B tooltip tooltip tooltip tooltip tooltip End Cap Connector Part TV Vesa Mount Connecting Part EC-80 VM-1...
- Page 7 NS-M8 SH-M8-20 FR-01 TR-8080-600 WF-M8-20 tooltip tooltip 600mm M8x20mm M8x20mm tooltip Warning: Using the stand without The rubber feet may cause Damage to your floor tooltip tooltip M8-LN TR-8080-600 tooltip 600mm 330mm tooltip Place the long nuts (M8-LN) into the slots of two aluminum profiles (AL-8080-600) (front and back).
- Page 8 tooltip CP-3 CP-2 SH-M8-20 WL-M8 WF-M8-20 tooltip M8x20mm M8x20mm tooltip Ensure as you tighten the long nuts (M8-LN) that the aluminum profiles (AL-8040-600) stay flat to one another and in place. It helps if you tighten and hold onto one side of the leg only. tooltip BC-40 NS-M8...
- Page 9 NS-M8 SH-M8-20 WL-M8 tooltip WF-M8-20 tooltip tooltip M8x20mm M8x20mm tooltip Position the corner bracket toward the back of the ‘foot’, approximately 1cm or ½” from the end. tooltip tooltip tooltip tooltip M8-LN TR-8080-540 TR-8080-330 540mm 330mm 100mm tooltip Slide 4 long nuts (M8-LN) into the back, and 2 into the bottom of the aluminum profile (AL-4080 -540).
- Page 10 SH-M8-20 WL-M8 WL-M8-20 tooltip M8x20mm M8x20mm tooltip Ensure as you tighten the long nuts (M8-LN) that the aluminum profiles stay flat to one another and in place. It helps if you tighten and hold onto one piece of aluminum profiles at one time as you tighten.
- Page 11 NS-M8 SH-M8-20 WL-M8 WF-M8-20 tooltip M8x20mm M8x20mm Position the part from step 7 onto the ‘legs’ from step 5 and secure by tightening. You may decide to tooltip adjust the height depending on your monitor height preference. tooltip M-SB TR-80B SF-M6-16 NL-M6 tooltip...
- Page 12 NS-M8 SH-M8-20 WL-M8 WF-M8-20 tooltip M8x20mm M8x20mm Slide 3 x T Nuts into the top of the horizontal monitor mount tooltip then position the parts from Step 10 in the center of the profile and screw down tight. tooltip EC-80 BC-40-CAP tooltip tooltip...
-
Page 13: Vesa Mount
Arms for Tripple Monitors with tooltip VESA mount PART LISTS tooltip tooltip tooltip tooltip 880mm Aluminum Profile Bracket (Plate) BM-TA End Cap TR-8040-880 BM-TA BP-IS EC-80 tooltip tooltip tooltip Vesa Mount Washer (Flat), M8x20 Nut, M6 Washer (Lock), M8 VB-03 NL-M6 WF-M8 WL-M8... - Page 14 BM-TA SH-M8-20 NS-M8 WF-M8-20 TR-8040-880 tooltip tooltip 880mm M8x20mm M8x20mm tooltip tooltip TR-80B SF-M8-16 NL-M6 tooltip tooltip tooltip M8x16mm tooltip...
- Page 15 SH-M8-20 NS-M8 WL-M8 WF-M8-20 M8x20mm M8x20mm tooltip tooltip EC-80 tooltip tooltip...
- Page 16 Legs for Freestanding tooltip Monitor Stand PART LISTS tooltip tooltip tooltip 600mm Aluminum Profile Connector Long Nut Leg Connector Plate Connector Part TR-8080-600 LN-M8 CP-1 CP-2 tooltip tooltip tooltip Corner Bracket Corner Bracket with Cap End Cap Ball Bearing Nut Ball Bearing Nut, M8 BC-40 BC-40-CAP...
- Page 17 NS-M8 SH-M8-20 WF-M8-20 FR-01 TR-8080-600 tooltip 600mm M8x20mm M8x20mm tooltip Warning: Using the stand without the rubber feet may cause damage to your floor tooltip tooltip M8-LN CP-1 SH-M8-20 WF-M8-20 WL-M8 TR-8080-600 tooltip 600mm 330mm M8x20mm M8x20mm CP-3 tooltip tooltip tooltip...
- Page 18 NS-M8 SH-M8-20 WF-M8-20 WL-M8 BC-40 tooltip M8x20mm M8x20mm tooltip tooltip tooltip NS-M8 SH-M8-20 WF-M8-20 WL-M8 tooltip M8x20mm M8x20mm tooltip tooltip Attach parts from step 1 to step 3.
- Page 19 tooltip NS-M8 SF-M8-16 CP-2 tooltip tooltip tooltip M8X16mm tooltip tooltip tooltip EC-80 BC-40-CAP tooltip tooltip tooltip...
- Page 20 WL-M8-20 WL-M8 NOTE: Some screws and washers may be pre-installed. These are included in the parts list and will need to be loosened and reattached according to the instructions. If you have any issues, please contact us at support@trakracer.com MS-FM-SIN-TR2-FM...
- Page 21 WF-M8 WL-M8 SH-M8-20 NS-M8 tooltip tooltip tooltip M8x20mm M8x20mm tooltip tooltip tooltip tooltip WF-M8 WL-M8 SH-M8-20 NS-M8 tooltip M8x20mm M8x20mm tooltip tooltip...
- Page 22 IMPORTANT: If your monitor screws are under 8mm (M8), you will need to use washers (not supplied) tooltip...
- Page 23 FINISHED...
