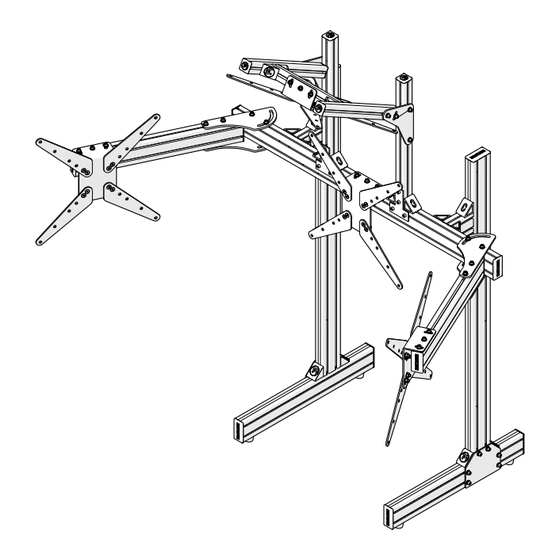

TRAK RACER MS-FM-QD Assembly Manual

Floor monitor stand (quad)
Hide thumbs

Advertisement

Quick Links

Download this manual
Floor Monitor
tooltip
Stand (Quad)
Assembly Guide
IMPORTANT: As there are different versions of each rig depending on your
region, please ensure that you are using the correct instruction set. The
part number below should match the part number labeled on your box
MS-FM-QD
Published 2023‑09‑06
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the MS-FM-QD and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for TRAK RACER MS-FM-QD

Summary of Contents for TRAK RACER MS-FM-QD

  • Page 1 Assembly Guide IMPORTANT: As there are different versions of each rig depending on your region, please ensure that you are using the correct instruction set. The part number below should match the part number labeled on your box MS-FM-QD Published 2023‑09‑06...
  • Page 2 TABLE OF CONTENTS Symbol Legend Part list Assembly Notes MS-SML-FM Assembly Instructions TR80-TMARM4-BLK Assembly Instructions TR80-4M4-BLK Assembly Instructions...
  • Page 3 IMPORTANT: As there are different versions of each rig depending on your region, please ensure that you are using the correct instruction set. The part number below should match the part number labeled on your box IMPORTANT: Due to the nature of cut aluminium profile, some metal shavings may still be present after our extensive QA cleaning process.

  • Page 4: Parts List

    MS-FM-QD PARTS LIST TR80-4M4-BLK KIT-TR80SMLSINFM-BLK2 MS-SML-FM TR80-TMARM4-BLK If you have any issues, please contact us at support@trakracer.com...
  • Page 5 NOTE BACK SIDE INSIDE FRONTSIDE TOP SIDE OUTSIDE INSTALLATAION ORDER FOR SCREWS & WASHERS HOW TO MEASURE SCREWS ① SCREW ② LOCK WASHER ③ WASHER (IF APPLICABLE) FLAT SCREW HEX SCREW BUTTON SCREW...
  • Page 6 The handle screws (SL-M8-20 & SL-M8-25) are NOTE ratcheted to allow for tightening and loosening when space for rotation is limited. Simply pull the handle out and turn handle into position and push handle back in to engage thread.
  • Page 7 NOTE tooltip NS-M8 & NS-M6 tooltip It is strongly advised that spring T-Nuts are inserted by sliding from the ends of profiles. Please take careful note of each step of all T-nuts as some are to be installed in anticipation of future steps. tooltip tooltip If T-Nuts are skipped, and...
  • Page 8 NOTE BC-40...
  • Page 9 Floor Single Monitor Stand tooltip with VESA Mount MS-SML-FM (800mm Crossbar) MS-FM-SIN (1200mm Crossbar) Part # Description Check Part # Description QTY Check BOX #: TR80-FMMS5-BLK BOX #: TR80-FMMS5-BLK PS-600-R Profile strip, 600mm Red PS-600-R Profile strip, 600mm Red PS-1200-R Profile strip, 1200mm Red PS-1200-R Profile strip, 1200mm Red...
  • Page 10 M6x16mm AL-80-600 NS-M8 NS-M6 SH-M6-16 FR-01 tooltip tooltip NOTE: Rubber feet and hardware are optional. tooltip tooltip Insert 4pcs of NS-M8 into OUTSIDE of each of AL-80-600 (for STEP 2b) M8x20mm AL-80-1200 NS-M8 SH-M8-20 WL-M8 WF-M8 BP-80-V Insert 1pcs of NS-M8 into FRONT &...
  • Page 11 M8x20mm BC-40 NS-M8 SH-M8-20 WL-M8 WF-M8 tooltip tooltip M8x16mm tooltip AL-80-105 NS-M8 SH-M8-16 BA-40-BLK Roughly adjust according to desired height and/or monitor size...
  • Page 12 tooltip M8x16mm NS-M8 SH-M8-16 BA-80-BLK NOTE: 800mm long cross bar. If using 1200mm cross bar, see STEP 5b. TR80-TMSML3 Ensure corner brackets are facing inward tooltip M8x16mm NS-M8 SH-M8-16 BA-80-BLK NOTE: 1200mm long cross bar. If using 800mm cross bar, see STEP 5a. TR80-TMSIN4...
  • Page 13 M8x16mm AL-80-800 NS-M8 SH-M8-16 tooltip NOTE: 800mm long cross bar TR80-TMSML3 60mm 600mm 60mm M8x16mm tooltip AL-80-1200 NS-M8 SH-M8-16 NOTE: 1200mm long cross bar TR80-TMSIN4 260mm 600mm 260mm...
  • Page 14 M8x20mm VM-02 NS-M8 SH-M8-20 WL-M8 WF-M8 M8x16mm VM-02-A VM-02-B SF-M8-16 NF-M8 NOTE: Optional for larger monitors. If monitor mounting points are 150mm or 200mm apart, add VESA extensions (VM-02-E)
  • Page 15 NOTE: If installing Arms for triple monitors, skip this step until assembly of all other components is complete. EC-80 BC-40 NOTE: Tape measure and scissors not supplied oltip PS-600-R PS-1200-R...
  • Page 16 IMPORTANT: If your monitor screws are under 8mm (M8), you will need to use washers (not supplied) Adjust according to desired height and/or monitor size...
  • Page 17 Arms for Triple Monitors with VESA Mounts Part # Description Check BM-TA Bracket (Monitor), Triple Adjustable EC-80 End Cap, 40x80 NF-M8 Nut (Flange), M8 NS-M8 T-Nut (Spring), M8 AL-80-580 Aluminum Aluminum Profile, 40x80x580mm SH-M8-20 Screw (Hex), M8x20 SF-M8-16 Screw (Flat), M8x16 VM-02 VESA new WF-M8...
  • Page 18 M8x20mm BM-TA NS-M8 SH-M8-20 WL-M8 WF-M8 NOTE: End caps may need to be removed to insert t-nuts. tooltip M8x20mm NS-M8 SH-M8-20 WF-M8 EC-80 AL-80-580 WL-M8 tooltip...
  • Page 19 M8x20mm VM-02 NS-M8 SH-M8-20 WL-M8 WF-M8 tooltip M8x16mm VM-02-A VM-02-B SF-M8-16 NF-M8 NOTE: Optional for larger monitors. tooltip If monitor mounting points are 150mm or 200mm apart, add VESA extensions (VM-02-E)
  • Page 20 tooltip EC-80 IMPORTANT: If your monitor screws are under 8mm (M8), you will need to use washers (not supplied) tooltip...
  • Page 21 Overhead Monitor Stand with VESA Mount tooltip tooltip Part # Description Check BM-QA Bracket (Monitor), Quad Adjustable BC-40 Bracket, Corner with Cap, 40x40 EC-40 End Cap, 40x40 NF-M8 Nut (Flange), M8 NS-M8 T-Nut (Spring), M8 AL-40-500 Aluminum Profile, 40x40x500mm AL-40-400 Aluminum Profile, 40x40x400mm AL-40-300 Aluminum Profile, 40x40x300mm...
  • Page 22 M8x20mm NS-M8 SH-M8-20 WL-M8 WF-M8 BC-40 tooltip NOTE: Shown with TRIPLE montior stand. MS-FM-SIN-TR MS-CM-SIN-TR NOTE: When installing to TRIPLE monitor stand, NS-M8 (T-nuts) will need to be installed using the rocking method. Otherwise, triple monitor arms will need to be removed to slide t-nuts in from ends.
  • Page 23 M8x20mm AL-40-500 NS-M8 SH-M8-20 WL-M8 WF-M8 tooltip 3 0 0 m m M8x16mm BT-01 NS-M8 SH-M8-16 WL-M8 WF-M8...
  • Page 24 M8x20mm tooltip BM-QA NS-M8 SH-M8-20 WL-M8 WF-M8 Adjust according to desired height and/or monitor size tooltip M8x20mm EC-40 AL-40-400 NS-M8 SH-M8-20 WL-M8 WF-M8...
  • Page 25 M8x20mm NS-M8 AL-40-300 VM-02 SH-M8-20 WL-M8 WF-M8 tooltip Insert 4pcs NS-M8 extra (TOP and BOTTOM on both sides of AL-80-580) for STEP 24. tooltip Center and attach VM-02 M8x20mm NS-M8 SH-M8-20 WL-M8 WF-M8 BC-40 Adjust according to desired height and/or monitor size...
  • Page 26 M8x16mm VM-02-A VM-02-B SF-M8-16 NF-M8 NOTE: Optional for larger monitors. tooltip If monitor mounting points are 150mm or 200mm apart, add VESA extensions (VM-02-E) tooltip EC-40 BC-40...
  • Page 27 oltip IMPORTANT: If your monitor screws are under 8mm (M8), you will need to use washers (not supplied)
  • Page 28 FINISHED Share your build online and tag us to be featured! @trakracer @trakracer @trak_racer...
