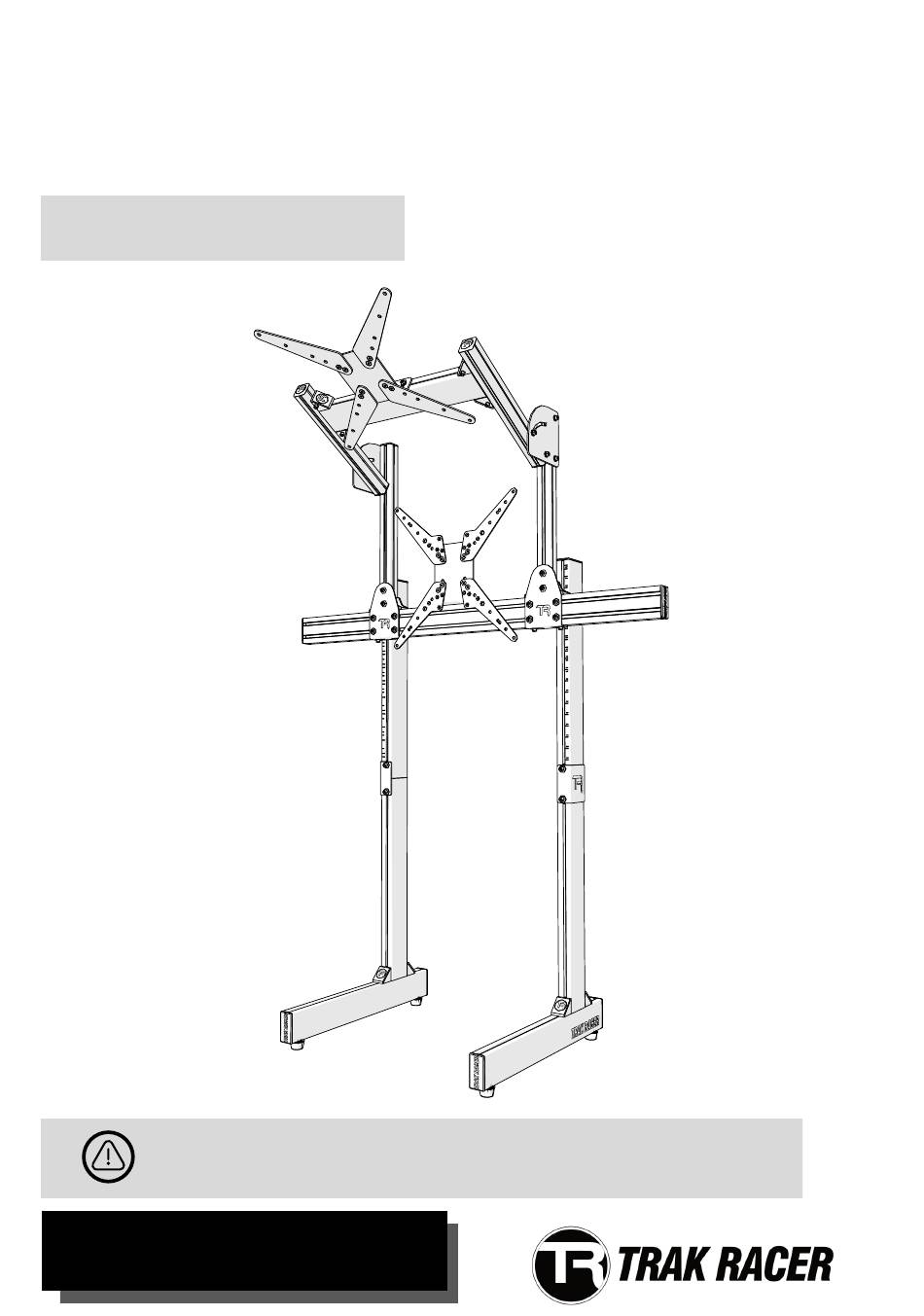

- Page 1 Single Monitor Stand with Overhead Monitor Stand Assembly Guide IMPORTANT: Different regions may have different models. Please ensure the part number below matches that on your product's box. MS-FM-DL2 Published 2024-6-26...
- Page 2 TABLE OF CONTENTS Symbol Legend Assembly Notes MS-FS-SIN6 Part Lists Assembly Instruction TR80-4M4 Part Lists Assembly Instruction MS-FS-DL2 Part Lists Assembly Instruction...
- Page 3 IMPORTANT: Since there are different versions of each product based on your region, please make sure you are using the correct set of instructions. The part number below should match the one on your box. IMPORTANT: Due to the nature of cut aluminum profiles, some metal shavings may remain despite our thorough QA cleaning process.
- Page 4 NOTE TOP SIDE oltip INSIDE FRONT SIDE OUTSIDE INSTALLATION ORDER FOR SCREWS & WASHERS HOW TO MEASURE SCREWS ① SCREW ② LOCK WASHER ③ WASHER (IF APPLICABLE) FLAT SCREW HEX SCREW BUTTON SCREW If you have any issues, please contact us at support@trakracer.com...
- Page 5 NOTE NS-M8 & NS-M6 Slide T-Nuts into the ends of the profiles. Some must be added early, so follow the steps in this manual carefully. If you miss one, tilt it in from the outer edge. Use the Allen key to push it into place, ensuring the hole lines up.
- Page 6 tooltip Floor Single Monitor Stand with VESA mount (120mm Crossbar) PART LISTS tooltip tooltip tooltip 600mm 540mm 380mm Aluminum Profile Aluminum Profile Aluminum Profile Aluminum Profile TR-4080-600 TR-4080-540 TR-4080-380 TR-80B tooltip tooltip tooltip tooltip tooltip 40x40 End Cap, 40x40 Connector Part TV Vesa Mount Connecting Part EC-40...
- Page 7 NS-M8 SH-M8-20 FR-01 WF-M8 TR-4080-600 tooltip tooltip 600mm M8x20mm tooltip Warning: Using the stand without The rubber feet may cause Damage to your floor tooltip tooltip M8-LN TR-4080-600 tooltip 600mm 330mm tooltip Place the long nuts (M8-LN) into the slots of two aluminum profiles (AL-8080-600) (front and back).
- Page 8 tooltip CP-3 CP-2 SH-M8-20 WL-M8 WF-M8-20 tooltip M8x20mm M8x20mm tooltip Ensure as you tighten the long nuts (M8-LN) that the aluminum profiles (AL-8040-600) stay flat to one another and in place. It helps if you tighten and hold onto one side of the leg only. tooltip BC-40 NS-M8...
- Page 9 NS-M8 SH-M8-20 WL-M8 tooltip WF-M8-20 tooltip tooltip M8x20mm M8x20mm tooltip Position the corner bracket toward the back of the ‘foot’, approximately 1cm or ½” from the end. tooltip tooltip tooltip tooltip M8-LN TR-4080-540 TR-4080-330 540mm 330mm 100mm tooltip Slide 4 long nuts (M8-LN) into the back, and 2 into the bottom of the aluminum profile (AL-4080 -540).
- Page 10 BC-40 SH-M8-20 WL-M8 WL-M8-20 tooltip M8x20mm M8x20mm tooltip Ensure as you tighten the long nuts (M8-LN) that the aluminum profiles stay flat to one another and in place. It helps if you tighten and hold onto one piece of aluminum profiles at one time as you tighten.
- Page 11 NS-M8 SH-M8-20 WL-M8 WF-M8-20 tooltip M8x20mm M8x20mm Position the part from step 7 onto the ‘legs’ from step 5 and secure by tightening. You may decide to tooltip adjust the height depending on your monitor height preference. tooltip M-SB TR-80B SF-M6-16 M6-LW tooltip...
- Page 12 NS-M8 SH-M8-20 WL-M8 WF-M8-20 tooltip M8x20mm M8x20mm Slide 3 x T Nuts into the top of the horizontal monitor mount tooltip then position the parts from Step 10 in the center of the profile and screw down tight. tooltip EC-40 EC-40 tooltip tooltip...
-
Page 13: Part Lists
Overhead Monitor Stand with VESA mount PART LISTS tooltip 400mm 500mm 500mm Aluminum Profile Aluminum Profile Aluminum Profile Aluminum Profile TR-8040-400 TR-8040-500 TR-8080-500 TR-80B tooltip tooltip tooltip tooltip tooltip tooltip tooltip tooltip 40x40 End Cap, 40x40 Corner Bracket Angle Adjust Part TV Vesa Mount EC-40 VM-1... - Page 14 Bracket SH-M8-16 NS-M8 TR-8040-500 tooltip tooltip tooltip tooltip tooltip 500mm 40x40mm M8x16mm tooltip First slide ‘D’ into position tooltip WF-M8 WL-M8 SH-M8-20 NS-M8 BM-QA tooltip tooltip tooltip M8x20mm ooltip First slide ‘D’ into position tooltip...
- Page 15 M-SB SF-M6-16 M6-LW tooltip tooltip tooltip tooltip M6x16mm Part ‘A’ has 2 side variations tooltip tooltip WL-M8 SH-M8-20 NS-M8 TR-8080-500 WF-M8-20 tooltip M8x20mm 500mm tooltip Adjust according to Liking/size. tooltip...
- Page 16 SH-M8-16 NS-M8 BC-40 WF-M8-20 tooltip tooltip tooltip M8x20mm M8x16mm Use parts from step 4 & 2 tooltip WF-M8 SH-M8-16 NS-M8 TR-8040-400 tooltip tooltip tooltip M8x20mm M8x16mm 400mm tooltip...
- Page 17 WF-M8 WL-M8 SH-M8-20 NS-M8 tooltip M8x20mm M8x20mm tooltip Adjust position angle To liking. tooltip tooltip...
- Page 18 Single Monitor Stand with Overhead Monitor Stand tooltip MS-FS-SIN6 TR80-4M5 PART LISTS tooltip tooltip M8X16mm M8X20mm M8x20mm Ball Bearing Nut Hex Screw Flat Screw Washer (Flat) Washer (Lock), M8 WL-M8-20 NS-M8 SF-M8-16 SH-M8-20 WL-M8 NOTE: Some screws and washers may be pre-installed. These are included in the parts list and will need to be loosened and reattached according to the instructions.
- Page 19 SF-M8-16 NS-M8 tooltip M8x16mm tooltip tooltip Slide ‘B’ to the position First. tooltip SH-M8-20 WF-M8 WF-M8-20 M8x20mm M8x20mm tooltip...
- Page 20 IMPORTANT: If your monitor screws are under 8mm (M8), you will need to use washers (not supplied)
- Page 21 FINISHED...
