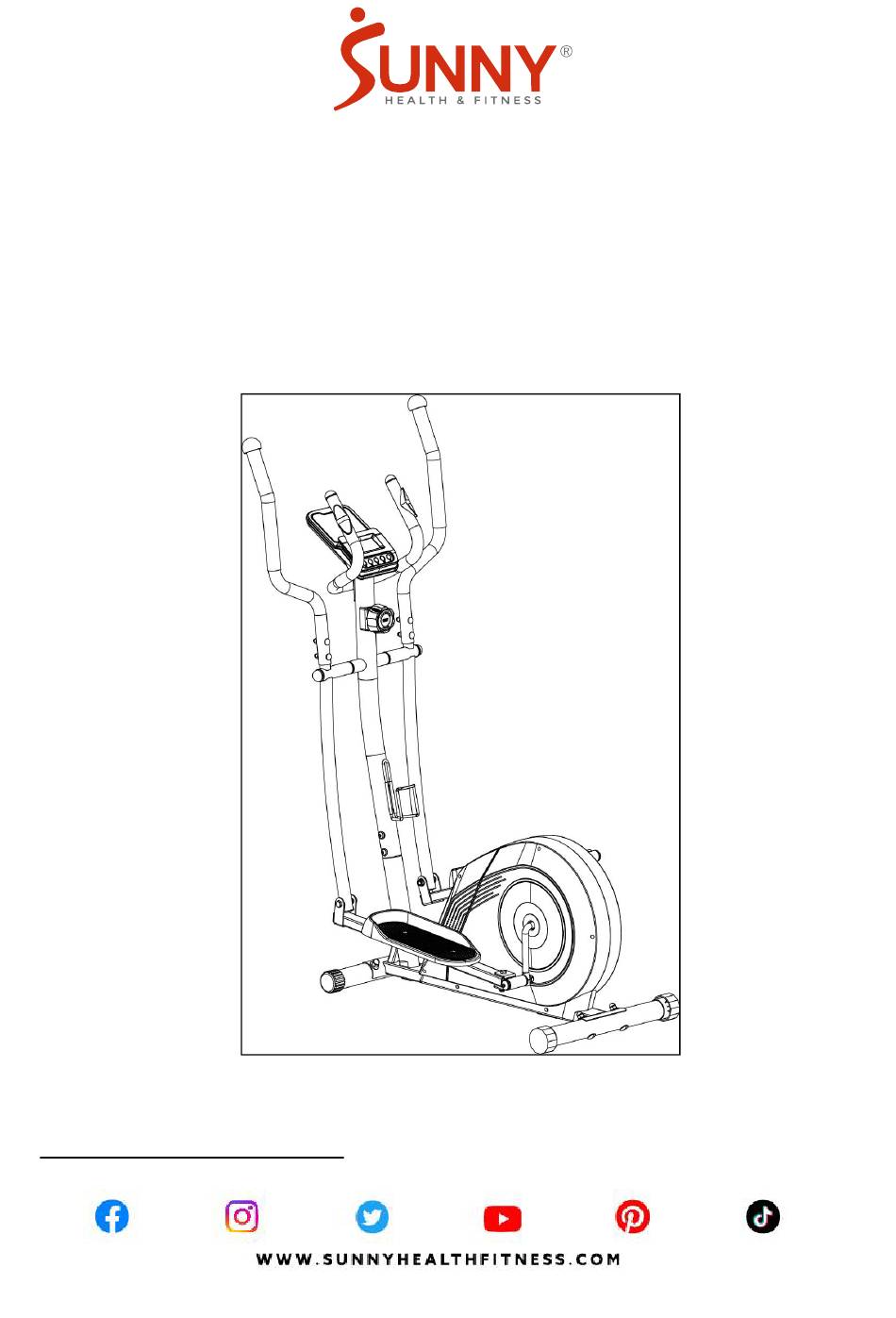

- Page 1 COREZY 16-LEVEL SMART MAGNETIC RESISTANCE ELLIPTICAL SF-E324005 USER MANUAL IMPORTANT! Please retain owner’s manual for maintenance and adjustment instructions. Your satisfaction is very important to us, PLEASE DO NOT RETURN UNTIL YOU HAVE CONTACTED US: support@sunnyhealthfitness.com or 1-877-90SUNNY (877-907-8669). IMPORTANT SAFETY INFORMATION...
- Page 2 We thank you for choosing our product. To ensure your safety and health, please use this equipment correctly. It is important to read this entire manual before assembling and using the equipment. Safe and effective use can only be achieved if the equipment is assembled, maintained, and used properly.
-
Page 3: Pre-Assembly Check List
PRE-ASSEMBLY CHECK LIST Before you start to assemble, please make sure all parts are included Description Spec. Description Spec. Main Frame Right Handrail Ф32*2.0 Front Stabilizer Left Foot Pedal Rear Stabilizer Right Foot Pedal Front Post Bottle Holder Left Handrail Arm/ 5/7/31 Foot Bar Tube/ 1 SET... -
Page 4: Hardware Package
HARDWARE PACKAGE Ordering Replacement Parts (U.S. and Canadian Customers only) Please provide the following information in order for us to accurately identify the part(s) needed: The model number (found on cover of manual) The product name (found on cover of manual) ... - Page 5 ASSEMBLY INSTRUCTIONS We value your experience using Sunny Health and Fitness products. For assistance with parts or troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY (877-907-8669). STEP 1: Attach the Front Stabilizer (No. 2) and Rear Stabilizer (No. 3) to the Main Frame (No. 1) with 4 Bolts (No.
- Page 6 We value your experience using Sunny Health and Fitness products. For assistance with parts or troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY (877-907-8669). STEP 3: Remove 2 Bolts (No. 17), 2 Spring Washers (No. 18), 2 Big Washers (No. 19) and 2 Wave Washers (No.
- Page 7 We value your experience using Sunny Health and Fitness products. For assistance with parts or troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY (877-907-8669). STEP 4: Attach the Left Foot Pedal (No. 29) to the Foot Bar Tube (No. 7) with 2 Bolts (No. 28), 2 Washers (No.
- Page 8 We value your experience using Sunny Health and Fitness products. For assistance with parts or troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY (877-907-8669). STEP 6: Remove 2 Bolts (No. 47) and 2 Arc Washers (No. 62) from the Front Post (No. 4) with Allen Wrench (No.
- Page 9 We value your experience using Sunny Health and Fitness products. For assistance with parts or troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY (877-907-8669). STEP 8: Attach the Bottle Holder (No. 105) to the Front Post (No. 4) with 2 Bolts (No. 56). Tighten and secure with Spanner (No.
-
Page 10: Battery Installation And Replacement
BATTERY INSTALLATION & REPLACEMENT BATTERY INSTALLATION 1. Take out 2 AA batteries from computer box. 2. Press the buckle of battery cover on the Computer (No. 55), then remove battery cover. 3. Install 2 AA batteries into the battery case on the back of the Computer (No. 55). Pay attention to the battery + and –... - Page 11 ADJUSTMENTS GUIDE MOVING THE ELLIPTICAL BIKE Press the Handlebar (No. 8) and tilt the elliptical bike until the Transportation Wheels (No. 45) touch the ground. Now you can transport the elliptical bike to the desired location with ease. ADJUSTING THE BALANCE In order to achieve a smooth and comfortable ride, you must ensure that the elliptical bike is stabled and secured.
-
Page 12: Exercise Computer
EXERCISE COMPUTER BLUETOOTH 1. The Bluetooth icon will flash when the computer is on or wakes from sleep mode. If no Bluetooth connection is established within 3 minutes, the Bluetooth icon will turn off. 2. The Bluetooth icon will stay on when it is connected. WIRELESS HEART RATE 1. -
Page 13: Function Buttons
FUNCTION BUTTONS MODE: 1. Press the button to select TIME, DIST(DISTANCE), CALORIES and PULSE to preset. 2. Press the button for selection function display on main LCD, or enter after setting. 3. Hold the MODE button for 2 seconds to reset all values except ODO(TOTAL DISTANCE) when the Bluetooth is not connected. -
Page 14: Operation Order
OPERATION ORDER: 1. Power on – Installs 2 pieces of 1.5V UM-3 or AA batteries. The computer start to segment test with a long beep sound. (Whenever batteries are removed, all the functions values will be reset to zero or default value.) 2. -
Page 15: App Connection
APP CONNECTION: Connect Smart Equipment to SunnyFit App: 1. Scan to download SunnyFit from the app store: 2. Ensure that the Bluetooth function is turned on from your mobile device. 3. If this is your first time using the SunnyFit app, follow the in-app instructions to register for your free SunnyFit account and log in. -
Page 16: Exploded Diagram
EXPLODED DIAGRAM 1... - Page 17 EXPLODED DIAGRAM 2...
-
Page 18: Parts List
PARTS LIST Description Spec. Description Spec. Main Frame Wave Washer Ф28*Ф17*0.3 Front Stabilizer Plastic Sleeve Ф28.6*Ф21 Rear Stabilizer Spring Washer Ф20*13*B2 Front Post Left Nylon Nut 1/2” Left Handrail Arm Right Pedal Bolt Ф16*69 *L23 Right Handrail Arm Right Nylon Nut 1/2”... - Page 19 PARTS LIST Description Spec. Description Spec. Arc Washer Ф8*Ф16*1.5 Spring Ф15*50*Ф1.5 Bolt M8*50 Bolt M6*45 7/8” Locking Washer Ф23*Ф34.5 Bolt M6*12 7/8” Locking Nut-Left Washer Ф6*Ф12*1.0 Open Face Bearing Bearing End Cover 56*72*1.5 Bearing Housing Plastic Bearing Seat 56*72*11 Locking Nut–Right 15/16”...
