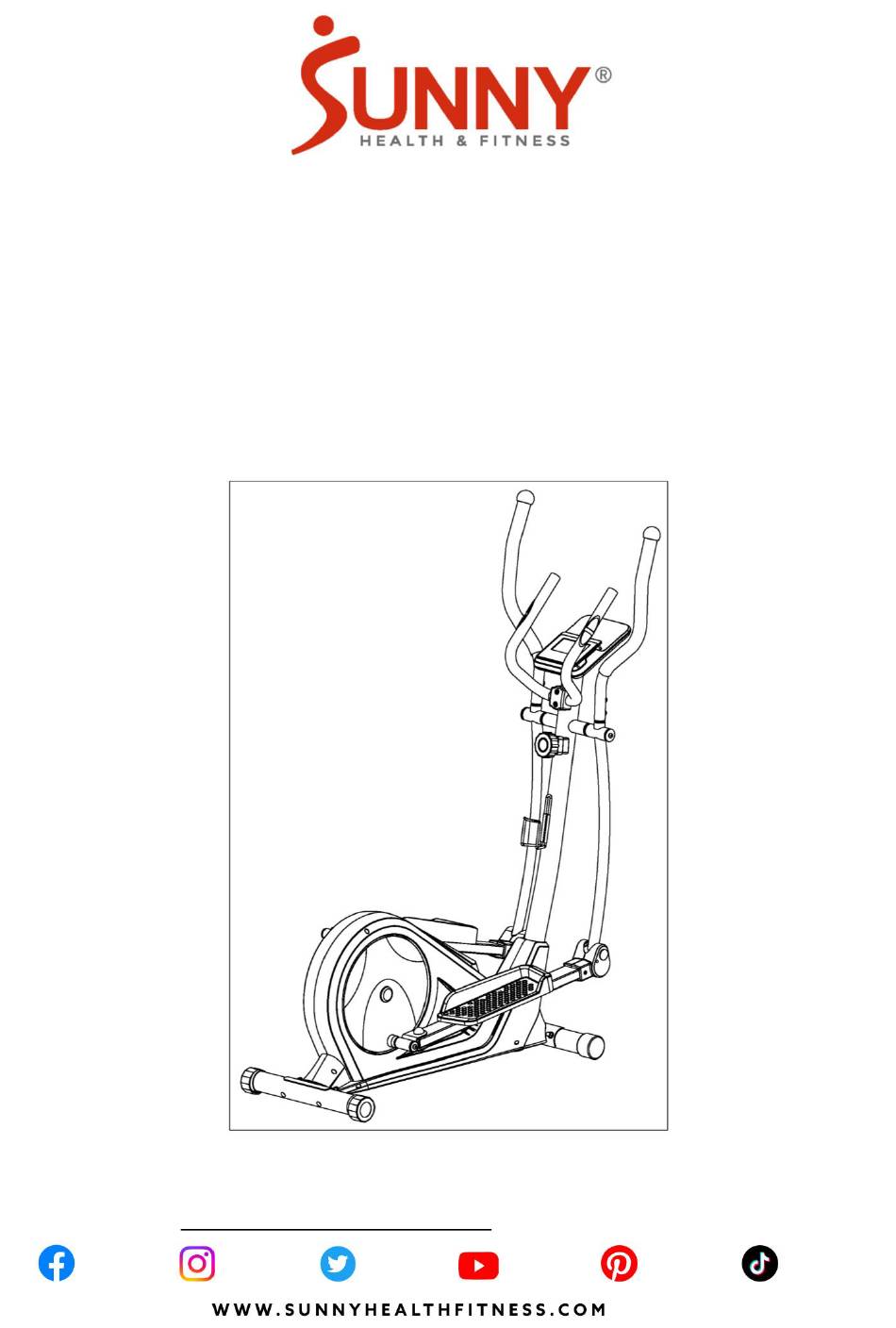

PRO SMART ELLIPTICAL TRAINER
WITH 15 LEVELS OF MAGNETIC
RESISTANCE
SF-E323050S
USER MANUAL
IMPORTANT! Please retain owner's manual for maintenance and adjustment instructions.
Your satisfaction is very important to us, PLEASE DO NOT RETURN UNTIL YOU HAVE
CONTACTED US: support@sunnyhealthfitness.com or 1-877-90SUNNY (877-907-8669).
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Sunny Health & Fitness SF-E323050S
Summary of Contents for Sunny Health & Fitness SF-E323050S
- Page 1 PRO SMART ELLIPTICAL TRAINER WITH 15 LEVELS OF MAGNETIC RESISTANCE SF-E323050S USER MANUAL IMPORTANT! Please retain owner’s manual for maintenance and adjustment instructions. Your satisfaction is very important to us, PLEASE DO NOT RETURN UNTIL YOU HAVE CONTACTED US: support@sunnyhealthfitness.com or 1-877-90SUNNY (877-907-8669).
-
Page 2: Important Safety Information
IMPORTANT SAFETY INFORMATION We thank you for choosing our product. To ensure your safety and health, please use this equipment correctly. It is important to read this entire manual before assembling and using the equipment. Safe and effective use can only be achieved if the equipment is assembled, maintained and used properly. -
Page 3: Pre-Assembly Check List
PRE-ASSEMBLY CHECK LIST Before you start to assemble, please make sure all parts are included. Description Spec. Qty. Description Spec. Qty. Main Frame Meter HR6035BSP Front Stabilizer 60X1.5X370 Armrest Rear Stabilizer 60X1.5X480 Handlebar Post Nut Cap Decorative Cover Left Pedal Front Cover Φ19X355.5 Right Pedal... -
Page 4: Hardware Package
HARDWARE PACKAGE Ordering Replacement Parts (U.S. and Canadian Customers only) Please provide the following information in order for us to accurately identify the part(s) needed: ✓ The model number (found on cover of manual) ✓ The product name (found on cover of manual) ✓... - Page 5 ASSEMBLY INSTRUCTIONS We value your experience using Sunny Health and Fitness products. For assistance with parts or troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY (877-907-8669). STEP 1: Remove 2 Plastic Tubes (No. E) from the Main Frame (No. 1). Attach the Front Stabilizer (No.
- Page 6 We value your experience using Sunny Health and Fitness products. For assistance with parts or troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY (877-907-8669). STEP 3: Remove 2 Wave Washers (No. 61), 2 Flat Washers (No. 36), 2 Spring Washers (No. 8) and 2 Allen Bolts (No.
- Page 7 We value your experience using Sunny Health and Fitness products. For assistance with parts or troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY (877-907-8669). STEP 4: Secure the Left & Right Pedals (No. 23L & No. 23R) to the Left & Right Pedal Support Tubes (No.
- Page 8 We value your experience using Sunny Health and Fitness products. For assistance with parts or troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY (877-907-8669). STEP 6: Remove 2 Bolts (No. 51), 2 Spring Washers (No. 8) and 2 Flat Washers (No. 25) from the Handlebar Post (No.
-
Page 9: Adjustment Guide
ADJUSTMENT GUIDE ADJUSTING THE TENSION Adjust the tension by rotating the Tension Controller (No. 54a) clockwise to increase the level of resistance. Rotate the Tension Controller (No. 54a) counter-clockwise to decrease the level of resistance. Tension levels are set at Level 1 being the lowest and Level 15 being the highest. -
Page 10: Battery Installation And Replacement
BATTERY INSTALLATION & REPLACEMENT Battery Battery Cover BATTERY INSTALLATION 1. Take out 2 AAA batteries from meter box. 2. Press the buckle of battery cover on the Meter (No. 44), then remove battery cover. 3. Install 2 AAA batteries into the battery case on the back of the Meter (No. 44). Pay attention to the battery + and –... - Page 11 EXERCISE METER SPECIFICATIONS: TIME…………………………………..…...0:00-99:59 SPEED..……………………………………0.0-99.9 MPH DIST (DISTANCE)………………………...0.00-999.9 M (MILES) CAL (CALORIES)………………………….0.0-9999 KCAL ODO (ODOMETER)……………………….0.0-9000 M (MILES) PULSE……..........0-255 BPM KEY FUNCTIONS: MODE: Press the key to select and lock on to a particular function you want. Press and hold the key for 2 seconds to clear data, except for ODO (ODOMETER) when Bluetooth is not connected.
- Page 12 BATTERY: If meter display is not functioning correctly, please reinstall the batteries. BLUETOOTH 1. The Bluetooth icon will flash when the meter is on or wakes from sleep mode. If no Bluetooth connection is established within 3 minutes, the Bluetooth icon will turn off. 2.
-
Page 13: Parts List
PARTS LIST Description Spec. Qty. Description Spec. Qty. Main Frame 50 Screw M5X10 Front Stabilizer 60X1.5X370 51 Bolt M8X30 Rear Stabilizer 60X1.5X480 52 Screw M5X55 Φ60X1.5 Front End Cap 53 Arc Washer Φ60 Rear End Cap 54a Tension Controller 15 LEVELS Carriage Bolt M8X76 54b Tension Cable... - Page 14 Description Spec. Qty. Description Spec. Qty. 103 Sensor Seat Screw ST3.5X16 Right Protective Cover 104 Allen Wrench 107a Right Protective Cover 105 Spanner S10,S13,S14,S15,S17 107b...
-
Page 15: Exploded Diagram
EXPLODED DIAGRAM 1 EXPLODED DIAGRAM 2 Version: 2.0...
Need help?
Do you have a question about the SF-E323050S and is the answer not in the manual?
