Installation Instructions
281 Series
Door Closer with P10/PH10 Arm
281 Series Adjustable from Sizes 1 thru 6

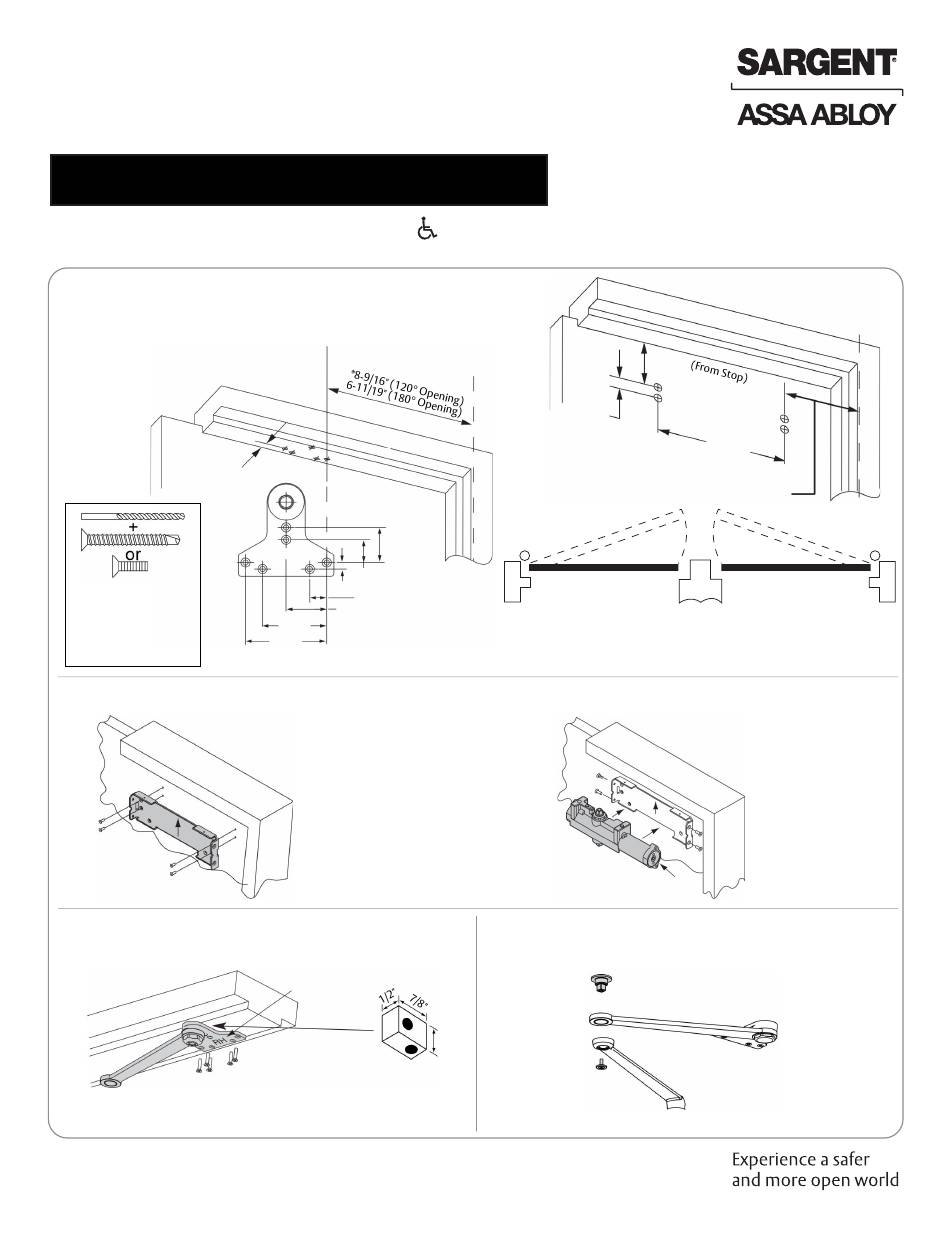

1. Prepare door and frame.

Locate and mark holes using full size template or measure as shown below.
Right hand shown. Left hand opposite.
13/16"
IMPORTANT NOTICE
Pre-drill 3/32" holes
for self-tapping
screws or tap #12-24
for machine screws.

2. Install mounting bracket and closer.

3. Attach foot bracket to door stop.

IMPORTANT: Use a minimum of 5 screws.
1-800-727-5477 • www.sargentlock.com
Copyright © 2008, 2022, SARGENT Manufacturing Company. All rights reserved. Reproduction in whole or in part without the express written
permission of SARGENT Manufacturing Company is prohibited. Patent pending and/or patent www.assaabloydss.com/patents.
1-11/16"
1-1/8"
5/16"
13/16"
1-15/16"
3-1/16"
*For maximum power, install for 120° opening.
3-7/8"
For center hung pivots, consult factory for templating.
Install the mounting
bracket with the arrow
pointing up for both
RH and LH doors.
Right Hand
Door Shown
Drill & Tap, use screws provided or use
Mortise Nuts when required.
Hand (PH10 arm only)
Use fifth hole
spacer when required.
Approved 2022-12-08
Centerline
of Hinge
1"
LEFT
HAND DOOR
HINGE SIDE
STOP (PUSH) SIDE
281 Closers and P10 arms are non-handed. Only the PH10 arm is handed.
Adjusting Screw
3A. Alternate Option:
Pre-assemble arm prior to attaching stop
5/8"
3"
10-3/8"
*3-7/8" (120° Opening)
2" (180° Opening)
PULL
PULL
HINGE SIDE
STOP (PUSH) SIDE
Install the closer
with spring
adjustment screw
towards hinge.
Spring Power
A7314M 12/22 Rev 13
Centerline
of
Hinge
RIGHT
HAND DOOR
