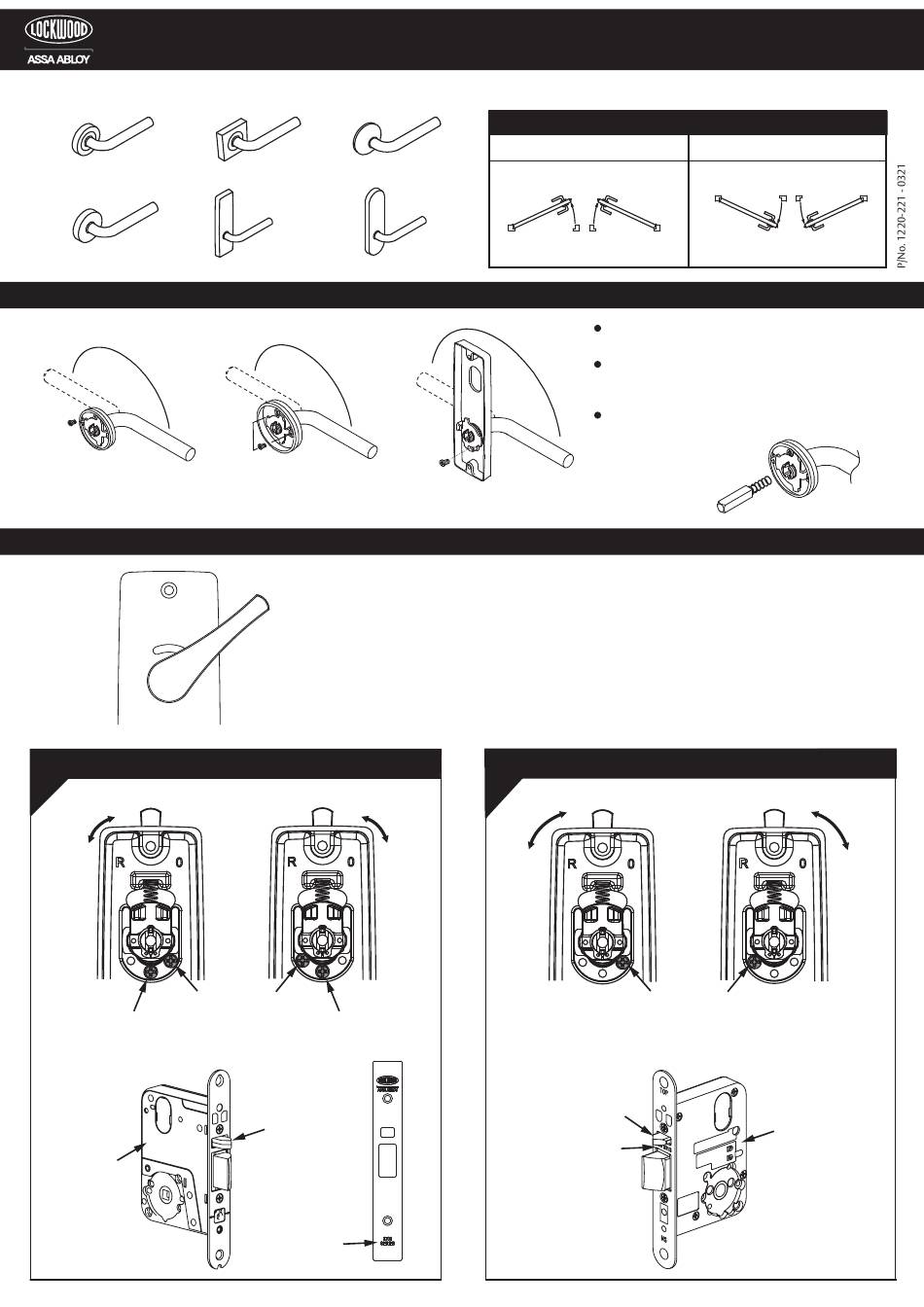

Assa Abloy LOCKWOOD 1220 Series Mounting Instructions

Product ranges applicable:
1220 Series
1370 Series
1 Set Door Furniture Handing
LH
180°
RH
Stop
screw
1220 & 1420
2 Configuring Disabled Accessible Turn
3770 SELECTOR SETTING AND HANDING
A
SET FOR LEFT HAND 3770
45°
rotation
SCREW REQUIRED TO SET HANDING
SCREW REQUIRED TO SET FOR 3770 SELECTOR
SELECTOR MORTICE LOCK
Stainless
steel plate
1420 Series 1360 Series
1800 Series 2800 Series
LH
180°
RH
Stop
screw
1360 & 1370
If mounting a plate with a disabled accessible turn, the turn will need to be configured
according to the mortice lock in use.
1. Refer to the images below to identify the mortice lock in use.
2. Position the screws according to the turn setting required.
Selector configurations should allow 45° rotation,
Synergy configurations should rotate to 90°.
Use images below as a guide.
SET FOR RIGHT HAND 3770
45°
rotation
Narrow
auxiliary bolt
'3770 Series'
LOCKWOOD COMMERCIAL DOOR FURNITURE
HAND OF DOOR ACCORDING TO ENGLISH PRACTICE
DOOR OPENING IN
INSIDE
RIGHT
HAND
LOCK
OUTSIDE
180°
LH
RH
Stop
1800 & 2800
screw
B
SET FOR LEFT HAND 3570
90°
rotation
SYNERGY MORTICE LOCK
auxiliary bolt
'3570 Series'
MOUNTING INSTRUCTIONS
DOOR OPENING OUT
LEFT
HAND
LOCK
RIGHT
HAND
LOCK
OUTSIDE
Verify the correct handing of furniture on the door required.
Lever should rotate downwards.
For handing of furniture with non-handed levers or
knobs, position the handle by rotating it 180° to suit the
door LH or RH then insert the 4mm stop screw to suit.
Stop screws are supplied in an accessory packet
in the box.
Spindle
(supplied with lock
or tubular latch)
3570 SYNERGY SETTING AND HANDING
SET FOR RIGHT HAND 3570
ONE SCREW REQUIRED TO SET HANDING
Wide
INSIDE
LEFT
HAND
LOCK
90°
rotation
Plain case
