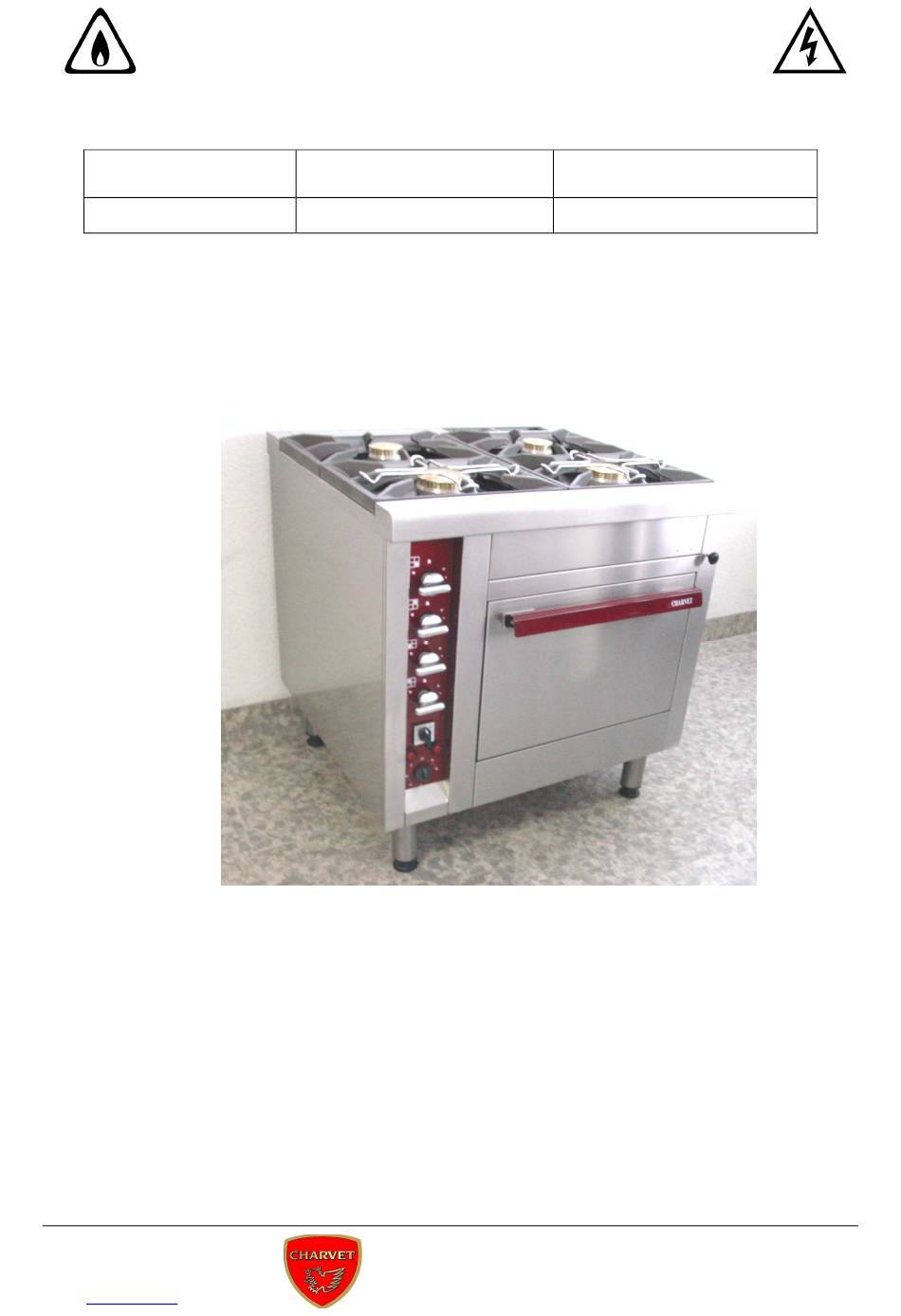

OPEN BURNERS / ELECTRIC OVEN Description PRO 800 SERIES PRO 900 SERIES M4FN V01580 V01456 INSTALLATION MANUAL CHARVET 38850 – CHARAVINES MANUAL: EN - 800-900 M4FN Tel: +33 4 76 06 64 22 Ind. A – Created on: 09/09/2010 Fax: +33 4 76 55 78 75...
Open burners / Electric oven SUMMARY INSTALLATION MANUAL________________________________________________________________ 1 INSTALLATION____________________________________________________________________ 3 1.1. General points ________________________________________________________________ 3 1.2. Handling _____________________________________________________________________ 3 1.3. Installation ___________________________________________________________________ 3 1.4. Fixing the flue ________________________________________________________________ 4 1.5. Gas connections ______________________________________________________________ 4 1.6. Power connection _____________________________________________________________ 4 CONVERSION TO OTHER TYPES OF GAS _____________________________________________ 5 2.1.
Open burners / Electric oven INSTALLATION General points 1.1. Installation must be undertaken in compliance with the following instructions and with local codes and bylaws. Ensure you have a suitable and sufficient risk assessment in place. The user's manual must be given to the user after installation. Handling 1.2.
Open burners / Electric oven Fixing the flue 1.4. Unscrew the screws to lower the fixing tabs, Help yourself with an appropriate tool to push the fixing tabs, Tighten the screws of the flue cover. Gas connections 1.5. Installation must be undertaken in compliance with the following instructions and with local codes and bylaws.
Open burners / Electric oven The appliance is factory-wired in THREE-PHASE 400 V+E (3~400 V+E). CONVERSION TO OTHER TYPES OF GAS In case there is a different type of gas on site: Changing the injectors 2.1. See charts below according to the type of burners: Choose the correct diameter according to the nature of the gas, Get the right air adjustment for the air ring (“d”).
Open burners / Electric oven Adjusting the air 2.2. Remove the cast-iron pan supports, Remove the burners caps, Remove the spillage tray, You can reach the air ring and injectors. Unlock the air ring (nut/ring) and push back the air ring to reach the injector. Change the injector(s) with a 12-mm ring spanner.
Page 7
Open burners / Electric oven • Connections: GAS: Threaded tube M 1/2“ Remove the control knobs, (screws M 4 mm) Remove the control panel, (clipped in its lower part). Remove the side panel. Pull the bottom of the panel up and out. Connect the appliance to the gas mains using a ½“...
Open burners / Electric oven WIRING DIAGRAMS: Electric appliance Voltage Wiring diagrams # 1 ∼ 230 V + E Electric ignition SE0001 / 00 Electric oven 3 ~ 400 V + E SE0011 / 00 SERVICING Any technical action on an appliance must be undertaken by a qualified technician. The appliance will have to be isolated from the electrical supply for the duration of the work.
Open burners / Electric oven BASIC SPARE PARTS LIST Description Code Photograph Description Code Photograph Electrode(s) 07010A Ignition 02161A Open burner(s) transformer High- Injectors for pilot temperature light connection 05317A 06988A φ 0.20 cable for electrode and 06989A φ 0.35 transformer Thermocouple 00291A...
Open burners / Electric oven WIRING DIAGRAMS ELECTRIC IGNITION: 1-4 BURNERS 01 Terminals 02 Push button 03 Ignition transformer 04 Electrode 05 High-temperature cable 1 Burner / 1 Transformer mounting A 2 Burners / 1 Transformers mounting B or C 3 Burners / 2 Transformers mounting A and B 4 Burners / 2 Transformers mounting B and C 1 ~ 230V + PE...
Page 11
Open burners / Electric oven OVEN VAULT MILD STEEL BASE VAULT MILD STEEL BASE BROWN BLACK 3 ~ 400 V + PE P = 5 kW SE0011 / 00 NOMENCLATURE: ELECTRIC OVEN (wiring diagram: SE0011 / 00) Mark Code Description Quantity 02468A 16 mm²...
Page 12
OPEN BURNERS / ELECTRIC OVEN Description PRO 800 SERIES PRO 900 M4FN V01580 V01456 USER’S INSTRUCTIONS USER’S INSTRUCTIONS CHARVET 38850 – CHARAVINES MANUAL: EN - 800-900 M4FN Tel: +33 4 76 06 64 22 Ind. A – Created on: 09/09/2010...
Page 13
Open burners / Electric oven SUMMARY USER’S INSTRUCTIONS ________________________________________________________________ 1 INTRODUCTION ___________________________________________________________________ 3 PRIOR TO STARTING UP ___________________________________________________________ 4 STARTING UP_____________________________________________________________________ 4 3.1. Open burners _________________________________________________________________ 4 3.2. Oven ________________________________________________________________________ 4 SWITCHING OFF __________________________________________________________________ 5 MAINTENANCE____________________________________________________________________ 6 5.1. Cleaning of the stainless steel surfaces___________________________________________ 6 5.2.
Open burners / Electric oven INTRODUCTION A) Our equipment is for professional use only and must be used by qualified staff. B) The equipment must be installed in compliance with local codes and bylaws. It must be installed in a kitchen equipped with an adequately sized mechanical extraction system.
Open burners / Electric oven PRIOR TO STARTING UP a) Prior to starting up, it is advisable to clean the appliance in order to eliminate all dust and impurities that have accumulated during storage. b) Remove all plastic protection that wraps the stainless steel panels. c) Make sure that all controls are in good working condition before turning the gas on.
Open burners / Electric oven PRACTICAL ADVICE: You can cook various types of foods with the oven: foods on baking plates (grilling foods, pastries), in pans (braising) by the use of the position HIGH VAULT/MILD STEEL BASE; VAULT position only for the browning and icing operations.
Open burners / Electric oven MAINTENANCE Our equipment must not be cleaned with water under pressure or be subjected to a deluge of water splashes. Avoid water splashes on the burners (otherwise it will clog the exhaust gas orifices). Check that the appliance is well disconnected at the mains. Cleaning of the stainless steel surfaces 5.1.
Open burners / Electric oven BREAKDOWN UNSATISFACTORY HEATING: Probable causes Clogging of the burners, injectors, etc. Incorrect gas pressure. Incorrect grading of the injectors. FAULTY IGNITION: Clogging of the pilot lights, Clogging of the thermocouples, Smashed thermocouple, incorrect pilot light output and positioning, and insufficient pressure on control button.
Page 19
Open burners / Electric oven TRANSFER below the information written on the DATA PLATE of your apparatus. This will help you with maintenance problems and spare parts.
