Installation and Set Up Instructions
Description
G3FN/PL
G3PL/FN
B-G3FN/PL
B-G3PL/FN
R-G3FN/PL
R-G3PL/FN
CHARVET
F-38850 CHARAVINES
Tel.: (33) 4-76-06-64-22
Fax: (33) 4-76-55-78-75
Email:
info@charvet.fr
For Gas Cooking Ranges
2 OPEN BURNERS + 1 SOLID TOP ON GAS OVEN
(not contractual photograph)
Instructions : 800/900 UK G3FN/PL
French edition: 31.08.06; Update number H
English edition: 04.12.2007; Update number B
Code of notice: F800/900N
PRO 800
Series
V01587
V01591
V01589
V01593
V01590
V01594
PRO900
Series
V01463
V01467
V01466
V01470
V01727
V01728
Advertisement
Chapters
Table of Contents
Related Manuals for Charvet PRO 800 Series
Summary of Contents for Charvet PRO 800 Series

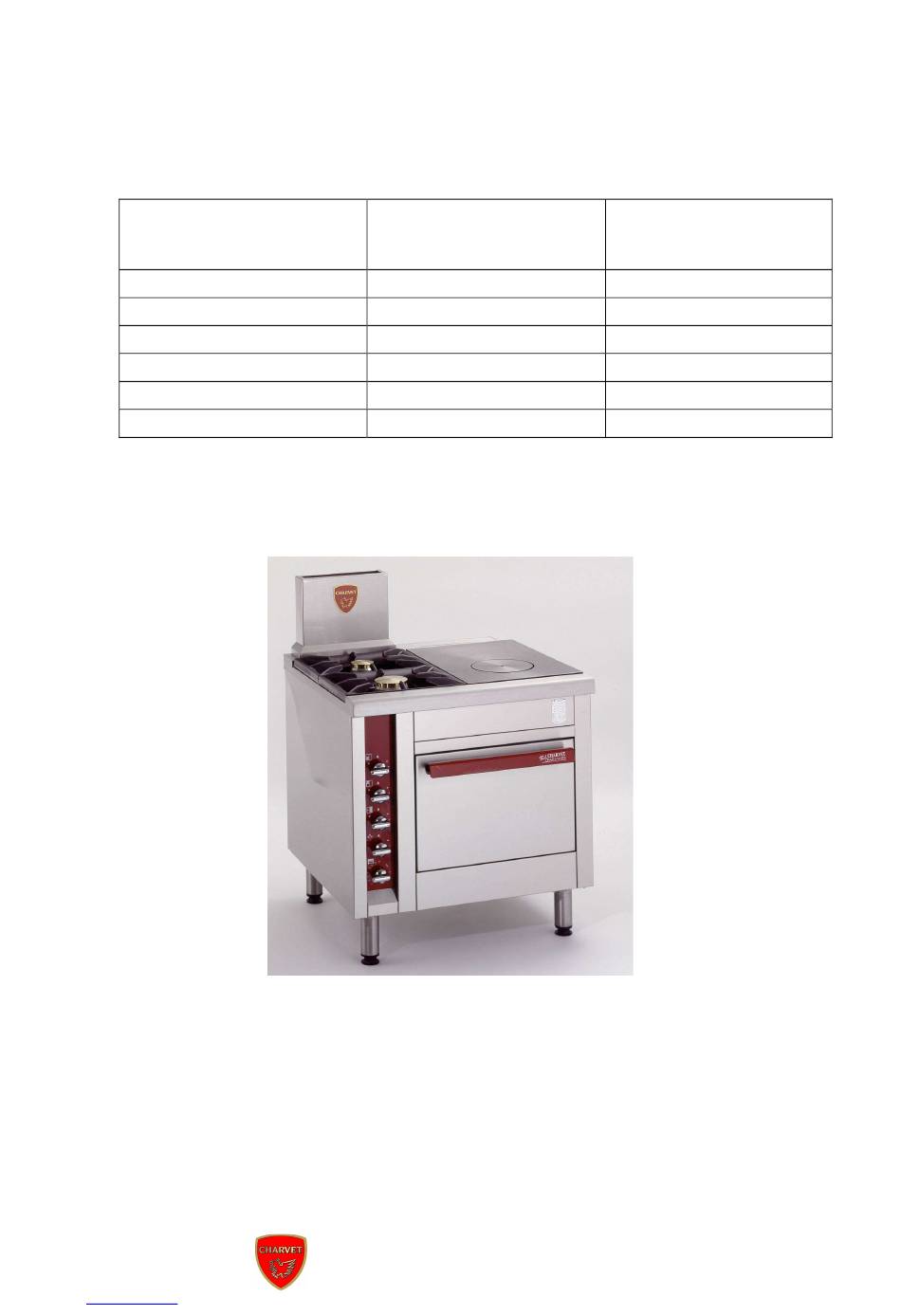

- Page 1 V01727 R-G3PL/FN V01594 V01728 2 OPEN BURNERS + 1 SOLID TOP ON GAS OVEN (not contractual photograph) CHARVET Instructions : 800/900 UK G3FN/PL F-38850 CHARAVINES French edition: 31.08.06; Update number H Tel.: (33) 4-76-06-64-22 English edition: 04.12.2007; Update number B...
-
Page 2: Table Of Contents
Installation and Set Up Instructions For Gas Cooking Ranges S U M M A R Y INSTALLATION ..............................2 1.1..............................2 ENERAL POINTS 1.2................................2 ANDLING 1.3................................. 2 NSTALLATION 1.4................................3 ATA PLATE 1.5..............................3 IXING THE FLUE CONNECTING THE APPLIANCE TO THE GAS MAIN.................... -
Page 3: Installation
Installation and Set Up Instructions For Gas Cooking Ranges 1. INSTALLATION 1.1. General points Installation must be undertaken in compliance with the following instructions and with local codes and bylaws. Ensure you have a suitable and sufficient risk assessment in place. The user manual must be given to the user after installation. -
Page 4: Installation
Installation and Set Up Instructions For Gas Cooking Ranges 1.4. Data plate Each apparatus has its own data plate. Transfer all the information on the data plate to the part of the user instructions booklet reserved for it (see the last page). The data plate will ease the communication between you and your client for better service. -
Page 5: Connecting The Appliance To The Gas Main
Installation and Set Up Instructions For Gas Cooking Ranges 2. CONNECTING THE APPLIANCE TO THE GAS MAIN Material, assembly and welding tools must be in compliance with the standard EN 45 204. NOTICE • Fixed appliance: Connect the burner strip to the gas mains using 1/2" NPT pipe and connections. Install a shutoff valve in the supply line allowing the unit to be isolated from the rest of the system. -
Page 6: Connecting The Appliance
Installation and Set Up Instructions For Gas Cooking Ranges 2.2. Connecting the appliance Fig. 1 Gas connection Pressure outlet To reach the pressure outlet: - Remove the control knobs - Remove the control panel (screwed on the lower part) Thermostatic tap for a •... -
Page 7: Checks After Connection
Installation and Set Up Instructions For Gas Cooking Ranges 2.3. Checks after connection Ensure of: • The watertightness of the gas pipe and connection. • The supply pressure of the appliance. To take the pressure, do as follow: Remove the control knobs, Remove the control panel, Connect the pressure outlet on the pressure outlet located on the ramp (see figures 1 &... -
Page 8: Replacing Oven Burner Nozzles And Adjusting The Oven Pilot Light
Installation and Set Up Instructions For Gas Cooking Ranges Fig.2 • Appliances with a gas oven base: G3... (see references on cover page) - Remove the mild steel base to reach the air ring and injector, Air ring - Release the air ring and move it back to reach the injector, - Change the injector (use a 17 mm ring spanner). -
Page 9: Gas Adjustment Charts
Installation and Set Up Instructions For Gas Cooking Ranges 3.3. Gas adjustment charts Open burner Ø 110 mm CHART B Gas type & operating Mark Calorific Adjustment pressure engraved adjustment output in on the d (mm)² injector G20 : Pn = 20 mbar G 25 : Pn = 20 mbar G 25 : Pn = 25 mbar G 30 : Pn = 29 mbar... -
Page 10: Slow Down Adjustment Procedure
Installation and Set Up Instructions For Gas Cooking Ranges 3.4. Slow down adjustment procedure Never screw or unscrew the slow down screw. This could lead to serious problems such as the suppression of the slow down function. Only a qualified technician is authorized to carry out this adjustment. - Page 11 Installation and Set Up Instructions For Gas Cooking Ranges • Slow down adjustment procedure of the open Slow down position of the control knob burner Slow down screw - Remove the control knobs. - Remove the control panel. - Set the control knob back - Turn on the apparatus (see User Operation and Maintenance Instructions, §...
-
Page 12: Power Connections
Installation and Set Up Instructions For Gas Cooking Ranges 4. POWER CONNECTIONS Electric ignition and water filling of removable water tank are considered as options. The apparatus must be earth wired. It is dangerous to connect the apparatus unless it is earthed. NOTICE Use a standardized cable (245 IEC 57 or 245 IEC 66) or other approved cable with the same characteristics. -
Page 13: Connection
Installation and Set Up Instructions For Gas Cooking Ranges 4.2. Connection The apparatus is delivered with a high temperature flexible cable which is either located inside the open base or behind the left side panel in case of the presence of an oven. Connect the apparatus to the electrical network. -
Page 14: Water Filling
Installation and Set Up Instructions For Gas Cooking Ranges 4.2.2. Appliance with water filling of removable water tank for burner FN/PL 4.3. WATER FILLING ELECTRIC IGNITION + WATER FILLING Water Water Solenoid valve Solenoid valve Electric cable Electric cable Side panel Side panel Terminals PL/FN... -
Page 15: Check After Connection
Installation and Set Up Instructions For Gas Cooking Ranges 4.3. Check after connection After connection, ensure that: The appliance is earth wired, The electrical equipment is properly insulated, The appliance is in good working conditions: electric ignition, thermostat… (see User Operation and Maintenance Instructions). - Page 16 Installation and Set Up Instructions For Gas Cooking Ranges ELECTRIC IGNITION: 1 TO 5 BURNERS I Terminals II Push button III Ignition transformer IV Ignition electrode V High voltage cable 1 Burner / 1 transformer (mounting A) 2 Burners / 1 transformer (mounting B or C) 3 Burners / 2 transformers (mounting A or B) 4 Burners / 2 transformers (mounting B or C) 5 Burners / 3 transformers (mounting A+B+C)
-
Page 17: Water Tank
Installation and Set Up Instructions For Gas Cooking Ranges WATER TANK WATER OUT WATER IN DESCRIPTION TERMINALS TERMINALS SOLENOID VALVE PUSH BUTTON DATE NAME DRAWN WATER TANK DRAWING No MODIFIED... - Page 18 Installation and Set Up Instructions For Gas Cooking Ranges WATER TANK + ELECTRIC IGNITION WATER OUT WATER IN REP REF. DESCRIPTION REP REF. DESCRIPTION IGNITION TRANSFORMER TERMINALS TERMINALS IGNITION ELECTRODE SOLENOID VALVE PUSH BUTTON NAME DATE DRAWN WATER TANK + ELECTRIC PLAN No MODIFIED IGNITION DRAWING...
- Page 19 Installation and Set Up Instructions For Gas Cooking Ranges THERMOSTATIC VALVE ST35 SE0117/0 1~230V NOMENCLATURE: THERMOSTATIC VALVE (SE0117/00) Mark Ref. Description Quantity 08426A Thermostat 08425A Solenoid valve Terminal...
-
Page 20: Water Connection
Installation and Set Up Instructions For Gas Cooking Ranges 6. WATER CONNECTION Connection point: the 6/8 elbowed connection of the solenoid valve. 6.1. Controls and checks After connection, make sure that: The circuit is water tight, The water circuit is in good working conditions. Fig. -
Page 21: Basic Spare Parts List
Installation and Set Up Instructions For Gas Cooking Ranges 7. BASIC SPARE PARTS LIST Description Code Photo Description Code Photo Oven injectors: G30,G31 Thermocouple: 06205A propane gas φ 1.70 Open burner 00291A G20,G25 00209A Natural gas φ 2.50 Oven 00290A Solid top injectors: Propane gas 07105A... - Page 22 R-G3PL/FN V01594 V01728 2 OPEN BURNERS + 1 SOLID TOP ON GAS OVEN (not contractual photograph) CHARVET User Instructions : 800/900 UK G3FNPL F-38850 CHARAVINES French edition: 31.08.2006; Update number H Tel.: (33) 4-76-06-64-22 English edition: 04.12.2007; Update number B...
- Page 23 User Operation and Maintenance Instructions For Gas Cooking Ranges S U M M A R Y 1. INTRODUCTION ..............................2 2. PRIOR TO STARTING UP............................2 3. STARTING UP..............................3 3.1. O (1-2)............................... 3 PEN BURNERS 3.2. S (3)................................. 3 OLID TOP 3.3.
-
Page 24: Introduction
User Operation and Maintenance Instructions For Gas Cooking Ranges INTRODUCTION A) Our equipment is for professional use only and must be used by qualified staff. B) The equipment must be installed in compliance with local codes and bylaws. It must be installed in a kitchen equipped with an adequately sized mechanical extraction system. -
Page 25: Starting Up
User Operation and Maintenance Instructions For Gas Cooking Ranges 9. STARTING UP Each burner is equipped with a flame failure safety cut out thermocouple and a pilot light. 9.1. Open burners (1-2) - Push and turn control knob counter-clockwise of desired burner to the spark symbol (pilot light). -
Page 26: Gas Oven (4)
User Operation and Maintenance Instructions For Gas Cooking Ranges 9.3. Gas oven (4) - Open the oven door. - Check that you can reach the pilot light through a hole located at the front left hand side of the mild base. - Push and turn the control knob counter-clockwise of desired burner (Fig. -
Page 27: Water Tank
User Operation and Maintenance Instructions For Gas Cooking Ranges 9.4. Water tank SLUICE GATE Fig. K OVERFLOW DEVICE LEVEL MAXI. Water IN Sluice gate WATER TANK Fig. I : water OVERFLOW EXIT • Checks before use PUSH BUTTON - The sluice gate must be positioned in the middle of the CONTROL KNOB Only water tank water tank (Fig. -
Page 28: Maintenance
User Operation and Maintenance Instructions For Gas Cooking Ranges 11. MAINTENANCE Wait until the apparatus has cooled down before doing anything on it. The mains must be cut off. 11.1. Cleaning of the stainless steel surfaces - Wash with a sponge in soapy water (or any other neutral cleaning product). - Do not use bleach or any other acidic product –... - Page 29 User Operation and Maintenance Instructions For Gas Cooking Ranges Description Weight (kg) Mild base* 23 kg Cast iron pan support* 10.6 kg Oven shelf 3.2 kg Water tank 3 kg Shelf supports 2.6 kg * heavy parts • Removing procedure of the oven parts Pull the oven shelf towards oneself (A).
-
Page 30: Possible Causes Of Breakdown
User Operation and Maintenance Instructions For Gas Cooking Ranges 12. POSSIBLE CAUSES OF BREAK DOWN Breakdown Probable causes Clogging of the burners, injectors… Unsatisfactory heating Incorrect gas pressure Incorrect grading of the injectors Clogging of the rear internal flue box Incorrect temperature of Faulty thermostat the oven... -
Page 31: Data Plate
User Operation and Maintenance Instructions For Gas Cooking Ranges 13. DATA PLATE Transfer below information written on the data plate of your apparatus. This will help you with maintenance problems and spare parts.
