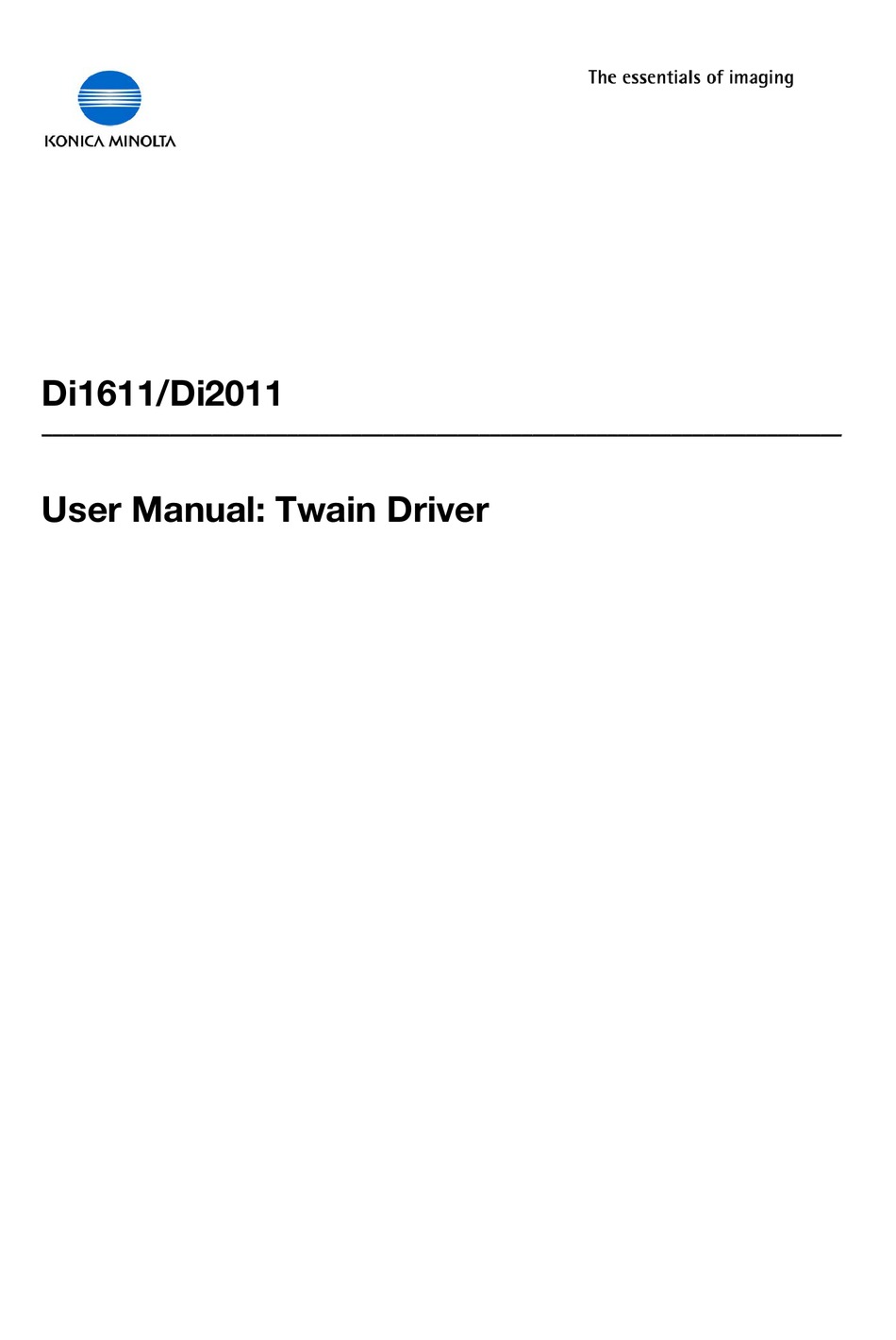

  • Page 1 ___________________________________________________________________________...

  • Page 3: Table Of Contents

    Contents Contents Setting Up PC Scanning Connecting to the USB Port Installing the TWAIN Driver Installing the TWAIN Driver Using Plug and Play ......3-1 Installing the TWAIN Driver Using Plug and Play Under Windows XP ............3-1 Installing the TWAIN Driver Using Plug and Play Under Windows 2000 ............3-3 Installing the TWAIN Driver Using Plug and Play Under Windows Me/98 ............3-4...
  • Page 4 Contents Di1611/Di2011 Twain Driver...

  • Page 5: Setting Up Pc Scanning

    Setting Up PC Scanning Setting Up PC Scanning If the enclosed TWAIN Driver is installed on the computer, this copier can be used for to scan documents to a PC. The following software and hardware system environment is required for PC scanning.
  • Page 6 Setting Up PC Scanning Di1611/Di2011 Twain Driver...

  • Page 7: Connecting To The Usb Port

    Connecting to the USB Port Connecting to the USB Port Important! Be sure to use a shielded USB cable. Use of an unshielded cable may result in radio interference. Make sure that the copier and the computer to be connected to the copier are turned OFF.
  • Page 8 Connecting to the USB Port Di1611/Di2011 Twain Driver...

  • Page 9: Installing The Twain Driver

    Installing the TWAIN Driver Installing the TWAIN Driver This section describes the procedure for installing both of the TWAIN driv- er and GDI Diver. The TWAIN driver can be installed by using Plug and Play. Installing the TWAIN Driver Using Plug and Play Installing the TWAIN Driver Using Plug and Play Under Windows XP With Windows running, insert the CD-ROM into your computer’s CD- ROM drive.
  • Page 10 Installing the TWAIN Driver Click [Next]. The “Completing the Found New Hardware Wizard” dialog box ap- pears. Click [Finish]. The “Found New Hardware Wizard” dialog box appears again. Repeat steps 4 through 7. Note This completes the installation of the TWAIN driver. Di1611/Di2011 Twain Driver...

  • Page 11: Installing The Twain Driver Using Plug And Play Under Windows 2000

    Installing the TWAIN Driver Installing the TWAIN Driver Using Plug and Play Under Windows 2000 With Windows running, insert the CD-ROM into your computer’s CD- ROM drive. Turn on the copier. When the copier is ready, connect it to the computer with the USB ca- ble.

  • Page 12: Installing The Twain Driver Using Plug And Play Under Windows Me/98

    Installing the TWAIN Driver Installing the TWAIN Driver Using Plug and Play Under Windows Me/ With Windows running, insert the CD-ROM into your computer’s CD- ROM drive. Turn on the copier. When the copier is ready, connect it to the computer with the USB ca- ble.

  • Page 13: How To Scan Document

    Select the PC software program (Imaging, Photoshop, etc.). This pro- cedure uses Microsoft Imaging as an example. Click [File]. Click [Select Device...]. Choose “Minolta Di****” from the dialog box, then click [OK]. Note The name of the copier displayed will vary depending on the model being used.

  • Page 14: Using The Original Glass

    Select the PC software program (Imaging, Photoshop, etc.). This pro- cedure uses Microsoft Imaging as an example. Click [File]. Click [Select Device...]. Choose “Minolta Di****” from the dialog box, then click [OK]. Note The name of the copier displayed will vary depending on the model being used.

  • Page 15: Common Settings

    Common Settings Common Settings Auto Options Items Settings Paper Size A3L, B4L, A4L, B5L, A5L, FLS L, A4C, B5C, A5C, Ledger L, 11x14L, Legal L, Letter L, Half Letter L, Letter C, Half Letter C, 8KL, 16KL, 16KC See “Paper Size:” on page 5-2. Scan Type B/W (default setting), Photo See “Scan Type:”...
  • Page 16 Common Settings Paper Size: Select the paper size from the pull-down list to match the size of document to be scanned. Scan Type: Scan Type pull-down list contain two options. B/W: Suitable for most text documents. Photo: Suitable for photographs. Resolution: Resolution pull-down list contain three options that can be used for...

  • Page 17: Error Message

    Error Message Error Message Original Document Jam Message on the Control Panel: Message on the PC screen: Cause Remedy • A paper jam occurred in the Automatic • Open the Document Feeder Cover and Document Feeder or Duplexing Document the Automatic Document Feeder or Du- Feeder.

  • Page 18: To Clear A Misfeed In The Automatic Document Feeder

    Error Message To clear a misfeed in the Automatic Document Feeder Remove the original docu- ment from the Document Feed Tray. Open the Document Feeder Cover and gently remove the misfed paper. Open the Automatic Docu- ment Feeder and gently re- move the misfed paper.

  • Page 19: Communication Error

    Error Message Communication Error Message on the PC screen: Cause Remedy • The copier is not ready. 1. Turn the copier OFF, then check if the • PC or copier system crash during commu- USB cable is connected properly or not. nication.

  • Page 20: Read Data Error

    Error Message Read Data Error Message on the PC screen: Cause Remedy • An error occurred while reading data from 1. Turn the copier OFF, then check if the the copier while scanning. USB cable is connected properly or not. 2.

  • Page 21: Automatic Document Feeder No Paper

    Error Message Automatic Document Feeder No Paper Message on the PC screen: Cause Remedy • There is no paper in the Automatic Docu- • Add paper to the Automatic Document ment Feeder (Duplexing Document Feed- Feeder (Duplexing Document Feeder). er) when duplex scanning is selected. Note In order to scan double-sided documents, the Duplexing Document Feeder AFR-19 must be connected to the machine.

  • Page 22: Other Machine Error

    Error Message Other Machine Error Message on the PC screen: Cause Remedy • The Automatic Document Feeder (Duplex- • The recovery procedure, please refer to ing Document Feeder) cover or Document “User’s Guide”. Feeder Cover was opend while a docu- •...
