Applied Machines: C368/C308
COLOR MFP: 36 ppm/30 ppm
Product Code: A7PU/A7PY
Caution:
Lifting the machine in an awkward position or
transporting it in a poorly balanced position could
result in personal injury. When transporting the
machine, assign an adequate number of persons
to the job and ensure that each person can take a
good position of not being excessively loaded.
(mass: approx. 12 kg (26-7/16 lb))

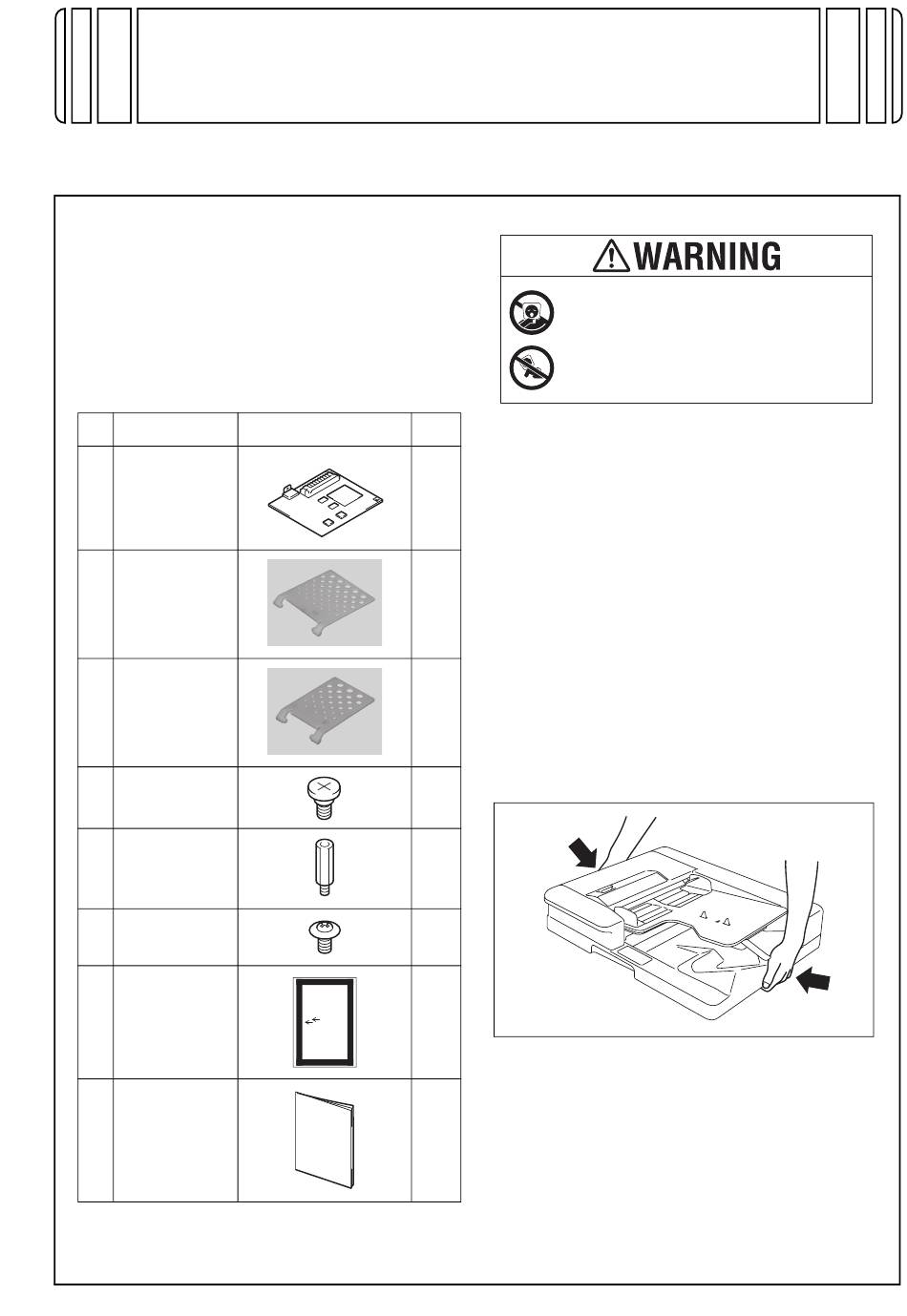

No.
Name
1. Dual scan
board
2. Hinge cover
(large)
3. Hinge cover
(small)
4. Shoulder
screw A
5. Shoulder
screw B
6. Mounting
screw
7. Chart
8. Installation
manual
DF-704
Dual Scan Document Feeder
INSTALLATION MANUAL
Shape
Q'ty
1
1
1
2
2
2
1
1 set
Keep this bag away from babies and
children. Do not use in cribs, beds,
carriages, or playpens.
The thin film may cling to nose and
mouth and prevent breathing. This bag is
not a toy.
Note:
This manual provides the illustrations of the acces-
sory parts and machine that may be slightly differ-
ent in shape from yours. In that case, instead of
the illustrations, use the appearance of your
machine to follow the installation procedure. This
does not cause any significant change or problem
with the procedure.
(1) Turn OFF the power switch and unplug the
power cord from the power outlet.
(2) Hold the dual scan document feeder as shown in
the illustration and remove it from the carton.
Note:
To prevent breakage, do not hold the dual scan
document feeder by the four corners.
E-1
A87R-9550-00

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DF-704 and is the answer not in the manual?

Questions and answers

Summary of Contents for Konica Minolta DF-704

  • Page 1 DF-704 Dual Scan Document Feeder INSTALLATION MANUAL Applied Machines: C368/C308 COLOR MFP: 36 ppm/30 ppm Product Code: A7PU/A7PY Caution: Lifting the machine in an awkward position or transporting it in a poorly balanced position could result in personal injury. When transporting the...
  • Page 2 (3) Remove the protective tape and protective mate- (5) Place the dual scan document feeder in position. rials and remove the protective plastic bags of the cable and relay harness. Note: After removing protective tape A, be sure to push the area indicated by the “...
  • Page 3 (8) Connect the three connectors of the dual scan (11) Remove the cap. document feeder to the main body, and attach the harness with a cable tie at the position shown in the illustration. (12) Remove the lower rear cover. (12 screws) (9) Route the indicated harness of the dual scan document feeder through the cable clamp shown in the illustration.
  • Page 4 (14) Screw two supplied shoulder screws B. (17) Route the cable of the dual scan document feeder inside the harness guides of the main body. Note: There should be no slack in the cable on the board box side. Harness guide (15) Attach the dual scan board to the main body using the two screws.
  • Page 5 3. Configuration procedures 4. Adjustment procedures <ADF settings> <Adjusting the height> (1) Close the dual scan document feeder. (1) Check the clearance between the upper face of (2) Plug the power cord into the power outlet and scanner and the protrusion on the dual scan doc- turn ON the power switch.
  • Page 6 (2) If there is any clearance, adjust the height by (11) Place the chart in the document feeding tray turning the adjustment screw on the right side (Make sure that the blank surface of the chart viewed from the back. faces up).
  • Page 7 (23) Press the Start key. (8) Check “Scale” on the screen, and adjust the + (24) Check that “Adjustment Result” is “OK.” (plus) value by turning the adjusting screw on the (25) Touch “END.” backside clockwise. Note: <Adjusting DF skew (1-side)> •...
  • Page 8 (10) Touch “END.” (7) Open the dual scan document feeder and (11) Repeat the steps (1) to (6) to check if the value remove the two screws shown in the illustration. of “Avg. Value” falls within the specified range. (12) Attach the two supplied hinge covers as shown in the illustration.
  • Page 9 (11) Check “Scale” on the screen, and adjust the (7) Place the chart in the document feeding tray value by turning the adjusting dials as neces- (Make sure that the blank surface of the chart sary. faces up). In case of the + (plus) value, turn the dial clock- wise In case of the - (minus) value, turn the dial counterclockwise...
  • Page 10 (19) Touch “Exit” on the Service Mode screen. (24) Check to make sure that the difference of the (20) Turn OFF and ON the power switch. chart and the sample copy is within the speci- fied range. Note: Specifications a: 0 ± 2.0 mm for the first and the When displayed the Service Mode screen, be sure second page to turn off the power after exiting the Service Mode...
  • Page 11 SP-501 Stamp Unit INSTALLATION MANUAL 1. Accessory parts (4) Remove the cover shown in the illustration. (Two screws) Name Shape Q’ty 1. Stamp unit 2. Stamp 3. Installation manual 1 set (5) Remove the ground terminal. (One screw) (6) Remove the connector fastened to the guide plate.
  • Page 12 (8) Remove the ground terminal. (One screw) (13) Route the ground terminal through the hole shown in the illustration and attach the guide plate to the dual scan document feeder. (One screw removed in step (7)) Screw (9) Mount the supplied stamp in stamp unit. Note: Align the round pin of the stamp with the slit in the stamp unit side.
