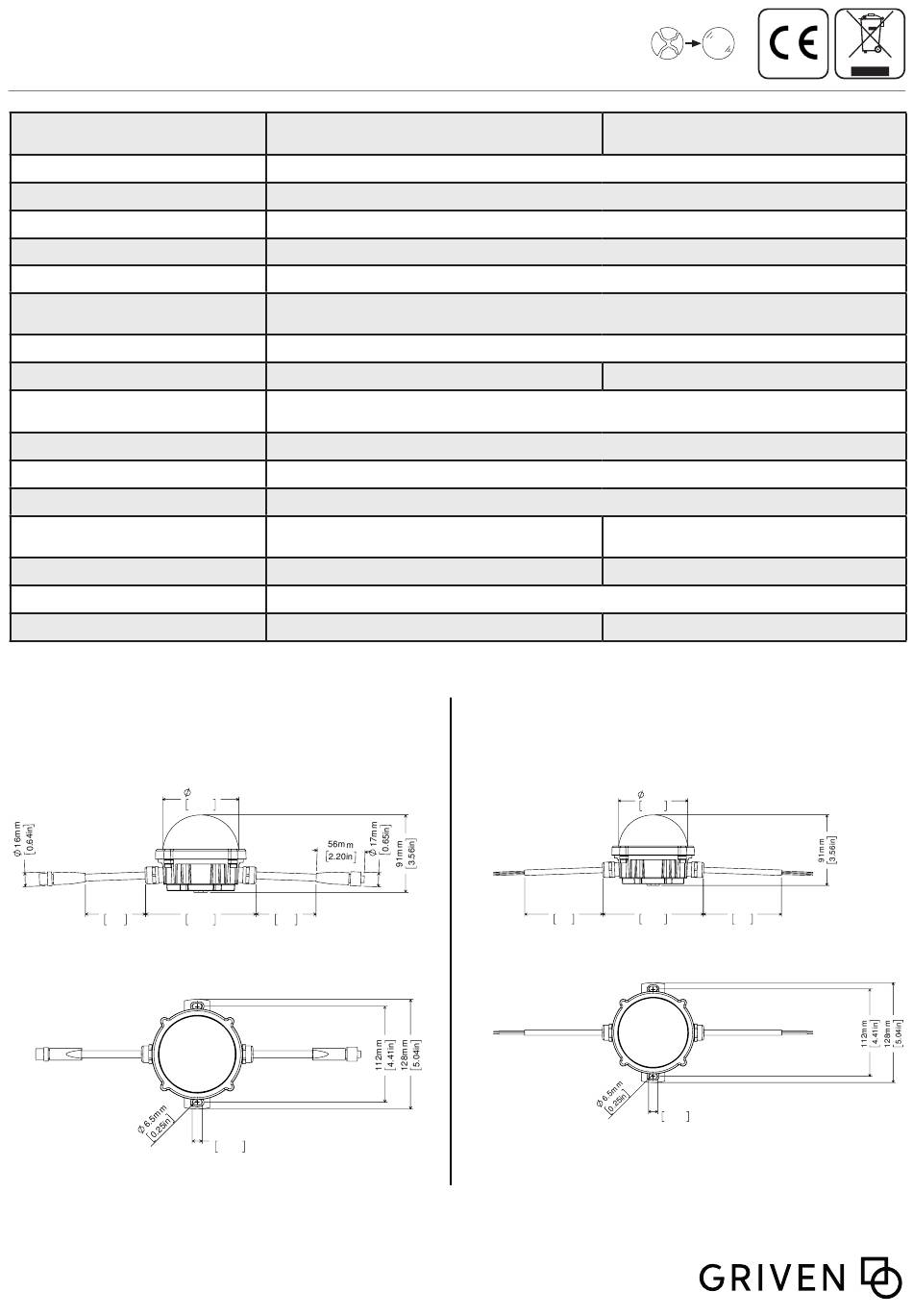

Graph-i-Cell
AL1032
Housing / Corpo proiettore
Optics/ Ottiche
IK rating / classe IK
IP rating / grado IP
Weight / Peso
Operating temperature / Temperatu-
ra di funzionamento
Power supply / Alimentazione
Power / Potenza massima
Thermal protection / Protezione
termica
Electrical class / Classe elettrica
Cable / Cavo
Control / Sistema di controllo
Led configuration / Configurazione
dei led
DMX Channels / Canali DMX
Resolution / Risoluzione
Luminance / Luminanza
SIZE / DIMENSIONI
CONNECTION TYPE / TIPO DI CONNESSIONE
C – HYBRID CABLES WITH CONNECTORS
C – CAVI IBRIDI CON CONNETTORI
250
9.84
Griven S.r.l. - Via Bulgaria, 16
46042 Castel Goffredo
Mantova - Italy
User Manual
550116 Rev. 00
Date: 10/02/2025
UV resistant policarbonate opaline dome / Cupola opalina in policarbonato resistente UV
89mm
3.50in
129mm
250
5.08in
9.84
11.7mm
0.46in
Tel. +39.0376.779483
E-mail: sales@griven.com
Web: www.griven.com
AL1032
Graph-i-Cell RGB
Alluminum, scratch resistant paint / Alluminio, vernice antigraffio
0.6 Kg / 1.3 lb
-40°C to 50°C ( -40°F to 122°F)
+48 VDC ( from external PSU / Alimentatore esterno)
12W
Electronic / Elettronica
250 mm (with or without connectors / con o senza connettori)
USITT DMX-512
RGB
3 / 4 / 5
49 Px/m2 (max)
12000 cd/m²
CONNECTION TYPE / TIPO DI CONNESSIONE
M – HYBRID CABLES WITHOUT CONNECTORS
M – CAVI IBRIDI SENZA CONNETTORI
© Copyright Griven 2020 - GRIVEN S.r.l. is continuously
developing and improving all its products.
We reserve the right to change specifications without
prior notification
Graph-i-Cell RGBW
IK10
IP67
III
RGB+W 4000K
4 / 5 / 6
RGBW 32900 cd/m²
89mm
3.50in
250
129mm
9.84
5.08in
11.7mm
0.46in
AL1032
15.3W
250
9.84
page 1 of 10
