Installation and Operation Manual
Outdoor 60 Series
Ortal 60 Outdoor Series:
60H Front Facing

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Outdoor 60 Series and is the answer not in the manual?

Questions and answers

Related Manuals for ORTAL Outdoor 60 Series

Summary of Contents for ORTAL Outdoor 60 Series

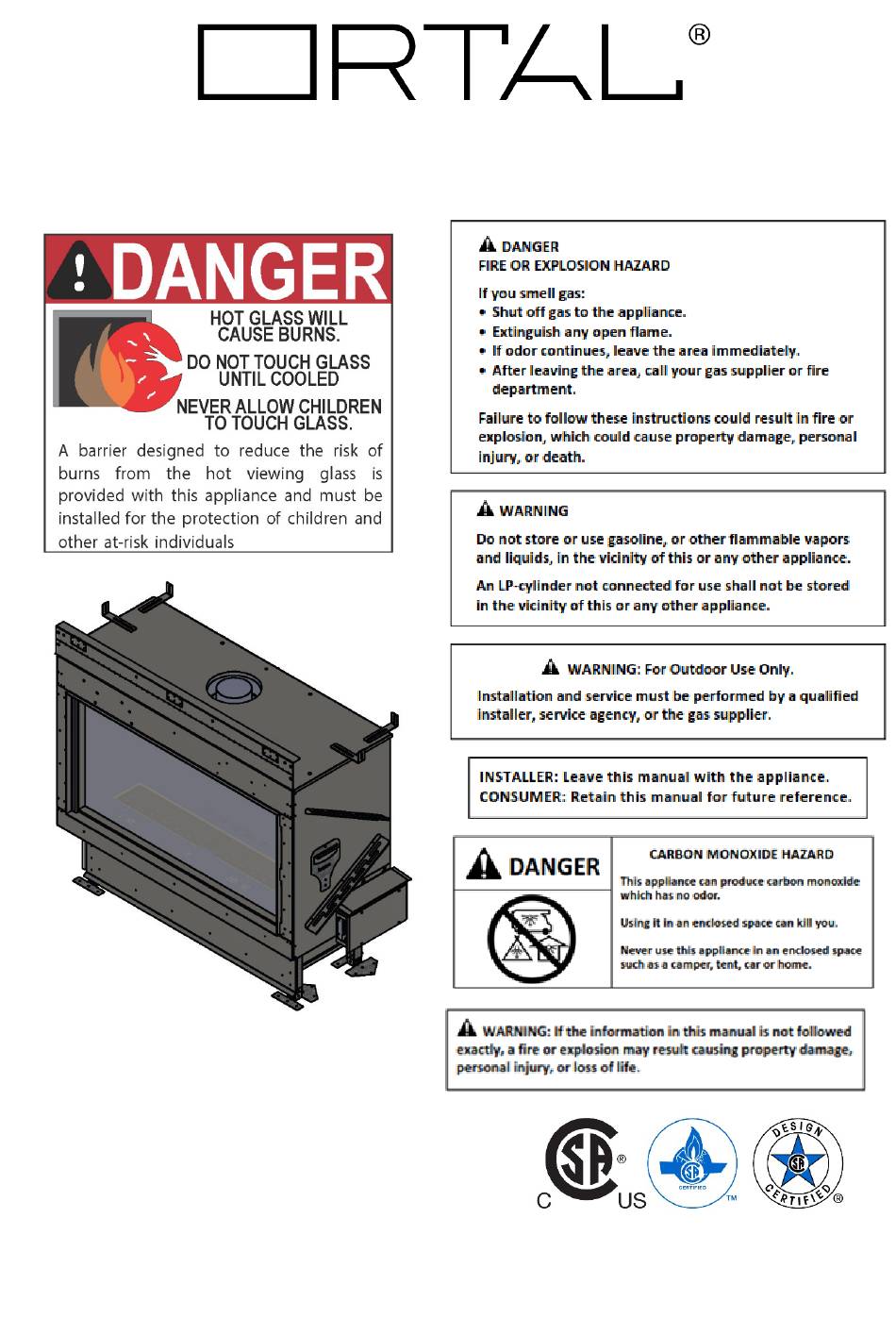

  • Page 1 Installation and Operation Manual Outdoor 60 Series Ortal 60 Outdoor Series: 60H Front Facing...

  • Page 2: General

    WARNING: MATERIAL USAGE All materials and objects used to carry out the installation must be certified/approved or specified by Ortal and are suitable for use. Do NOT install the system with different materials or objects than those approved for installation by Ortal.

  • Page 3: Table Of Contents

    Table of Contents General Safety Information and Warnings Product Information Models Certification Rating Label Parts of the Fireplace Installation Prior to Installation Locate the Fireplace Fireplace Installation Planning Installation Startup Post-Installation Initial Burning Period Final Inspection Procedure Final Checks and User Instruction Building Around the Fireplace Building Checklist Framing...

  • Page 4: Product Information

    Propane (co-axial) NOTES: Venting is not supplied by Ortal with the fireplace. The fireplace is certified to be used with, and can be obtained from, the  vent manufacturers outlined in “General Venting Requirements” section. Not for use with a Power Vent.

  • Page 5: Rating Label

    Rating Label The fireplace rating label is found on a metal plate separate included with the fireplace. DEALERS/INSTALLERS: You MUST leave the fireplace’s rating label with the fireplace in an area easily accessible by the owner (typically near the access panel, if available).

  • Page 6: Parts Of The Fireplace

    Parts of the Fireplace Side & Back Framing Stand-offs: Attached to the sides and back of the fireplace, keeping enough distance from the fireplace to the framing to allow for proper airflow inside the chase. Top Framing Stand-offs: Keeps a clearance above the heat barrier vents on the top of the fireplace to ensure proper air flow inside the chase.

  • Page 7: Installation

    Installation Prior to Installation Locate the Fireplace Keep the following factors in mind when selecting a location for the fireplace: Fireplace clearance requirements  Adequate space for servicing.  Access panel, depending on location of service box  Minimum vertical vent rise, allowed horizontal lengths, and number and orientation of elbows ...

  • Page 8: Vent Installation

    In addition, the installer must review and explain the following to the owner: Safety warnings  Fireplace operation  Warranty requirements  Maintenance requirements  Glass is hot during and after operation.  If any questions or concerns arise, the owner must contact the local Ortal dealer/installer for support. ...

  • Page 9: Building Around The Fireplace

    Building Around the Fireplace Building Checklist The following building checklist is a quick reference for a typical Outdoor 60 series fireplace installation. This list is not exhaustive and does not supplement thorough review of the installation manual.  Fireplace Location: Ensure the location allows for min. 16” clearance from viewing area to combustibles.

  • Page 10: Framing

    Framing Framing Requirements Fireplace chase may only be framed with non-combustible materials (typically metal studs). The framing of the fireplace chase must be designed to carry the entire weight of the wall and finish material. The surrounding material must not transfer weight to the fireplace or be connected in any way to the fireplace. . Consult with the project structural engineer and refer to your local building codes for proper wall support.

  • Page 11: Minimal Framing Dimensions

    Minimal Framing Dimensions The following diagrams are for illustrative purposes only. There are multiple approved framing scenarios. A flush application is not the only permitted application. The fireplace may be recessed into the wall. Refer to diagrams and values below and in the following pages for details.
  • Page 12 Framing Fireplace 60H FR A: Height ” B: Length ” C: Depth 22 ¼” Refer to pipe manufacturer’s D: Firestop firestop dimensions 60H Front (FR) Series with Service Box underneath Fireplace Glass Glass Height Length Depth Stand-Off Legs Length Height 60H FR ”...

  • Page 13: General Clearances

    Framing Fireplace 60H FR A: Height ” B: Length ” C: Depth 22 ¼” Refer to pipe manufacturer’s D: Firestop firestop dimensions General Clearances Viewing Area Clearance Zone The viewing area clearance zone is an area that extends perpendicular from the fireplace viewing area. The depth of the viewing area clearance zone depends on the combustibility of the material in question.

  • Page 14: Air Intake Openings

    Air Intake Openings An air intake opening must be incorporated into the framing and finish around the fireplace. The air intake opening is essential to maintain cool air flow throughout the chase. The opening must meet the minimum size requirement, as stated in the table below. Fireplace Series Air Intake Opening Size Minimum 64 sq.

  • Page 15: Access Panel

    Access Panel Depending on the location chosen for the service box (side of unit or below) an access panel might be necessary. If you choose to put the service box below the unit (under the burner), you will be able to service the unit internally.

  • Page 16: Recessed Installation

    Recessed Installation Diagram applies to only non-combustible finish material. The finish must maintain at least a ” clearance to the fireplace to both the top and bottom recesses. Maximum Overhang/ Mantel Depth Overhang depth of a recessed fireplace must not exceed 12 inches when located at the top finishing lip or top of the viewing area. Overhang depth is measured from the edge of the fireplace lip to the out-most part of the wall (including finish material).

  • Page 17: Venting

    Example: 6 feet diagonal run = 3 feet vertical rise & 3 feet horizontal run  Other V Minimum: This is the minimum amount of vertical rise required before the first completely horizontal (not diagonal) run.  Any vent configuration that does not meet these parameters requires Ortal’s review and approval. ...
  • Page 18 TERMINATION CAP NOTE: Low Profile Termination Cap and Sconce Termination Cap can negatively impact flame appearance and are not recommended for use with the fireplace. Allowable Maximum Horizontal Runs 60 Series V minimum = 3 feet Vertical (V) Max Horizontal (H) 3 ft 9 ft 6 ft...

  • Page 19: Vent Restrictor Sizing Guidelines

    Vent Restrictor Sizing Guidelines The restrictor sizing tables in this section determine the recommended restrictor for your vent configuration. These tables show Ortal’s recommendations only. The Environment, gas type and other factors may affect the best restrictor choice. How to use the “Recommended Restrictor” tables: Find the total vertical rise in your vent configuration along the y-axis.

  • Page 20: Termination

    *Exception: Wall thimble top clearance to any material is 1”. Termination Horizontal Termination Clearance Diagram Location Country Minimum Clearance Description Clearance above grade, veranda, porch, deck, or balcony. US & 12 inches NOTE: On private property where termination is less than 7 feet above a sidewalk, driveway, Canada deck, porch, veranda, or balcony, use of a listed cap shield is suggested.
  • Page 21 Clearance to a mechanical (powered) air supply inlet. 3 feet NOTE: Termination in a covered alcove space (spaces open only on one side and with an overhang) are permitted with the dimensions specified for vinyl or non-vinyl siding and soffits. 1.

  • Page 22: Vertical Termination Clearance Diagram

    Vertical Termination Clearance Diagram NOTE: This chart does not apply to a chimney shroud application.

  • Page 23: Vent Installation

    Vent Installation Venting must be installed to meet the requirements as detailed in the following sections in conjunction with the vent system manufacturer’s installation instructions. Venting must be supported by the structural surrounding and not by the fireplace. Each offset (elbow) must be strapped to reduce movement or possible disconnection.

  • Page 24: Gas Conversion

    Gas conversion (NG to LP or LP to NG) can be done in the field. Gas conversion must only be performed by a technician who has specific authorization by Ortal to change these components. The conversion kit must be supplied by Ortal. Using parts from other manufacturers or having an unauthorized party perform the conversion will void your fireplace’s warranty.

  • Page 25: Wiring Diagram

    Wiring Diagram Wiring Diagram: Screen Fireplace with Interior Lighting Replacement Parts Parts are available through authorized Ortal Dealers. Description Part Number Receiver G301 Remote G300 NG: SP-PILOT SET NG Pilot Assembly LP: SP-PILOT SET LP Yellow Cable G10_1 Red Cable...

  • Page 26: Interior Design Media

    Interior Design Media Ortal offers interior media options such as stones, glass, logs, and embers that can be provided with the fireplace. This section provides guidelines for safe placement of media. It is crucial that the placement guidelines outlined below are followed as a large portion of flame quality issues are caused by improper media setup.

  • Page 27: Stone Media Placement

    Stone Media Placement When placing stone media, use the space left by the round shape to leave the ports open.  Log Media Placement Place the logs carefully to block as few ports as possible. If a log is placed over a port, block the port with a “coin” to keep ...

  • Page 28: Servicing The Fireplace

    Servicing the Fireplace Screen Removal To remove the protective screen, follow the steps below: STEP 1: Using the vertical profile remover, which ships in the Brown Installation box, hook the top of the profile with the tool and pull to remove both side profiles.
  • Page 29 STEP 4: At the top of the viewing area, push up the screen holder as shown below: STEP 5: Rotate the bottom of the screen out which will allow the top to drop out and the screen to be removed:...

  • Page 30: Glass Removal

    Glass Removal To remove the glass, follow the steps below. Note: The external side and horizontal trim pieces & mesh have already been removed prior to step 1. STEP 1: Pull the inner vertical and horizontal trim pieces off the fireplace as shown below: STEP 2: Loosen the screws that are holding the top trim pieces in place:...

  • Page 31: Service Box

    STEP 3: Loosen the screws that are holding the bottom trim piece in place and slide the trim piece to remove: STEP 4: Attach a suction cup to the middle of the glass, lift up and swing the bottom out to remove the glass: Service Box There are two possible locations for the service box.
  • Page 32 STEP 1: Release the box cover screws using a PH1 screwdriver: STEP 2: Loosen the two box screws and slide the plate up to remove:...

  • Page 33: Service Box Installed Underneath The Burner

    Service Box Installed Underneath the Burner Unit can be serviced internally by removing the burner and grill: STEP 1: Pull up the lock pin to disengage from the pin and rotate away from the box to unlock the components box:...

  • Page 34: Operation

    STEP 2: Slide the box to the left to remove from the box holder and remove through the burner hole: STEP 3: Using a PH1 screwdriver, remove the screws holding the cover in place to access components: Operation WARNING – Read these instructions carefully before lighting the fireplace. 10-Button Remote Control Handset (standard option, always included with the fireplace) ...

  • Page 35: 10-Button Remote Control Handset

    IMPORTANT: The 10-Button remote control handset is always included with the fireplace regardless of which operation option is chosen. DO NOT DISCARD. The 10-Button remote must be always kept within 26 feet of the fireplace and in a dry safe place from outdoor elements. NOTES: The wiring of valve and receiver must be completed before starting ignition.

  • Page 36: Wall Switch

    Flame Height Adjustment 1. To increase flame height, press and hold the button to desired flame height. 2. To decrease flame height, or to set fireplace to pilot flame only, press and hold the button. Wall Switch In order to utilize a wall switch, a weatherproof encloser must be incorporated into the chase to protect the switch from water damage. Control Option Radio Frequency Power Supply...

  • Page 37: Fireplace Maintenance

    Submerged Parts Do not use the fireplace if any part has been under water, or if you suspect that it may have been under water. The Ortal dealer service technician must inspect and, if necessary, replace any parts of the control system and any gas controls which have been under water.
  • Page 38 © Ortal 2025 Version 1.0, February 2025 SKU: KPMANOUT60V1.0 Ortal USA 2152 Citygate Drive, Columbus, OH 43219 T: (818) 238-7000 | F: (818) 678-0541 info@ortalheat.com | www.ortalheat.com...
