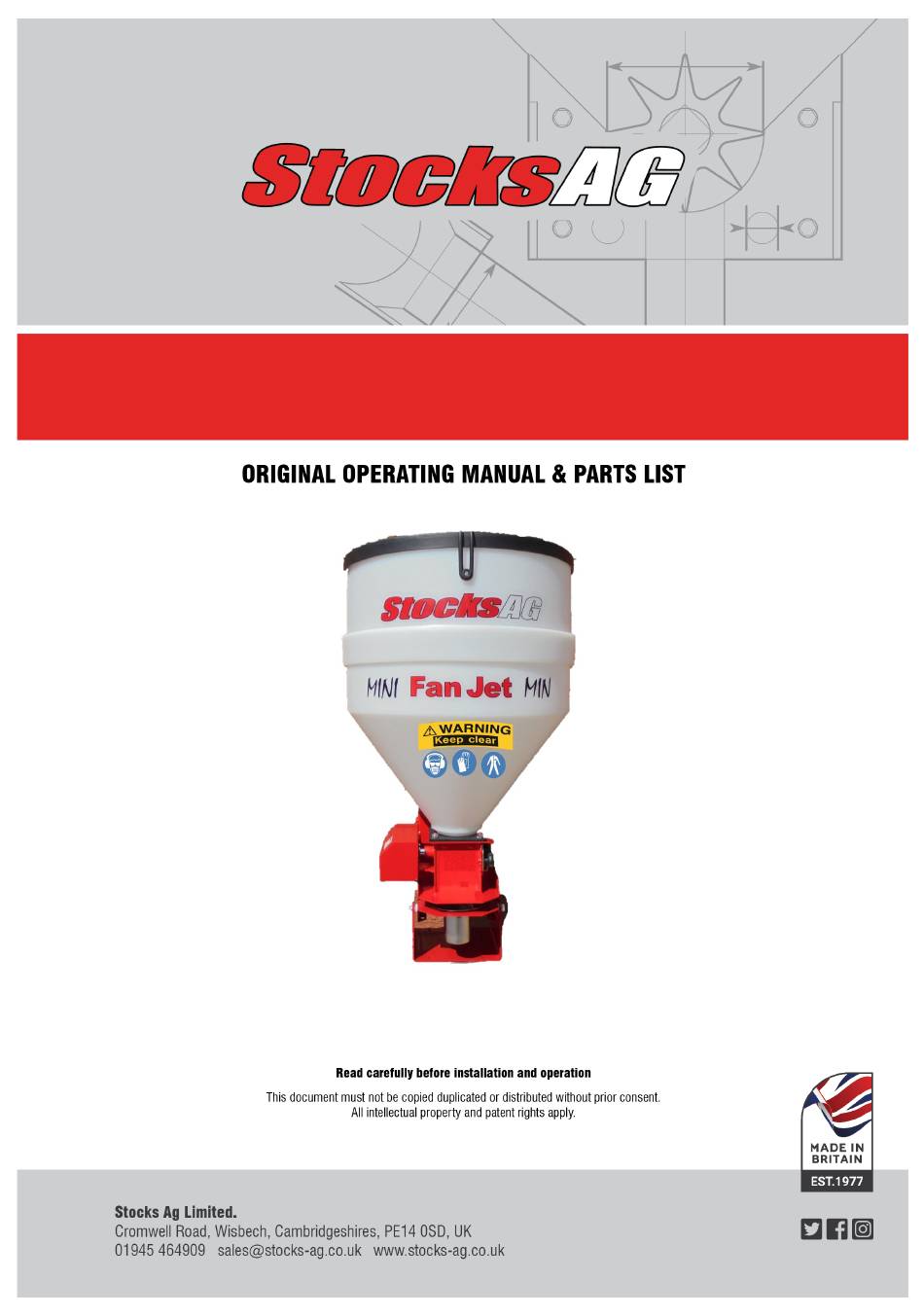

- Page 1 Revision 3 05/06/23 Fan Jet Mini Vari-Speed Fan Jet Mini Vari-Speed Operating Manual & Parts List P1...
-
Page 2: Table Of Contents
Fitting Instructions 15.0 Product Calibration 16.0 Calibration Catch and Weigh Test 17.0 Fan Jet Mini Parts (Diagram) 17.1 Fan Jet Mini Parts List 17.2 Fan Jet Mini Parts List Continued Fan Jet Mini Vari-Speed Operating Manual & Parts List P2... -
Page 3: Declaration Of Conformity
Fan Jet Mini Vari-Speed Operating Manual & Parts List P3... -
Page 4: Ukca. Declaration Of Conformity
Fan Jet Mini Vari-Speed Operating Manual & Parts List P4... -
Page 5: General Information
Specifications, descriptions and illustrations in this manual are accurate at the time of this publication but may be subject to change. This manual is correct at the time of printing but Stocks Ag reserve the right to change and improve them. This machine is designed with safety in mind. Maintenance and servicing in accordance with this manual will ensure safe operation and reliability of your machine for many years. -
Page 6: Machine Identification
Please see our conditions of sale for full details, a copy of which available upon request. Please record the machine serial number here: ……………………………… Purchase date: …………………………………………… Dealer …………………………… Fan Jet Mini Vari-Speed Operating Manual & Parts List P6... -
Page 7: Safety
If in doubt contact the vehicle manufacturer for more information. After working the machine ensure that any unused product is returned safely to its original packaging. Stocks Ag Ltd. does not accept any liability for the storage and use of the material being applied. -
Page 8: Safety Warning Decals
Maintain a safe distance from the machine when in operation. Wear the appropriate protective personal equipment. WARNING! Do Not Jet Wash This machine is not designed to withstand Jet Washing. Fan Jet Mini Vari-Speed Operating Manual & Parts List P8... -
Page 9: Emergency Stop Instructions
Always adhere to the local disposal regulations paying particular attention to the plastics, rubber, and electrical components. Fan Jet Mini Vari-Speed Operating Manual & Parts List P9... -
Page 10: General Maintenance
2. Disconnect the power supply. 3. Replace the PVC waterproof cover (if applicable). 4. Store in dry conditions to protect the machine and control system from moisture. WARNING! DO NOT JET WASH THIS MACHINE. Fan Jet Mini Vari-Speed Operating Manual & Parts List P10... -
Page 11: Installation Guide
If unsure seek advise from the parent machine manufacturer or supplier. Locally fabricated mounting frames are not the responsibility of Stocks Ag Ltd. NOTE: the machines can be operated facing forwards or backwards. -
Page 12: Mounting Plate
To tip the hopper, remove the pin whilst supporting the hopper, lower gently when emptying the hopper. Additional Base Plates available: Part No. FJ514B Fan Jet Mini Vari-Speed Operating Manual & Parts List P12... -
Page 13: Hopper Emptying & Removal Procedure
Ensure any product removed is put back into its original container. Care to be taken not to spill any product that could contamination the environment. Empty the hopper of any remaining product. Fan Jet Mini Vari-Speed Operating Manual & Parts List P13... -
Page 14: Electrical Components
Any modification to the wiring, fuse holder or controls will invalidate any warranty claim and may affect the performance of the Fan Jet. Always replace any blown fuse with the same rated fuse as the original one fitted. Fan Jet Mini Vari-Speed Operating Manual & Parts List P14... -
Page 15: Control System Operation
WARNING! Ensure the position and operation of the control panel does not affect the visibility of the operator or the ability to control the parent machine. Fan Jet Mini Vari-Speed Operating Manual & Parts List P15... -
Page 16: Setting The Feed Rate
NOTE: You should be able to rotate the feed shaft with your fingers – if it feels excessively tight, check the feed roller and spacer composition or call Stocks Ag for advice. WARNING! Always observe all application standards and guidelines provided by the product manufacturer as some products may be toxic. -
Page 17: Spread Width And Pattern
Re-tighten the locking knob. NOTE: Use the motor disc speed in conjunction with the deflectors, and the bias adjustment. Fan Jet Mini Vari-Speed Operating Manual & Parts List P17... -
Page 18: Calibration Hopper
4. Secure with the two small black PVC knobs supplied. 5. Place a suitable container under the Calibration Hopper to collect pellets whilst calibrating. Fan Jet Mini Vari-Speed Operating Manual & Parts List P18... -
Page 19: Product Calibration
NOTE: If you do not run the catch test for 1 minute – for example 30 seconds – then you only need to collect half the amount indicated in the calibration formula. RECORD THE SETTINGS FOR FUTURE USE Fan Jet Mini Vari-Speed Operating Manual & Parts List P19... -
Page 20: Fan Jet Mini Parts (Diagram)
17.0 Fan Jet Mini Vari-Speed Parts Diagram Fan Jet Mini Vari-Speed Operating Manual & Parts List P20... -
Page 21: Fan Jet Mini Parts List
Decal “Mini” (not shown) MD052 Decal “Warning” Keep Clear - Wear PPE (not shown) MD050 “Warning” Decal Set- Thrown or Flying objects (not shown) MD002 Decal “STOCKS Ag” (not shown) Fan Jet Mini Vari-Speed Operating Manual & Parts List P21... -
Page 22: Fan Jet Mini Parts List Continued
24mm Black Spacer TJ199 Stainless Steel Shim GA110B-B 8 Section Feed Roller (B) Items: 24a , 28a, 36, 42, 82 and items 89 to 106 not supplied with this model Fan Jet Mini Vari-Speed Operating Manual & Parts List P22... - Page 23 Notes Fan Jet Mini Vari-Speed Operating Manual & Parts List P23...
