Summary of Contents for Stocks AG Maxi Jet 2

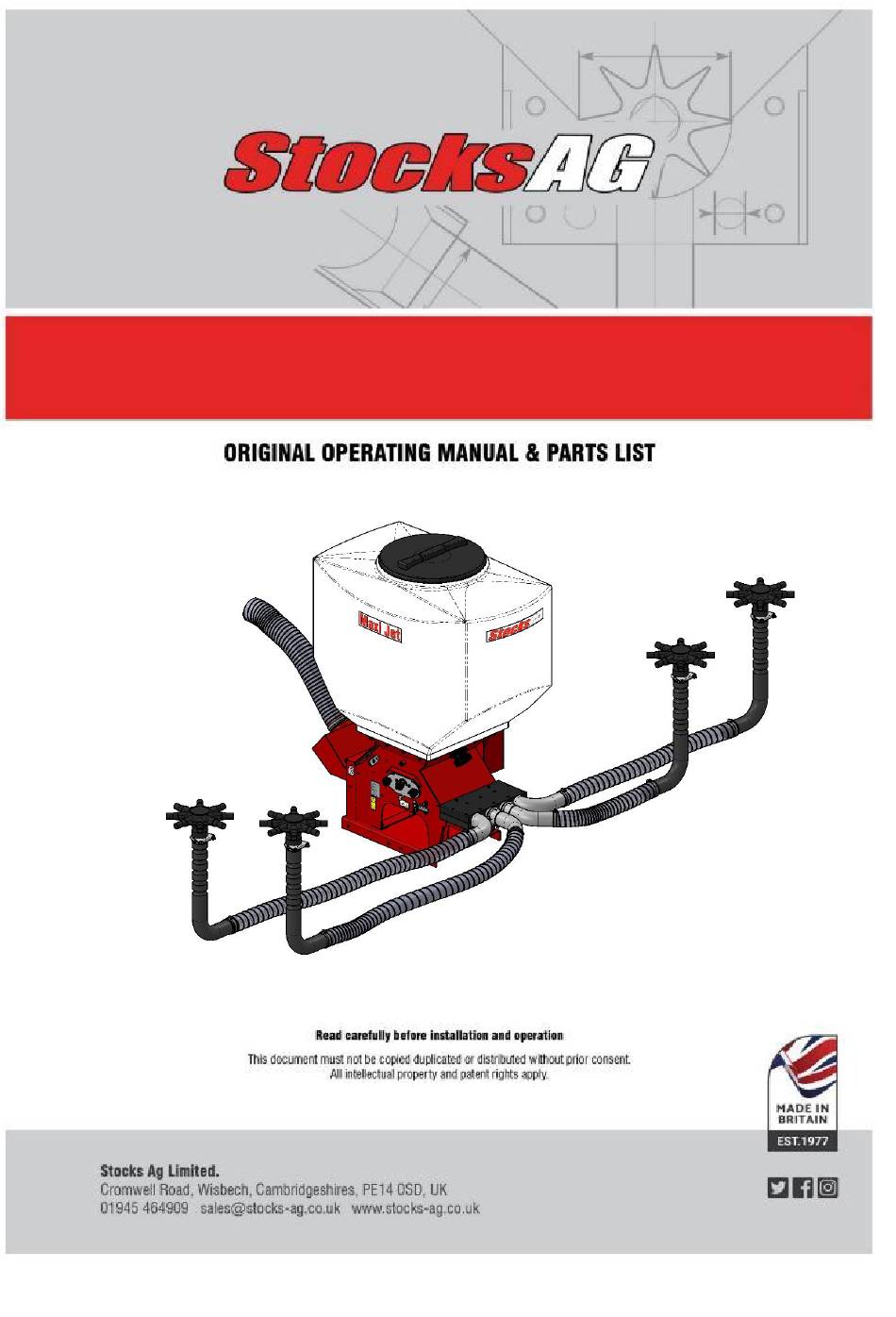

- Page 1 Maxi Jet 2 and 4 Jackal...
-
Page 2: Table Of Contents
Spreader Plates Riser Pipes and Distribution Heads Spreader Plate Set Up C Section Rail Feed Hose Maxi Jet Configuration 10.0 Distribution Head 11.0 Machine Components 11.1 Feed Motor Maxi Jet 2 and 4 Jackal Operating Manual & Parts List P1... -
Page 3: Electrical Components
Initial Instrument Setup 18.3 Run/Hold Automatic Switch 19.0 First/New Product Calibration 19.1 Product Calibration 20.0 Hydraulic Fan rpm display 21.0 Spreading/Applying Product 22.0 Simulated Speed 22.1 Alarms and Trip Functions Maxi Jet 2 and 4 Jackal Operating Manual & Parts List P2... - Page 4 Standard Feed Roller – 4 Segments 29.3 Standard Feed Roller – 2 Segments 29.4 Small Seed Feed Roller 30.0 Hydraulic Fan – Parts (Diagram) 30.1 Hydraulic Fan – Parts List Maxi Jet 2 and 4 Jackal Operating Manual & Parts List P3...
- Page 5 Maxi Jet 2 and 4 Jackal Operating Manual & Parts List P4...
- Page 6 Maxi Jet 2 and 4 Jackal Operating Manual & Parts List P5...
-
Page 7: General Information
This machine is not designed to apply abrasive materials such as sand and grit or for applying salt products. The operator alone bears the associated risk if used for non-intended use. Maxi Jet 2 and 4 Jackal Operating Manual & Parts List P6... -
Page 8: Machine Identification
If the base machine or the controls system are modified in any way this will void any warranty claim. Stocks Ag cannot be held responsible for any claims or injuries to the owner or any third parties while in the operation of Stocks Ag equipment. -
Page 9: Safety
After working the machine ensure that any unused product is returned safely to its original packaging. Stocks Ag Ltd. does not accept any liability for the storage and use of the material being applied. NOTE: If unsure contact your seed or product supplier for more information. -
Page 10: Saf Et Y - C On Tin Ued
WARNING! Do not put your hands inside the hopper when the agitator motor is turning as the agitator shaft inside the hopper rotates at high speed and is sharp and dangerous. WARNING! Always isolate the power supply if servicing or leaving the machine unattended. Maxi Jet 2 and 4 Jackal Operating Manual & Parts List P9... -
Page 11: Safety Decals
Maintain a safe distance from the machine when in operation. Wear the appropriate protective personal equipment. WARNING! Do Not Jet Wash. This machine is not designed to withstand jet washing. Maxi Jet 2 and 4 Jackal Operating Manual & Parts List P10... -
Page 12: Emergency Stop Instructions
240L Waterproof PVC Cover Part No. TJ240COVER 400L Waterproof PVC Cover Part No. TJ400COVER Heavy Duty white PVC covers fitted with eyelets and bungie cord for easy attachment. Please contact your local Stocks Ag dealer for more information Maxi Jet 2 and 4 Jackal Operating Manual & Parts List P11... -
Page 13: Disposal
3. Check feed hoses for any blockages and all hose clips are tight. 4. Check the spreader plates are positioned correctly 5. Check the hydraulic hoses and connections to the fan motor. Maxi Jet 2 and 4 Jackal Operating Manual & Parts List P12... -
Page 14: After Each Use
3. Replace the PVC waterproof cover (if applicable). 4. Store in dry conditions to protect the machine and control system from moisture WARNING DO NOT JET WASH THIS MACHINE Maxi Jet 2 and 4 Jackal Operating Manual & Parts List P13... -
Page 15: Installation Guide
The support brackets for the riser pipe will require fabricating to a design that is suitable for the particular host machine. Above right is an example of how to mount a riser pipe. Brackets not supplied. Maxi Jet 2 and 4 Jackal Operating Manual & Parts List P14... -
Page 16: Base Plate
The six outlet heads use a 32mm hose, the 8, 10, 12 and 16 outlet heads all use 25mm hose. Maxi Jet 2 and 4 Jackal Operating Manual & Parts List P15... -
Page 17: Spreader Plate Set Up
8 . 4 S p r e ad er Pl at e S e t U p The Stocks Ag spreader plate was developed to allow a wider spread pattern while positioning the outlets closer to the ground. For products such as grass seed, oil seed rape and Avadex, a spread width per outlet of 750mm is achievable from as low as 250mm above the ground (250mm to the bottom plate). - Page 18 8 . 3 Spr ead e r Pl at e S et U p ( c onti nu ed ) Maxi Jet 2 and 4 Jackal Operating Manual & Parts List P17...
-
Page 19: C Section Rail
Ensure all hose runs are as short as possible whilst giving a smooth downhill route to the spreader plates. Avoid kinks, severe bends or uphill runs. Plan and measure the individual hose runs before cutting.. Maxi Jet 2 and 4 Jackal Operating Manual & Parts List P18... -
Page 20: Maxi Jet Configuration
M a x i J e t C o n f i g u r a t i o n Maxi Jet 2 with 2 x 16 outlet distribution heads, 32 outlets in total The Maxi Jet is available in a 2 or 4 outlet configuration. This refers to the number of 63mm diameter hose outlets on the air outlet manifold. - Page 21 The distribution heads are secured to the riser pipe with an M8 U bolt clamp. To mount the riser pipe onto the host machine, the threads of the U bolt can be used to secure it to a bracket (not supplied). Maxi Jet 2 and 4 Jackal Operating Manual & Parts List P20...
-
Page 22: Machine Components
Ensuring the multi pin connector on the instrument cables are connected the correct way around, as shown. NOTE: Extension power and instrument cables are available if required. Please contact your local Stocks Ag dealer for more information. Maxi Jet 2 and 4 Jackal Operating Manual & Parts List P21... -
Page 23: Inspection
5. Check the drive shaft engages correctly when sliding the feed block back into the machine by slowly rotating the central black plastic knob before re-fitting the outer black plastic retaining knobs. Maxi Jet 2 and 4 Jackal Operating Manual & Parts List P22... -
Page 24: Agitator Shaft Inspection
Once the feed block has been removed from the machine dispose of any remaining product held in the feed block. Release the bottom calibration door and check the air chambers for any sign of debris or build up of product and clear as necessary. Maxi Jet 2 and 4 Jackal Operating Manual & Parts List P23... -
Page 25: Clearing A Feed Hose Blockage
For any parts or if no faults found and the alarm persists contact your local Stocks Ag dealer. Maxi Jet 2 and 4 Jackal Operating Manual & Parts List P24... -
Page 26: Jackal Control System Overview
3. Hopper Level Sensor - alarms to warn the operator if the hopper contents are getting low. 4. Power and Instrument extension cables - available in 5m lengths. Please contact your local Stocks Ag dealer for more details. Maxi Jet 2 and 4 Jackal Operating Manual & Parts List P25... -
Page 27: Control System Operation
The round navigation (NAV) buttons are used to navigate UP/DOWN/LEFT/RIGHT in calibration screens as well as scrolling through the display lines on the main screen. ENTER is used to select the option highlighted onscreen. Maxi Jet 2 and 4 Jackal Operating Manual & Parts List P26... -
Page 28: Machine Junction Box
The Jackal Junction box (MMD) is located underneath a panel, which is the top half of the fan guard. The single button on the side is for calibrating the Turbo Jet. See Jackal control box instructions. Maxi Jet 2 and 4 Jackal Operating Manual & Parts List P27... -
Page 29: Electrical Components
5. Cut out switch connection - Optional 12. 5m fused power cable (not shown) 6. Power cable connection 13. 5m power cable extension (not shown) 7. 12v fan connection Maxi Jet 2 and 4 Jackal Operating Manual & Parts List P28... -
Page 30: Run Hold/Cut Out Switch - Optional
The alarm will sound once the product in hopper drops below the level of the sensor For more information please contact your local Stocks Ag dealer. Hopper level sensor - Part No: 47TJT5037 Maxi Jet 2 and 4 Jackal Operating Manual & Parts List P29... -
Page 31: Gps Speed Sensor Kit - Optional
The fly lead is required to connect the GPS receiver to the plug on the back of the head unit. GPS receiver - Part No: 47TJT5036 GPS fly lead - Part No: 97APC0048 Maxi Jet 2 and 4 Jackal Operating Manual & Parts List P30... -
Page 32: Wiring For Optional Extras
BLUE = GROUND YELLOW / GREEN = D6 Agitator Motor wire connections BROWN = D7 BLUE = GROUND Cut Out Switch wire connections BLUE = GROUND BROWN = D8 Maxi Jet 2 and 4 Jackal Operating Manual & Parts List P31... -
Page 33: Power Connection
Ensure that the battery connection to the Jackal is +12 Volts Connecting 24v to the Jackal will damage the system and also VOID WARRANTY Disconnect the terminal plugs from the Jackal if ARC WELDING on machinery Maxi Jet 2 and 4 Jackal Operating Manual & Parts List P32... -
Page 34: Instrument Button Functions
The round navigation (NAV) buttons are used to navigate UP/DOWN/LEFT/RIGHT in calibration screens as well as scrolling through the display lines on the main screen. ENTER is used to select the option highlighted onscreen. Maxi Jet 2 and 4 Jackal Operating Manual & Parts List P33... -
Page 35: Initial Instrument Setup
Using the DOWN Arrow on the Navigation key pad, scroll down to Other Settings. Using either the ENTER button on the Navigation key pad or the right hand SELECT button, with SELECT above it, to confirm. Maxi Jet 2 and 4 Jackal Operating Manual & Parts List P34... - Page 36 Use the left and right buttons to select to the unit to be adjusted. The example across shows a working width of 8.5 meters being entered. Press EXIT to save and go back to settings menu Maxi Jet 2 and 4 Jackal Operating Manual & Parts List P35...
-
Page 37: Run/Hold Automatic Switch
By changing the setting to Normally On, the machine will meter product with the Run/Hold finger switch in the rest position and then switch off when the Run/Hold finger switch is moved. Maxi Jet 2 and 4 Jackal Operating Manual & Parts List P36... -
Page 38: First/New Product Calibration
From the front screen, select SETUP, by pressing the arrow directly below. Then select Inputs by pressing SELECT or them Enter button in the middle of the navigation keys. Maxi Jet 2 and 4 Jackal Operating Manual & Parts List P37... - Page 39 START on the screen. Or press and hold the button on the junction box on the side of the machine. The calibration run will stop when the button is released. Maxi Jet 2 and 4 Jackal Operating Manual & Parts List P38...
- Page 40 Scroll down to highlight Manual Ratio press EDIT and enter the recorded figure. To save and exit, press EXIT. Maxi Jet 2 and 4 Jackal Operating Manual & Parts List P39...
-
Page 41: Product Calibration
A target rate can now be entered. Using the Navigation keys, scroll down to highlight Target. Press the arrow key below EDIT. Maxi Jet 2 and 4 Jackal Operating Manual & Parts List P40... - Page 42 START or press and hold the button on the side of the applicator junction box. The calibration run will stop when the target rate is reached or when the button is released. Maxi Jet 2 and 4 Jackal Operating Manual & Parts List P41...
- Page 43 Example: If you weighed 256 grams, you need to enter this as 0.256kg on the screen To save and exit, press the arrow below EXIT Maxi Jet 2 and 4 Jackal Operating Manual & Parts List P42...
- Page 44 Scroll down to highlight Manual Ratio press EDIT and enter the recorded figure. To save and exit, press EXIT. Maxi Jet 2 and 4 Jackal Operating Manual & Parts List P43...
-
Page 45: Hydraulic Fan Rpm Display
The Hydraulic fan is switch on through the tractors hydraulic remote/spool valves. The fan rpm is governed by engine speed and oil flow to the remote/spool valves, set by the tractor hydraulics. Maxi Jet 2 and 4 Jackal Operating Manual & Parts List P44... -
Page 46: Spreading/Applying Product
RATE+ or RATE– page. Once the machine starts to move, the forward speed will be displayed and the STOP message will change to OK. The applicator should now be applying product. Maxi Jet 2 and 4 Jackal Operating Manual & Parts List P45... -
Page 47: Simulated Speed
The speed can be adjusted on the move and the feed rate will adjust accordingly. Maxi Jet 2 and 4 Jackal Operating Manual & Parts List P46... -
Page 48: Alarms And Trip Functions
When you return to the TRIPS page the Trip will continue to accumulate. You will need to SAVE/RESET the trip if you want to start from Zero (0) again Maxi Jet 2 and 4 Jackal Operating Manual & Parts List P47... -
Page 49: Quick Rate And Step Size Adjustment
To adjust RateA and/or RateB, scroll down and highlight the one to be altered. Then press EDIT. Enter the required rate and press EXIT to save and exit. Maxi Jet 2 and 4 Jackal Operating Manual & Parts List P48... -
Page 50: Flush/Hopper Empty
This page will display supply voltage and current being drawn. Each input and output set up on the Jackal is displayed. When switched on or operated it will show a voltage or hertz reading. Maxi Jet 2 and 4 Jackal Operating Manual & Parts List P49... -
Page 51: Feed Block Assembly Guide
NOTE: If unsure contact your seed or product supplier for more information. NOTE: Before applying very fine seeds or product please contact your local dealer or Stocks Ag directly to ensure the machine is suitable. Failure to do so could invalidate your warranty. - Page 52 Once engaged secure the two black plastic retaining knobs. WARNING! It is the responsibility of the operator to ensure the feed block assembly is suitable for the product being applied. Maxi Jet 2 and 4 Jackal Operating Manual & Parts List P51...
-
Page 53: Precision Small Seed Feed Block Kit
These segments can be supplied in the low rate precision feed block, or fitted into the standard feed block. NOTE: Stocks Ag does not currently recommend using the Maxi Jet for Avadex application. For the application of Avadex at wider working widths, please speak to the office about the Hydraulic Turbo Jet. -
Page 54: Granular Feed Kit
! It is the responsibility of the operator to ensure the feed block assembly is suitable for the product being applied. NOTE: Before applying very fine seeds or product please contact your local dealer or Stocks Ag directly to ensure the machine is suitable. Failure to do so could invalidate your warranty... -
Page 55: Hopper Baffle Plate
! Always observe all application standards and guidelines provided by the product manufacturer as some seed dressings and granular products may be toxic. NOTE: If unsure contact your seed or product supplier for more information. Maxi Jet 2 and 4 Jackal Operating Manual & Parts List P54... -
Page 56: Hydraulic Fan (Optional) - Specification
The 3/4 BSP side of the T piece is the free flow return to the tractor. The T hydraulic piece fitting, is to allow the smaller hose for the case drain, which also acts as the bypass for the motor safety protection. Maxi Jet 2 and 4 Jackal Operating Manual & Parts List P55... -
Page 57: Hydraulic Fan Safety
The hydraulic fan is supplied with a 2 metre hose that connects the fan outlet to the air inlet manifold of the applicator. Maxi Jet 2 and 4 Jackal Operating Manual & Parts List P56... -
Page 58: Hydraulic Fan Speed Guide
Fertiliser Clover OSR, Clover 5500 Larger Seeds, Peas Barley, Wheat, Fertiliser Slug pelle Slug pellets Barley, Wheat, Barley, Wheat, 6000 Larger Seeds, Peas Larger Seeds, peas Fertiliser Fertiliser Maxi Jet 2 and 4 Jackal Operating Manual & Parts List P57... -
Page 59: Hydraulic Fan - Speed Sensor
If the distance is to great, the LED will not flash. If it too little, there is a risk of permanent damage to the sensor. Maxi Jet 2 and 4 Jackal Operating Manual & Parts List P58... -
Page 60: Hydraulic Fan - Speed Setting
It is recommended that all four bolt holes are used to mount the fan on a frame to support the fan securely. The diagram below gives the dimensions for the hole location and spacing. Maxi Jet 2 and 4 Jackal Operating Manual & Parts List P59... -
Page 61: Hydraulic Fan Speed - Fly Lead Wiring
H yd r aul ic Fan S pe ed – F ly L ead W iri ng Hydraulic Fan Speed Sensor wire connections YELLOW / GREEN = D4 BLUE = GROUND BROWN = +12V Maxi Jet 2 and 4 Jackal Operating Manual & Parts List P60... -
Page 62: Maxi Jet Parts Drawing
2 8 . 0 M a x i J e t P a r t s D r a w i n g Maxi Jet 2 and 4 Jackal Operating Manual & Parts List P61... -
Page 63: Maxi Jet Part List
2 8 . 1 M ax i Jet Pa r t L ist Maxi Jet 2 and 4 Jackal Operating Manual & Parts List P62... - Page 64 2 8 . 2 M ax i J et Pa r t s Li st Co nti nu ed Maxi Jet 2 and 4 Jackal Operating Manual & Parts List P63...
- Page 65 2 8 . 3 M ax i J et Pa r t s Li st Co nti nu ed Maxi Jet 2 and 4 Jackal Operating Manual & Parts List P64...
-
Page 66: High-Capacity Feed Roller
2 9 . 0 H i g h - C a p a c i t y F e e d R o l l e r Maxi Jet 2 and 4 Jackal Operating Manual & Parts List P65... - Page 67 2 9 . 1 S t and ard Fe ed R ol l e r – Ful l S et Maxi Jet 2 and 4 Jackal Operating Manual & Parts List P66...
-
Page 68: Standard Feed Roller - 4 Segments
2 9 . 2 S t an d ard Fe ed R oll e r – 4 S e g m ent s Maxi Jet 2 and 4 Jackal Operating Manual & Parts List P67... -
Page 69: Standard Feed Roller - 2 Segments
2 9 . 3 S t and ard Fe ed R oll e r – 2 S e g m ent s Maxi Jet 2 and 4 Jackal Operating Manual & Parts List P68... -
Page 70: Small Seed Feed Roller
2 9 . 4 S m al l S e ed Feed R ol l er Maxi Jet 2 and 4 Jackal Operating Manual & Parts List P69... -
Page 71: Hydraulic Fan - Parts (Diagram)
H ydr aul ic Fan – Par ts Li st Item Part Number: Description 97APC5452 CRARY HYDRAULIC FAN 97APC5454 HYDRAULIC FAN HOSE KIT (Pair) 97APC5456 4 INCH PVC DUCTING Maxi Jet 2 and 4 Jackal Operating Manual & Parts List P70... - Page 72 NOTES Maxi Jet 2 and 4 Jackal Operating Manual & Parts List P71...
