Original Instructions, Revision 1 June 2020

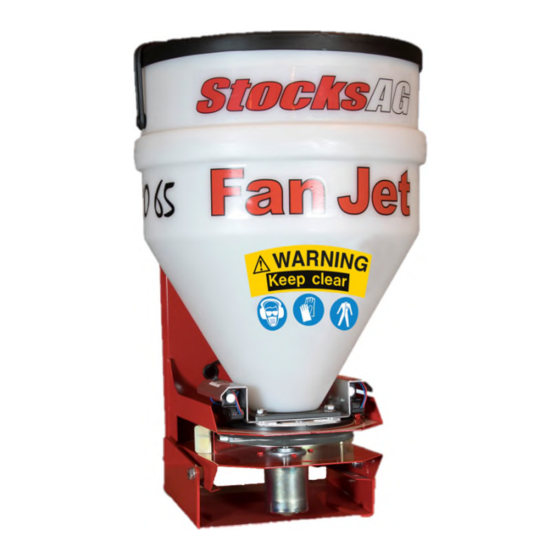

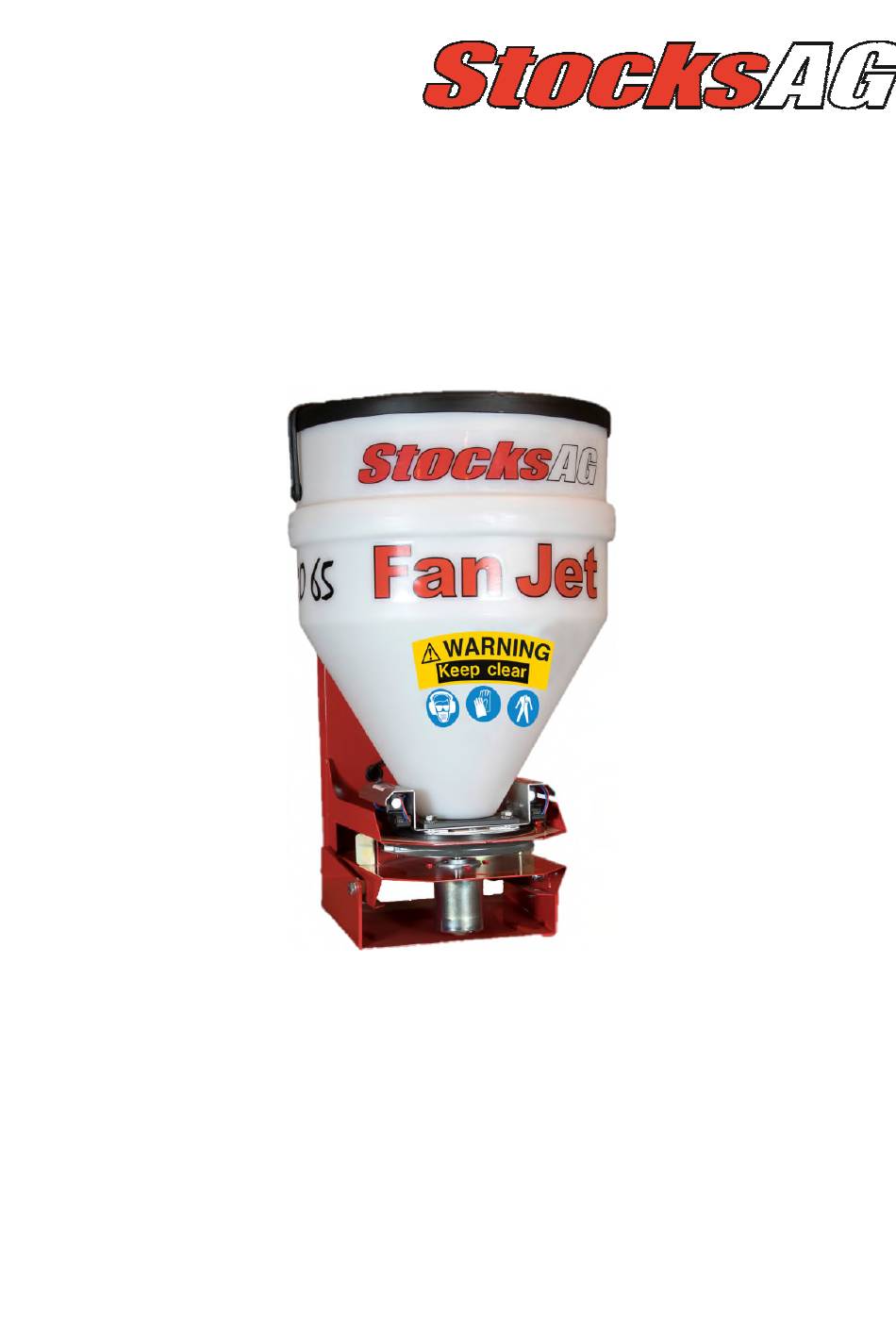

FAN JET PRO 65 & 130
Original Operating Manual
and parts list
Read carefully before installation and
operation
This document must not be copied duplicated or distributed without prior consent .
All and patent rights apply
STOCKS AG LIMITED, CROMWELL ROAD, WISBECH, CAMBRIDGESHIRE, UK.
Tel: 00 44 (0) 1945 464 909 Email: sales@stocks-ag.co.uk www.stocks-ag.co.uk
Advertisement
Table of Contents
Related Manuals for Stocks AG FAN JET PRO 65
Summary of Contents for Stocks AG FAN JET PRO 65
- Page 1 Read carefully before installation and operation This document must not be copied duplicated or distributed without prior consent . All and patent rights apply STOCKS AG LIMITED, CROMWELL ROAD, WISBECH, CAMBRIDGESHIRE, UK. Tel: 00 44 (0) 1945 464 909 Email: sales@stocks-ag.co.uk www.stocks-ag.co.uk...
- Page 2 Index Revision 06.2020 Section Page No. Index 3.1 - 3.2 General information & Technical data 3.3 - 3.4 Intended use & Unintended use Contents of the EC Declaration of Conformity 5.1 - 5.2 Machine identification & Warranty Safety Safety WARNING decals Emergency stop instructions Maintenance 9.1 - 9.2...
-
Page 3: General Information
This machine is not designed to apply abrasive materials such as sand & grit or for applying salt products Please contact us if you still have questions regarding the machine operation before use Stocks AG Ltd , Cromwell Road, Wisbech, Cambridgeshire UK Tel: 00 44 (0) 1945 464 909 email: sales@stocks-ag.co.uk... - Page 4 Safety of machinery – Safety distances to prevent hazard zones being reached by the upper and lower limbs. The manufacturer stated above holds the technical file for this machine. Signed on behalf of Stocks Ag Ltd Name: J Woolway Date:...
-
Page 5: Machine Identification
5.1 Machine identification The machine the serial number decal is mounted on the steel chassis to one side of the hopper 5.2 Warranty We provide a 12 month warranty as of the date of invoice (your invoice for the machine which will serve as a warranty certificate). This warranty is applicable for cases of material or construction faults and does not include parts that are damaged by normal or excessive wear. - Page 6 After working the machine ensure that any unused product is returned safely to its original packaging Stocks AG Ltd. does not accept any liability for the storage and use of the material being applied If unsure contact the material supplier for more information.
-
Page 7: Safety Warning Decals
7 Safety WARNING decals Important ; Be aware of the safely warning below which are all relevant to this machine WARNING Read and understand the Operators Manual instructions before operating this machine Operator errors can result in serious injury WARNING Danger due to thrown or flying objects Always maintain a safe distance whilst the machine is in operation... -
Page 8: Maintenance
8.1 Emergency Stop instructions In the case of an emergency always switch of the main power switch on the control panel and isolate the power supply immediately by disconnecting the power cable Main Power On-Off switch 8.2 Maintenance WARNING Always ensure the power supply is disconnected before any maintenance work or cleaning of this machine. -
Page 9: Clearing A Blockage
Heavy duty White PVC covers fitted with eyelets and bungie cord for easy attachment available for all machines . Please contact your locals Stocks AG dealer for more information 9.5 Disposal Ensure that any persons handling the machine are aware that the machine may have been used to apply toxic chemicals and so the appropriate personal protection equipment should be worn. - Page 10 If unsure seek advise from the parent machine manufacturer or supplier. Locally fabricated mounting frames are not the responsibility of Stocks AG Ltd NOTE the machines can be operate facing forwards or backwards.
-
Page 11: Mounting Plate
11 Mounting plate Mount the machine using the tipping base plate. This has 4 holes in the base to take M12 bolts (see below) use these to attach to the parent vehicle. The base plate can be repositioned to fit the holes in the back of the machine to attach to a vertical mounting point –... -
Page 12: Electrical Components
12 Electrical components 1. FJ057D Disc Motor FJ117B Fixed Disc Seed Control Panel or FJ114B Vario Panel - Variable e Disc Speed Control Panel FJ109C Tail Piece FJ051C Shutter Mechanism “Slave Motor” FJ107D Fused Power Cable - 5m 6. FJ108D Control Connector Cable - 6m *Optional cables available... -
Page 13: Electrical Connections
13.1 Electrical connections Power requirement is 12 volts with a minimum continuous 20amp supply. The Fan Jet is supplied with a control console and all wiring Ensure the power supply cable is connected direct to the vehicle battery to ensure maximum power. Connect the positive wire (fused) to the positive (+) terminal and negative earth connection to the negative (-) terminal. -
Page 14: Wiring Diagram
14 Wiring diagram... - Page 15 15.1 Spreading slug pellets It is important that you always test the pellets through the Fan Jet to establish the spread width and pattern before you go to work, and to enable you to calibrate the Fan Jet. Be aware the spread pattern could be thinner towards the outer edges.
- Page 16 16.1 Setting the feed rate To adjust the feed rate, undo the black plastic locking knob at the centre rear of the hopper and slide the feed regulator plate to the required setting, reading from the 0-10 scale decal. Re-tighten the locking knob. Position 10 is the highest feed rate with the feed apertures fully open as shown in the photo below Note - we recommend you carry out your own product calibration test for each product and application rate.
- Page 17 17 Spread width and pattern Basic Rule; The spread width is dependent upon the density of the granule or seed, and the disc speed (plus other factors). Large, dense granules and seeds with a high disc speed give the maximum spread width – small, light granules and seeds will not spread as far.
- Page 18 18.1 Setting the headland deflectors WARNING Ensure the power supply has been disconnected before adjusting any deflector plates or fitting the calibration chute. Always wear the appropriate protective clothing. Adjustable deflectors that reduce the exit aperture from the disc are incorporated into the Fan Jet to physically limit the spread width for headland control.
- Page 19 19 OPTIONAL Grass seed agitator This item supplied in the Grass Seed Deflector NOTE this agitator must be fitted when applying Grass Seed to help prevent seed bridging of seed in the hopper It may be necessary to fit the lower pin upon prior to fitting (if not fitted upon arrival) ensuring the pin is central to the shaft as shown above.
- Page 20 With two adjustable vanes (items12 &13) spread width can be limited to 2-3m working width. Without the vanes fitted the Fan Jet will spread grass seed over a 6m working width The Vario Control Panel is recommended when the working width is below 5m Part No. FJ114B available through your local Stocks AG dealer.
-
Page 21: Product Calibration
21 Product calibration Basic calibration guides for Slug Pellet, Grass Seed and Rape Seed application shown on pages 20 and 21 RECCOMENDED Individual product calibration; WORKING WIDTH Firstly establish the working width required or maximum spread width possible with the granules or seed being applied Working in a safe area and ideally on a hard surface so that product is visible on the ground and can be swept up after calibration work has been completed... - Page 22 Standard Slug Pellets - 24 meters These settings are to be used as guides only, it is important you always test the product through the machine to establish the spread width pattern and rate are accurate. FORWARD SPEED km/h 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 8.3 6.7 5.5 4.5 4.1 4.7 3.3 3.0 2.8 2.5 2.4 2.2 2.1 2.0 1.9 1.8 1.7 1.6 1.5 1.4 1.4 1.3 1.3 1.2 1.2 1.1 1.1 13.4 10.8 9.0 7.7 6.7 6.0 5.4 4.9 4.5 4.1 3.8 3.6 3.4 3.2 3.0 2.8 2.7 2.6 2.4 2.3 2.2 2.1 2.1 2.0 1.9 1.8 1.8 19.9 16.0 13.3 11.4 9.9 8.8 8.0 7.2 6.6 6.1 5.7 5.3 5.0 4.7 4.5 4.2 4.0 3.8 3.6 3.5 3.3 3.1 3.0 2.9 2.8 2.7 2.6...
- Page 23 These settings are to be used as guides only, it is important you always test the product through the machine to establish the spread width pattern and rate are accurate. Grass Seed - 6 meters FORWARD SPEED km/h 14.2 11.4 30.0 24.0 20.0...
-
Page 24: Parts Diagram
23 FAN JET PRO 65 & 130 Parts diagram (Issue 2 - 09/14) -
Page 25: Parts List
24 FAN JET PRO 65 & 130 Parts list (Page 1) Item Part # Description Quantity Remarks FJ003A Hopper Bracket 65L only FJ005A Hopper Bracket 130L only FJ007D Disc Assembly (2 vane x Ø10 bore) FJ008A M6x6mm Grub Screw FJ015B... - Page 26 25 FAN JET PRO 65 & 130 Parts list (Page 2) Item Part # Description Quantity Remarks MD016 Decal “Quadrant scale” Decal “Serial Number / CE” (not shown) FJ413A Turntable Plate FJ415A Tipping Plate Pin FJ417A Nylon Spacer FJ418A Split Ring FJ419A Ø3 R’...
-
Page 27: Fault Finding
27 Fault Finding Always ensure the machine is switched off and the power supply isolated before carrying out any checks PERSONAL PROTECTION EQUIPMENT It is the responsibility of the operator or maintenance persons handling the machine to ensure the appropriate personal protection equipment is worn for the material being applied or to prevent contamination to the machine or the environment.
