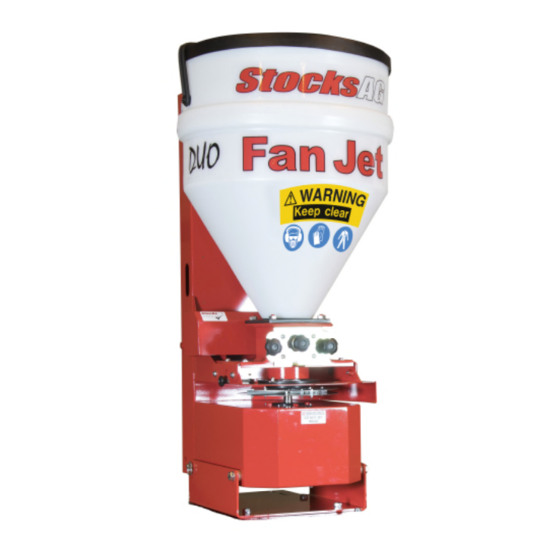

Fan Jet Duo Plus VS-2
65 & 130
Original Operating Manual
and Parts List
Read carefully before installation
and operation
This document must not be copied duplicated or distributed without prior consent .
All and patent rights apply
STOCKS AG LIMITED, CROMWELL ROAD, WISBECH, CAMBRIDGESHIRE, UK.
Tel: 00 44 (0) 1945 464 909 Email: sales@stocks-ag.co.uk www.stocks-ag.co.uk
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Stocks AG Fan Jet Duo Plus VS-2 65
Summary of Contents for Stocks AG Fan Jet Duo Plus VS-2 65
- Page 1 Read carefully before installation and operation This document must not be copied duplicated or distributed without prior consent . All and patent rights apply STOCKS AG LIMITED, CROMWELL ROAD, WISBECH, CAMBRIDGESHIRE, UK. Tel: 00 44 (0) 1945 464 909 Email: sales@stocks-ag.co.uk www.stocks-ag.co.uk...
- Page 2 Index Section Page No. Index General information Technical data Intended use Unintended use Contents of the EC Declaration of Conformity Contents of the UKCA Declaration of Conformity Machine identification Warranty Safety Emergency Stop Instructions Maintenance Safety WARNING decals Clearing a blockage Hopper Removal Storage OPTIONAL Heavy Duty Waterproof Cover...
-
Page 3: General Information
If unsure contact the material supplier for more information. Please contact us if you still have questions regarding the machine operation before use Stocks AG Ltd , Cromwell Road, Wisbech, Cambridgeshire UK Tel: 00 44 (0) 1945 464 909 email: sales@stocks-ag.co.uk... - Page 4 Safety of machinery – Safety distances to prevent hazard zones aaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaabeing reached by the upper and lower limbs. The manufacturer stated above holds the technical file for this machine. Signed on behalf of Stocks Ag Ltd Name: J Woolway Date:...
- Page 5 Safety of machinery – Safety distances to prevent hazard zones aaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaabeing reached by the upper and lower limbs. The manufacturer stated above holds the technical file for this machine. Signed on behalf of Stocks Ag Ltd Name: J Woolway Date:...
-
Page 6: Warranty
5.1 Machine identification The machine serial number decal is mounted on the steel chassis to one side of the hopper 5.2 Warranty We provide a 12 month warranty as of the date of invoice (your invoice for the machine will serve as a warranty certificate). This warranty is applicable for cases of material or construction faults and does not include parts that are damaged by normal or excessive wear. - Page 7 After working the machine ensure that any unused product is returned safely to its original packaging Stocks AG Ltd. does not accept any liability for the storage and use of the material being applied If unsure contact the material supplier for more information.
-
Page 8: Maintenance
7.1 Emergency Stop instructions In the case of an emergency always switch the main power switch to its upper (OFF) position Then power down and isolate the power sup- ply immediately by disconnecting the power cable Main Power On-Off switch Maintenance WARNING Always ensure the power supply is disconnected before... -
Page 9: Safety Warning Decals
8 Safety WARNING decals Important ; Be aware of the safety warnings below which are all relevant to this machine WARNING Read and understand the Operators Manual instructions before operating this machine Operator errors can result in serious injury WARNING Danger due to thrown or flying objects Always maintain a safe distance whilst the machine is in operation... -
Page 10: Hopper Removal
Heavy duty White PVC covers fitted with eyelets and bungie cord for easy attachment available for all machines (see page 16) Please contact your locals Stocks AG dealer for more information 9 .5 Disposal Ensure that any persons handling the machine are aware that the machine may have been used to apply toxic chemicals and so the appropriate personal protection equipment should be worn. - Page 11 Central Beam Assembly NOTE many self propelled sprayer manufacturers offer a suitable bracket or hydraulic raise and lower linkage for this purpose. Locally fabricated mounting frames are not the responsibility of Stocks AG Ltd If unsure seek advise from the parent machine manufacturer or supplier.
- Page 12 11 Optional Base Mounting Kit Part No. FJ-005-TIP (available through your local dealer) Machines are best mounted to our purpose built Central Beams or UTV kits but can also be mounted by using these optional tipping base plate kits. These have 4 holes in the base to take M12 bolts (see below) use these to attach to any support fabrication. e base plate can be repositioned to fit the holes in the back of the machine to attach to a vertical mounting point –...
-
Page 13: Electrical Components
12.1 Electrical Components 1. Cab Control Panel 2. Junction box (mount in central of mounting beam or fix to mounting plate B on the UTV frame) 3. Left hand machine (ACW) disc motor and feed motor power cables 4. Right hand machine (CW) disc motor and feed motor power cables 5. - Page 14 13 VS-2 Control Panel A simple and effective manually operated electric control used to instantly start and stop the feed motor at headlands, and uses a dial control to set the feed motor speed and thus the application rate. It is not linked to forward speed so once calibrated the operator drives at a consistent forward speed to maintain the rate, or can manually increase or decrease application rates on the move using the dial.
- Page 15 14 VS-2 Control Panel Operation STANDBY MODE With both the power and console control cable connected, and all toggle switches in the OFF position, the Fan Jet will be in standby mode, ready for work. The green LED to the right hand side will pulse slowly indicating power connection.
- Page 16 15 Optional GPS Kit Part No. TJ-004-GPS-KIT For best results and to avoid over applying product we recommend the machine is fitted with this optional GPS Kit as this will give speed proportionate metering of pellets, maintaining the pre-set application rate in line with forward speed changes –...
- Page 17 Fitted with eyelets and bungie cord for easy fitting Recommended to be fitted when machines are not in use. Please contact your locals Stocks AG dealer for more information Stocks AG Ltd , Cromwell Road, Wisbech, Cambridgeshire UK Tel: 00 44 (0) 1945 464 909...
-
Page 18: Changing The Feed Rollers
The assembled rolls and spacers should not be under compression. NOTE. You should be able to rotate the feed shaft with your fingers – if it feels excessively tight, check the feed roller and spacer composition is correct as shown above or call Stocks AG for advice. - Page 19 18 Calibration Hopper Supplied as standard with this machine (packed in hopper) Part No. FJ-005-CAL-DUO Fitting Instructions 1. With an empty hopper, remove the feed block assembly from one of the Fan Jets. 2. Slide the Calibration Hopper into the Fan Jet in place of the feed block with the hopper uppermost, ensure the drive shaft aligns and secure with the supplied screw knobs.
- Page 20 19 Calibration (page 1 of 2) Working from the left hand side 1. Set the feed motor ON/OFF toggle switch to the lower ON (I) position 2. Set the LHS/RHS feed motor toggle switch to the low- er RHS OFF position - NOTE - remember to set this switch to the mid position after calibration to turn both feed motors ON for in field work.
- Page 21 20 Calibration (page 2 of 2) NOTE to ensure the maximum spread width is obtained large hard dense slug pellet must be used. Ensure the two spread patterns meet and just overlap in the centre, and reach out each side of centre to give the required total width.
- Page 22 21.1 Spread bias adjustment Ensure the correct Fan Jets are fitted in the correct position – the fixed deflectors fitted to the side of the Fan Jet chassis should be facing inwards towards each other. Ensure the disc rotation is correct, when viewed from behind the Left hand side Fan Jet disc should rotate in a clockwise direction and the Right hand side Fan Jet disc should rotate in an anti-clockwise direction, for clarification see Disc Rotation arrows on the decal.
-
Page 23: Parts Drawing
Parts drawing... -
Page 24: Parts List
Decal “DUO” (not shown) MD042 Decal “Warning” Keep Clear - Wear PPE (not shown) MD052 Decal “Warning” Thrown or Flying objects (not shown) MD002 Decal “STOCKS AG” (not shown) FJ058A-DUO Disc Motor FJ103A-1 Rubber Tensioner FJ104A-1 Bobbin FJ718A Tipping Bracket... - Page 25 24 Parts list (Page 2 of 3) Item Part # Description Remarks GA113D Metering Shaft FJ539A Spacer Plate FJ732A M8 Threaded Rod FJ730A Motor Guard TJ042A Motor Spacer FJ119A Decal (clockwise) FJ119B Decal (anti-clockwise) FJ540B Metering Block Mounting Plate GA103 PVC Bush TJ040 Feed Block Seal...
- Page 26 25 Parts list (Page 3 of 3) Item Part # Description Remarks M12-008 M12 Flat Washer M12-014 M12 Nyloc Nut MM569 Rubber Stop Optional (see page 7) FJ719A Stop Bracket Optional (see page 7) FJ114A Control Panel TJ286 4m Control Cable TJ288 6m Control Extension Cable Optional...
- Page 27 26 OPTIONAL Central Beam Assembly Parts List Assembly Ensure care is taken when lifting and securing the central beam to the parent vehicle and when fitting the machines onto the beam Safe lifting practice to be observed when handling each component 1.
- Page 28 27 Central Beam Assembly Part No. FJ-005-BEAM-600 Parts List Item Part No. Description Qty. Remarks FJ090A Ø114.3 PVC End Cap FJ415D Tipping Plate Pin FJ417A Nylon Spacer FJ418A Split Ring FJ419A 3mm ‘R’ Pin FJ630A Guard Panel Adaptor Plate Kit FJ601B Cost Option (please enquire) (pair of adaptor plates c/w fixings)
- Page 29 OPTIONAL UTV Fitting Kit Part No. FJ-005-UTV (available through your local dealer) Offering a sturdy fitting option with 4 hooked anchor points with hand release fittings our UTV kit is suitable for most common UTV fitments One piece tubular steel construction with detachable machine mounting plates with fixed fork lift point for safe and easy lifting on and off of vehicle.UTV Standard dimensions: 1220mm wide x 900mm deep x 350mm High Will Fit: JD Gator XUV 855M (Bed Size 132cm x 114cm) Polaris Ranger Diesel (Bed Size 137cm x 92cm)
- Page 30 29 Notes page...
